37F1-AB2-AC1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 37F1-AB2-AC1

Preview

37F1-AB2-AC1: DescriptionInput Devices Keypad, Piezo, 3x4, cable and connector, aluminum housing; CategoryTopical application Mechanical and electrical/engineering/automation; File Size340KB，2 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com

Download Datasheet Parametric Compare View All

37F1-AB2-AC1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	37F1-AB2-AC1	-	-	View	Buy Now

37F1-AB2-AC1 Overview

Input Devices Keypad, Piezo, 3x4, cable and connector, aluminum housing

37F1-AB2-AC1 Parametric

Parameter Name	Attribute value
Product Category	Input Devices
Manufacturer	Grayhill
RoHS	Details
Product	Keypads
Features	3 x 4, aluminum housing
Current Rating	2 A
Factory Pack Quantity	1
Voltage Rating	24 V

Preview

Download Datasheet

View All

Piezo Keypads

SerieS 37F

Piezo Keypads

FeATUreS

• Fully Sealed

• Virtually Indestructible

• Vandal Resistant

• Indoor and Outdoor Use

Keyboards and Keypads

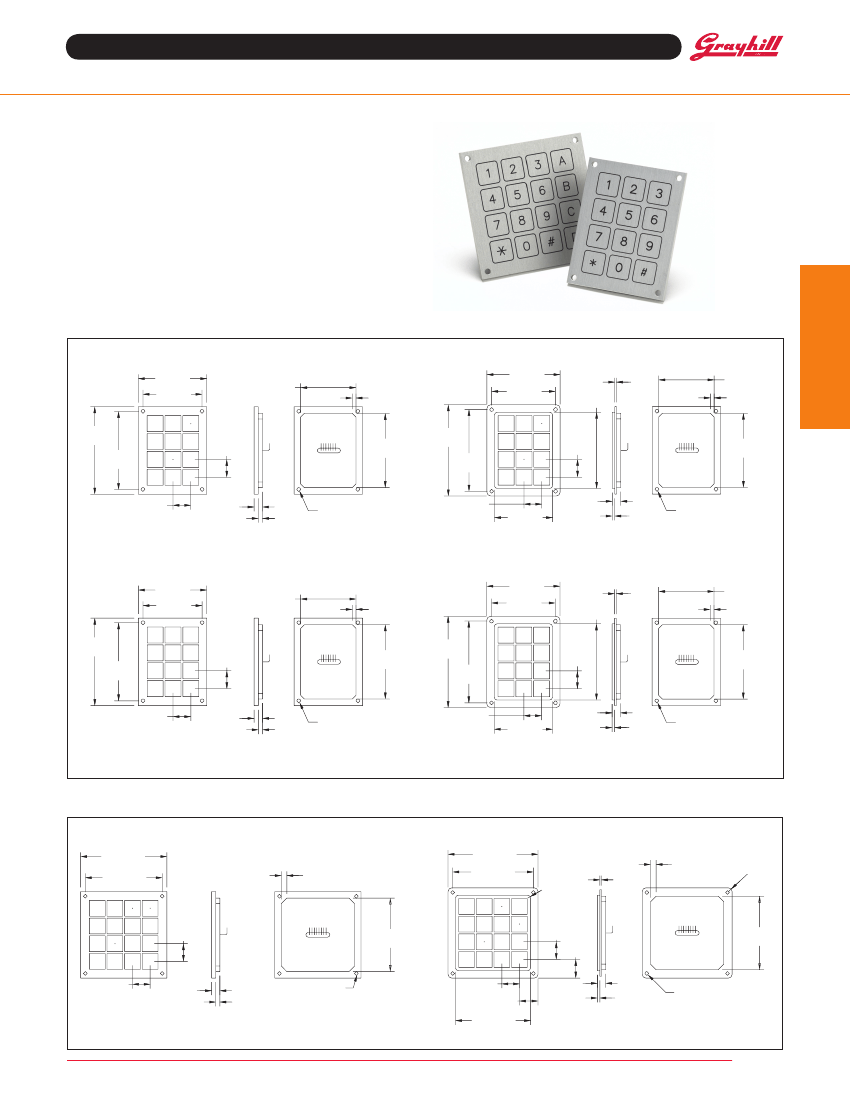

DImenSIOnS

in inches (and millimeters)

3x4 Keypad

2.874

(73,00)

2.480

(63,00)

2.323

(59,00)

.158 X 45

(4,00 X 45)

3.071

(78,00)

2.677

(68,00)

3.189

(81,00)

.071

(1,8)

2.323

(59,00)

.158 X 45

(4,00 X 45)

3.661

(93,00)

3.268

(83,00)

1

4

7

*

.748

(19,00)

2

5

8

0

3

6

9

#

.354

(9,00)

.165 DIA.

(4.2 DIA.)

.748

(19,00)

R1

C3

3.110

(79,00)

3.819

(97,00)

3.425

(87,00)

1

4

7

*

2

5

8

0

3

6

9

#

.354

(9,00)

.165 DIA.

(4.2 DIA.)

.748

(19,00)

R1

C3

3.110

(79,00)

.177

(4,50)

.748

(19,00)

2.441

(62,00)

.106

(2,7)

FRONT MOUNT OPT- #1

REAR MOUNT OPT- #3

2.874

(73,00)

2.480

(63,00)

2.323

(59,00)

.158 X 45

(4,00 X 45)

3.071

(78,00)

2.677

(68,00)

3.189

(81,00)

.071

(1,8)

2.323

(59,00)

.158 X 45

(4,00 X 45)

4

1

7

1

7

3.661

(93,00)

3.268

(83,00)

.748

(19,00)

R1

C3

3.110

(79,00)

3.819

(97,00)

3.425

(87,00)

.748

(19,00)

2

5

2

3

#

5

6

0

8

.748

(19,00)

DImenSIOnS

in inches (and millimeters)

4X4 Keypad

3.661 SQ.

3.268 SQ.

.236 X 45

(6,00 X 45)

3.819 SQ.

(97,00)

3.425 SQ.

(87,00)

.236 X 45

(6,00 X 45)

.158 R.

(4,00 R.)

8

9

*

R1

C3

3.110

(79,00)

3

#

6

0

9

*

.354

(9,00)

.177

(4,50)

.165 DIA.

(4.2 DIA.)

.748

(19,00)

.354

(9,00)

2.441

(62,00)

.106

(2,7)

.165 DIA.

(4.2 DIA.)

FRONT MOUNT OPT- #2

REAR MOUNT OPT- #4

.118 R.

(3,00 R.)

.071

(1,8)

1

4

7

*

2

5

8

0

.748

(19,00)

3

6

9

#

A

B

C

D

.354

(9,00)

Ø.165

(Ø4,2)

.748

(19,00)

R1

C4

1

4

3.110 SQ.

(79,00)

2

5

8

0

.748

(19,00)

3

6

9

#

A

B

C

D

.748

(19,00)

.787

(20,0)

R1

C4

7

*

3.110 SQ.

(79,00)

.354

(9,00)

.788

(20,0)

.177

(4,50)

.106

(2,7)

Ø.165

(Ø4,2)

FRONT MOUNT OPT- #1

3.189 SQ.

(81,00)

REAR MOUNT OPT- #3

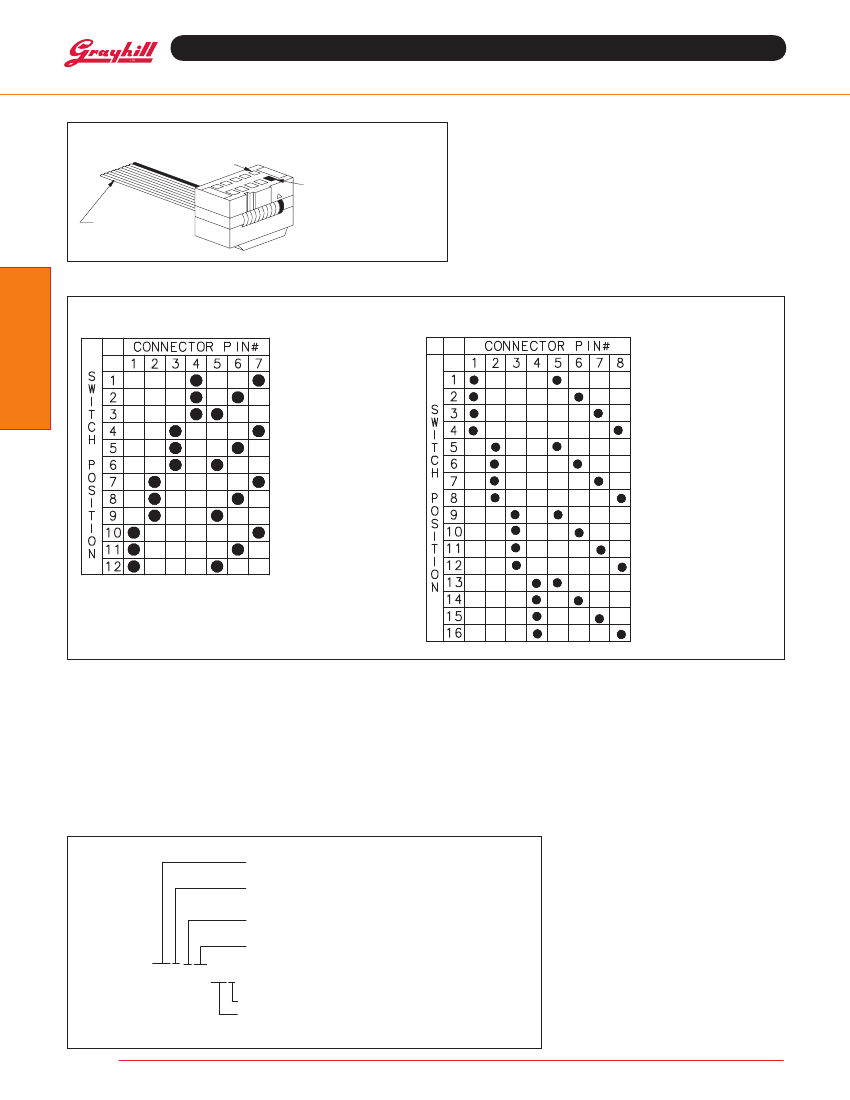

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

37F1-AB2-AC1 Related Products

	37F1-AB2-AC1	37F1-BB2-AP1	37F3-AB2-AP2	37F1-BB2-AC2	37F3-BB2-AP1
Description	Input Devices Keypad, Piezo, 3x4, cable and connector, aluminum housing	Input Devices Keypad, Piezo, 4x4, terminal pins, aluminum housing	Input Devices Keypad, Piezo, 3x4, terminal pins, stainless steel housing	Input Devices Keypad, Piezo, 4x4, cable and connector, stainless steel housing	Input Devices Keypad, Piezo, 4x4, terminal pins, aluminum housing
Product Category	Input Devices	Input Devices	Input Devices	Input Devices	Input Devices
Manufacturer	Grayhill	Grayhill	Grayhill	Grayhill	Grayhill
RoHS	Details	Details	Details	Details	Details
Product	Keypads	Keypads	Keypads	Keypads	Keypads
Features	3 x 4, aluminum housing	4 x 4, aluminum housing	4 x 4, stainless steel housing	4 x 4, stainless steel housing	4 x 4, stainless steel housing
Current Rating	2 A	2 A	2 A	2 A	2 A
Factory Pack Quantity	1	1	1	1	1
Voltage Rating	24 V	24 V	24 V	24 V	24 V
