80804009 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 80804009

80804009: DescriptionAC, DC u0026 Servo Motors 17W 24VDC 325/3:1 ST; CategoryTopical application Mechanical and electrical/engineering/automation; File Size151KB，3 Pages; ManufacturerCrouzet

Download Datasheet Parametric View All

80804009 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	80804009	-	-	View	Buy Now

80804009 Overview

AC, DC u0026 Servo Motors 17W 24VDC 325/3:1 ST

80804009 Parametric

Parameter Name	Attribute value
Product Category	AC, DC & Servo Motors
Manufacturer	Crouzet
RoHS	Details
Factory Pack Quantity	1
Unit Weight	1.500 lbs

Preview

Download Datasheet

View All

02/11/2015

www.crouzet.com

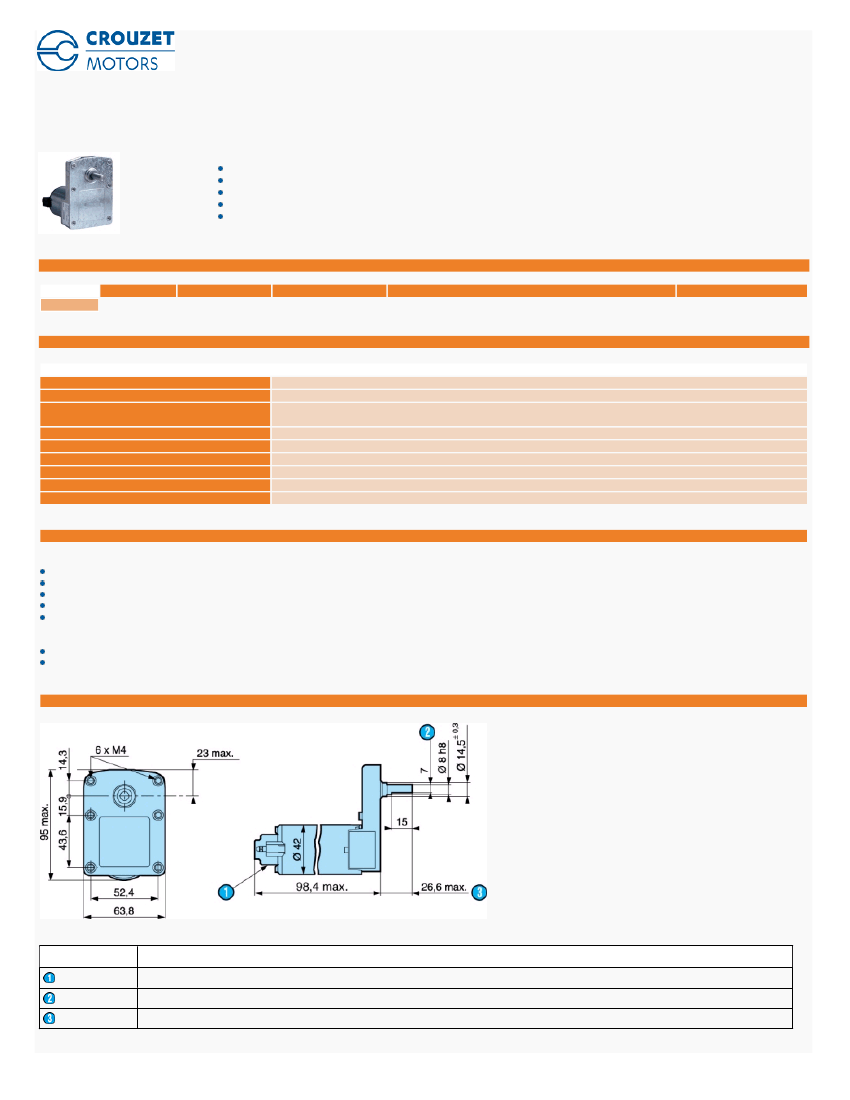

2 Nm RE2 10 and 17 Watts 17 W Part number made to order

Torque rating of gearboxes : 2 Nm, metal gears

Motors : nominal power 9 W and 15 W

Speed range : 1 to 40 rpm

Cyclic operation only

Replaceable brushes

Part numbers

Type

80804009

17 W

Type

808040

Voltage

24 V

Output speed (rpm)

Ratios (i)

325/3

Specifications

General characteristics

Motor

Gearbox

Maximum permitted torque from gearmotor under

continuous conditions for 1 million turns (Nm)

Axial load dynamic (daN)

Radial load dynamic (daN)

Max. output power (W)

Nominal output (W)

Gearbox case temperature rise (°C)

Weight (g)

828000

810440

15,6

670

Made to order products, available on request

Motors :

. Special interference suppression

Other supply voltages

Motor with 1 ball bearing

Shaft lengths at front and/or rear

1 or 5 pulses/revolution magnetic encoder

Other fixing flanges on front

Gearboxes :

Special greasing

Other reduction ratios

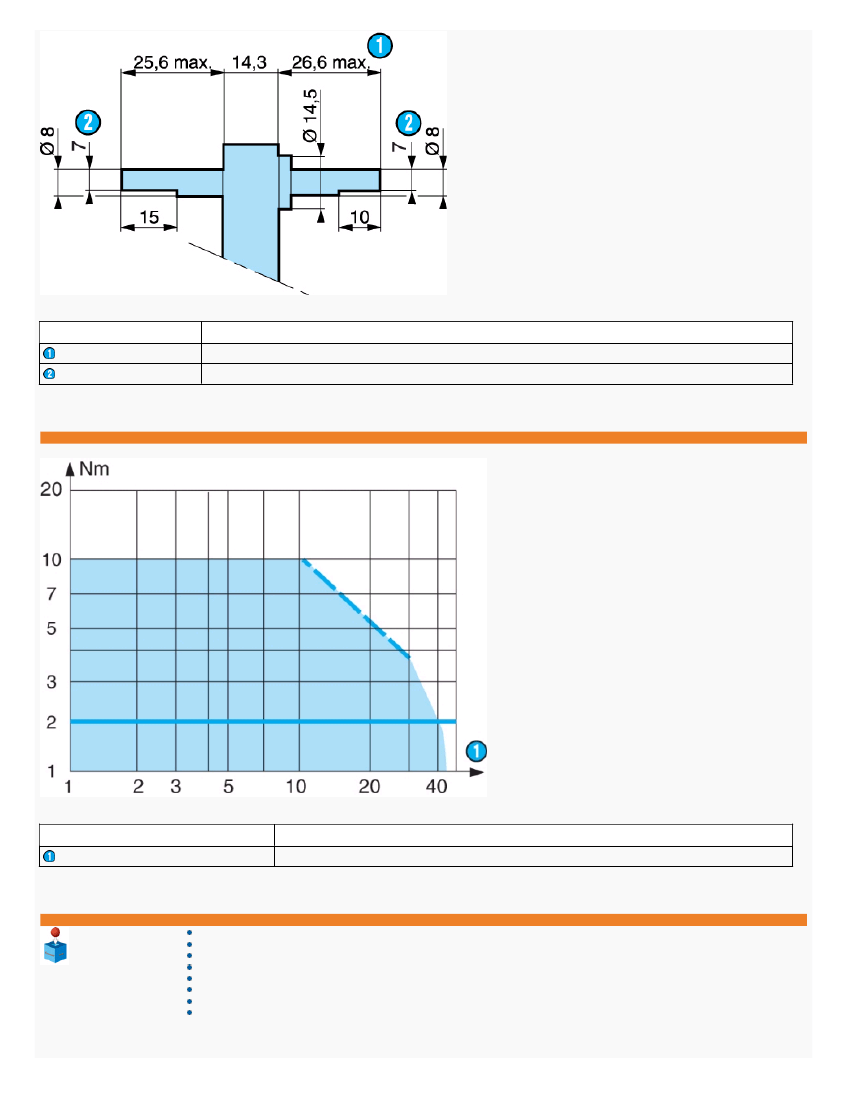

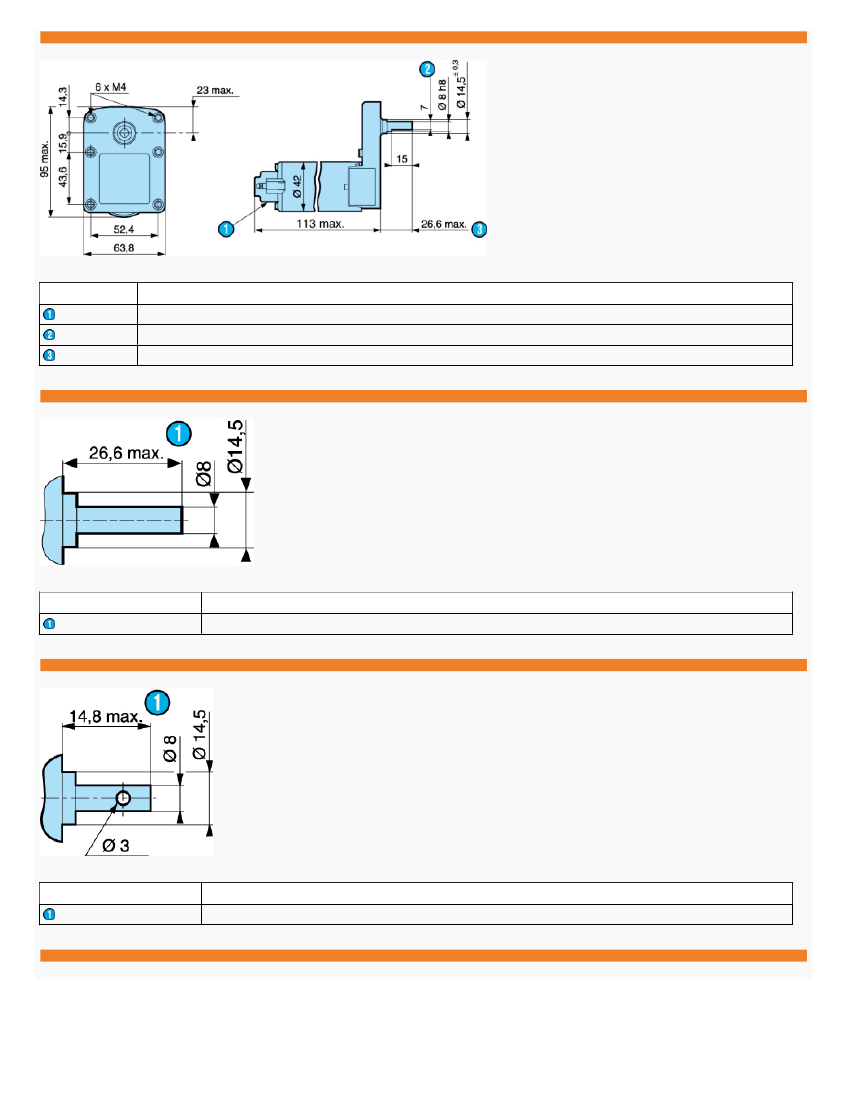

Dimensions (mm)

808040 standard

Legend

2 tags IEC 760, series 4.8 x 0.5

7 across flats

Shaft pushed-in

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
