MINIATURE
E Series

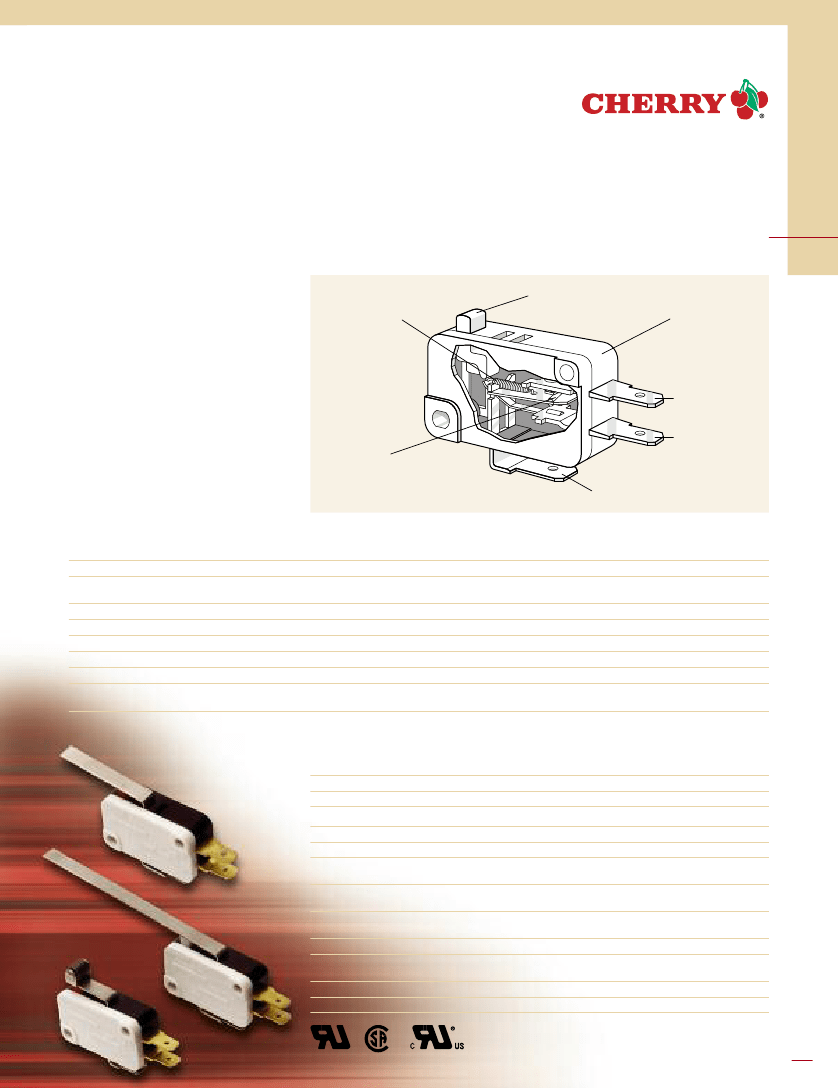

Features
8 current ratings AC
3 current ratings DC
Choice of actuator styles
Choice of terminals
3 contact arrangements
Long-life coil spring mechanism
Agency approved extended life versions
High-temperature versions available
Silver alloy or
gold crosspoint
contacts
Common terminal
NO terminal
NC terminal
Stainless steel spring
Thermoplastic
actuating button
Phenolic case
Electrical Ratings
Switch
Series
EN61058 Rating
UL1054 Rating
Electrical Life at Rated Load
According to VDE
According to UL
(Min. Operations)
(Min. Operations)
E21
E22
E23
E31
E33
E34
E35
E36
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
0.1A, 125VAC
(0.25A, 30VDC optional)
3A, 125/250VAC
1/10HP, 250VAC
(0.1A, 125VDC optional)
5A, 1/4HP, 125/250VAC
1A, 125VAC
10A, 1/2HP, 125/250VAC
(6A, 30VDC optional)
15A, 1/2HP, 125/250VAC
20.1A, 1/2HP, 125/250VAC
25A, 125/250VAC; 1HP, 125VAC
2HP, 250VAC
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
6,000**
6,000
6,000
6,000
6,000**
6,000*
6,000
6,000
*Indicates 100K life available for AC version only.
**Indicates 100K life available for AC and DC versions.
Specifications
Electrical
Temperature Rating:
Flammability Rating:
Materials
-40° to +85°C
(130°C and 150°C optional, except E36)
UL94HB
General Purpose Phenolic
Thermoplastic Acetal
Silver-Plated Brass
(E21, E22, E23, E31, E33, E34, E35)
Silver-Plated Copper
(E36)
Brass
(E21, E22, E23, E31, E33, E34, E35)
Copper
(E36)
Brass
(E21, E22, E23)
Silver-Plated Beryllium Copper
(E31, E33, E34, E35, E36)
Stainless Steel
Cold-Rolled Steel (Nickel-Plated)
(except E21 and E22 — Aluminum)
Sintered Stainless Steel
Silver Alloy
(except E21 and E31 — Gold Crosspoint)
Case:
Actuating Button:
Common Terminals:
NO & NC Terminals:
Moving Blade:
Spring:
Auxiliary Actuator:
Roller:
Contacts:
(E34 and E35 only)
37

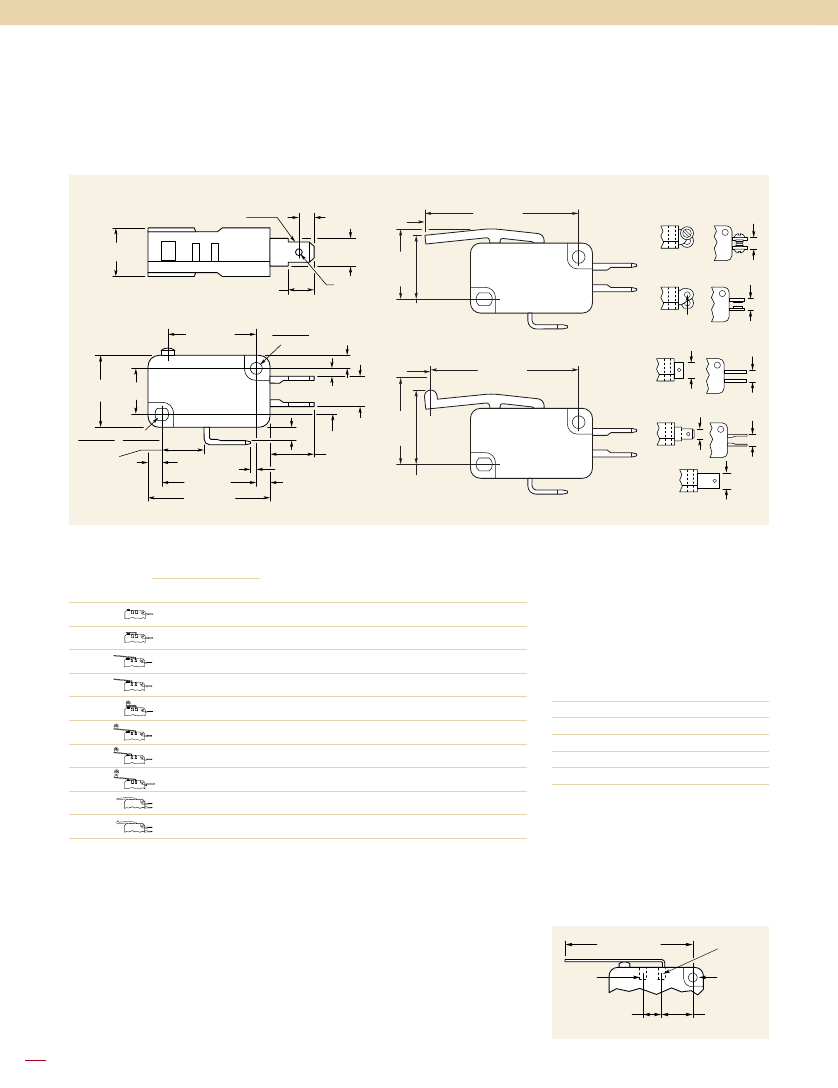

Dimensions
— Standard Force
inches (mm)
Part Number Suffix –50N
0.020 (0.51) Thk x 0.187 (4.75) Wide
Q.C. Terminal
0.406
+
0.015
-
(10.31
+
0.38)
-
0.125
(3.16)
0.250
(6.35)
Actuation
Line
1.382
+
0.031
-
(35.10
+
0.79)
-
Terminals
Screw
0.234 (5.94)
N.C.
N.O.
0.250
(6.35)
0.050
(1.27)
Dia.
0.750
(19.05)
Max.
Rest
0.600
+
0.045
-
(15.24
+
1.14)
-
Operating Position
N.C.
N.O.
Solder
0.234 (5.94)
N.C.
N.O.
COM
0.797
+
0.010
-
(20.24
+
0.25)
-
0.110 (2.79)
Dia.
0.122 (3.10)
0.110
(2.79)
0.099 (2.51)
Dia. Hole
Part Number Suffix –90N
Actuation
Line
1.289
+
0.031
-
(32.74
+
0.79)
-
Short Solder
0.234 (5.94)
N.C.
N.O.
0.625
+
0.015 0.406
-
(15.88
+
0.38) (10.31)
-
COM
0.110 (2.79) x 0.120 (3.05)
0.122 (3.10) 0.132 (3.35)
0.465 (11.81)
0.110 (2.79)
0.875 (22.23)
1.093
+
0.015
-
(27.76
+
0.38)
-
N.C.
N.O.
0.087
(2.21)
0.234
(5.94)
0.960
(24.38)
Max.
Rest
0.240 (6.10)
Q.C.
0.106 (2.69)
Reference Line
0.234 (5.94)
N.C.
N.O.
COM
N.C.
N.O.
0.397
+
0.015
-
+
0.035
+
0.020 (10.08
-
0.38)
-
(0.89
+
0.51)
-
0.109
(2.77)
0.187 (4.75)
0.786
+
0.045
-
(19.96
+
1.14)
-
Operating Position
0.250 (6.35)
Actuator Specifications
— Standard Force
Actuator
Type
Max. Operating Force
(gms.)
Maximum
Pre-Travel
Switch
E21,
E23,
inches
Type
E22
E31
E33
E34
(mm)
Operating
Point*
inches
(mm)
Minimum Max. Movement Actuation
Over-Travel
Differential
Length**
inches
inches
inches
(mm)
(mm)
(mm)
Terminals
— Standard Force
Choice of screw, solder or two quick
connect terminals.
Note: 0.187″ Quick Connect terminals are
standard. Normally, to order screw terminals
add 10 to suffix number. To order solder
terminals add 20 to suffix number and to
order 0.250″ Q.C. terminals add 40 to
suffix number.
Terminal
SPDT
SPST NO
SPST NC
–00A
–00H
–50H
–50HL
–00K
–50K
–50KL
–50P
–50N
†
–90N
†
75
75
35
20
75
35
25
35
35
35
170
170
86
51
170
86
51
86
86
86
285
285
144
86
285
144
86
144
144
144
400
400
200
120
400
200
120
200
200
200
0.047
(1.19)
0.062
(1.57)
0.125
(3.18)
0.220
(5.59)
0.047
(1.19)
0.125
(3.18)
0.200
(5.08)
0.125
(3.18)
0.175
(4.45)
0.125
(3.18)
0.578±0.020
(14.68±0.51)
0.600±0.020
(15.24±0.51)
0.600±0.045
(15.24±1.14)
0.600±0.075
(15.24±1.91)
0.806±0.030
(20.47±0.76)
0.806±0.045
(20.47±1.14)
0.806±0.075
(20.47±1.91)
1.045±0.045
(26.54±1.14)
0.600±0.045
(15.24±1.14)
0.793±0.058
(20.14±1.47)
0.050
(1.27)
0.050
(1.27)
0.085
(2.16)
0.130
(3.30)
0.040
(1.02)
0.085
(2.16)
0.120
(3.05)
0.085
(2.16)
0.065
(1.65)
0.085
(2.16)
0.010
(0.25)
0.016
(0.41)
0.030
(0.76)
0.040
(1.02)
0.010
(0.25)
0.030
(0.76)
0.040
(1.02)
0.030
(0.76)
0.030
(0.76)
0.030
(0.76)
—
—
0.865
(21.97)
1.400
(35.56)
1.580
(40.13)
0.810
(20.57)
1.340
(34.04)
1.516
(38.51)
1.340
(34.04)
1.382
(35.10)
1.289
(32.74)
QC 0.187″
Screw
Solder
Short Solder
QC 0.250″
–00A
–10A
–20A
–30A
–40A
–01A
–11A
–21A
–31A
–41A
–02A
–12A
–22A
–32A
–42A
Actuators
— Standard Force
Many special forms and lengths of actuators
are available. Standard type integral hinged
lever and roller actuators are available in
choice of 2 mounting positions. Actuation
lengths are dimensioned from centerline of
switch mounting hole as shown.
*Measured above reference line. Refer to dimensional drawing above. **Actuator tolerance ± 0.031 inches (0.79mm).
†
Only available with 85°C temperature rating.
Note: E35 and E36 not available in standard force. See Miniature E Series Light Force for ordering information. Suffix numbers shown represent
switch with 0.187″ (4.75mm) terminals.
Mounting
— Standard Force
Recommended mounting screw size:
#4-40 round head. Recommended torque
on screw: 3 inch lbs. max.
Circuitry
— Standard Force
Contact arrangement available in choice of
single pole double throw or single pole sin-
gle throw, either normally open or normally
closed. In general normally open may be
specified by changing suffix number from
00 to 01 and normally closed by changing
suffix number to 02.
Actuation Length
Standard
Ratio
Switch
Mounting
Hole
0.355 (9.02)
Ordering Information
Select the current rating you need.
Combine the corresponding Series/Prefix
number with the appropriate suffix number
for the switch type, circuitry and terminals
you require.
38
Specifications subject to change without notice.
High
Ratio
0.177 (4.50)

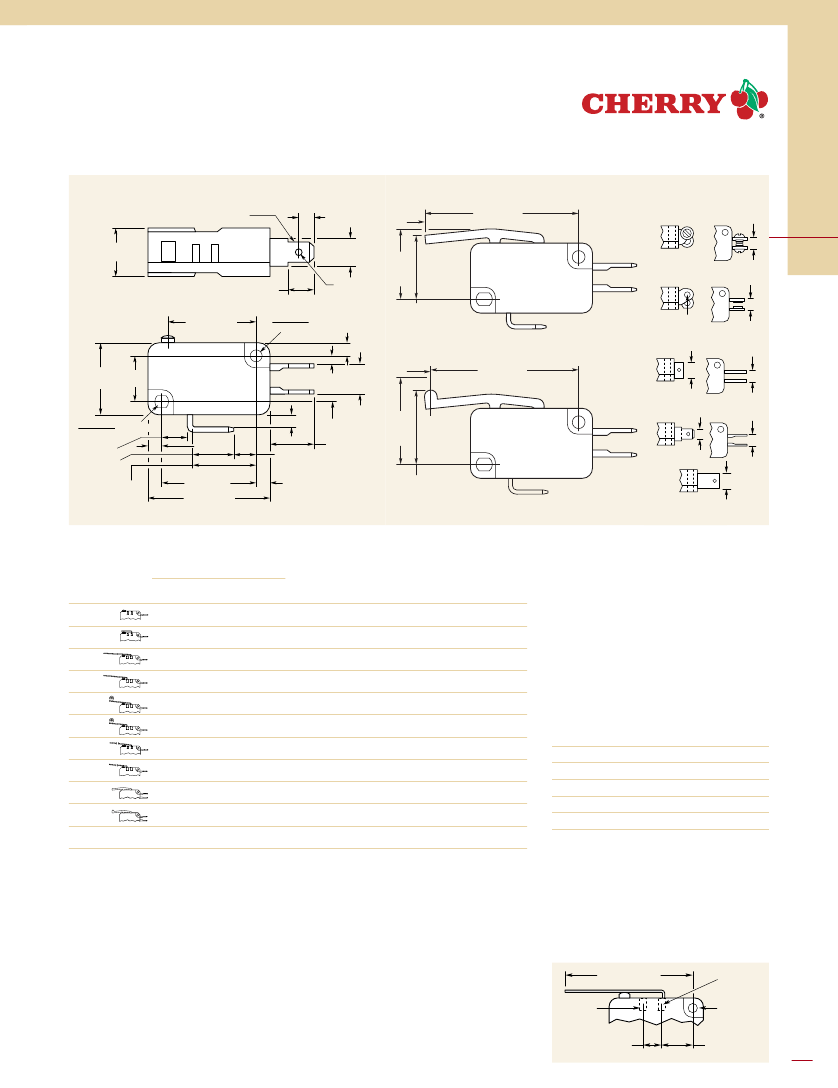

Dimensions
— Light Force
inches (mm)
Part Number Suffix –50NX
0.020 (0.51) Thk x 0.187 (4.75) Wide
Q.C. Terminal
0.406
+
0.015
-
(10.31
+
0.38)
-
0.125
(3.16)
0.250
(6.35)
Actuation
Line
1.382
+
0.031
-
(35.10
+
0.79)
-
Terminals
Screw
0.234 (5.94)
N.C.
N.O.
0.250
(6.35)
0.797
+
0.010
-
(20.24
+
0.25)
-
0.113 (2.87)
Dia.
0.116 (2.95)
0.050
(1.27)
Dia.
0.109
(2.77)
0.750
(19.05)
Max.
Rest
0.600
+
0.045
-
(15.24
+
1.14)
-
Operating Position
N.C.
N.O.
Solder
0.234 (5.94)
N.C.
N.O.
COM
0.099 (2.51)
Dia. Hole
Part Number Suffix –90NX
0.625
+
0.015 0.406
-
(15.88
+
0.38) (10.31)
-
COM
0.112 (2.85)
x 0.126 (3.20)
0.116 (2.95)
0.291 (7.39)
0.343
+
0.015
-
(8.71
+
0.38)
-
0.550
+
0.015
-
(13.97
+
0.38)
-
0.875 (22.23)
1.093
+
0.015
-
(27.76
+
0.38)
-
0.109 (2.77)
0.106 (2.69)
Reference Line
0.960
(24.38)
Max.
Rest
N.C.
N.O.
0.234
(5.94)
Actuation
Line
1.289
+
0.031
-
(32.74
+
0.79)
-
Short Solder
0.234 (5.94)
N.C.
N.O.
0.087
(2.21)
0.240 (6.10)
Q.C.
0.234 (5.94)
0.397
+
0.015
-
+
0.207
+
0.015 (10.08
-
0.38)
-
+
0.38)
(5.27
-
0.109
(2.77)
N.C.
N.O.
COM
N.C.
N.O.
0.187 (4.75)
0.786
+
0.045
-
(19.96
+
1.14)
-
Operating Position
0.250 (6.35)
Actuator Specifications
— Light Force
Max. Operating Force
(gms.)
Actuator
Type
Switch
Type
E21,
E22
E23,
E31
E33
E34
E35
Maximum
Pre-Travel
inches
E36
(mm)
Operating
Point*
inches
(mm)
Maximum
Minimum Movement Actuation
Over-Travel Differential Length**
inches
inches
inches
(mm)
(mm)
(mm)
Terminals
— Light Force
Choice of screw, solder or two quick
connect terminals.
Note: 0.187″ Quick Connect terminals are
standard. Normally, to order screw terminals
add 10 to suffix number. To order solder
terminals add 20 to suffix number and to
order 0.250″ Q.C. terminals add 40 to
suffix number.
Exception: When ordering –55HX, –75HX,
–75KX or –85HX switches with screw, solder
or 0.250″ terminals, consult factory.
Terminal
SPDT
SPST NO
SPST NC
–00AX
–00HX
–50HX
–75HX
–50KX
–75KX
–55HX
–85HX
–50NX
†
15
15
8
5
8
5
4
2
8
8
—
45
45
22
14
22
14
10
6
22
22
—
75
75
37
22
37
22
17
10
37
37
—
100
100
50
30
50
30
22
13
50
50
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
65 112
65 112
120 220
–90NX
†
–40AX
0.047
(1.19)
0.062
(1.57)
0.125
(3.18)
0.220
(5.59)
0.125
(3.18)
0.200
(5.08)
0.300
(7.62)
0.500
(12.70)
0.175
(4.45)
0.125
(3.18)
0.070
(1.78)
0.578±0.020
(14.68±0.51)
0.600±0.020
(15.24±0.51)
0.600±0.045
(15.24±1.14)
0.600±0.075
(15.24±1.91)
0.806±0.045
(20.47±1.14)
0.806±0.075
(20.47±1.91)
0.600±0.100
(15.24±2.54)
0.600±0.175
(15.24±4.45)
0.600±0.045
(15.24±1.14)
0.793±0.058
(20.14±1.47)
0.557±0.020
(14.15±0.51)
0.050
(1.27)
0.050
(1.27)
0.085
(2.16)
0.130
(3.30)
0.085
(2.16)
0.120
(3.05)
0.187
(4.75)
0.312
(7.92)
0.065
(1.65)
0.085
(2.16)
0.035
(0.89)
0.010
(0.25)
0.016
(0.41)
0.030
(0.76)
0.040
(1.02)
0.030
(0.76)
0.040
(1.02)
0.065
(1.65)
0.100
(2.54)
0.030
(0.76)
0.030
(0.76)
0.010
(0.25)
—
—
0.865
(21.97)
1.400
(35.56)
1.580
(40.13)
1.340
(34.04)
1.516
(38.51)
2.757
(70.03)
2.932
(74.47)
1.382
(35.10)
1.289
(32.74)
—
—
QC 0.187″
Screw
–00AX
–10AX
–01AX
–11AX
–21AX
–31AX
–41AX
–02AX
–12AX
–22AX
–32AX
–42AX
Solder
–20AX
Short Solder –30AX
QC 0.250″
–40AX
*E35 and E36 only available with 0.250″ (6.35) terminals.
*Measured above reference line. Refer to dimensional drawing above. **Actuator tolerance ±0.031 inches (0.79mm).
†
Only available with 85°C temperature rating.
Note: Suffix numbers shown represent switch with 0.187″ (4.75mm) terminals.
Actuators
— Light Force
Many special forms and lengths of actuators
are available. Standard type integral hinged
lever and roller actuators are available in
choice of 2 mounting positions. Actuation
lengths are dimensioned from centerline of
switch mounting hole as shown.
Actuation Length
Standard
Ratio
Switch
Mounting
Hole
0.355 (9.02)
Mounting
— Light Force
Recommended mounting screw size:
#4-40 round head. Recommended torque
on screw: 3 inch lbs. max.
Circuitry
— Light Force
Contact arrangement available in choice of
single pole double throw or single pole sin-
gle throw, either normally open or normally
closed. In general normally open may be
specified by changing suffix number from
00 to 01 and normally closed by changing
suffix number to 02.
Ordering Information
Select the current rating you need.
Combine the corresponding Series/Prefix
number with the appropriate suffix number
for the switch type, circuitry and terminals
you require.
Specifications subject to change without notice.
High
Ratio
0.177 (4.50)
39
京公网安备 11010802033920号
EEWORLD
