16-711C4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 16-711C4

16-711C4: DescriptionRelay Sockets u0026 Hardware DIN Rail Mounting Adapter for 711 Rlys; CategoryTopical application Mechanical and electrical/engineering/automation; File Size431KB，4 Pages; ManufacturerSCHNEIDER ELECTRIC

Download Datasheet Parametric View All

16-711C4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	16-711C4	-	-	View	Buy Now

16-711C4 Overview

Relay Sockets u0026 Hardware DIN Rail Mounting Adapter for 711 Rlys

16-711C4 Parametric

Parameter Name	Attribute value
Product Category	Relay Sockets & Hardware
Manufacturer	SCHNEIDER ELECTRIC
RoHS	Details
Accessory Type	Adapter
Associated Relay Series	711, 712
Factory Pack Quantity	10

Preview

Download Datasheet

View All

Relay Adapters

DIN Rail Adapters

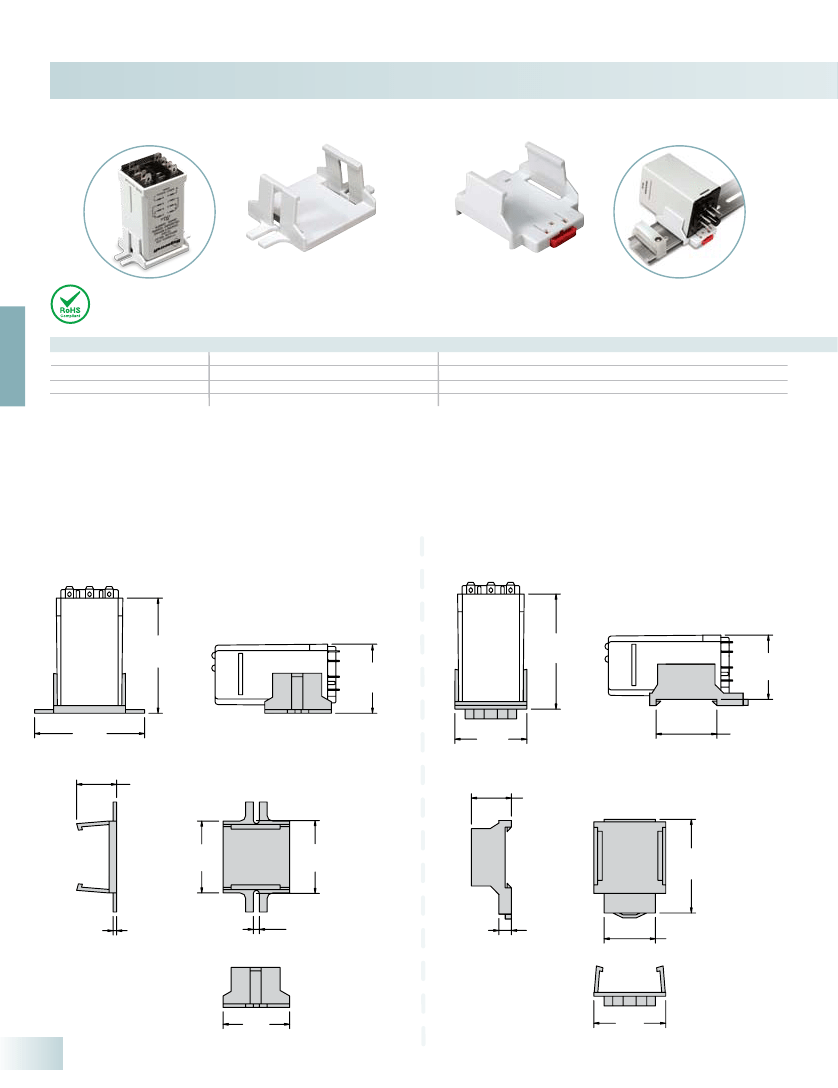

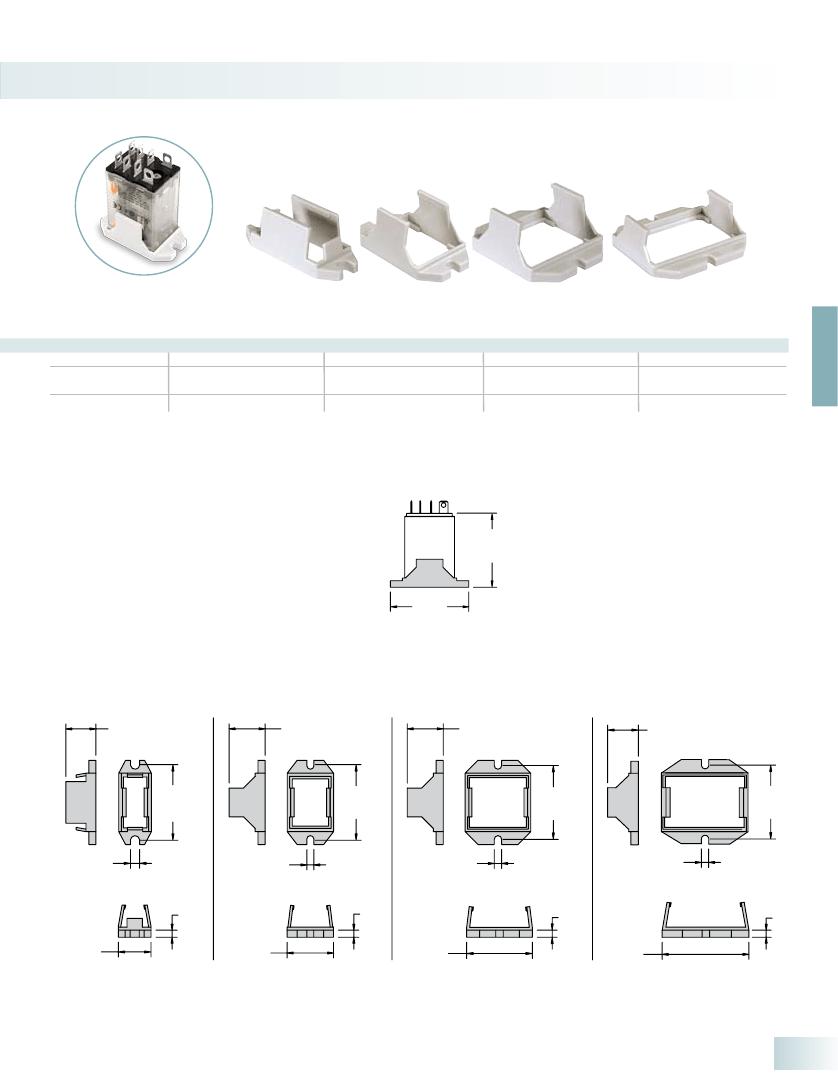

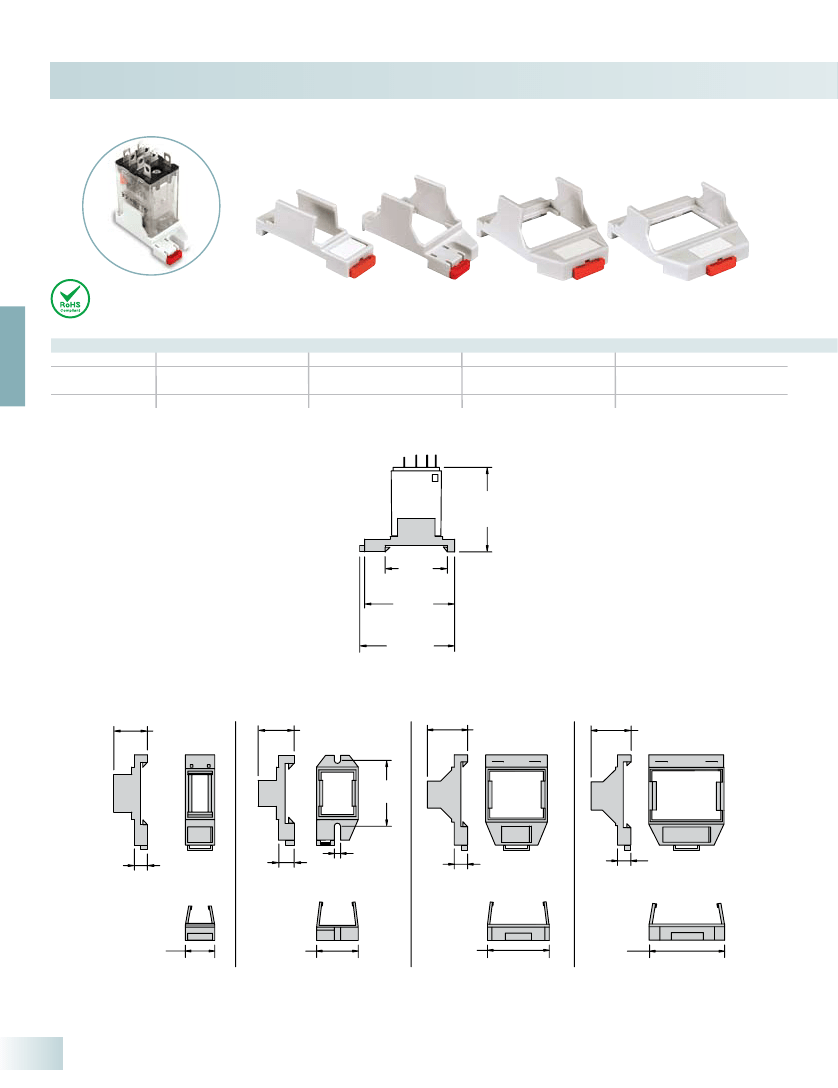

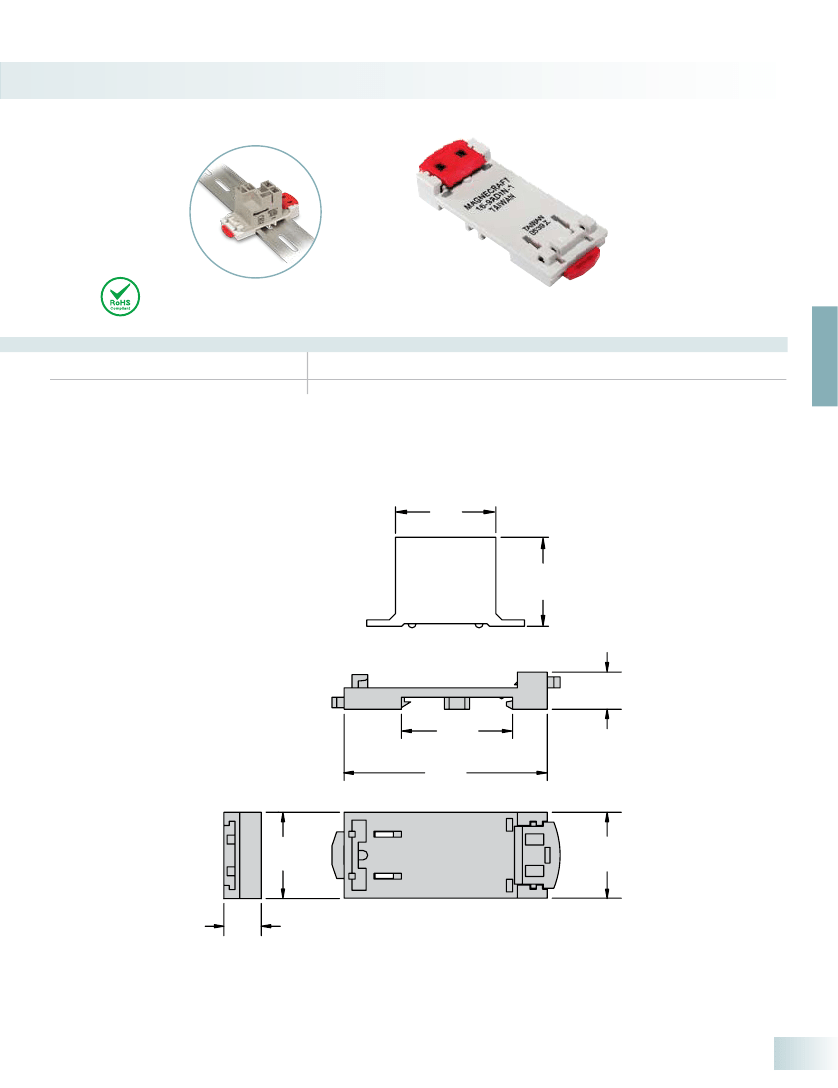

SECTION 3

Characteristics

Package Style

Function

Mating Relays

Mount Relay Directly to

DIN Rail

781XAX

(Sec. 1, p.10-11)

16-781C

Mount Relay Directly to

DIN Rail

All 782s

(Sec. 1, p.12-18)

16-782C

Mount Relay Directly to

DIN Rail

783XCX

(Sec. 1, p.19-20)

16-783C

781C

Mount Relay Directly to

DIN Rail

784XDX

(Sec. 1, p.20-22)

16-784C

782C

.87

(22.2)

Relay DIN Adapters

There is No Need to

Purchase a Socket.

•

DIN mounting.

Plastic construction.

Light weight.

Low cost.

Low profile.

Write-On label.

Narrow mounting.

Easy termination.

781C

782C

.76

(19.2)

1.84

(46.7) MAX

1.39

(35.2)

1.97

(50) MAX

2.06

(52.2) MAX

(7.6)

DIN Rail Adapters

allow the 700 Series

relays to be direct

.24

.30

mounted on a DIN rail.

1.5

(38)

(6.1)

.15

(3.9)

16-781C

.76

(19.2)

1.84

(46.7) MAX

16-782C

.87

(22.2)

16-783C

.87

(22.2)

783C

.67

(17)

784C

16-784C

.93

(23.7)

.77

(19.6)

1.5

(38)

.30

(7.6)

.24

(6.1)

.15

(3.9)

.29

(7.4)

.29

(7.4)

.67

(17)

.93

(23.7)

1.32

(33.5)

1.72

(43.6)

3/14
