34EWMSP32M6RT: DescriptionToggle Switches Toggle Switch, Surface Mount, sealed, SPDT, ON-OFF-ON, gull wing mount, non-threaded, RoHS Compliant; CategoryMechanical and electronic products switch; File Size313KB，4 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric Compare View All

34EWMSP32M6RT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	34EWMSP32M6RT	-	-	View	Buy Now

34EWMSP32M6RT Overview

Toggle Switches Toggle Switch, Surface Mount, sealed, SPDT, ON-OFF-ON, gull wing mount, non-threaded, RoHS Compliant

34EWMSP32M6RT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks
body width	8.13 mm
body height	5.08 mm
Contact (AC) maximum rated R load	.02A@20VAC
Maximum contact current (AC)	0.02 A
Maximum contact current (DC)	0.02 A
Contact (DC) maximum rated R load	.02A@20VDC
Maximum contact voltage (AC)	20 V
Maximum contact voltage (DC)	20 V
Electrical life	30000 Cycle(s)
JESD-609 code	e4
Installation features	SURFACE MOUNT-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
method of packing	TAPE AND REEL
seal	EPOXY TERMINAL SEALED; IP67
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	TOGGLE SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

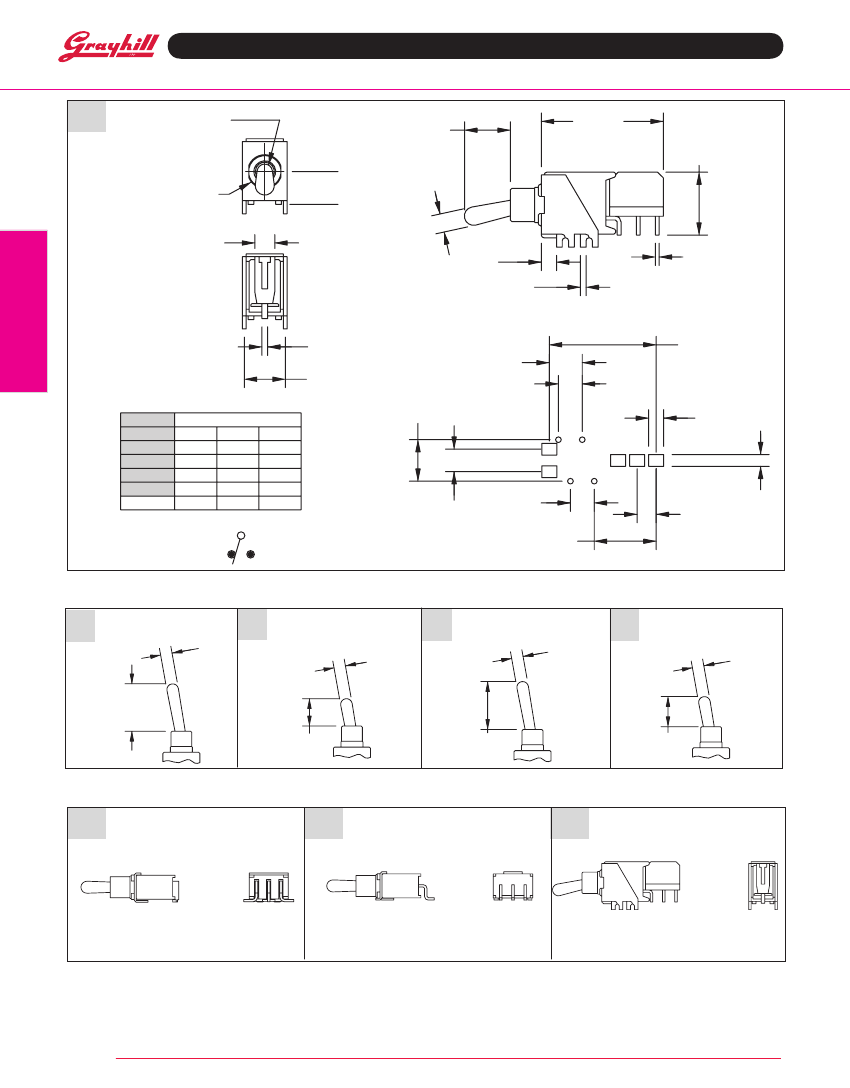

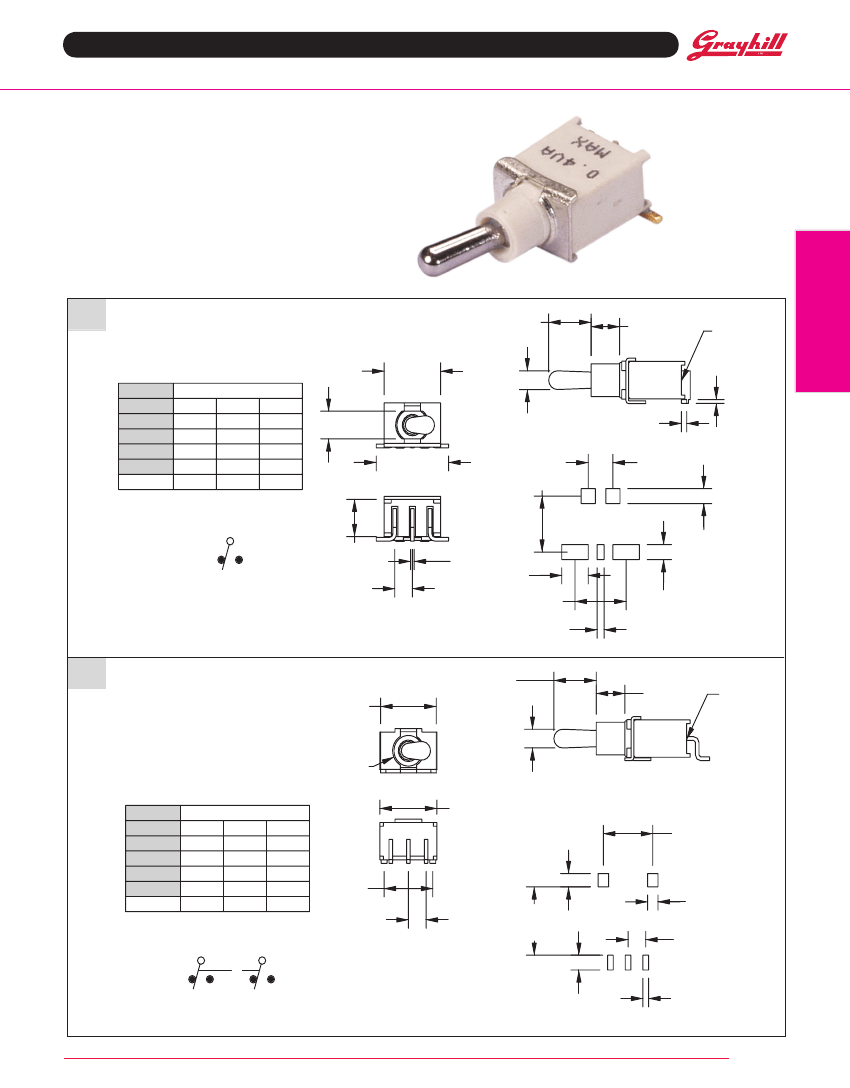

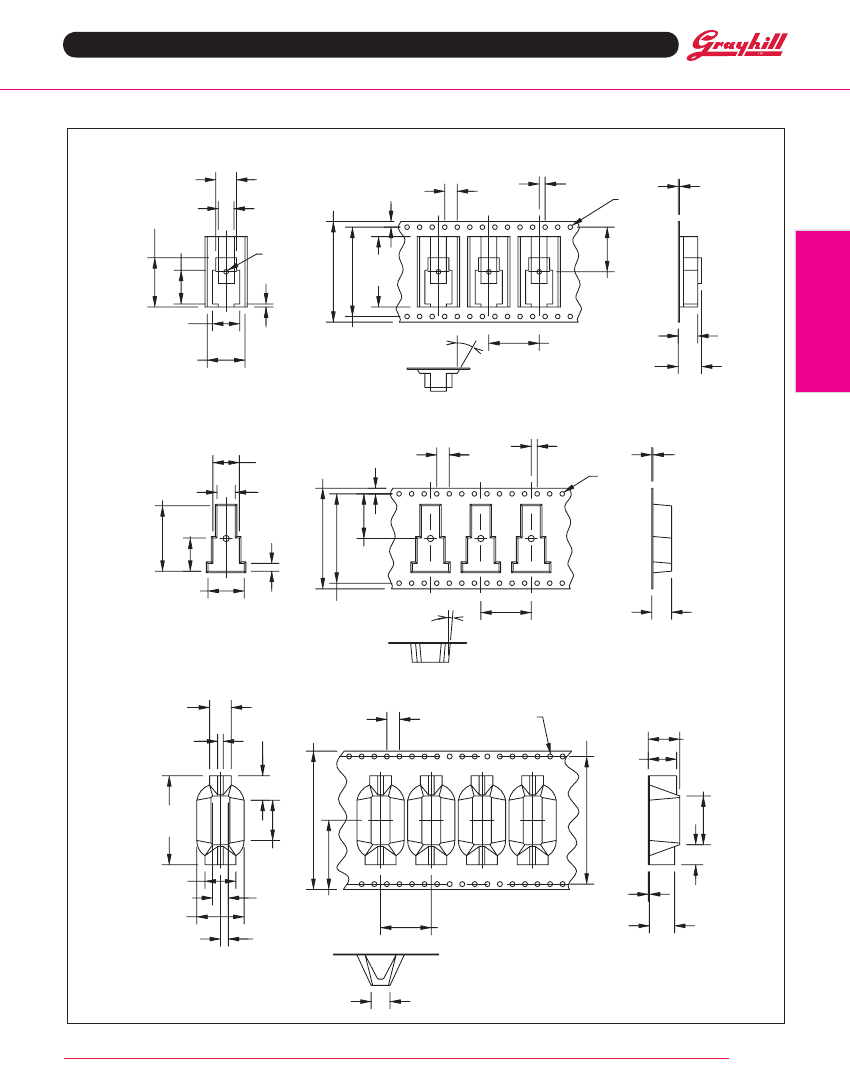

Series 34E: Sealed Surface Mount Toggle Switches
