basic switches
subminiature double break, snap-action commercial & military Grades
basic
switches
b5

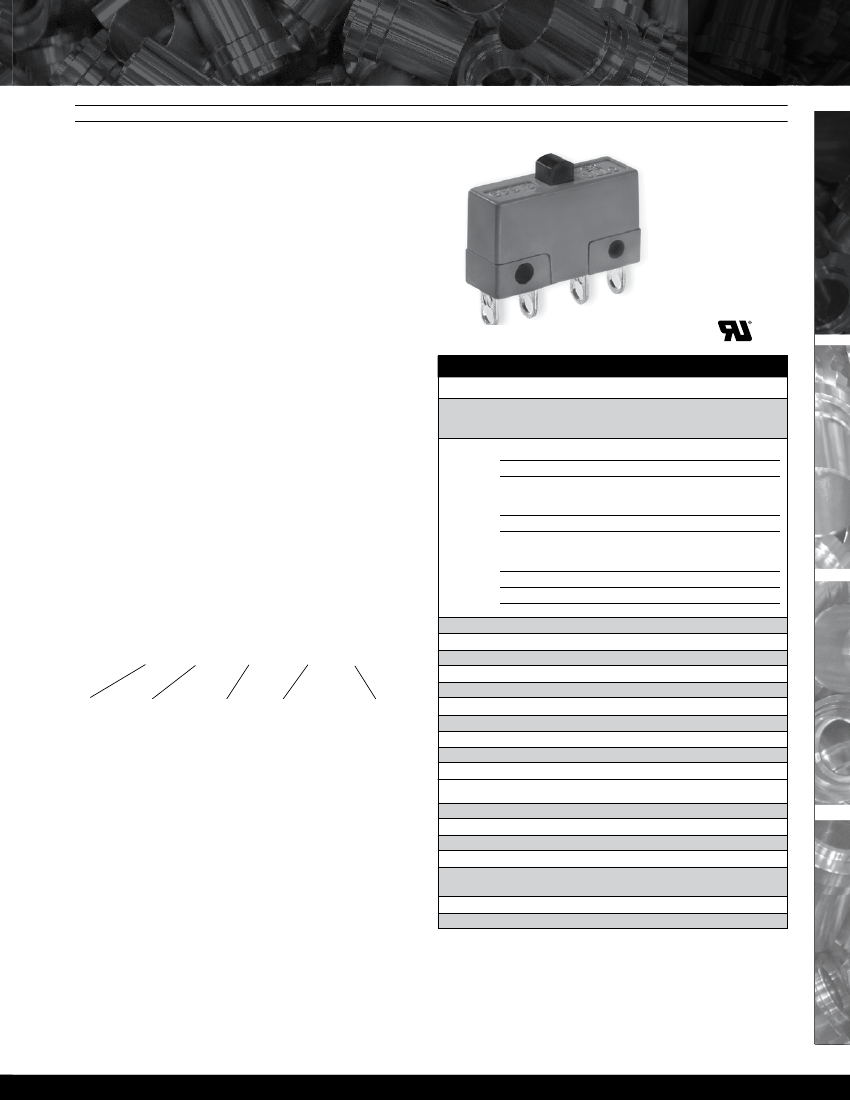

B5 series basic switches are subminiature in size and feature up
to 10 amps switching capability of 100,000 cycles. Mechanical
life is one million cycles.
The molded housing is rugged and structurally stable. The
terminals are sealed against solder flux entering the switch and
are bright acid tin plated for excellent solderability.
A variety of actuators for pushbutton, toggle and lever actuation
are available in standard and custom configurations.
basics
Solder
Terminal Style
Features:
•
•
•
•
•
•
•
•
•
•
Up to 10 amps switching capability
High contact pressure
Precision operating points
Button accepts actuation directly from cam
Constructed in accordance with MIL-PRF-8805/7
Available in Commercial & Military grades
Choice of four standard terminal styles or wire leads
UL recognized
B5-21141 QPL to MS27217-1
RoHS/WEEE/Reach compliant
Standard Characteristics/Ratings:
ELECTRICAL RATINGS:
Circuitry
SPNO-DB &
SPNC-DB
Load
Resistive
Inductive*
Lamp
SPDT-DB
2 Circuit
Resistive
Inductive*
Lamp
SPDT
Resistive
Inductive*
Lamp
*L/R = 0.026
Electrical Life:
Mechanical Life:
Seal:
Operating Force:
Sea Level
70,000 feet
@ 28VDC or
@ 28VDC or
@ 115VAC, 60Hz @ 115VAC, 60Hz
10A
7.5A
1A
10A
5A
3A
10A
3A
3A
100,000 cycles
1,000,000 cycles
Unsealed
5 oz, +3/-2 oz or 6 oz max or 3 oz min
2 oz min
0.406 +/- 0.010 inches from mounting holes
0.012 inches min
0.050 inches max
10A
3.5A
N/A
10A
2A
N/A
10A
1.5A
N/A
Sea Level @
125/250VAC, 60Hz
10.1A
5A
3A
10.1A
5A
1.5A
10.1A
N/A
N/A
B5 – X
B5 PART NUMBER CODE
X
X
X X
Operating Temp Range:
-65°C to +125°C
Model
1.
Commercial
1.
Solder
1.
5
+3-2
oz
2.
Military
2.
Taper Tab Quick
2.
6 oz max
Connect
3.
5 oz min
3.
0.110 Quick
Connect
➀
4.
PC Pin
A.
With Wires 06.0" lg.
B.
With Wires 12.0" lg.
C.
With Wires 18.0" lg.
D.
With Wires 24.0" lg.
E.
With Wires 30.0" lg.
➀
Mates with AMP Series 110 receptacles.
Terminal Style
or Wire Length
Operating
Force
Circuitry
1.
SPNO-DB, Form X
2.
SPNC-DB, Form Y
3.
SPDT, Form C
4.
SPDT-DB, Form Z
Contact
Material
1.
Silver/Gold –
High Current
2.
Silver/Gold –
Low Current
Release Force:
Operate Point:
Overtravel:
Pretravel:
Movement Differential:
0.020 +/- 0.005 inches
MATERIALS:
Case:
Cover:
Button:
Terminals:
Contacts:
Terminal Hardware:
Mounting Hardware:
Thermoset, blue
Thermoset, blue
Thermoplastic, black
End or front solder type brass with bright acid tin plating
Stationary: Silver with gold
Moveable: Silver with gold
None provided
None provided
specifications subject to change without notice
www.ottoexcellence.com
12
b5
basic
switches
basic switches

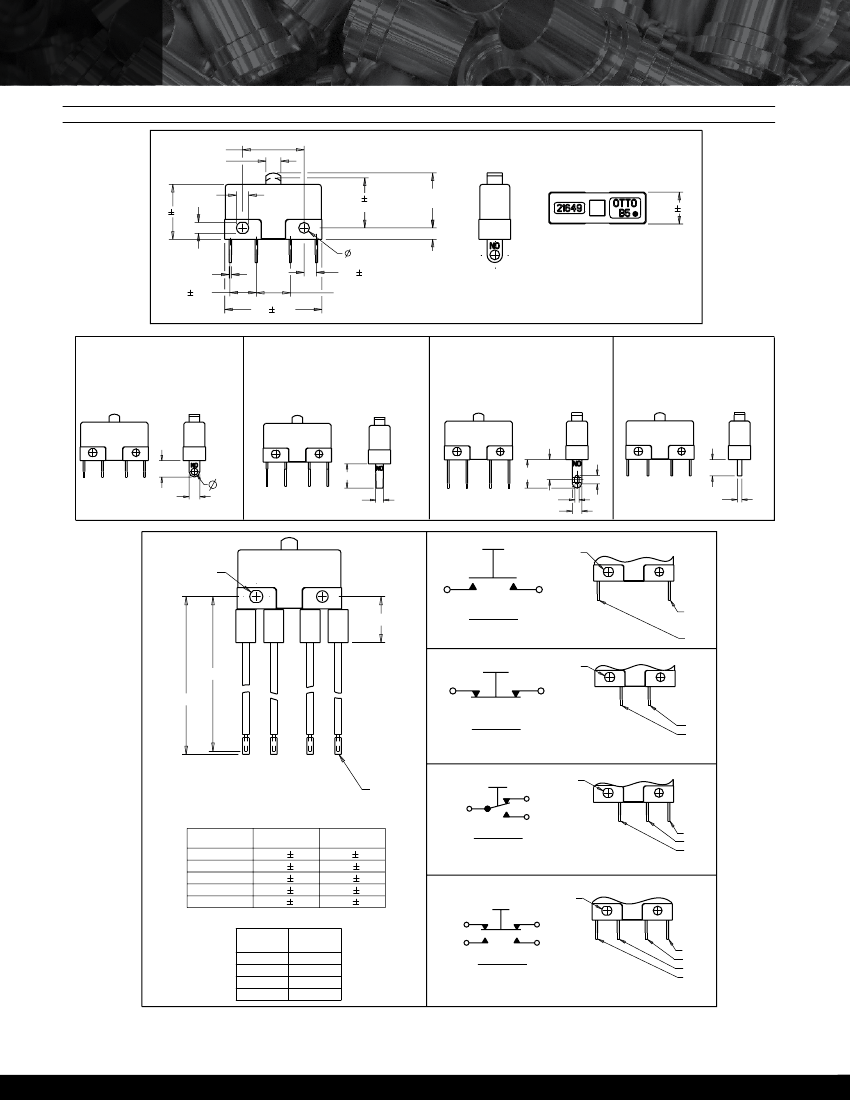

subminiature double break, snap-action commercial & military Grades
.500±.005
.125
SQUARE BUTTON
.100±.005
.446 .006
.088±.005
.088
.020±.002
2X .215 .010
.790 .006
+.002
-.001
.093
BASIC SWITCH
(APPLIES TO ALL SWITCHES IN THIS DRAWING)
.406 .010
OPER. POINT
.446
FREE POSITION
.259 .006
.102 .010
.275±.010
TERMINAL STYLE 1
SOLDER
TERMINAL STYLE 3
TERMINAL STYLE 2
.110 QIUCK CONNECT
TAPER TAB Q. C. TERMINALS
TERMINALS MATES/AMP
MATES W/AMP SERIES
SERIES 110 RECEPTACLES
78 RECEPTACLES
TERMINAL STYLE 4
PRINTED CIRCUIT PINS
.187
.125±.005
.080
.280
.090±.005
.328 .230
.050
.110
.100
.187
.053
(OVAL HOLE)
(OVAL HOLE)
1
(.350)
SPST-NO-DB
SCHEMATIC
CIRCUIT STYLE 1
SPNO -D, FORM X
(OVAL HOLE)
2
SPST-NC-DB
SCHEMATIC
CIRCUIT STYLE 2
SPNC-DB, FORM Y
3
4
1
4
"X"
"Y"
2
3
24 AWG
WIRE LENGTH FOR A, B, C, & D
1
(OVAL HOLE)
2
SPDT-FORM C
SCHEMATIC
CIRCUIT STYLE 3
SPDT, FORM C
WIRE LENGTH
CODE
A
B
C
D
E
DIM. "X"
06.00
12.00
18.00
24.00
30.00
.38
.50
.50
.50
.75
DIM. "Y"
06.09
12.09
18.09
24.09
30.09
.38
.50
.50
.50
.75
2
3
2
1
(OVAL HOLE)
3
SPDT-DB
SCHEMATIC
CIRCUIT STYLE 4
SPDT-DB, FORM Z
4
3
2
1
4
TERMINAL
NO.
1
2
3
4
WIRE
COLOR
BROWN
YELLOW
RED
BLUE
1
13
