TL6100CF130QP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> TL6100CF130QP

TL6100CF130QP: DescriptionFixed Terminal Blocks 4P 5mm 90DEG; CategoryTopical application Mechanical and electrical/engineering/automation; File Size347KB，2 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric Compare View All

TL6100CF130QP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TL6100CF130QP	-	-	View	Buy Now

TL6100CF130QP Overview

Fixed Terminal Blocks 4P 5mm 90DEG

TL6100CF130QP Parametric

Parameter Name	Attribute value
Product Category	Tactile Switches
Manufacturer	E-Switch
RoHS	Details
Mounting Style	Through Hole
Mounting Direction	Vertical
Stem Height	6.9 mm
Actuator	Without Cap
Switch Function	OFF - (ON)
Operating Force	1.3 N
Current Rating	50 mA
Voltage Rating DC	50 VDC
Contact Form	SPST
Termination Style	Solder Pin
Packaging	Tube
Contact Plating	Silver
Mounting Type	Sealed
Operating Temperature Range	- 40 C to + 85 C
Factory Pack Quantity	60

Preview

Download Datasheet

View All

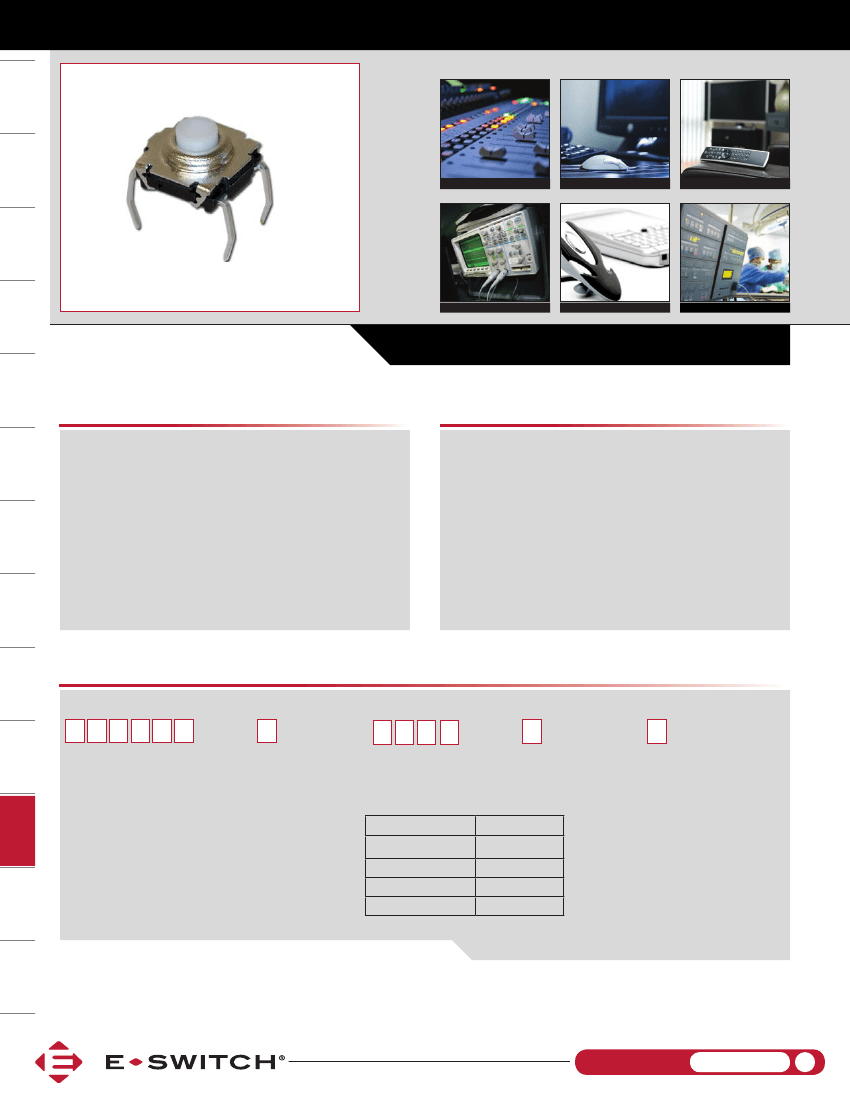

tl6100 S

erieS

act

witch

ANTI-VANDAL

SWITCHES

pplicationS

/ m

arketS

DETECTOR

SWITCHES

Audio / Visual

Computer Peripherals

Consumer Electronics

KEYLOCK

SWITCHES

DIP

SWITCHES

Instrumentation

Telecommunication

Medical Equipment

NAVIGATION

SWITCHES

RoHS

pecificationS

Electrical Rating:

50mA @ 12VDC

Life Expectancy:

per chart

Contact Resistance: 100mΩ

Max. Initial

Insulation Resistance:

100 MΩ Min. at 100VAC

Dielectric Strength: 250VAC

for 1 min.

Operating Temperature:

-40°C to 85°C

Storage Temperature:

-40°C to 85°C

Operating Force:

130 gf, 160 gf, 300 gf, 500 gf

Travel:

0.50mm

Contact Arrangement:

SPST

eatureS

& b

enefitS

•

Tube packaging

Multiple operating forces

Gold or silver contact option

Multiple actuator lengths

Process sealed

SLIDE

SWITCHES

ROTARY

SWITCHES

ROCKER

SWITCHES

PUSHBUTTON

SWITCHES

art

umber

onfigurator

Series

Actuator Options

Operating

Force

F130 - 130

F160 - 160

F300 - 300

F500 - 500

Contact Plating

Termination

SNAP ACTION

SWITCHES

TL6100

- 4.70mm

- 5.20mm

- 6.90mm

- 10.0mm

- Silver

- Gold

- PCB Pins

TACTILE

SWITCHES

Actuation Force

130 gf

160 gf

300 gf

500 gf

Life Cycles

1,000,000

500,000

200,000

TOGGLE

SWITCHES

CAP

OPTIONS

Specifications subject to change without notice

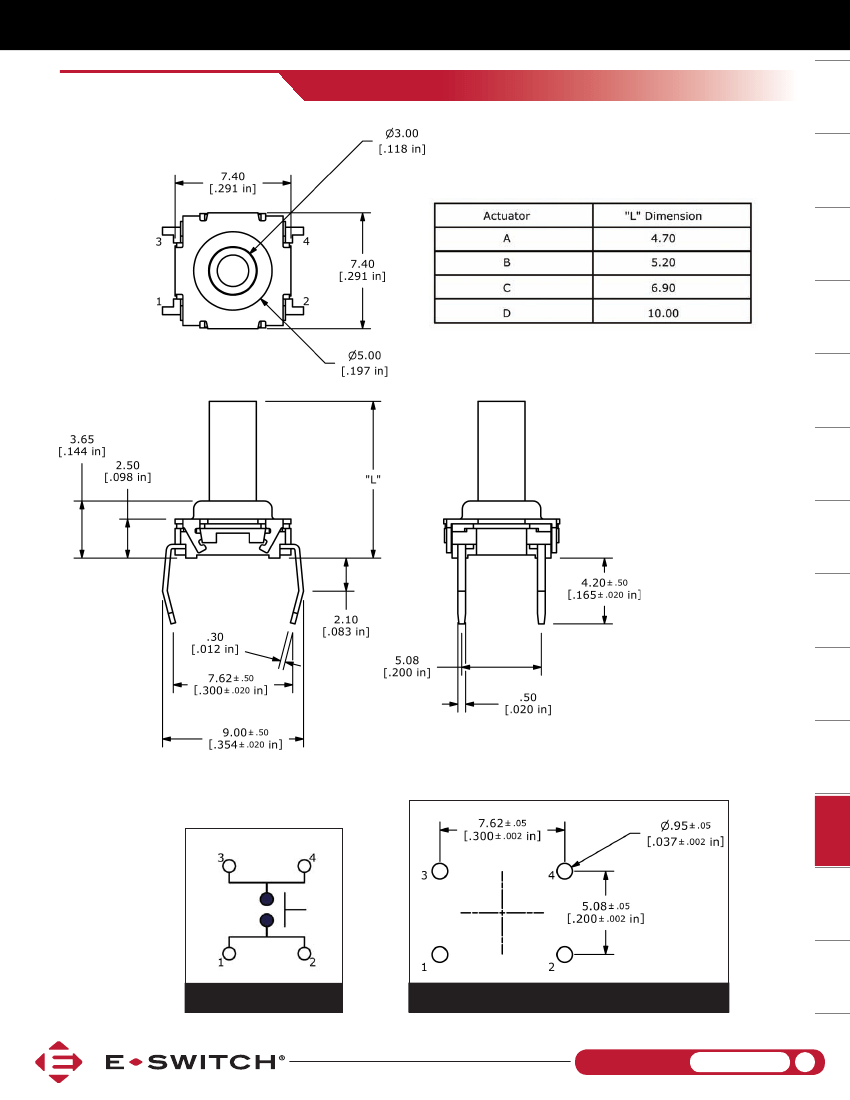

www.e-switch.com

800.867.2717

TL6100CF130QP Related Products

	TL6100CF130QP	TL6100DF130QP
Description	Fixed Terminal Blocks 4P 5mm 90DEG	Switching Voltage Regulators 2.5-12Vin,2.25A Sw Crnt Limit
Product Category	Tactile Switches	Tactile Switches
Manufacturer	E-Switch	E-Switch
RoHS	Details	Details
Mounting Style	Through Hole	Through Hole
Mounting Direction	Vertical	Vertical
Stem Height	6.9 mm	10 mm
Actuator	Without Cap	Without Cap
Switch Function	OFF - (ON)	OFF - (ON)
Operating Force	1.3 N	1.3 N
Current Rating	50 mA	50 mA
Voltage Rating DC	50 VDC	50 VDC
Contact Form	SPST	SPST
Termination Style	Solder Pin	Solder Pin
Packaging	Tube	Tube
Contact Plating	Silver	Silver
Mounting Type	Sealed	Sealed
Operating Temperature Range	- 40 C to + 85 C	- 40 C to + 85 C
Factory Pack Quantity	60	60
