Product data sheet
Characteristics

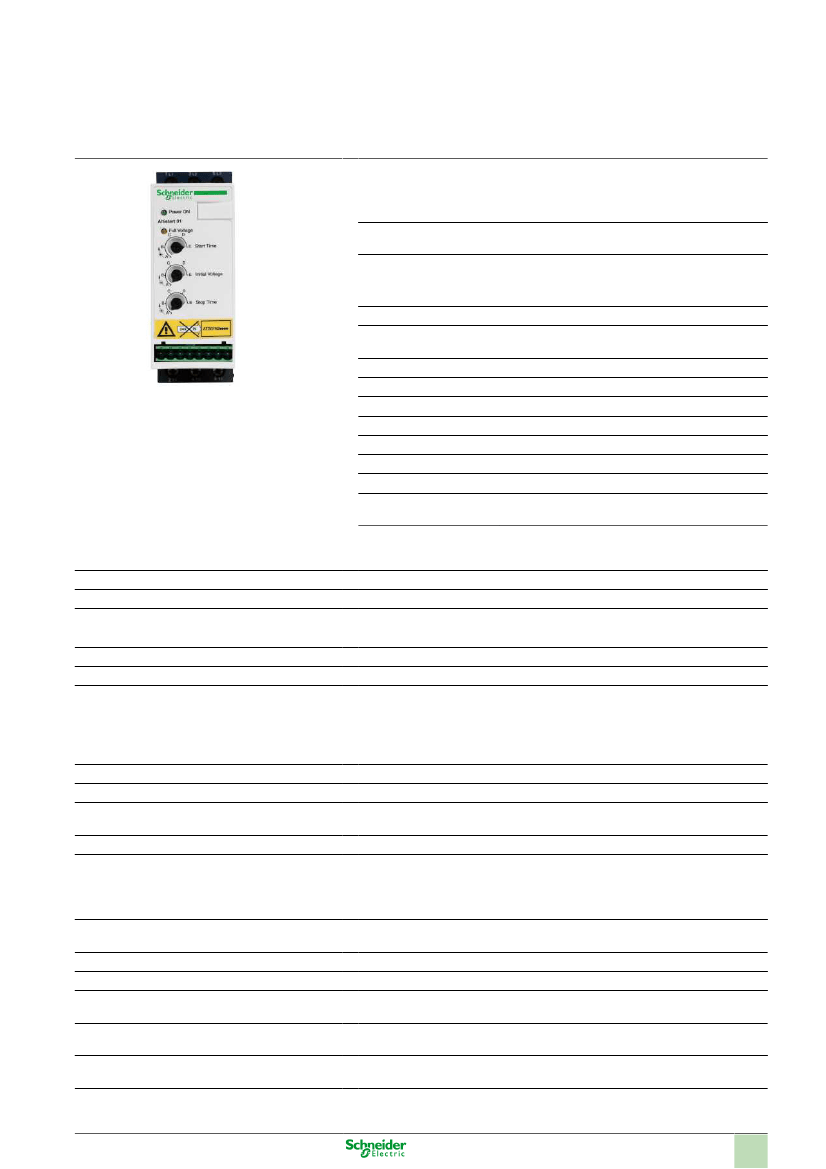

ATS01N209LU
soft starter for asynchronous motor - ATS01 - 9
A - 200..240V - 1.5 KW
Main
Range of product
Product or component
type
Product destination
Product specific appli-
cation
Component name
Network number of
phases
Power supply voltage
Motor power kW
Motor power hp
Icl nominal current
Utilisation category
Current at nominal load
Type of start
Power dissipation in W
Altistart 01
Soft starter
Asynchronous motors
Simple machine
ATS01
3 phases
200...240 V (- 10...10 %)
1.5 kW at 200...240 V 3 phases
9A
AC-53B conforming to EN/IEC 60947-4-2
45 A at nominal load
Start with voltage ramp
94 W in transient state
4 W at full load and at end of starting
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
2 hp at 200...240 V 3 phases
Complementary
Assembly style
Function available
Power supply voltage limits
Power supply frequency
Power supply frequency limits
Output voltage
Control circuit voltage
Starting time
With heat sink
Integrated bypass
180...264 V
50...60 Hz (- 5...5 %)
47.5...63 Hz
<= power supply voltage
Built into the starter
Adjustable from 1 to 10 s
5 s/20 start(s) per hour
10 s/10 start(s) per hour
1 s/100 start(s) per hour
Adjustable from 1 to 10 s
30...80 % of starting torque of motor connected directly on the line supply
(LI1, LI2, BOOST)stop, run and boost on start-up functions logic <= 8 mA 27
kOhm
24...40 V
(LI1, LI2, BOOST)positive state 0 < 5 V and < 0.2 mA state 1 > 13 V and > 0.5
mA
3 A AC-15
2 A DC-13
(R1A, R1C)relay outputs NO
(LO1)Open collector logic end of starting signal
24 V (6...30 V)open collector logic
Relay outputs 10 mA 6 V DC
Relay outputs 2 A 30 V DC inductive load, cos phi = 0.5 L/R = 20 ms
Relay outputs 2 A 250 V AC inductive load, cos phi = 0.5 L/R = 20 ms
1 LED (yellow) for nominal voltage reached
1 LED (green) for starter powered up
0.5 N.m
1.9...2.5 N.m
Deceleration time symb
Starting torque
Discrete input type
Discrete input voltage
Discrete input logic
Discrete output current
Discrete output type
Discrete output voltage
Minimum switching current
Maximum switching current
Display type
Tightening torque
Mar 27, 2014
1
Electrical connection
2 conductor(s)flexible cable without cable end, connection via screw connector
0.5...1.5 mm²/AWG 16 for control circuit
2 conductor(s)flexible cable without cable end, connection via 4 mm screw clamp
terminal 1.5...6 mm²/AWG 10 for power circuit
2 conductor(s)flexible cable with cable end, connection via 4 mm screw clamp
terminal 1...6 mm²/AWG 10 for power circuit
1 conductor(s)flexible cable without cable end, connection via screw connector
0.5...2.5 mm²/AWG 14 for control circuit
1 conductor(s)flexible cable without cable end, connection via 4 mm screw clamp
terminal 1.5...10 mm²/AWG 8 for power circuit
1 conductor(s)flexible cable with cable end, connection via screw connector
0.5...1.5 mm²/AWG 16 for control circuit
2 conductor(s)rigid cable , connection via screw connector 0.5...1 mm²/AWG 17
for control circuit
2 conductor(s)rigid cable , connection via 4 mm screw clamp terminal 1...6 mm²/
AWG 10 for power circuit
1 conductor(s)rigid cable , connection via screw connector 0.5...2.5 mm²/AWG 14
for control circuit
1 conductor(s)rigid cable , connection via 4 mm screw clamp terminal 1...10 mm²/
AWG 8 for power circuit
CE
Vertical +/- 10 degree
124 mm
45 mm
131 mm
0.42 kg
Marking
Operating position
Height
Width
Depth
Product weight
Environment
Electromagnetic compatibility
Voltage/Current impulse conforming to IEC 61000-4-5 level 3
Micro-cuts and voltage fluctuation conforming to IEC 61000-4-11
Immunity to radiated radio-electrical interference conforming to IEC 61000-4-3
level 3
Immunity to electrical transients conforming to IEC 61000-4-4 level 4
Immunity to conducted interference caused by radio-electrical fields conforming
to IEC 61000-4-6 level 3
Harmonics conforming to IEC 1000-3-4
Harmonics conforming to IEC 1000-3-2
EMC immunity conforming to EN 50082-2
EMC immunity conforming to EN 50082-1
Electrostatic discharge conforming to IEC 61000-4-2 level 3
Damped oscillating waves conforming to IEC 61000-4-12 level 3
Conducted and radiated emissions conforming to IEC 60947-4-2 level B
Conducted and radiated emissions conforming to CISPR 11 level B
EN/IEC 60947-4-2
B44.1-96/ASME A17.5 for starter wired to the motor delta terminal
CCC
CSA
C-Tick
GOST
UL
IP20
2 conforming to EN/IEC 60947-4-2
1.5 mm peak to peak (f = 3...13 Hz) conforming to EN/IEC 60068-2-6
1 gn (f = 13...150 Hz) conforming to EN/IEC 60068-2-6
15 gn for 11 ms conforming to EN/IEC 60068-2-27
5...95 % without condensation or dripping water conforming to EN/IEC 60068-2-3
40...50 °C with current derating of 2 % per °C
-10...40 °C without derating
-25...70 °C conforming to EN/IEC 60947-4-2
> 1000 m with current derating of 2.2 % per additional 100 m
<= 1000 m without derating
Standards
Product certifications
IP degree of protection
Pollution degree
Vibration resistance
Shock resistance
Relative humidity
Ambient air temperature for operation
Ambient air temperature for storage
Operating altitude
