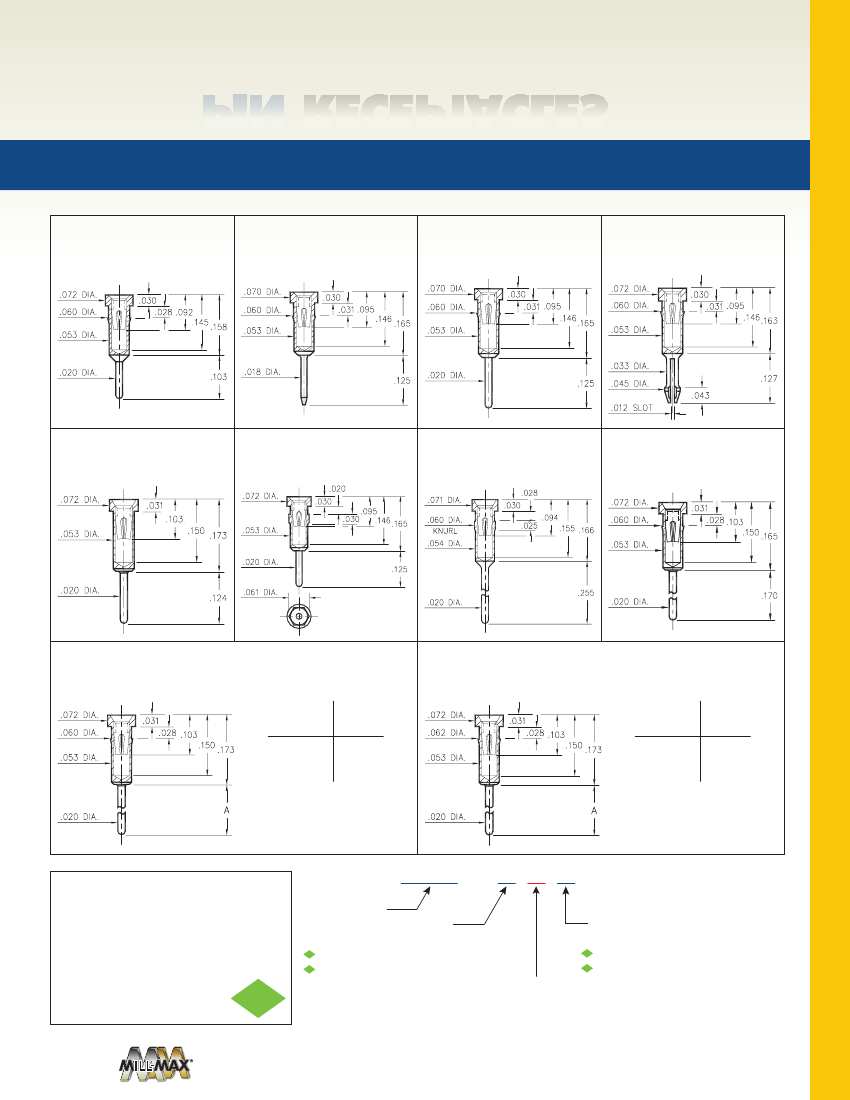

PIN
RECEPTACLES
FOR .015” - .025” DIAMETER PINS
4011
4011-0-15-XX-30-XX-04-0
Press-fit in .057 mounting hole
1801
1801-0-15-XX-30-XX-04-0
1001
Press-fit in .057 mounting hole.
Shell is Phosphor Bronze Alloy 544 (B2)
1001-0-15-XX-3X-XX-04-0
Press-fit in .057 mounting hole
0156
0156-0-18-XX-30-XX-04-0
Self-retention socket pin .038 - .043
hole prior to soldering
0255
0255-0-15-XX-30-XX-04-0
Solder mount in .022 min. mounting hole
1109
1109-0-15-XX-30-XX-04-0
Hex press-fit in .057 plated
through-hole
3013
3013-0-15-XX-32-XX-04-0
Press-fit in .057 mounting hole
0134
0134-0-15-XX-3X-XX-04-0
Press-fit in .057 mounting hole
0132/0135
013X-0-15-XX-30-XX-04-0
Press-fit in .057 mounting hole
0133/0147
Basic Part
Number
Length
A
01XX-0-15-XX-30-XX-04-0
Press-fit in .059 mounting hole
Basic Part
Number
Length
A
0132-0
0135-0
A
.273
.183
A
0133-0
0147-0
.382
.563
SPECIFICATIONS:
Shell Material:
Brass Alloy 360, 1/2 Hard
Contact Material:
Beryllium Copper Alloy 172, HT
Dimensions: Inches
Tolerances On:
Lengths:
± .005
2011/65/EU
ORDER CODE: XXXX - X - 15 - XX -
XX
- XX - 10 - 0
BASIC PART #
SPECIFY SHELL FINISH:
01
200
μ”
TIN/LEAD OVER NICKEL
80
200
μ”
TIN OVER NICKEL (RoHS)
15
10
μ”
GOLD OVER NICKEL (RoHS)
SPECIFY CONTACT FINISH:
02
100
μ”
TIN/LEAD OVER NICKEL
84
100
μ”
TIN OVER NICKEL (RoHS)
27
30
μ”
GOLD OVER NICKEL (RoHS)
Diameters: ± .002
Angles:
±2°
RoHS - 2
SELECT CONTACT:
#30 or #32
CONTACT (DATA ON PAGE 253)
(For alternate contact choices, see groups B and C on page 248)
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
PAGE 165 | PIN RECEPTACLES
