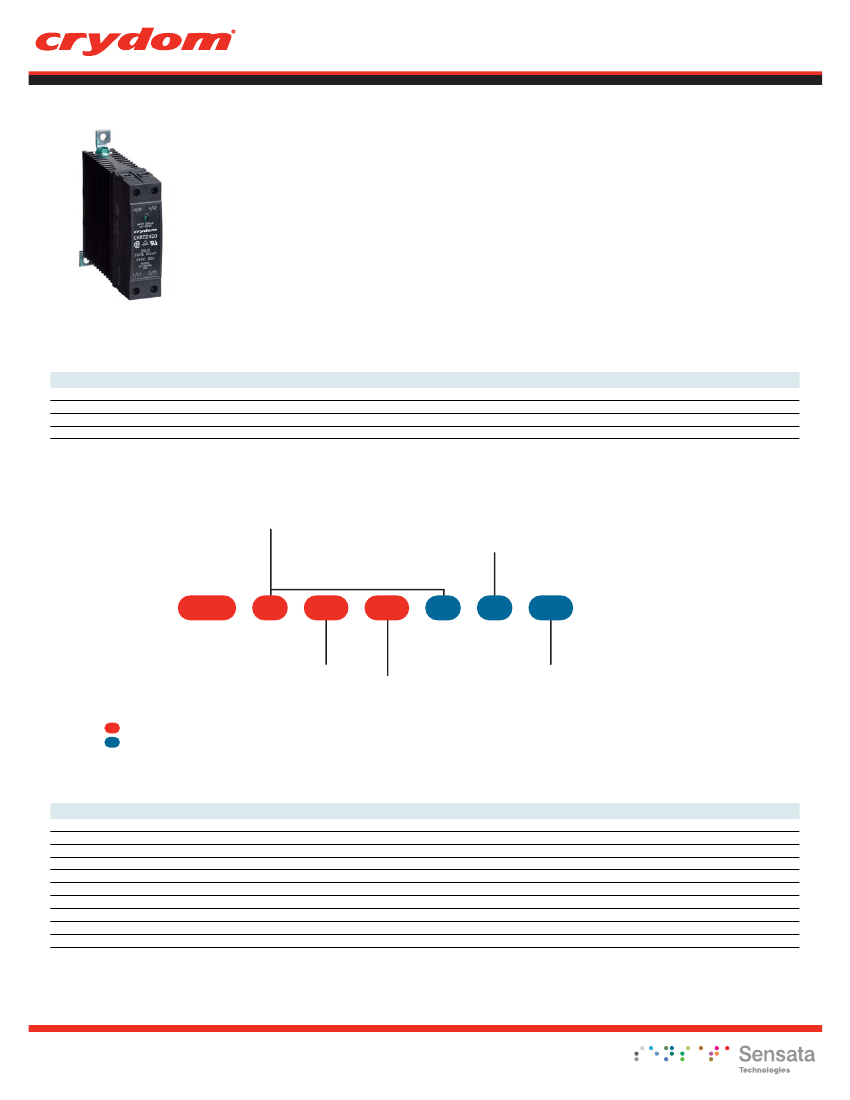

Datasheet
CKR60 Series
•
Rating from 10 A to 30 A @ 660 VAC
•
Slim 22.5mm (width) package
•
SCR output for heavy industrial loads
•
LED input status indicator
•
AC or DC control
•
Zero Voltage (resistive loads) or Instantaneous (inductive loads) turn-on output
DIN Rail Mount
PRODUCT SELECTION
Control Voltage
4-32 VDC Control
110-280 VAC Control
90-140 VAC Control
18-36 VAC Control
10 A
CKRD6010
CKRA6010
CKRB6010
CKRA6010E
20 A
CKRD6020
CKRA6020
CKRB6020
CKRA6020E
30 A
CKRD6030
CKRA6030
CKRB6030
CKRA6030E
AVAILABLE OPTIONS
Series
Control Voltage
D:
4-32 VDC
B:
90-140 VAC
A:
110-280 VAC
AxxxxE:
18-36 VAC
Overvoltage Protection
Blank:
Not Included
P:
Included
CKR
D
60
30
E
P
-10
Switching Type
Blank:
Zero Voltage Turn-On
-10:
Instantaneous Turn-On
Rated Load Current
Operating
10:
10 Amps
Voltage
60:
48-660 VAC
20:
20 Amps
30:
30 Amps
Required for valid part number
For options only and not required for valid part number
OUTPUT SPECIFICATIONS
(1)
Description
Operating Voltage (47-63Hz) [Vrms]
Transient Overvoltage [Vpk]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec]
(2)
Maximum Load Current [Arms]
Minimum Load Current [Arms]
Maximum Surge Current (16.6ms) [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Maximum I² t for Fusing (8.3 msec) [A² sec]
Minimum Power Factor (with Maximum Load)
10 A
48-660
1200
1.0
500
10
0.15
120
1.6
60
0.5
20 A
48-660
1200
1.0
500
20
0.15
250
1.6
260
0.5
30 A
48-660
1200
1.0
500
30
0.15
1200
1.6
6000
0.5
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
Datasheet
INPUT SPECIFICATIONS
(1)
Description
Control Voltage Range
Minimum Turn-On Voltage
Must Turn-Off Voltage
Typical Input Current
(4)
Maximum Turn-On Time [msec]
(3)
Maximum Turn-Off Time [msec]
DIN Rail Mount
CKRA60xxE
18-36 Vrms
18 Vrms
4.0 Vrms
10 mA @ 24 Vrms
10
40
CKRD60xx
4.0-32 VDC
4.0 VDC
1.0 VDC
8-12 mA
1/2 Cycle
1/2 Cycle
CKRA60xx
110-280 Vrms
110 Vrms
10 Vrms
5 mA @ 240 Vrms
10
40
CKRB60xx
90-140 Vrms
90 Vrms
10 Vrms
5 mA @ 120 Vrms
10
40
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 V DC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Status Indicator Display
Weight (typical)
Encapsulation
Terminals
Maximum Wire Size
Recommended Terminal Screw Torque Range
Min. Side by Side Spacing
Parameters
4000Vrms
10 9 Ohms
8 pF
-40ºC to 80ºC
-40ºC to 125ºC
Green LED
10 oz. (280g)
Thermally Conductive Epoxy
Box Clamp Type
AWG # 10 (3mm)
5.0-6.0 in-lb (0.6-0.7 Nm)
0.8 inch (20mm)
GENERAL NOTES
1)
All parameters at 25°C unless otherwise specified.
2)
Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
3)
Turn-on time for DC control instantaneous turn-on versions is 0.02 msec
4)
Input circuitry for DC control version incorporates active current limiter.
MECHANICAL SPECIFICATIONS
MOUNTING
HOLE/SLOT
0.17 (4.3) DIA.
+3/A1
IN
P
4/A2
T
ST
A
T
U
U
All dimensions are in inches (millimeters)
2.6
(66.0)
3.2
(81.9)
3.5
(88.9)
CKR SERIES
SOLID STATE
CONTACTOR
OUTPUT
1/L1
S
2/T1
.5
(12.7)
.890
(22.5)
3.2
(81.3)
Current Rating 20A @ 25°C
30
20
10
20
40
60
80
Caution
High T
emperature
!
3.9
(99.0)
HEAT SINK:
BLACK ANODIZED
ALUMINUM
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
Datasheet

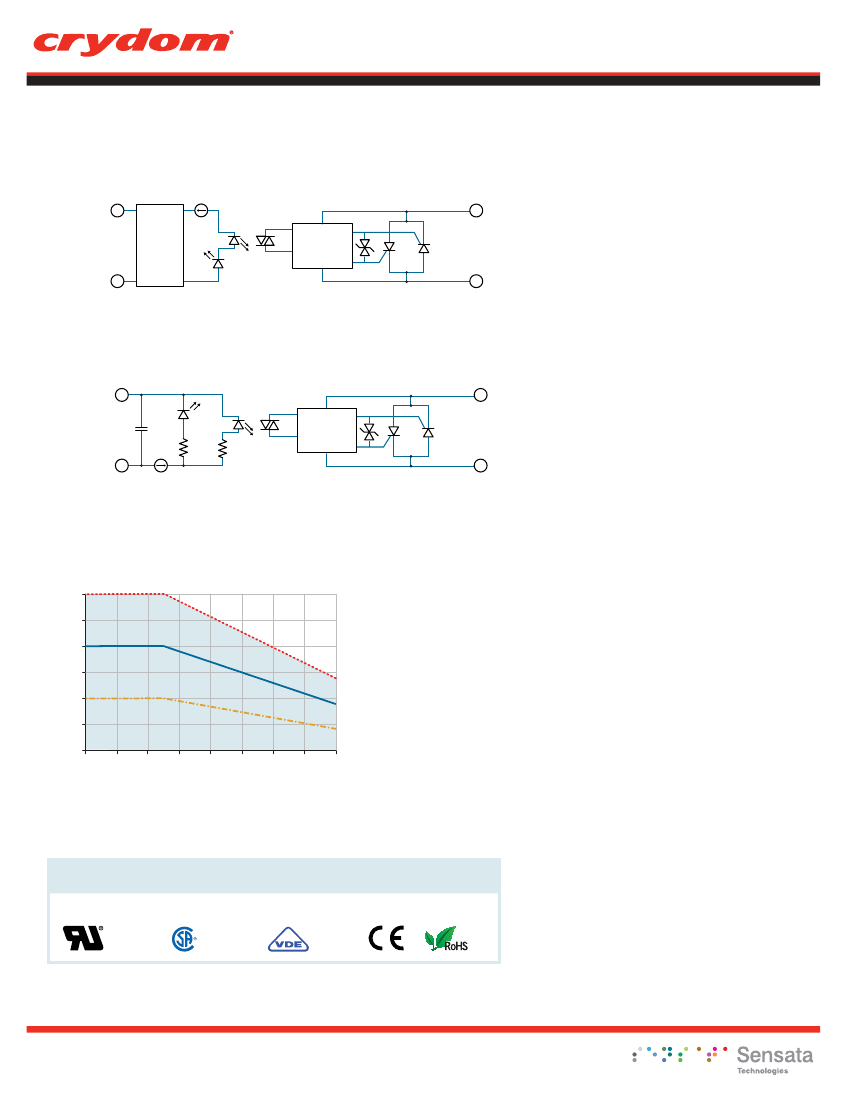

EQUIVALENT CIRCUIT BLOCK DIAGRAM
AC control
AC
4
AC/DC
Converter
AC
3
Current
Limiter
DIN Rail Mount
1
AC
Trigger
Circuit
*
2
AC
* With Option “P” suffix
DC control
-DC
4
Trigger
Circuit
+DC
3
1
AC
*
2
AC
Current
Limiter
THERMAL DERATE INFORMATION
30
OUTPUT CURRENT (Arms)
25
20
15
10
5
0
0
CKRX6030
CKRX6020
CKRX6010
10
20
30
40
50
60
70
80
AMBIENT TEMPERATURE (°C)
AGENCY APPROVALS
Agency Approvals
Designed in accordance with the requirements of IEC 62314
E116950
LR81689
129156
Rev. 031116
