104-DTE16-EV Overview

Detector Switches HORIZONTAL SMD

104-DTE16-EV Parametric

Parameter Name	Attribute value
Product Category	Detector Switches
Manufacturer	Mountain Switch
RoHS	Details
Operation Direction	Horizontal
Contact Rating	10 mA at 5 V
Termination Style	SMD/SMT
Packaging	Reel
Factory Pack Quantityvuxqwzxwtqvx	3800
Unit Weight	0.002187 oz

Preview

Download Datasheet

View All

Last Update:

4-30-08

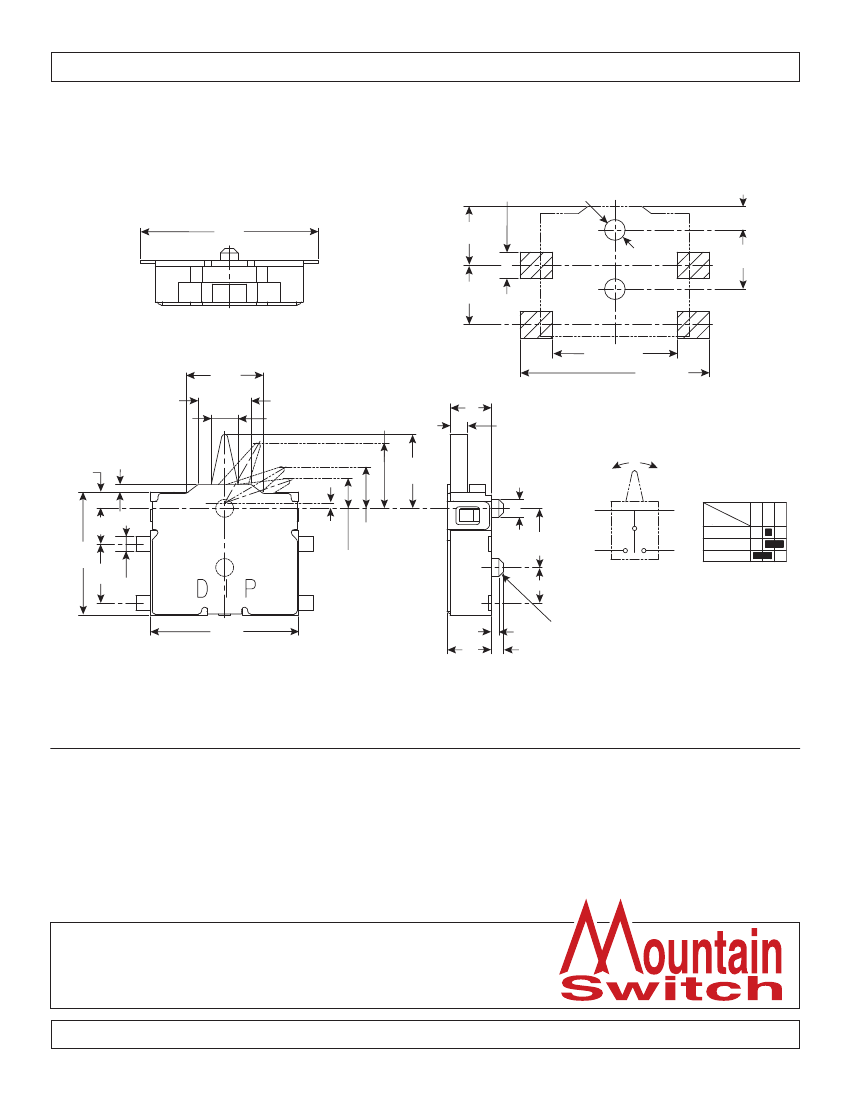

Dimensions: mm (in.)

Ref. #:

MS-101229

(.236)

2±.05

(.079±.002)

4-.90±.05

(4-.036±.002)

2-ø.70±.10

(2-ø.028±.004)

2±.05

(.079±.002)

4.20±.05

(.165±.002)

2±.05

(.079±.002)

.80±.05

(.031±.002)

2.60

(.102)

1.80

(.071)

.25

(.010)

.90

(.035)

2.20±.20

(.087±.008)

2.50±.30

(.098±.012)

.18

1.40

(.007) (.055)

(.039)

1.40

(.055)

.55

(.022)

.60

(.024)

P.C.B. Layout

6.40±.05

(.252±.002)

.60±.10

(.024±.004)

2±.10

(.079±.004)

Terminal

Lever No.

Position

4.15

(.163)

1.20

(.047)

(.079).50

(.020)

(.197)

1.50

(.059)

.40

(.016)

2-C.15

.25

(.010) (2-.006)

1.20

(.047)

Circuit

2 C 1

Electrical Specifications:

•

Contact Rating: 10mA/5VDC

•

Contact Resistance: 500mΩ Max.

•

Insulation Resistance: 100VDC 1M±5s 100 MΩ

•

Dielectric Strength: 100V AC 1M±5s

•

Life: 300,000 Cycles

Mechanical Specifications:

•

Operating Force: 30gf Max.

•

Operating Temperature: -10˚C ~ 60˚C

•

Storage Temperature: -20˚~70˚C

•

Stroke: 1.5±0.3mm

Note:

•

RoHS Compliant

Detector Switch

104-DTE16-EV

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.

Available from Mouser Electronics

www.mouser.com
