Mechatronic Analog Timer
H3AM
CSM_H3AM_DS_E_3_1
Please read and understand this catalog before purchasing the
products. Please consult your OMRON representative if you have any
questions or comments. Refer to
Safety Precautions
on page 7.

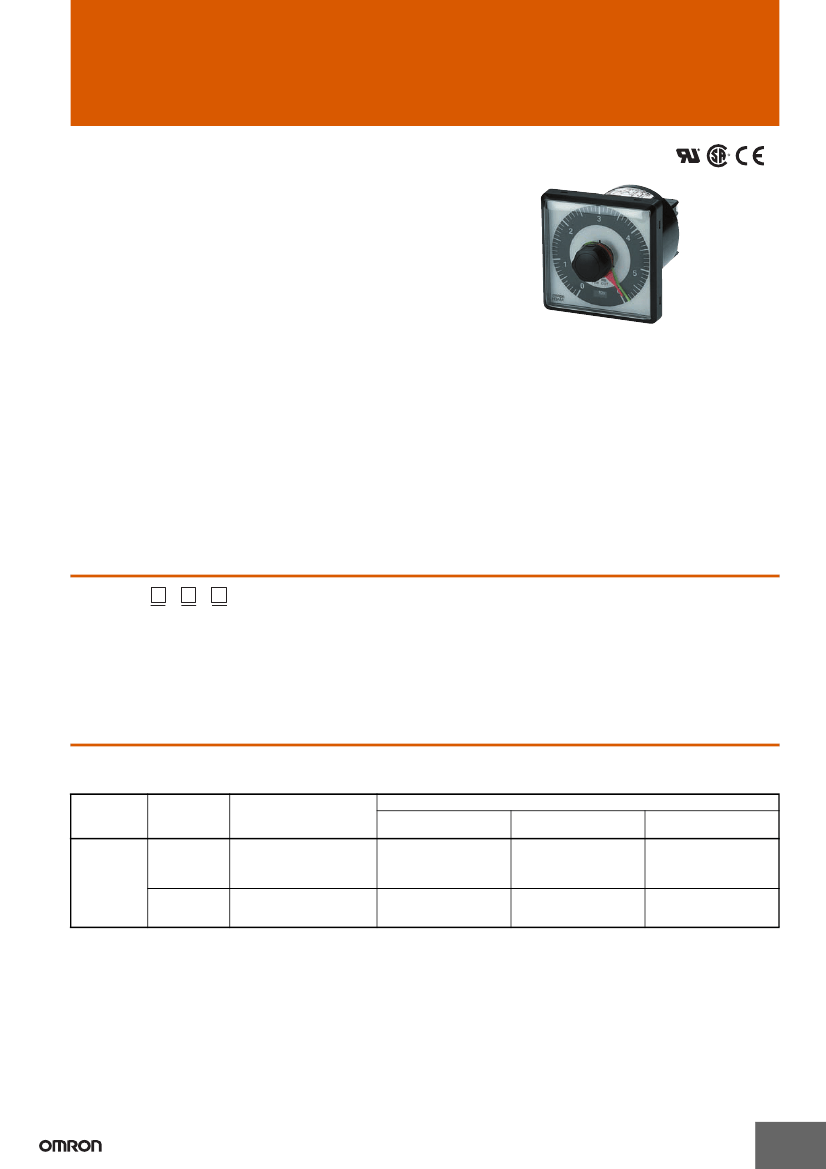

Large Setting Dial and Moving Pointers Ideal
for Easy Operation and Monitoring
• Incorporating an easy-to-see large setting dial with moving
pointers.
• Wide time-setting range of 0.2 s to 60 h (available through three
time-range model types)
• Wide AC power supply range (100 to 240 VAC)
• IP65 watertight and dust-tight front panel.
• Approved by UL and CSA.
• Conforms to EN61812-1 and IEC60664-1
4 kV for Low Voltage, and EMC Directives.
• Conforms to EMC standards.
• Six-language instruction manual provided.
• Programmable contact enables the building of a self-holding
relay circuit as well as built-in instantaneous contact. (-NS)
• Memory retention (-NSR)
• Finger protection terminal block
• Enables easy sequence checks through instantaneous outputs
for a zero set value at any time range.
For the most recent information on models that have been
certified for safety standards, refer to your OMRON website.
Model Number Legend
H3AM - NS
1
-
2
-
3
2. Time Range
A:
0.5 s to 30 h
B:
1 s to 60 h
C:
0.2 s to 12 h
3. Accessory
None: Without accessory
300: Waterproof Packing
(Y92S-35) provided
1. Resetting System
None: Self-resetting
R:
Electric resetting
Ordering Information
I
List of Models
Rated supply
voltage
100 to 240
VAC
Resetting
system
(See note.)
Self-resetting
Control output
0.5 s to 30 h (30 s, 3 min,
30 min, 3 h, 30 h)
DPDT contact output
H3AM-NS-A
(Time-limit output SPDT and
switchable SPDT
(time-limit
↔
instantaneous))
DPDT contact output
H3AM-NSR-A
(Time-limit output SPDT and
instantaneous output SPDT)
Time range
1 s to 60 h (60 s, 6 min, 0.2 s to 12 h (12 s, 120 s,
60 min, 6 h, 60 h)
12 min, 120 min, 12 h)
H3AM-NS-B
H3AM-NS-C
Electric
resetting
H3AM-NSR-B
H3AM-NSR-C
Note:
The operation of the instantaneous contacts differs for the self-resetting and electric resetting systems. Refer to
Timing Charts
on page 5
for details.
1
H3AM
I
Accessory (Order Separately)
Item
Waterproof Packing
Model
Y92S-35 (See note.)
Note:
Supplied with H3AM-NS@-@-300 models.
Specifications
I
General
Operating mode
Screw tightening torque
Input type
Output type
Mounting method
Approved standards
ON-delay
0.98 N·m (10 kgf) max.
Voltage input
Relay: DPDT
Flush/Panel mounting, no restriction on mounting angle.
UL 508, CSA C22.2 No. 14
Conforms to EN61812-1, IEC60664-1 4 kV/2, VDE0106/P100
Output category according to IEC60947-5-1
I
Time Ranges
Model
H3AM-@@@-A
H3AM-@@@-B
H3AM-@@@-C
3
6
12
Full scale on
dial
---
---
0.2 to12 s
Set time unit
s
10 s
0.5 to 30 s
1 to 60 s
2 to 120 s
min
0.05 to 3 min
0.1 to 6 min
0.2 to 12 min
10 min
0.5 to 30 min
1 to 60 min
2 to 120 min
h (hour)
0.05 to 3 h
0.1 to 6 h
0.2 to 12 h
10 h (hour)
0.5 to 30 h
1 to 60 h
---
Note:
Instantaneous output is obtained by turning the time setting knob below "0" until the time setting knob stops.
I
Ratings
Rated supply voltage
Operating voltage range
Power reset (-NS)
Reset input time (-NSR)
Reset voltage range (-NSR)
Power consumption
Control output
100 to 240 VAC (50/60 Hz)
85% to 110% of rated supply voltage
Minimum power-opening time: 0.5 s
Minimum input time:
H level: 85 to 264 VAC
L level: 0 to 10 VAC
Approx. 9 VA (Approx. 5 W)
Relays in H3AM-NS (R1) (R2)
Relay in H3AM-NS (R2)
(Contact material: AgSnIn)
Contact output: 5 A at 250 VAC, resistive load (cosφ = 1)
The minimum applicable load: 10 mA at 5 VDC (failure level: P, reference value)
Relay in H3AM-NSR (R1)
(Contact material: AgSnIn)
Contact output: 5 A at 250 VAC, resistive load (cosφ = 1)
The minimum applicable load: 100 mA at 5 VDC (failure level: P, reference value)
Operating: –10°C to 55°C (with no icing)
Storage: –25°C to 65°C (with no icing)
Operating: 35% to 85%
0.5 s
Ambient temperature
Ambient humidity
2
H3AM
I
Characteristics
Accuracy of operating
±0.7%
FS max.
time
Setting error
Reset time
Influence of voltage
Influence of
temperature
Insulation resistance
Dielectric strength
±2%
FS max.
Power reset:
0.5 s max.
Reset input time: 0.5 s max.
±1%
FS max.
±2%
FS max.
100 MΩ max. (at 500 VDC)
2,000 VAC (50/60 Hz) for 1 min between exposed non-current-carrying metal parts and current-carrying metal parts
2,000 VAC (50/60 Hz) for 1 min between the operating circuit and control output terminals
1,000 VAC (50/60 Hz) for 1 min between the operating power supply circuit and reset input circuit (H3AM-NSR only)
1,000 VAC (50/60 Hz) for 1 min between contacts not located next to each other
2,000 VAC (50/60 Hz) for 1 min between contacts of opposite poles
5 kV between power terminals
5 kV between exposed non-current-carrying metal parts and current-carrying metal parts
±1.5
kV (between power terminals) square-wave noise by a noise simulator
(pulse width: 100 ns/1
µs,
1-ns rise)
Malfunction: 8 kV
Destruction: 15 kV
Destruction: 10 to 55 Hz, 0.75-mm single amplitude for 2 cycles each in 3 directions (8 min per cycle)
Malfunction: 10 to 55 Hz, 0.5-mm single amplitude for 2 cycles each in 3 directions (8 min per cycle)
Destruction: 300 m/s
2
3 times each in 6 directions
Malfunction: 150 m/s
2
(100 m/s
2
in the front/back direction) 3 times each in 6 directions
Mechanical: 5,000,000 times min. (under no load at 1,800 times/h)
Electrical: 100,000 times min. (5-A at 250 VAC, resistive load at 1,800 times/h)
20,000 h
(EMI):
Emission Enclosure:
Emission AC Mains:
(EMS):
Immunity ESD:
Immunity RF-interference:
Immunity Burst:
Immunity Surge:
Immunity Conducted Disturbance:
Immunity Power Frequency Magnetic Fields:
Immunity Voltage Dip/Interruption:
Approx. 350 g
EN61812-1
EN55011 class A
EN55011 class A
EN61812-1
IEC61000-4-2
IEC61000-4-3
IEC61000-4-4
IEC61000-4-5
IEC61000-4-6
IEC61000-4-8
IEC61000-4-11
Impulse withstand
voltage
Noise immunity
Static immunity
Vibration resistance
Shock resistance
Life expectancy
Motor life expectancy
EMC
Enclosure rating
Weight
IP65 (front panel only) (See note.) IP20 (terminal section)
Note:
A separately sold waterproof packing (Y92S-35) is necessary to ensure IP65 waterproofing between the Timer and installation panel.
The H3AM-NS@-@-300 model with waterproof packing is available.
3
H3AM

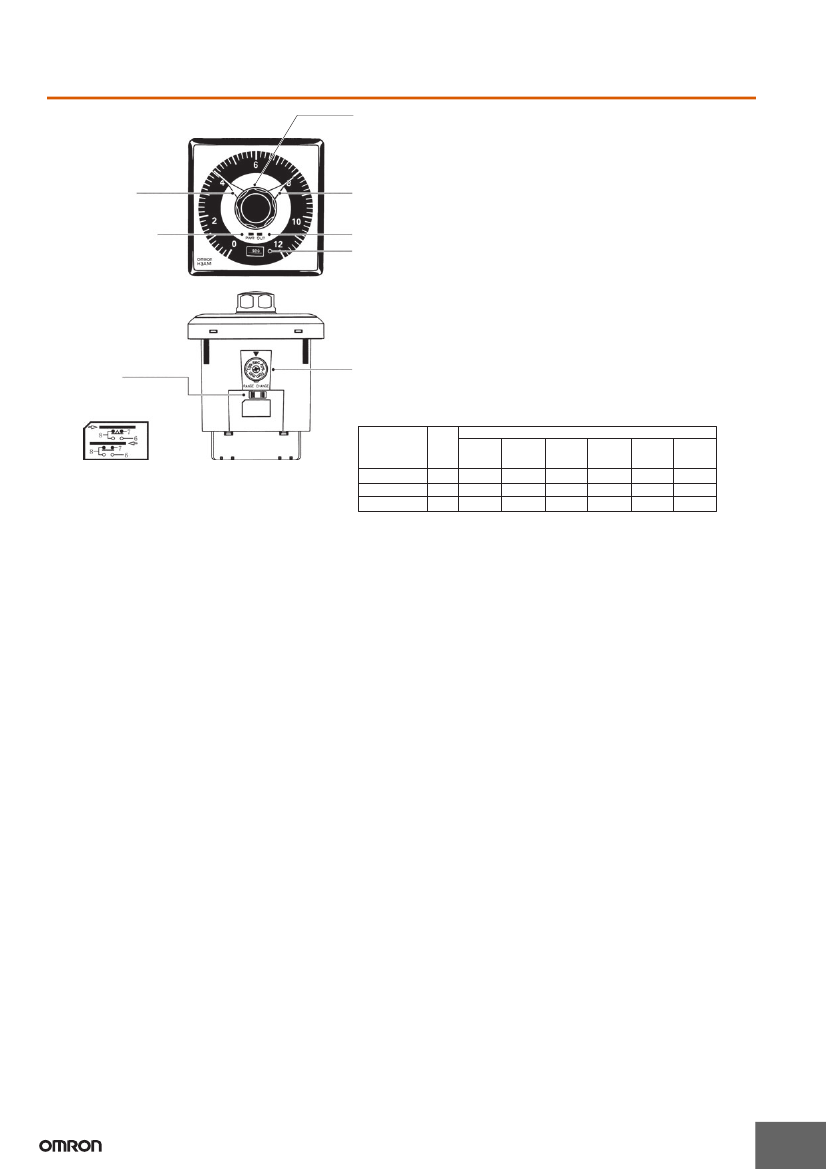

Nomenclature
Time setting knob (set time)
Moving Pointer (green):
Displays remaining time.
Setting pointer (orange)
Displays set value.
Power Indicator
(green)
Output Indicator (orange)
Time Unit Indicator
Note:
The scale goes up to "3" with the H3AM-@-A and up to "6" with the H3AM-@-B.
Instantaneous or
Time-limit Output Selector for
R2 Relay: (only for H3AM-NS-@
models)
Default setting is time-limit output.
Time Unit Selector
Applicable Time Unit
Model
Full
scale
on
dial
3
6
12
Applicable time unit
s
10 s
min
10 min
h
10 h
(Illustrated Model: H3AM-@@@-C)
H3AM-@@@-A
H3AM-@@@-B
H3AM-@@@-C
No
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
4
H3AM
Operations
I
Timing Charts
H3AM-NS
t
Power supply (1-2)
Time-limit contact NC (3-4, 7-8) (See note 1.)
Time-limit contact NO (3-5, 6-8) (See note 1.)
Instantaneous contact NC (7-8) (See note 1.)
Instantaneous contact NO (6-8) (See note 1.)
Power indicator (POWER)
Output indicator (UP)
Rt
t
Note: 1.
The R2 contacts (7-8 and 6-8) are programmable and can be set to either instantaneous or time-limit
contacts using the switch located on the bottom of the Timer.
2.
Rt
is the reset time and
t
is the set time.
H3AM-NSR
Rt'
t
Rt'
t+t'
t'
Power supply (1-2)
Reset (9-10)
Time-limit contact NC (3-4)
Time-limit contact NO (3-5)
Reset instantaneous contact NC (7-8) (See note 2.)
Reset instantaneous contact NO (6-8) (See note 2.)
Power indicator (POWER)
Output indicator (UP)
Note: 1.
t
is the set time,
Rt’
is the reset application time, and
t’
is the power interruption time.
2.
Reset instantaneous contact is the output contact which turns ON/OFF in synchronization with reset
input.
5
