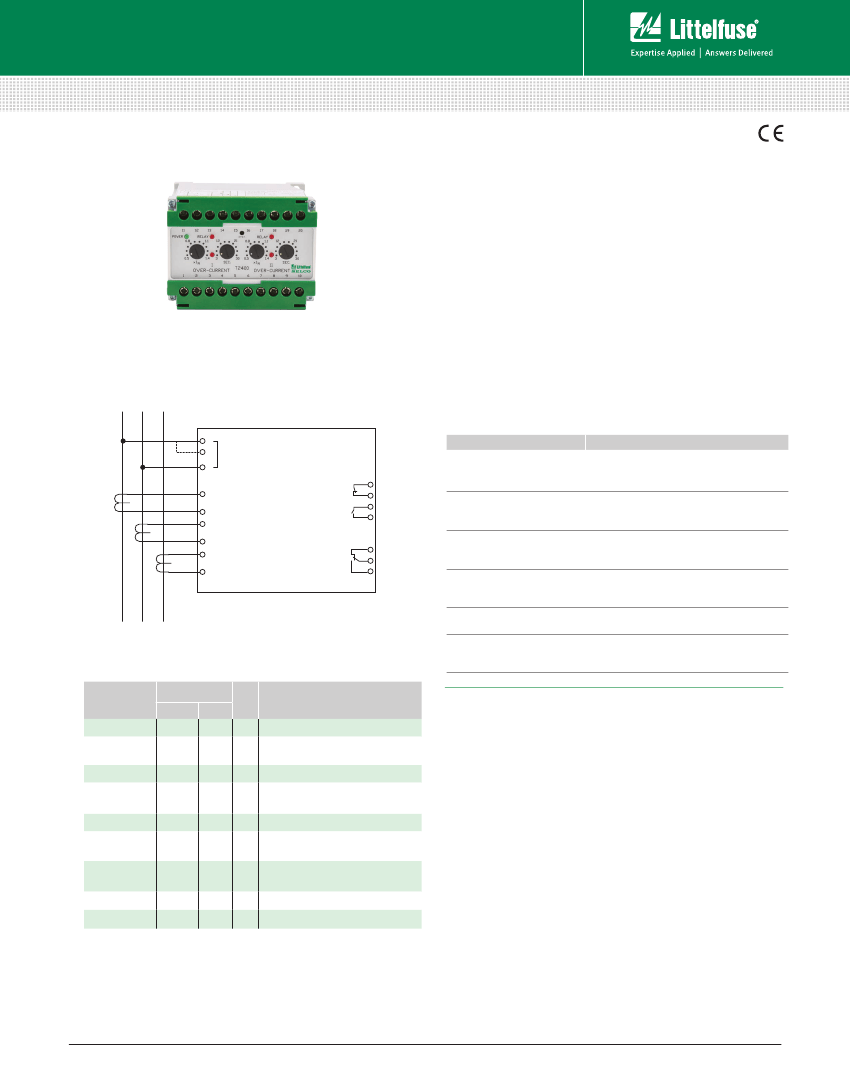

Protection Relays & Controls
Generator & Single-Function Protection–Overcurrent
T2400 SERIES
3-Phase Dual Overcurrent Relay
Description
The T2400 3-Phase Dual Overcurrent Relay includes two
combined overcurrent relays, designed for protection or
monitoring of generators and power transmissions. A typical
application is to use one of the overcurrent functions to
trip the generator circuit breaker, and the other overcurrent
function to trip a non-essential consumer.
The T2400 consists of two overcurrent circuits with similar
current settings and time delays. Each circuit detects the
highest of the 3 input currents and, if this exceeds the preset
level (0.5-1.4 x I
N
), the corresponding pick-up LED will indicate
and the delay timer will be started. After the preset time
(3-30 sec.) has expired, the corresponding output relay and
LED will be activated, provided that the current level was
exceeded for the entire delay time.
Simplified Circuit Diagram
1
2
3
11
12
13
14
15
16
II. OVERCURRENT
Features & Benefits
U
SUPPLY
T2400
(3-Phase Dual
Overcurrent Relay)
I. OVERCURRENT
FEATURES
10
9
8
7
6
5
4
Accepts high supply
voltage variation
Visual indication of
power, pick-up, and
output trip
Direct line-line or line-
neutral voltage supply
(up to 690 Vac)
Combining 2 relays in
same enclosure
Galvanic isolated inputs
DIN-rail or screw-mount
& adjustment by
potentiometers
BENEFITS
Ensures correct operation in spite of voltage
supply fluctuations (fulfills marine class
requirement)
Provides quick and concise status information
Simplifies design and installation.
No need for PTs.
Economic solution for non-essential load
tripping, and occupying less space in the
switch panel
Protects the unit against high AC voltage and
currents from the installation including spikes
Easy installation
I
1
I
2
I
3
L1 L2 L3
Ordering Information
ORDERING
NUMBER
TERMINALS
1-3
2-3
I
N
FUNCTION
Specifications
Trip Level
Delay
Max. Voltage
Voltage Range
Consumption
0.5-1.4 x I
N
3-30 sec.
660 V
60-110%
Voltage 5 VA at U
N
Current 0.3 VA at I
N
Continuous Current
2 x I
N
Frequency Range
45-400 Hz
Output Relay
Normally de-energized
Contact Rating
AC: 400 V, 5 A, 2000 VA; DC: 150 V, 5 A, 150 W
Overall Accuracy
±5%
Repeatability
±1%
Operating Temperature
–20°C to + 70°C
Dielectric Test
2500 V, 50 Hz
EMC
CE according to EN50081-1, EN50082-1,
EN50081-2, EN50082-2
Approvals
Certified by major marine classification societies
Burn-in
50 hours before final test
Enclosure Material
Polycarbonate. Flame retardant
Weight
0.5 kg
Dimensions
H
70 mm (2.76”);
W
100 mm (3.94”);
D
115 mm (4.52”)
Installation
35 mm DIN rail or 4 mm (
3
/
16
”) screws
Rev: 4-B-111014
T2400.0010
T2400.0020
T2400.0030
T2400.0040
T2400.0050
T2400.0060
T2400.0070
T2400.0080
T2400.0090
230 V
450 V
110 V
450 V
480 V
450 V
450 V
5A
400 V 5 A
100 V 5 A
on relay 1,
400 V 5 A Latching outputon relay 1
6-60 sec. delay
415 V 5 A
400 V 1 A
400 V 5 A Latching output on relay 1,
normally energized relay 1
127 V 120 V 5 A
24 Vdc
5A
Latching output relays are reset by disconnecting the power supply.
Other supply voltages and combinations are available on request.
© 2014 Littelfuse Protection Relays & Controls
Littelfuse.com/t2400
