Mallory Sonalert Products,Inc.

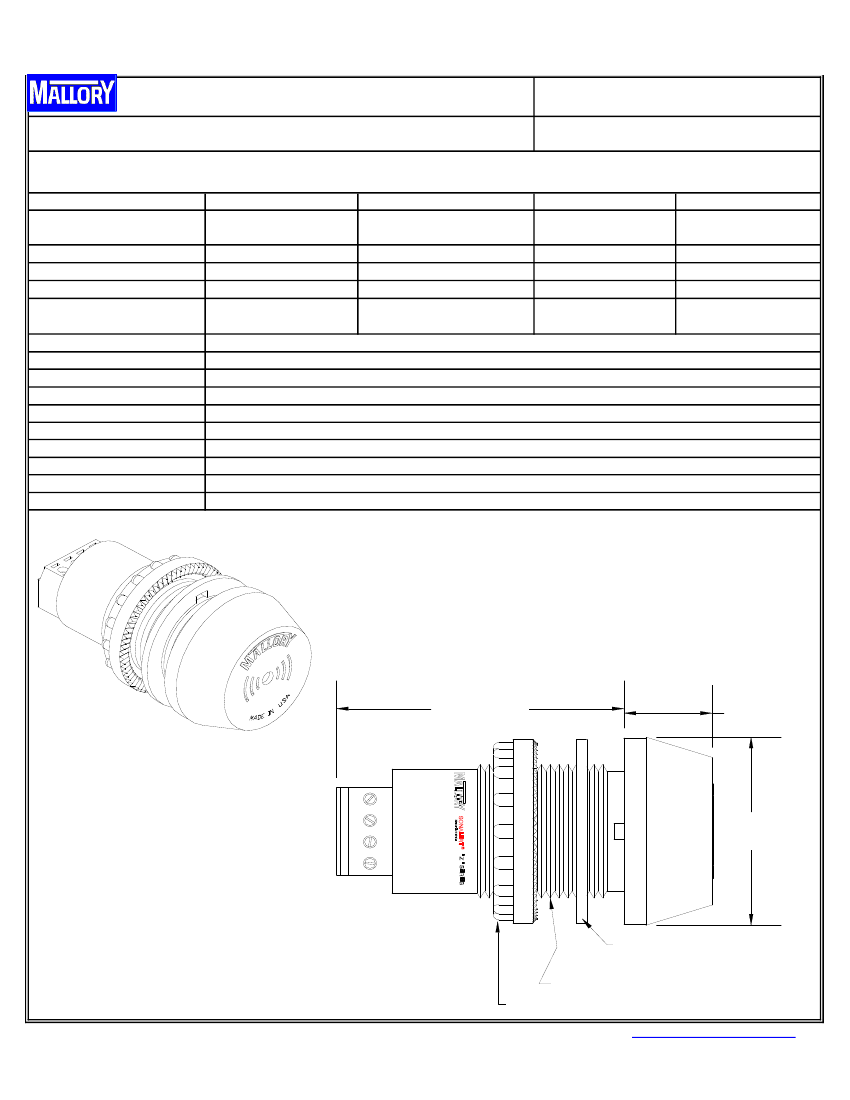

Sales Outline Drawing
Specifications:
Sound Level Category:
Mode of Operation:
Loudness @ 2 FT:
Pulse Rate (PPS):
Frequency:
Connection:
Voltage Rating:
Current Draw:
Housing Material:
Storage Temperature:
Operating Temperature
Panel Mounting:
Knurled Nut:
Weight (Typical):
NEMA 3R,4X, & 12:
Options:
Loud
Continuous
85 to 95 dB(A) Typ.
Loud
Slow Pulse @ 1 PPS
Part #:
Revision:
ZA016LDMT5
D
Loud
Dual Tone 4.0 - 3.9 kHz
@ 7 WPS
Loud
Fast Pulse @ 10 PPS
85 to 95 dB(A) Typ.
85 to 95 dB(A) Typ.
85 to 95 dB(A) Typ.
7
1
10
3700 ± 500 Hz
3900 ± 500 Hz
3900 ± 500 Hz
3900 ± 500 Hz
"+" to Positive, "-" to
"+" to Positive, "-" and "1" "+" to Positive, "-" and "+" to Positive, "-", "1"
Ground
to Ground
"2" to Ground
and "2" to Ground
6 to 16 VDC
40mA MAX
6/6 Nylon, Color: Black
-40° to +80° C
-30° to +65° C
Recommended hole size is 22.5 mm. Thread front will fit standard 22.5mm hole.
Used to attach part to panel. The max recommended torque is 10 in-lbs.
28 g
Approved with use of ACC03.
Please contact factory.
Dimensions:
Inches (mm)
cUL Recognized
ROHS Compliant
1.710 [43.44]
0.524 [13.31
4411 South High School Road, Indianapolis, Indiana 46241 U.S.A · Phone: (317) 612-1000 Fax: (317) 612-1010
+
-
1.210 [30.74]
1
2
Gasket
M22 x 1.5 Thread
<0.86 Maj. Dia.
Knurl nut
www.mallory-sonalert.com
