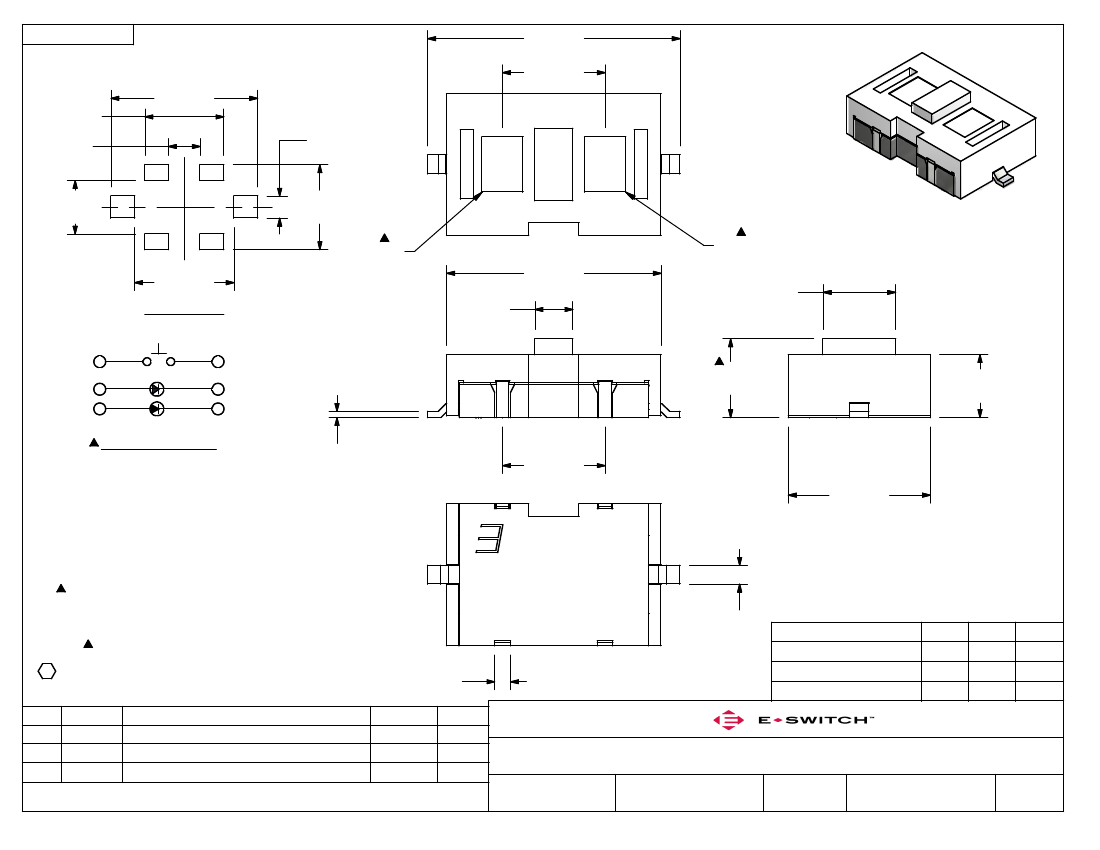

SHEET 1 OF 1
8.00
[.315 in]
3.25
[.128 in]
ISOMETRIC
5.00
[.197 in]
2.00
[.079 in]
9.30
[.366 in]
1.40
[.055 in]
3
5
1
2
3.40
[.134 in]
1
2
5.40
[.213 in]
GREEN LED
6.80
[.268 in]
1.20
[.047 in]
4
6.30
[.248 in]
6
GREEN LED
2.30
[.091 in]
PC MOUNTING
1
+ 3
+ 5
GREEN
GREEN
2
4 -
6 -
1
4
3.25
[.128 in]
4
6
6
2
2.50
[.098 in]
2.00
[.079 in]
2
CIRCUIT: OFF - (ON)
NOTES:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=
`
0.4
3. RATING: 12VDC, 50mA MAX.
4. CONTACT RESISTANCE: 500m
W
MAX.
5. INSULATION RESISTANCE: 100VDC, 100M
W
MIN.
6. TRAVEL: 0.25 mm
7. OPERATING FORCE: 160 +75/-30gf
8. OPERATING TEMPURATURE: -20
~
C TO 70
~
C
9. OPERATING LIFE: 30,000 CYCLES.
10. PACKAGING: TAPE & REEL, 3000 PIECES PER REEL
11. DENOTES CRITICAL PARAMETER
12. 2002/95/EC (ROHS) COMPLIANT
13. PLASTIC MATERIALS MEET OR EXCEED UL94-V0
.60
[.024 in]
3
.50
[.020 in]
10/19/10
5/29/08
5/6/08
DATE
BLR
BLR
BLR
BY
5
LED Specifications
Forward Current
Forward Voltage
Luminous Intensity@20mA
Units
mA
V
mcd
GREEN GREEN
30
30
.20
[.008 in]
4.50
[.177 in]
1
2
C
1.7-2.6 1.7-2.6
6
6
C
B
A
REV
19366
18117
18074
PCR NO
ADD NOTE 13
CORRECT DRAWING VIEWS (MODELS)
RELEASED FOR PRODUCTION
DESCRIPTION
TITLE
TL3200AF160GGQ
8:1
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
SCALE
10/19/2010
BLR
B200105
C
