Q6 series

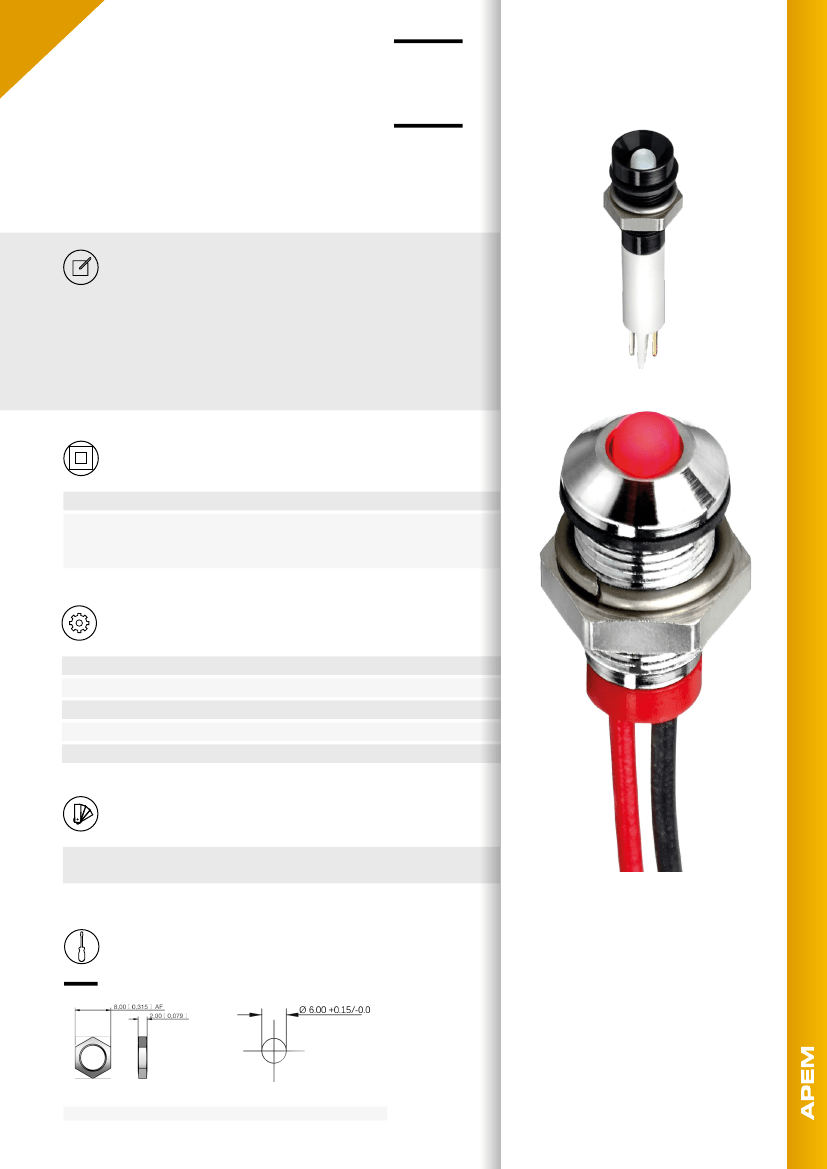

Ø6 mm panel mount LED indicators
DISTINCTIVE FEATURES
3 mm colored diffused epoxy lens or 3 mm water clear
super bright LEDs
Prominent, recessed and flush bezel styles
(2.0 x 0.5) solder lug terminals, pins or (200 mm long) wire
terminations, other lengths available on request
ENVIRONMENTAL SPECIFICATIONS
• IP67 sealing option (EN60529)
• Operating & Storage Temperature Range:
Rear plastic body:
-30 °C to +65 °C ( –22 °F to +149 °F)
Rear epoxy body:
-40 °C to +85 °C ( –40 °F to +185 °F)
GENERAL SPECIFICATIONS
• Max Reverse Voltage: 5 V
• Viewing Angle: 30–100° (dependant on model)
• Life Expectancy: 100,000 hours
• Torque: 4 cNm (dependent on option)
• Maximum panel thickness 7 mm
MATERIALS
• Plated brass bezel finished in bright chrome, black chrome or satin grey
and moulded polycarbonate rear body
MOUNTING
The company reserves the right to change specifications without notice.
All LED characteristics are dependent upon environmental conditions. Therefore published data
should be considered nominal and subjet to variations.
1
LED INDICATORS
07
7-
1
6-
LED INDICATORS
Q6 series
Ø6 mm panel mount LED indicators
ELECTRICAL SPECIFICATIONS
STANDARD LED INTENSITY
LED COMPONENT SPECIFICATIONS
Prominent and
Recessed
HE Red
Green
Yellow
Blue
White
Orange
Bi-color (Typical)
(Red/Green)
40 mcd
50 mcd
30 mcd
1,200 mcd
1,200 mcd
60 mcd
20/15 mcd
Flush
10 mcd
12 mcd
6 mcd
100 mcd
160 mcd
10 mcd
10/8 mcd
Forward Voltage
2.0 V
2.2 V
2.1 V
3.8 V
3.8 V
2.0 V
2.0 V/2.2V
Voltage
Operating Voltage
(Min to Max)
Operating Current
(Typical All Types)
02 (No Resistor)
6 VDC
12 VDC
24 VDC
28 VDC
1.8 to 3.3 VDC
5.4 to 6.6 VDC
10.8 to 13.2 VDC
21.6 to 26.4 VDC
25.2 to 30.8 VDC
20 mA max*
20 mA
20 mA
20 mA
20 mA
* Customer to supply resistor for desired operating
current.
Bi-color - The color is changed by reversing the polarity of the supply voltage.
SUPER BRIGHT LED INTENSITY
LED COMPONENT SPECIFICATIONS
Prominent and
Recessed
HE Red
Green
Yellow
Blue
White
Orange
1,000 mcd
1,200 mcd
2,000 mcd
1,600mcd
1,200 mcd
10,000 mcd
Flush
700 mcd
2,000 mcd
8,000 mcd
200 mcd
350 mcd
500 mcd
Forward Voltage
2.2 V
3.5 V
2.3 V
3.3 V
3.3 V
2.2 V
HYPER BRIGHT LED INTENSITY
LED COMPONENT SPECIFICATIONS
Prominent and
Recessed
HE Red
Green
Yellow
Orange
3,700 mcd
2,000 mcd
1,200 mcd
4,500 mcd
Flush
600 mcd
350 mcd
140 mcd
400 mcd
Forward Voltage
2.2 V
3.2 V
2.0 V
2.2 V
• The operating voltage must not be exceeded by more that
10% as this will result in reduced life expectancy
• Luminous intensity is measured at 20 ma on a discrete led
unless otherwise stated.
• Luminous intensities and color shades of white LEDs may
vary within a batch.
• Luminous intensity will be reduced with lower operating
current.
2
Q6 series
Ø6 mm panel mount LED indicators
BUILD YOUR PART NUMBER
Q
SERIES
MOUNTING HOLE
BEZEL STYLE
TERMINALS
BEZEL FINISH
Rear epoxy Pins
Rear epoxy Wires
Short body Pins
Short body Wires
6
Ø6 mm
P
R
F
Prominent
Recessed
Flush
1
2
3
Solder Lug/
Fastons (2.0 x 0.5)
Pins
Wires
4
5
6
7
C
B
G
Bright Chrome
Black Chrome
Satin Grey
TYPE OF ILLUMINATION
LED COLOR
VOLTAGE
SEALING
XX
KK
YY
Fixed Light
Flashing Light
(12 V – 28 VDC)
Bi-color
R
G
Y
B
W
O
HR
HG
HY
HO
Red
Green
Yellow
Blue
White
Orange
Hyper Bright Red
Hyper Bright
Green
Hyper Bright
Yellow
Hyper Bright
Orange
SR
SG
SY
SB
SW
SO
RG
RY
GY
Super Bright Red
Super Bright
Green
Super Bright
Yellow
Super Bright
Blue
Super Bright
White
Super Bright
Orange
Red/Green
Red/Yellow
Green/Yellow
02
06
12
12A
24
24A
28
28A
no resistor*
6V DC
12 VDC
12 VAC/DC
24 VDC
24 VAC/DC
28 VDC
28 VAC/DC
(Blank)
E
Unsealed
IP67
* please refer to the
forward voltage in
electrical
specifications
ABOUT THIS SERIES
Notice:
please note that not all combinations of above numbers are available.
• Gold faston terminal denotes anode (+), silver terminal denotes
cathode (-)
• Standard wire length is 200 mm, 24 AWG UL1061, red wire
denotes anode (+), black wire denotes cathode (-) for other wire
lengths consult APEM.
• For LEDs with alternative voltages consult APEM
• Bi-color leds, by connecting the gold solder lug (+) one color
is produced, by reversing the supply voltage another color is
produced – bi-colors are available up to 28 V in DC only.
• Take care when soldering to the faston terminals (recommended
solder temperature 300 °C - 3 sec)
• Short body options are only available up to 24 VDC.
3
LED INDICATORS
LED INDICATORS
Q6 series
Ø6 mm panel mount LED indicators

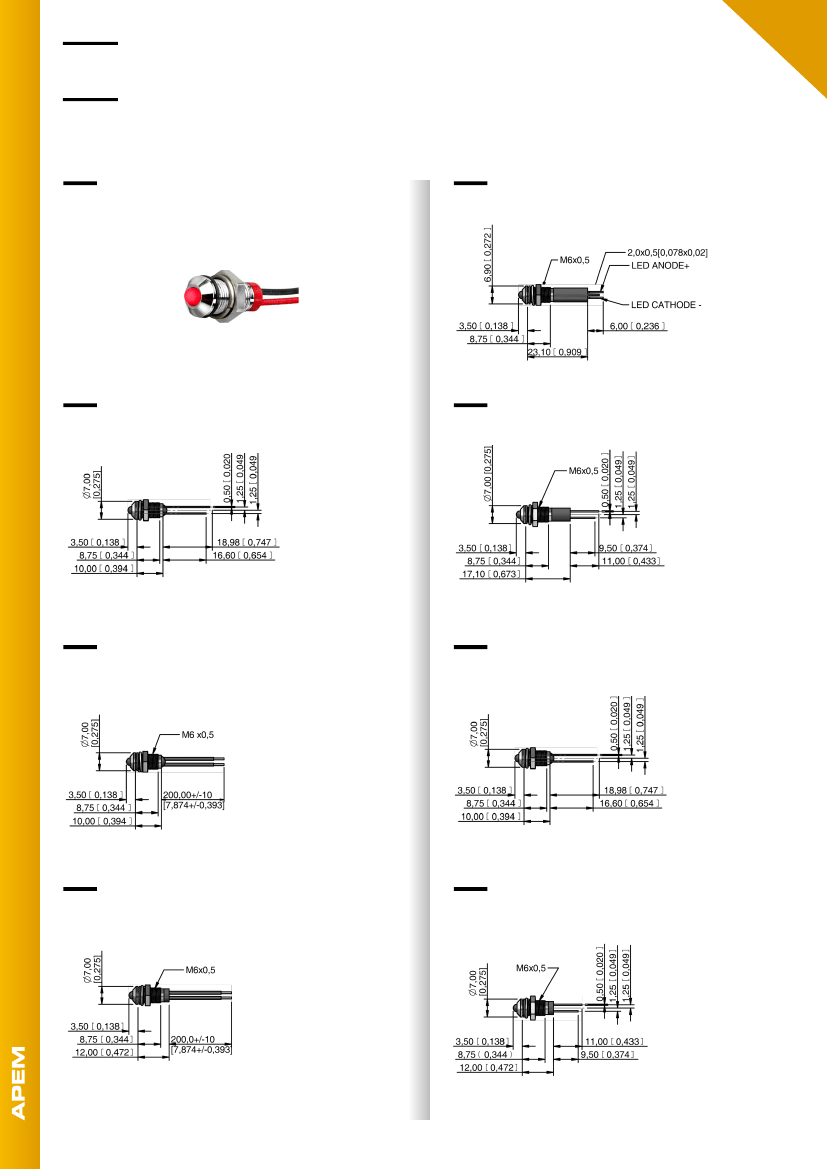

PROMINENT BEZEL
SOLDER LUG/FASTON
WIRES
PINS
REAR EPOXY WIRES
REAR EPOXY PINS
SHORT BODY WIRES
SHORT BODY PINS
4
Q6 series
Ø6 mm panel mount LED indicators

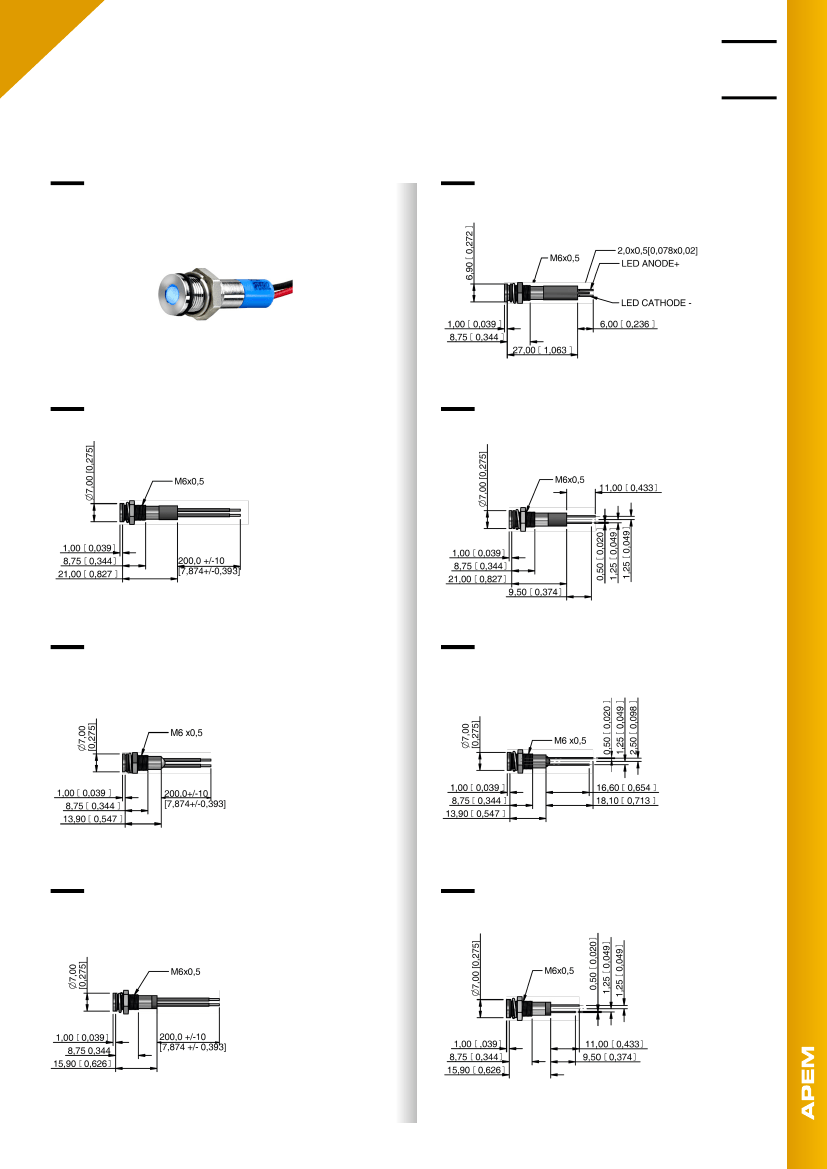

FLUSH BEZEL
SOLDER LUG/FASTON
WIRES
PINS
REAR EPOXY WIRES
REAR EPOXY PINS
SHORT BODY WIRES
SHORT BODY PINS
5
LED INDICATORS
