Edition 07/2016
HMI-Components
Series
Characteristics
Functions
19
Market segments

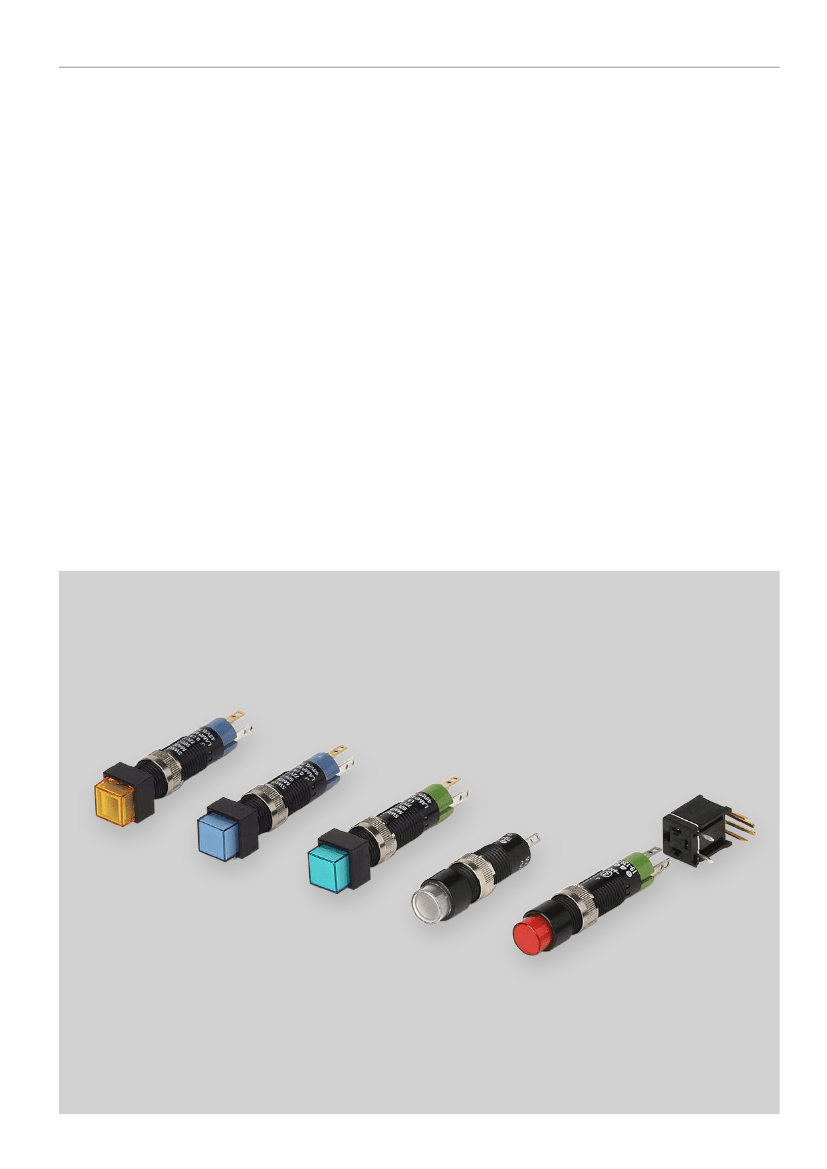

The compact 8 mm Series 19 is
especially suited for:
■■
■■
The Series 19 incorporates the following
functions:
■■
■■
■■
The EAO Series 19 is especially suited
for applications in the segments:
■■
■■
Raised design
PCB (with adaptor)
Indicator
Pushbutton
Illuminated pushbutton
Audio and video
Laboratory and measuring equipment
The low level switching element is laid
out for low current applications.
Please refer to the EAO website to obtain detailed information regarding this series
www.products.eao.com
Configure a product to your exact needs and request a quotation.
Content
Overview
Raised design
Indicator
Illuminated pushbutton
Accessories
Drawings
Technical data
Application guidelines
Index
19
4
5
7
14
15
17
18
3
19

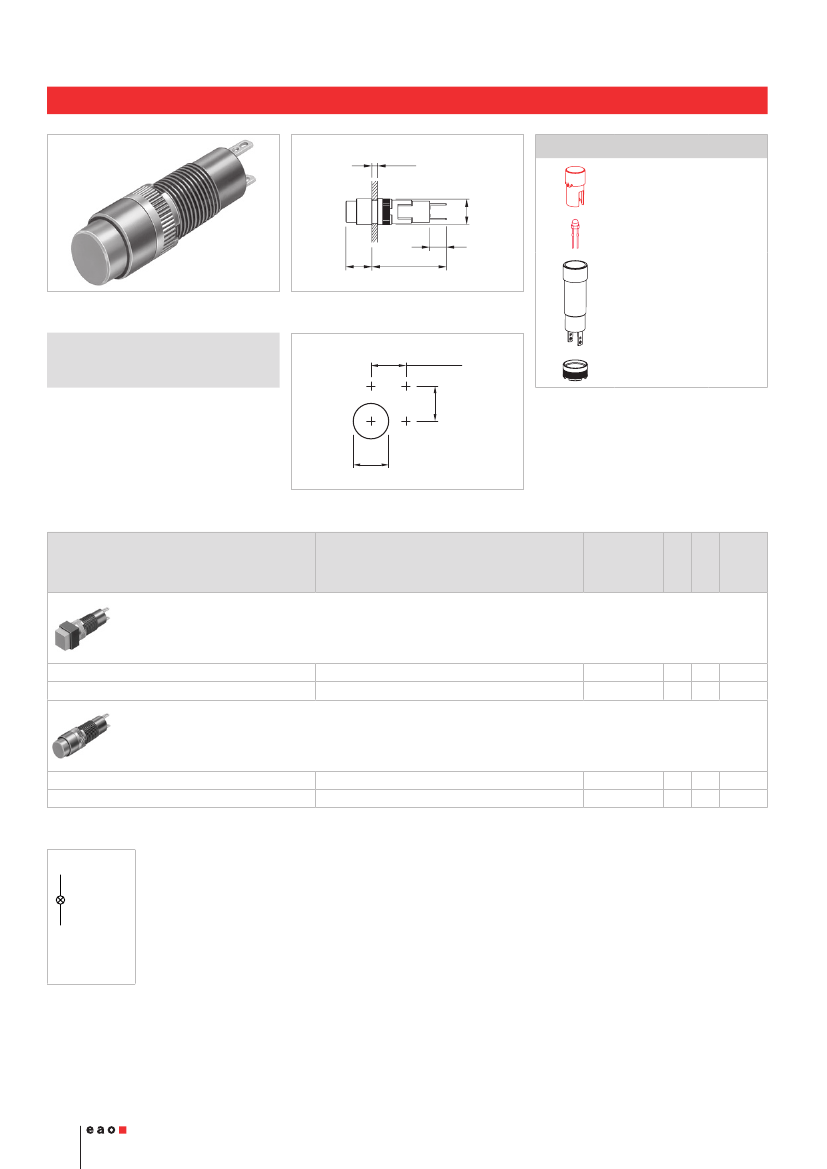

Raised design
Indicator, IP 40
8 max.
Equipment consisting of (schematic overview)
Lens
Ø9
page 7
5.8
9
L
Single-LED
page 10
Product can differ from the current configuration.
Additional Information
•
For LED element fitting information see «Applica-
tion guidelines»
Dimensions [mm]
Actuator
Fixing nut
Each Part Number listed below includes all the black
components shown in the 3D-drawing.
To obtain a complete unit, please select the red com-
ponents from the pages shown.
Mounting cut-outs [mm]
Compo-
nent layout
Behind panel depth
Terminal
Part No.
Wiring
diagram
1
1
1
1
Weight
Indicator actuator, Front dimension 9 x 9 mm
25 mm
33 mm
Solder 2.0 x 0.5mm
Solder 2.0 x 0.5mm
19-050.005
19-051.005
1
1
0.001 kg
0.002 kg
Indicator actuator, Front dimension Ø 9 mm
25 mm
33 mm
The component layouts you will find from page 14
Solder 2.0 x 0.5mm
Solder 2.0 x 0.5mm
19-030.005
19-031.005
1
1
0.001 kg
0.002 kg
X
Y
Wiring diagram 1
4

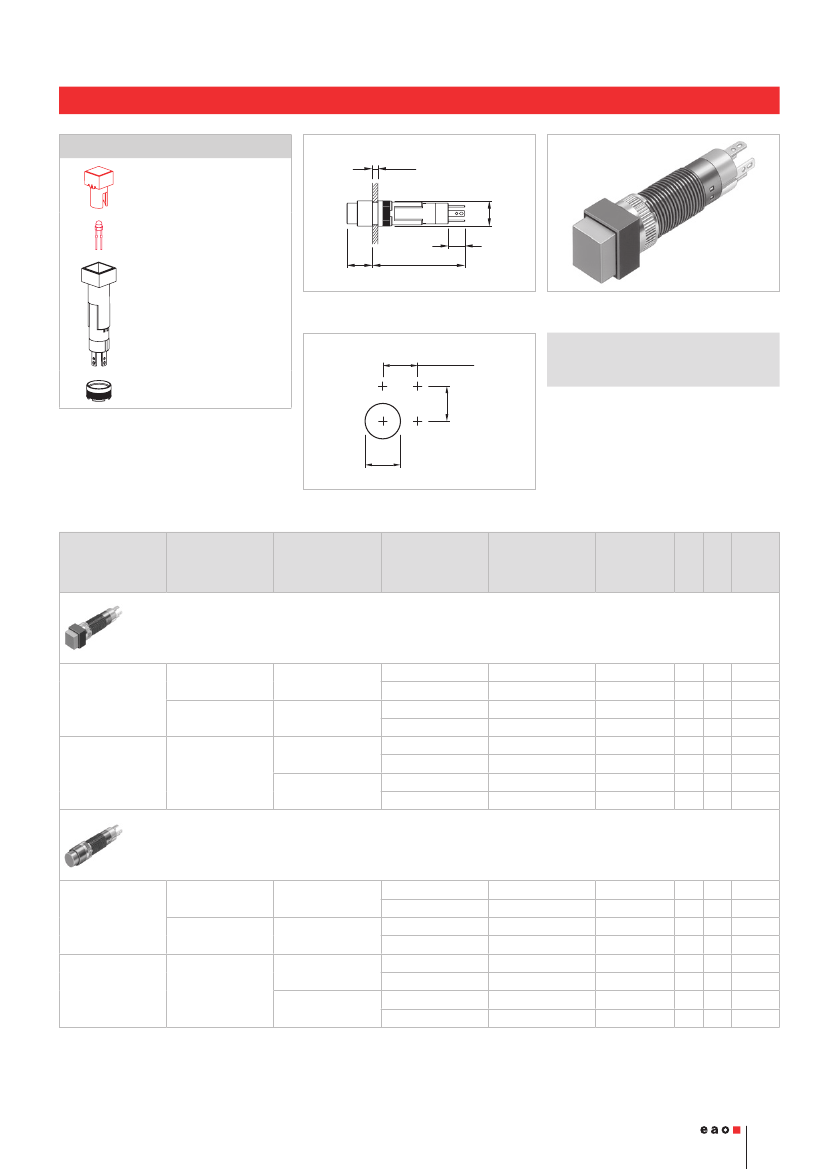

Raised design
Illuminated pushbutton, IP 40
19
Equipment consisting of (schematic overview)
8 max.
Lens
page 7
Ø9
1
Single-LED
page 10
9
33
5.8
Actuator
Dimensions
Product can differ from the current configuration.
Additional Information
•
For LED element fitting information see «Applica-
tion guidelines»
Fixing nut
Each Part Number listed below includes all the black
components shown in the 3D-drawing.
To obtain a complete unit, please select the red com-
ponents from the pages shown.
Mounting cut-outs [mm]
Compo-
nent layout
Switching system
Contacts
Contact material
Switching action
Terminal
Part No.
Wiring
diagram
1
2
3
4
3
4
3
4
1
2
3
4
3
4
3
4
Weight
Illuminated pushbutton actuator, Front dimension 9 x 9 mm
Low-level element
1 NC
Gold
B
C
1 NO
Gold
B
C
Snap-action switching
element
1 NO
Gold
B
C
Silver
B
C
Solder 2.0 x 0.5mm
Solder 2.0 x 0.5mm
Solder 2.0 x 0.5mm
Solder 2.0 x 0.5mm
Solder 2.0 x 0.5mm
Solder 2.0 x 0.5mm
Solder 2.0 x 0.5mm
Solder 2.0 x 0.5mm
19-452.035
19-482.035
19-451.035
19-481.035
19-159.035
19-289.035
19-159.015
19-289.015
2
2
2
2
2
2
2
2
0.002 kg
0.002 kg
0.002 kg
0.002 kg
0.002 kg
0.002 kg
0.002 kg
0.002 kg
Illuminated pushbutton actuator, Front dimension Ø 9 mm
Low-level element
1 NC
Gold
B
C
1 NO
Gold
B
C
Snap-action switching
element
1 NO
Gold
B
C
Silver
B
C
Contacts: NC = Normally closed, NO = Normally open
Switching action: B = Momentary, C = Maintain
The component layouts you will find from page 14
Solder 2.0 x 0.5mm
Solder 2.0 x 0.5mm
Solder 2.0 x 0.5mm
Solder 2.0 x 0.5mm
Solder 2.0 x 0.5mm
Solder 2.0 x 0.5mm
Solder 2.0 x 0.5mm
Solder 2.0 x 0.5mm
19-432.035
19-472.035
19-431.035
19-471.035
19-139.035
19-279.035
19-139.015
19-279.015
2
2
2
2
2
2
2
2
0.002 kg
0.002 kg
0.002 kg
0.002 kg
0.002 kg
0.002 kg
0.002 kg
0.002 kg
