3660-05-92 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 3660-05-92

3660-05-92: DescriptionReed Relays REED RELAY 3PST 250MA 5V; CategoryMechanical and electronic products relay; File Size53KB，2 Pages; ManufacturerCOTO TECHNOLOGY; Websitehttp://www.cotorelay.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

3660-05-92 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3660-05-92	-	-	View	Buy Now

3660-05-92 Overview

Reed Relays REED RELAY 3PST 250MA 5V

3660-05-92 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	COTO TECHNOLOGY
Reach Compliance Code	compliant
body width	16.76 mm
body height	12.06 mm
Body length or diameter	30.48 mm
Coil operating voltage (DC)	3.8 V
Coil release voltage (DC)	0.4 V
Coil resistance	350 Ω
Nominal coil voltage	5 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	0.25A@150VAC
Maximum contact current (AC)	0.25 A
Maximum contact current (DC)	0.25 A
Contact (DC) maximum rated R load	0.25A@150VDC
Maximum contact voltage (AC)	150 V
Maximum contact voltage (DC)	150 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1500 Vrms
Dielectric strength between breaking contacts	250 Vrms
Input switching control type	Random
Insulation resistance	1000000000000 Ω
JESD-609 code	e3
Number of terminals	10
operating hours	0.75 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB hole count	10
physical size	30.48mm x 16.76mm x 12.06mm
Relay action	LATCHED
Relay style	3 FORM A
Relay function	3PST
release time	0.1 ms
seal	HERMETICAL
Terminal surface	Matte Tin (Sn)
Terminal length	0.0029 inch
Termination type	SOLDER
Base Number Matches	1

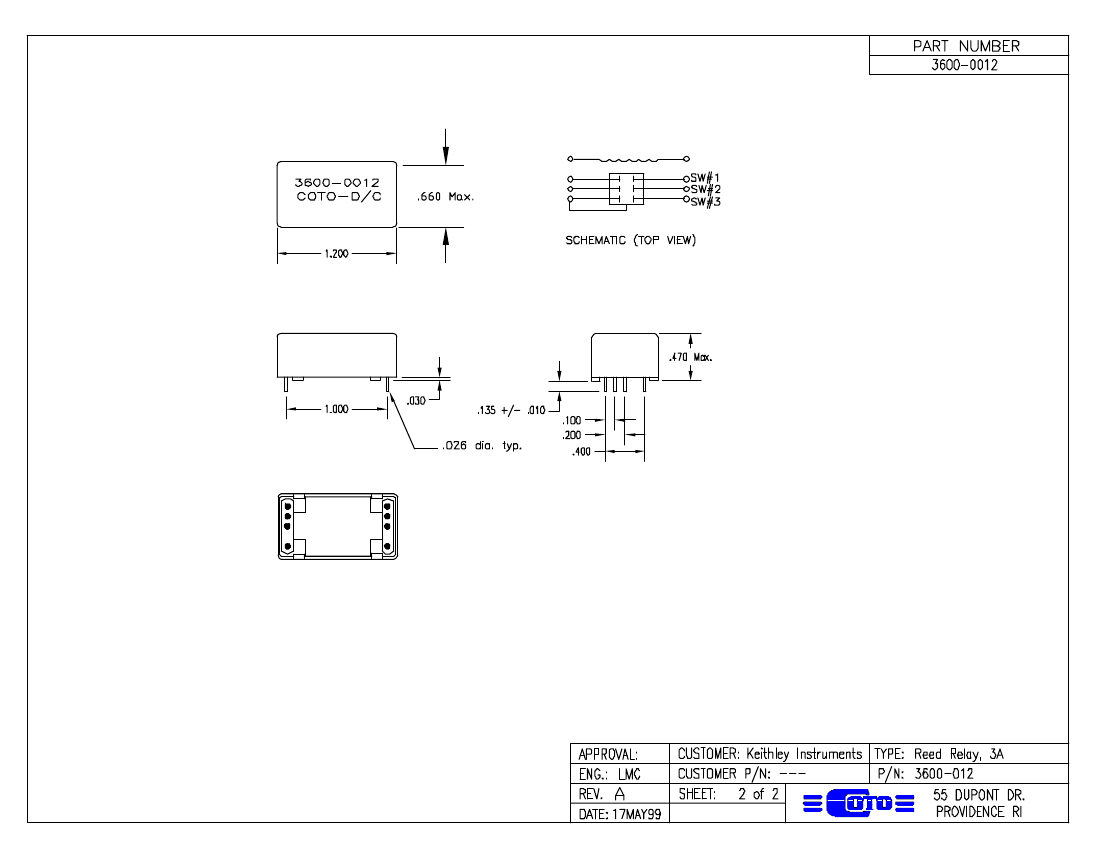

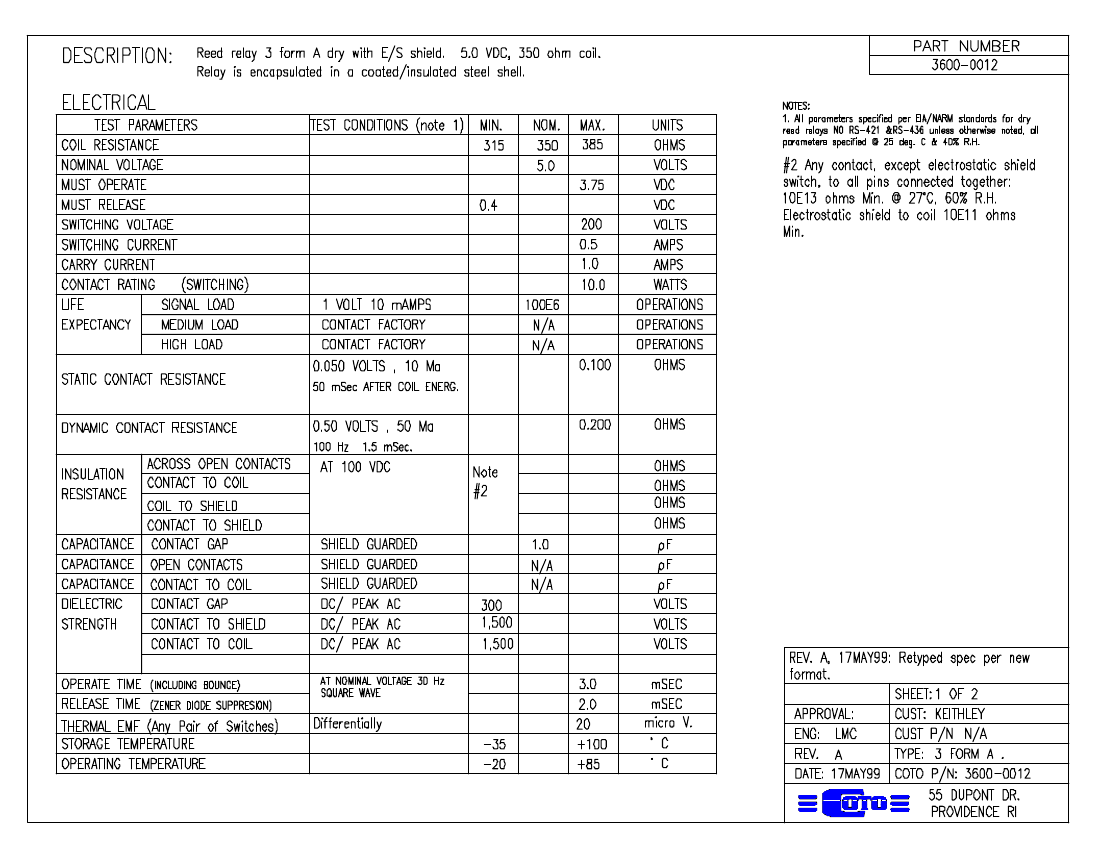

Preview

Download Datasheet

View All

3660-05-92 Related Products

	3660-05-92	3600-0031	3660-12-92	3602-05-92	3650-05-82
Description	Reed Relays REED RELAY 3PST 250MA 5V	Reed Relays LOW THERMAL EMF	Reed Relays REED RELAY 3PST 250MA 12V	Reed Relays REED RELAY DPST 250MA 5V	Reed Relays REED RELAY 3PST 250MA 5V
Is it Rohs certified?	conform to	-	conform to	conform to	conform to
Reach Compliance Code	compliant	-	compliant	compliant	compliant
body width	16.76 mm	-	16.76 mm	16.76 mm	16.76 mm
body height	12.06 mm	-	12.06 mm	12.06 mm	12.06 mm
Body length or diameter	30.48 mm	-	30.48 mm	30.48 mm	30.48 mm
Coil operating voltage (DC)	3.8 V	-	9 V	3.8 V	3.8 V
Coil release voltage (DC)	0.4 V	-	1 V	0.4 V	0.4 V
Coil resistance	350 Ω	-	2000 Ω	350 Ω	350 Ω
Nominal coil voltage	5 V	-	12 V	5 V	5 V
Coil/Input Power Type	DC	-	DC	DC	DC
Contact (AC) maximum rated R load	0.25A@150VAC	-	0.25A@150VAC	0.25A@150VAC	0.25A@150VAC
Maximum contact current (AC)	0.25 A	-	0.25 A	0.25 A	0.25 A
Maximum contact current (DC)	0.25 A	-	0.25 A	0.25 A	0.25 A
Contact (DC) maximum rated R load	0.25A@150VDC	-	0.25A@150VDC	0.25A@150VDC	0.25A@150VDC
Maximum contact voltage (AC)	150 V	-	150 V	150 V	150 V
Maximum contact voltage (DC)	150 V	-	150 V	150 V	150 V
Contact/Output Power Type	AC/DC	-	AC/DC	AC/DC	AC/DC
Dielectric strength between coil and contacts	1500 Vrms	-	1500 Vrms	1500 Vrms	1500 Vrms
Dielectric strength between breaking contacts	250 Vrms	-	250 Vrms	250 Vrms	250 Vrms
Input switching control type	Random	-	Random	Random	Random
Insulation resistance	1000000000000 Ω	-	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω
JESD-609 code	e3	-	e3	e3	e3
Number of terminals	10	-	10	10	10
operating hours	0.75 ms	-	0.75 ms	0.75 ms	0.75 ms
Maximum operating temperature	85 °C	-	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-	-20 °C	-20 °C	-20 °C
PCB hole count	10	-	10	10	10
physical size	30.48mm x 16.76mm x 12.06mm	-	30.48mm x 16.76mm x 12.06mm	30.48mm x 16.76mm x 12.06mm	30.48mm x 16.76mm x 12.06mm
Relay action	LATCHED	-	LATCHED	LATCHED	LATCHED
Relay style	3 FORM A	-	3 FORM A	2 FORM A	3 FORM A
Relay function	3PST	-	3PST	DPST	3PST
release time	0.1 ms	-	0.1 ms	0.1 ms	0.1 ms
seal	HERMETICAL	-	HERMETICAL	HERMETICAL	HERMETICAL
Terminal surface	Matte Tin (Sn)	-	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal length	0.0029 inch	-	0.0029 inch	0.0029 inch	0.0029 inch
Termination type	SOLDER	-	SOLDER	SOLDER	SOLDER
Base Number Matches	1	-	1	1	1
