62P22-H4S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 62P22-H4S

62P22-H4S: DescriptionEncoders 62P22-H4S CONTACT FACTORY - Encoder, PC Mount, stripped; CategoryLED optoelectronic/LED photoelectric; File Size359KB，2 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric Compare View All

62P22-H4S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	62P22-H4S	-	-	View	Buy Now

62P22-H4S Overview

Encoders 62P22-H4S CONTACT FACTORY - Encoder, PC Mount, stripped

62P22-H4S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Grayhill
package instruction	COMPACT PACKAGE-6
Reach Compliance Code	compliant
Configuration	SINGLE, 2 CHANNELS
JESD-609 code	e3
Installation features	THROUGH HOLE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	ROTARY POSITION ENCODER
Maximum supply voltage	5.25 V
surface mount	NO
Terminal surface	Tin (Sn)

Preview

Download Datasheet

View All

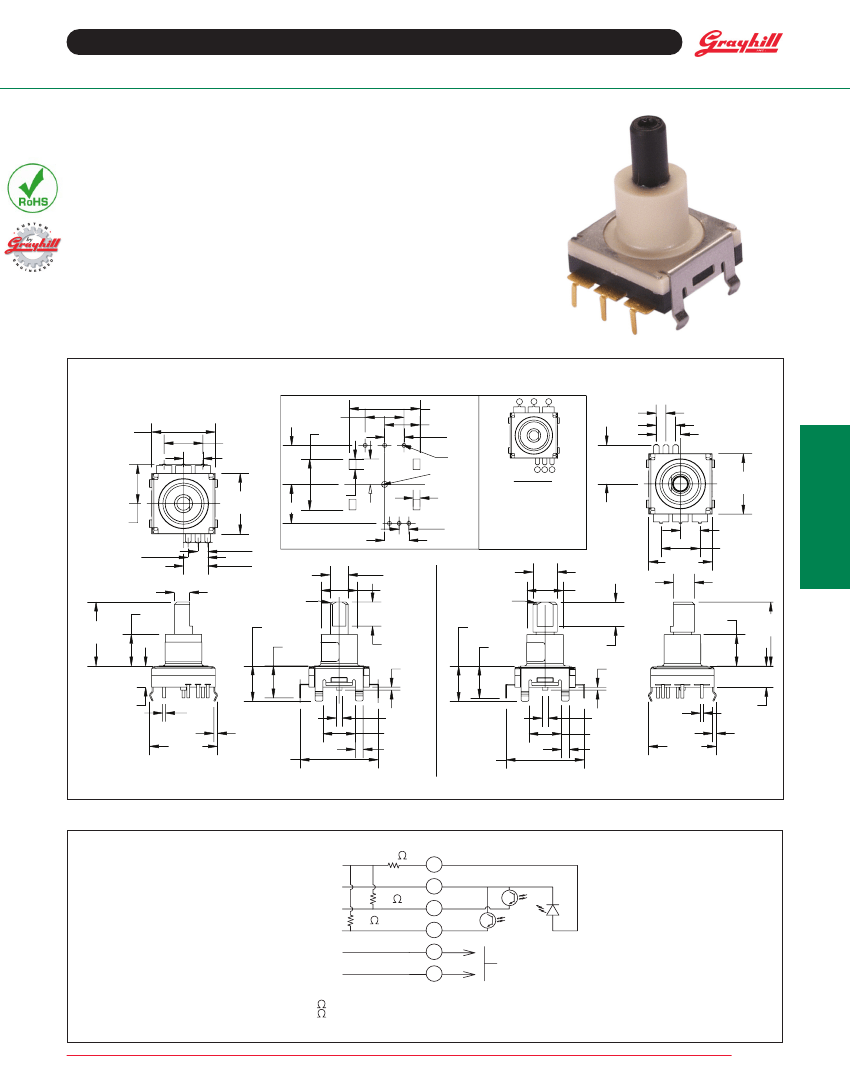

Optical Encoders

SERIES 62P

Low Cost, PC Mount

FEATURES

• Low Cost

• Compact Size

• PC Mount

• No De-Bouncing Required

• Reliable, Up to 2 Million Cycles

• Choice of Detent and

Pushbutton Force

• Available in 16 Positions

• Quadrature Output

DIMENSIONS

In inches (and millimeters)

APPLICATION

• Automotive Controls

• White Goods

• Audio

±.010 TOLERANCE APPLIES TO ALL DIMENSIONS UNLESS OTHERWISE NOTED

.730

(18,54)

.365

(9,27)

.200

(5,08)

2 PLCS.

.042

(1,07)

6 PLCS.

.064

(1,63)

.070

(1,78)

4 PLCS.

.100

(2,54)

.250 2 PLCS.

(6,35)

.655

(16.64)

.100

(2,54)

.250

(6,35)

.403

(10,24)

6 PLCS.

.201

(5,14)

.400

(10,16)

.655

(16.64)

.400

(10,16)

.200

(5,08)

.525

(13,34)

Optical and Mechanical

Encoders

.403

(10,24)

.109

(2,77)

4 PLCS.

2 1

PIN DESIGNATION

.625

(15,88)

.625

(15,88)

.403

(10,24)

6 PLCS.

.202

(5,14)

.100

(2,54)

.250

(6,35)

.156±.004

(3,96±0,1)

.325

(8,26)

.660±.015

(16,76±0,38)

.403

(10,24)

.263

(6,67)

SUGGESTED

HOLE LAYOUT DETAIL

TOLERANCE: ±.002

.200

(5,08)

.400

(10,16)

Ø.187±.004

(4,75±0,1)

Ø.375

(9,53)

.025 X 45°

CHAMFER

.366

(9,29)

.332

(8,43)

.250

(6,35)

.030

(0,76)

.332

(8,43)

.250±.004

(6.35±0,1)

Ø.375

(9,53)

.219±.002

(5,56±0,1)

.025 X 45°

CHAMFER

.366

(9,29)

.325

(8,26)

.250

(6,35)

.030

(0,76)

.660±.0

(16,76±0

.220

(5,59)

.030

(0,76)

.038

(0,96)

4 PLCS.

.805

(20,45)

.700

(17,78)

Ø.059±.002

(1,5±0,05)

.335

(8,51)

.080

(2,03)

.805

(20,45)

Ø.059±.002

(1,5±0,05)

.335

(8,51)

.080

(2,03)

.030

(0,76)

.220

(5,59)

.038

(0,96)

4 PLCS.

.700

(17,78)

CIRCUITRY

150

POWER (+5.0 V)

GROUND

10K

OUTPUT B

10K

OUTPUT A

PUSHBUTTON

*10K

EXTERNAL PULL-UP RESISTORS REQUIRED ON PIN

AND PIN 4

*150

EXTERNAL RESISTOR REQUIRED ON PIN 1

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

Encoder

62P22-H4S Related Products

	62P22-H4S	62P22-L0	62P22-H6S	62P22-L4S	62P22-H0S	62P22-L4
Description	Encoders 62P22-H4S CONTACT FACTORY - Encoder, PC Mount, stripped	Encoders 62P22-L0 CONTACT FACTORY - Encoder, PC Mount	Encoders 62P22-H6S CONTACT FACTORY - Encoder, PC Mount, High Torque, w/pushbutton	Encoders CONTACT FACTORY Encoder PC Mount	Encoders 62P22-H0S 62P22-H0S Mount, High Torque, 22u0026deg; or 16 positions, no pushbutton	Encoders CONTACT FACTORY Encoder PC Mount
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Grayhill	Grayhill	Grayhill	Grayhill	Grayhill	Grayhill
package instruction	COMPACT PACKAGE-6	COMPACT PACKAGE-6	COMPACT PACKAGE-6	COMPACT PACKAGE-6	COMPACT PACKAGE-6	COMPACT PACKAGE-6
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Configuration	SINGLE, 2 CHANNELS	SINGLE, 2 CHANNELS	SINGLE, 2 CHANNELS	SINGLE, 2 CHANNELS	SINGLE, 2 CHANNELS	SINGLE, 2 CHANNELS
JESD-609 code	e3	e3	e3	e3	e3	e3
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of functions	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
surface mount	NO	NO	NO	NO	NO	NO
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Base Number Matches	-	-	1	1	1	1
