Product data sheet
Characteristics

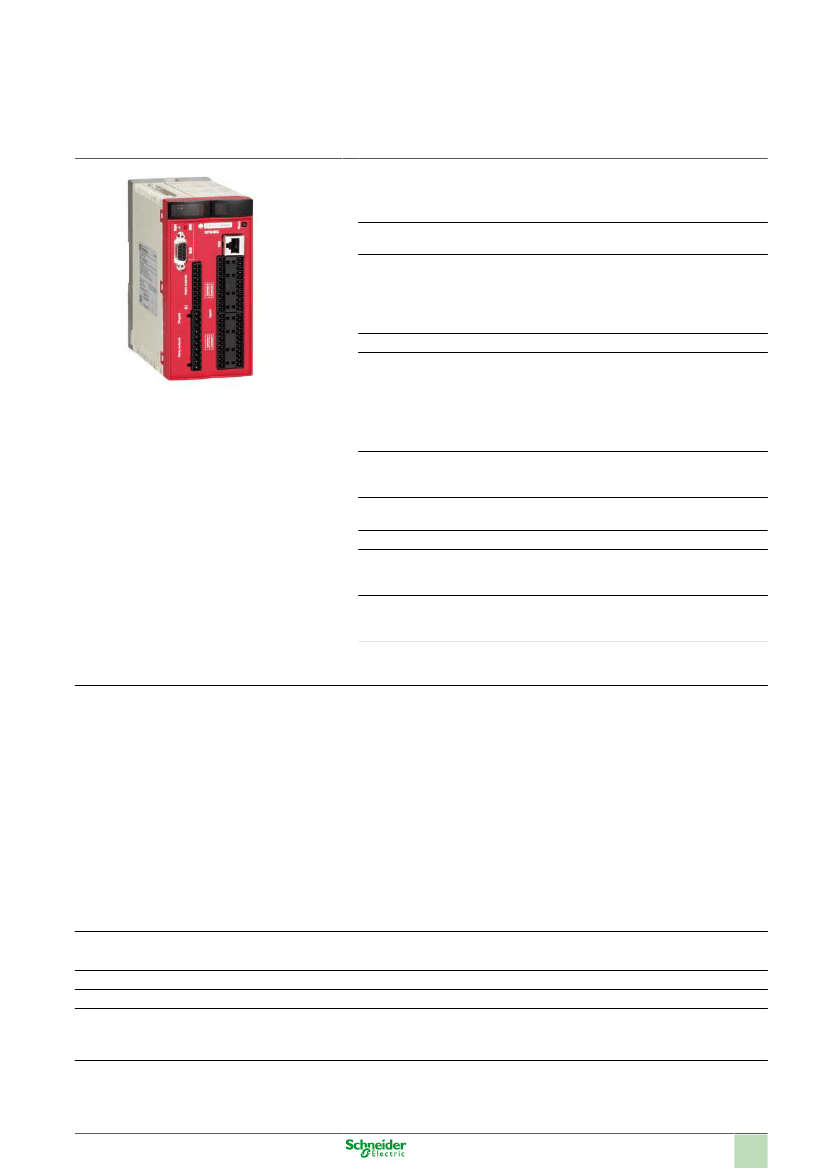

XPSMC32Z
safety controller XPS-MC - 24 V DC - 32 input -
46 LEDs signalling
Main
Range of product
Product or component
type
Safety module name
Safety use category
Preventa Safety automation
Configurable safety controller
XPSMC
SIL 3 maximum conforming to IEC 61508
PLE maximum conforming to EN/ISO 13849-1
Category 4 maximum conforming to EN 954-1/EN/
ISO 13849-1
Configurable
EN 1760-1/ISO 13856-1
EN 574/ISO 13851
EN 954-1/EN/ISO 13849-1
EN/IEC 60204-1
EN/IEC 60947-5-1
EN/IEC 61496-1
IEC 61508
CSA
TÜV
UL
24 V DC - 20...20 %
32
Modbus with 1 RJ45 port(s), serial link, transmis-
sion rate: 1200 bps, 2400 bps, 4800 bps, 9600 bps
or 19200 bps
Can reach SIL 3 conforming to IEC 61508
Can reach PL e/category 4 conforming to EN 954-1/
EN/ISO 13849-1
Type of start
Standards
Product certifications
[Us] rated supply volt-
age
Number of inputs
Communication port
protocol
Safety level
Complementary
Function of module
Two-hand control (category 3) conforming to EN 574/ISO 13851
Light curtain monitoring (category 4) conforming to EN/IEC 61496
Zero speed detection
Shaft/Chain breaking monitor
Safety time delays
Safety mat monitoring
Position selector
Muting function of light curtains
Monitoring safety stop at top dead centre on eccentric press
Magnetic switch monitoring
Hydraulic press
Guard monitoring with 1 or 2 limit switches
Guard monitoring for injection presses and blowing machines
Foot switch monitoring
Enabling switch monitoring, 2 or 3 contacts
Emergency stop monitoring, with or without time delay, 1 or 2-channel wiring
Eccentric press
Dynamic monitoring of hydraulic valves on linear presses
Depending on configuration selected
12 W
External fuse 16 A
28.8 V
100 Ohm, cable length: <= 2000 m
Solid state, 6 circuit(s), volt-free
2 relays, 2 NO contacts (4 NO total) circuit(s)
C300 : inrush 1800 VA AC-15 for relay output
C300 : holding 180 VA AC-15 for relay output
Synchronisation time between inputs
Power consumption
Input protection type
[Uc] control circuit voltage
Line resistance
Output type
Breaking capacity
Nov 14, 2016
1
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Breaking capacity
Output thermal current
[Ith] conventional free air thermal current
Associated fuse rating
1.5 A / 24 V - L/R = 50 ms, DC-13 for relay output
2 A / 24 V for static output circuit
6 A for 1 output and 2 A for the other for relay output
4 A for both outputs simultaneously
<= 6.5 A for static output circuit
<= 16 A for relay output
6 A fast blow for relay output
4 A gL for relay output
16 A gL for power supply
10 mA for relay output
17 V for relay output
Configurable : 20 ms or 30 ms with software XPSMCWIN
300 V, degree of pollution 2 conforming to IEC 60647-5-1, DIN VDE 0110 part 1
4 kV overvoltage category III conforming to IEC 60647-5-1, DIN VDE 0110 part 1
Slave
14 words
1...247 for Modbus
Odd for Modbus
No for Modbus
Even for Modbus
RTU (Remote Terminal Unit) mode
2 stop bits without parity
1 stop bit even or odd
1 start bit/8 data bits
03: information and errors
02: 32-bit input data/8-bit output data
01: 8-bit output data/32-bit input data
46 LEDs
Mounting plate
153 mm
151.5 mm
74 mm
0.84 kg
Minimum output current
Minimum output voltage
Response time
[Ui] rated insulation voltage
[Uimp] rated impulse withstand voltage
Method of access
Exchange size
Number of addresses
Parity
Data format
Supported modbus function
Local signalling
Mounting support
Depth
Height
Width
Product weight
Environment
IP degree of protection
Ambient air temperature for operation
Ambient air temperature for storage
IP20 conforming to EN/IEC 60529
-10...55 °C
-25...85 °C
2
