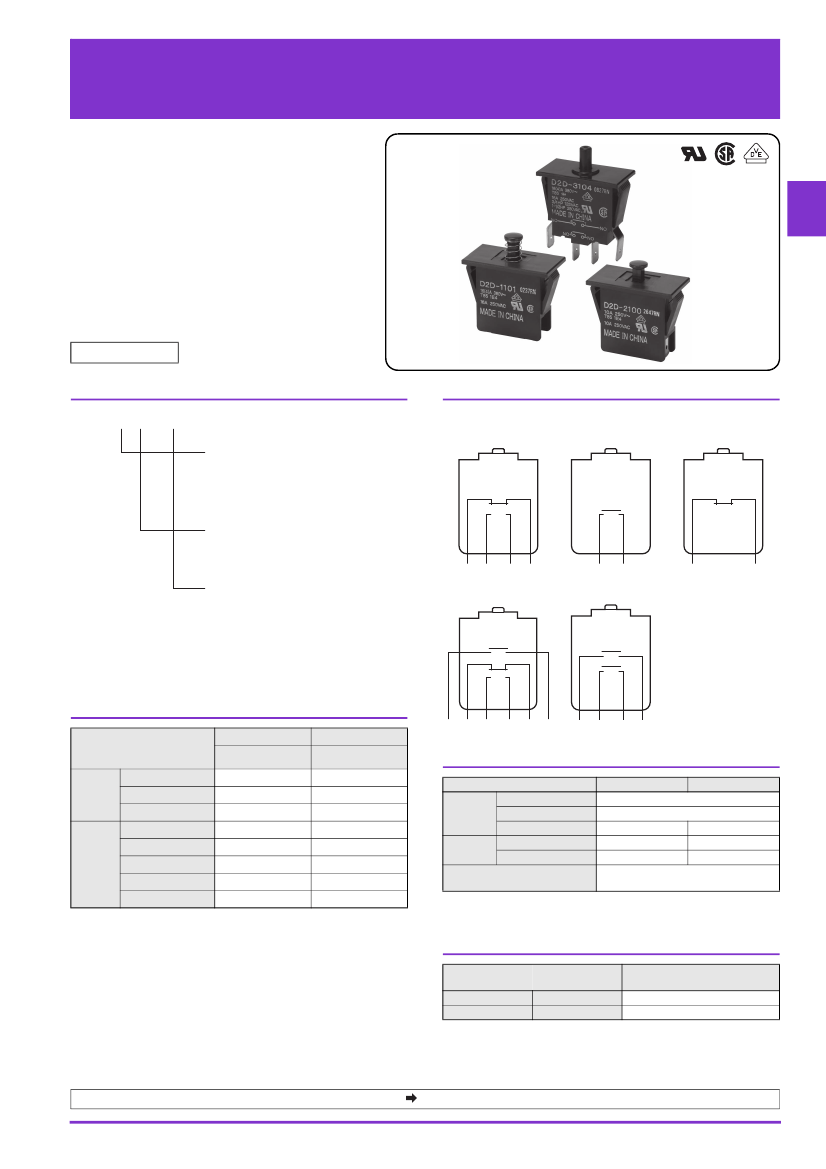

D2D
Power/Door Switch
Door Interlock Power
Switch with Minimum
Contact gap of 3 mm
●
Offers the minimum contact gap of 3 mm required
for power switches as standard equipment.
●
Safety considerations include a double return spring
and direct drive positive contact opening feature.
●
Pull-on lock model for easy maintenance is also
available.
RoHS Compliant
D
2
D
Model Number Legend
1 2
3
D2D-
@ @
0
@
1. Construction
1: Single pole, contact gap 3 mm
2: Pull-on lock, contact gap 1 mm
3: Double pole, contact gap 3 mm
2. Mounting
0: Screw mounting
1: Panel mounting
3. Contact
0: SPST-NO+SPST-NC
1: SPST-NO
2: SPST-NC
3: DPST-NO+SPST-NC
4: DPST-NO
Contact Form
●SPST-NO+SPST-NC ●SPST-NO
D2D-1000 D2D-2000
D2D-1100 D2D-2100
D2D-1001
D2D-1101
●SPST-NC
D2D-1002
D2D-1102
NC
NO
NO
NC
NO
NO
NC
NC
●DPST-NO+SPST-NC ●DPST-NO
D2D-3103
D2D-3104
List of Models
NO
NC
NO
NO
NC
NO
NO NO
NO
NO
Mounting
Type
Contact gap
Contact form
SPST-NO+SPST-NC
Standard
3 mm min.
D2D-1000
D2D-1001
D2D-1002
D2D-1100
D2D-1101
D2D-1102
D2D-3103
D2D-3104
Pull-on lock *
1 mm
D2D-2000
-
-
D2D-2100
-
-
-
-
*
Inrush
current
Contact
Contact Specifications
Item
Specification
Material
Gap (standard value)
NC
NO
3 mm min.
30 A max.
30 A max.
Type
Standard
Rivet
Silver
1 mm
24 A max.
24 A max.
Pull-on lock
Screw
mounting
SPST-NO
SPST-NC
SPST-NO+SPST-NC
SPST-NO
Panel
mounting
SPST-NC
DPST-NO+SPST-NC
DPST-NO
Minimum applicable load
(reference value) *
5 VDC 160mA
*
Refer to
next page
for the pull-on lock function.
Please refer to "●Using
Micro Loads"
in "■Precautions" for more informa-
tion on the minimum applicable load.
Ratings
Type
Standard
Pull-on lock model
Item
Rated voltage
250 VAC
250 VAC
Resistive load
16 A
10 A
Note. The above rating values apply under the following test conditions.
(1) Ambient temperature: 20±2°C
(2) Ambient humidity: 65±5%
(3) Operating frequency: 30 operations/min
Terminal Connection Parts (Sold Separately)
Refer to
"Basic Switch Common Accessories"
1
D2D

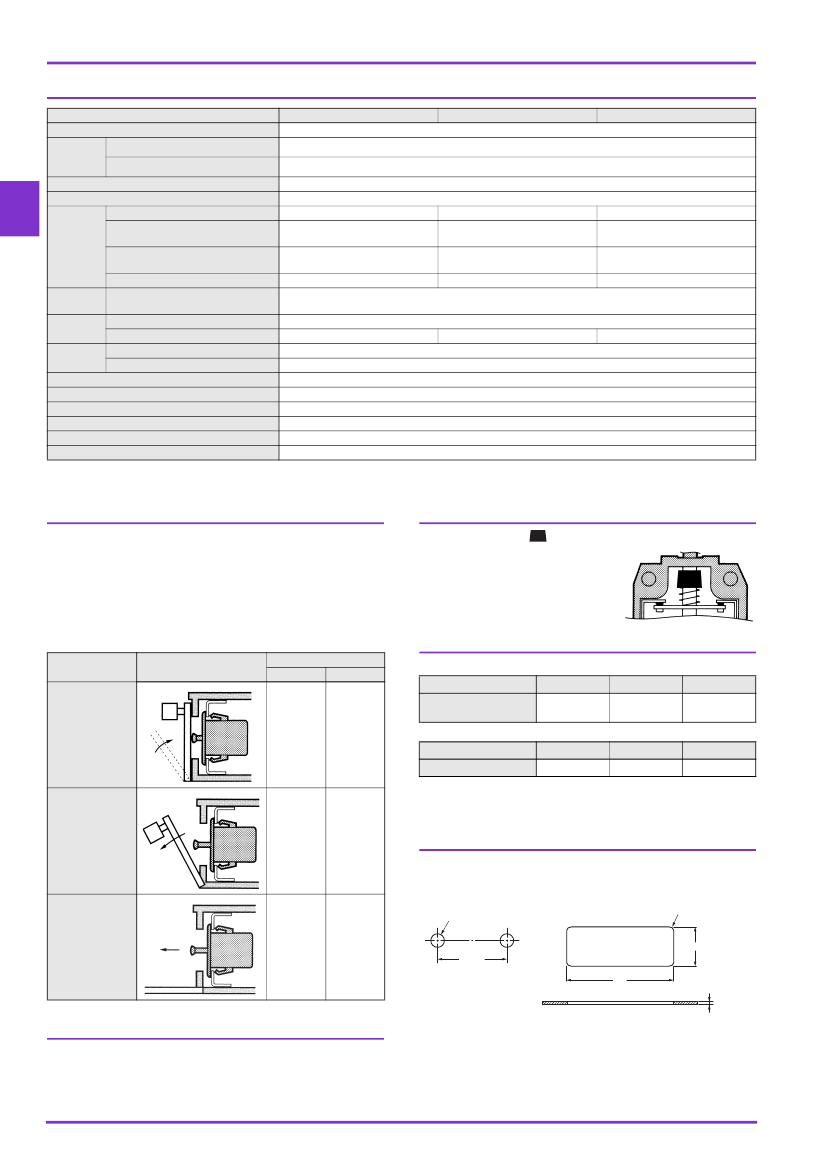

Characteristics
Item
Permissible operating speed
Permissible Mechanical
operating
Electrical
frequency
Insulation resistance
Contact resistance (initial value)
Between terminals of the same polarity
Dielectric
strength
Between current-carrying metal parts
and ground
Between each terminal and
non-current-carrying metal parts
Between terminals and actuator
Vibration
resistance
Shock
resistance
Durability *
Malfunction
Durability
Malfunction
Mechanical
Electrical
500 m/s
2
{approx. 50G} max.
2,000 VAC 50/60 Hz 1min
2,000 VAC 50/60 Hz 1min
2,500 VAC 50/60 Hz 1min
4,000 VAC 50/60 Hz 1min
Model
D2D-1000 models
D2D-2000 models
10 mm to 1 m/s
300 operations/min
60 operations/min
Power/Door Switch
D2D-3000 models
100 MΩ min. (at 500 VDC with insulation tester)
50 mΩ max.
1,000 VAC 50/60 Hz 1min
1,500 VAC 50/60 Hz 1min
1,500 VAC 50/60 Hz 1min
-
10 to 55 Hz, 1.5 mm double amplitude
1,000 m/s
2
{approx. 100G} max.
300 m/s
2
{approx. 30G} max.
100,000 operations min. (30 operations/min)
IEC IP40
Class II
175
-25 °C to +85 °C (at ambient humidity 60 % max.) (with no icing or condensation)
85% max. (for +5°C to +35°C)
Approx. 14 g (for D2D-1000)
500 m/s
2
{approx. 50G} max.
10,000,000 operations min. (60 operations/min)
2,000 VAC 50/60 Hz 1min
2,000 VAC 50/60 Hz 1min
-
4,000 VAC 50/60 Hz 1min
D
2
D
Degree of protection
Degree of protection against electric shock
Proof tracking index (PTI)
Ambient operating temperature
Ambient operating humidity
Weight
Note. The data given above are initial values.
* For testing conditions, consult your OMRON sales representative.
Pull-on lock function
(D2D-2000 models)
When opening or closing the door, the power ON state of the
Switch can be checked with the door left open when applying
normal (momentary) operations. By closing the door after
maintenance inspection, the Switch will resume the normal
momentary operation. (This feature is ideal for conducting the
electrical continuity test, inspection, repair, etc. on the Switch
after its assembly.)
Example
State
Contact
NO-NO
NC-NC
Direct Contact Opening Mechanism
(D2D-1000 models)
Pushing the plunger
will effectively break the circuit on the
NC side even if a contact weld occurs in the Switch.
Direct Contact Opening Mechanism is
not available in NO connection.
Approved Safety Standard
UL (UL1054) /CSA (CSA C22.2 No.55)
Rated voltage
125 VAC
250 VAC
Model
D2D-1000
-
16A
D2D-2000
-
10A
D2D-3000
3/4HP
16A 1-1/2HP
To turn ON the
power when the
door is closed
ON
OFF
VDE (EN61058-1)
Rated voltage
250 VAC
Model
D2D-1000
16 (4) A
D2D-2000
10A
D2D-3000
16 (4) A
Test conditions: 1E4 (10,000 operations) T85 (0°C to 85°C)
Note. The values in parentheses are the motor load ratings.
To turn OFF the
power when the
door is open
OFF
ON
Mounting Holes
(Unit: mm)
Screw Mounting Hole
Dimensions
2-4.3 dia. mounting holes
or M4 screw hole
Panel Cutout Dimensions
Four, 1.3R max.
To turn ON the
power with the
door left open
ON
OFF
22
±0.1
A
13.5
±0.1
Pull
t
Double Spring Mechanism
(D2D-1000/3000 models)
Two return springs are provided for the pin plunger. Thus, if
either of the springs is broken, this feature will prevent the Switch
from malfunctioning or short-circuiting.
t=1.0 : A=36.7±0.1
t=2.5 : A=37.0±0.1
2
D2D
Dimensions
(Unit: mm)
/Operating Characteristics

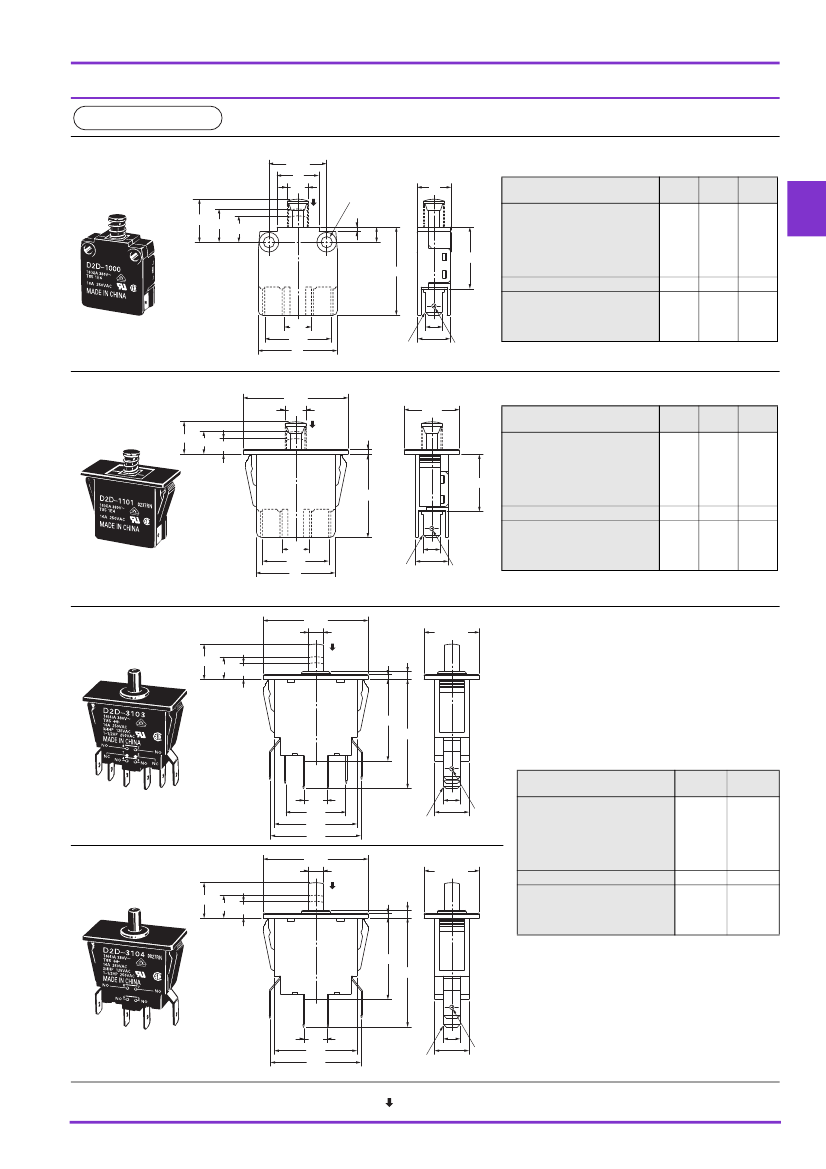

Standard model
●Screw
Mounting
D2D-1000
D2D-1001
D2D-1002
FP
OP
TTP
22
±0.1
16
8 dia.
13
4.3
±0.05
dia.
1.8
5.8
23.6
0558RN
Power/Door Switch
Model
Operating characteristics
Operating Force
OF Max. (NC-OFF)
(NO-ON)
Total Travel Force
Overtravel
Free Position
Operating Position
TTF Max.
OT Min.
A
D2D
-1000
2.94 N
{300 gf}
5.88 N
{600 gf}
7.35 N
{750 gf}
2.3 mm
16.4 mm
15.9±0.4 mm
12.7±0.4 mm
10 mm
D2D
-1001
-
5.88 N
{600 gf}
7.35 N
{750 gf}
2.3 mm
17 mm
-
12.7±0.4 mm
10 mm
D2D
-1002
2.94 N
{300 gf}
-
7.35 N
{750 gf}
5.5 mm
16.4 mm
15.9±0.4 mm
-
10 mm
33.6
D
2
D
10.4
25.2
30
6.35
±0.1
12.4 1.65
+0.1
dia.
4-Quick Connect
0
Terminal (#250)
FP Max.
OP
(NC-OFF)
(NO-ON)
Total Travel Position TTP Max.
●Panel
Mounting
D2D-1100
D2D-1101
D2D-1102
40
±0.1
8 dia.
A
2.0
21.2
Model
Operating characteristics
Operating Force
OF Max. (NC-OFF)
(NO-ON)
21.8
D2D
-1100
2.94 N
{300 gf}
5.88 N
{600 gf}
7.35 N
{750 gf}
2.3 mm
12.4 mm
11.9±0.4 mm
8.7±0.4 mm
6 mm
D2D
-1101
-
5.88 N
{600 gf}
7.35 N
{750 gf}
2.3 mm
13 mm
-
8.7±0.4 mm
6 mm
D2D
-1102
2.94 N
{300 gf}
-
7.35 N
{750 gf}
5.5 mm
12.4 mm
11.9±0.4 mm
-
6 mm
FP
OP TTP
Total Travel Force
Overtravel
Free Position
Operating Position
TTF Max.
OT Min.
31.7
10.4
25.2
30
4-Quick Connect
Terminal (#250)
6.35
±0.1
12.4 1.65
+0.1
dia.
0
FP Max.
OP
(NC-OFF)
(NO-ON)
Total Travel Position TTP Max.
●Panel
Mounting
D2D-3103
FP
OP TTP
40
±0.4
5.6 dia.
A
2
3
21.2
±0.2
1858RN
31
41.5
Model
Operating characteristics
8.8
22.8
31.6
34.4
6.35
±0.1
13
6-Quick Connect
Terminal (#250)
1.65
+0.1
dia.
0
D2D
-3103
2.94 N
{300 gf}
5.88 N
{600 gf}
9.81 N
{1,000 gf}
2.3 mm
D2D
-3104
-
5.88 N
{600 gf}
9.81 N
{1,000 gf}
2.3 mm
Operating Force
OF Max. (NC-OFF)
(NO-ON)
●Panel
Mounting
D2D-3104
FP
OP TTP
40
±0.4
5.6 dia.
A
2
3
21.2
±0.2
Total Travel Force
Overtravel
Free Position
Operating Position
TTF Max.
OT Min.
13.5 mm
FP Max.
12.4 mm
OP *
(NC-OFF)
11.9±0.8 mm
-
(NO-ON)
8.7±0.8 mm
8.7±0.8 mm
Total Travel Position TTP Max.
6.4 mm
6.4 mm
* Operating sequence of the two circuits are not specified.
31
41.5
8.8
31.6
34.4
4-Quick Connect
Terminal (#250)
6.35
±0.1
13
1.65
+0.1
dia.
0
Note 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
2. The operating characteristics are for operation in the A direction ( ).
3
D2D

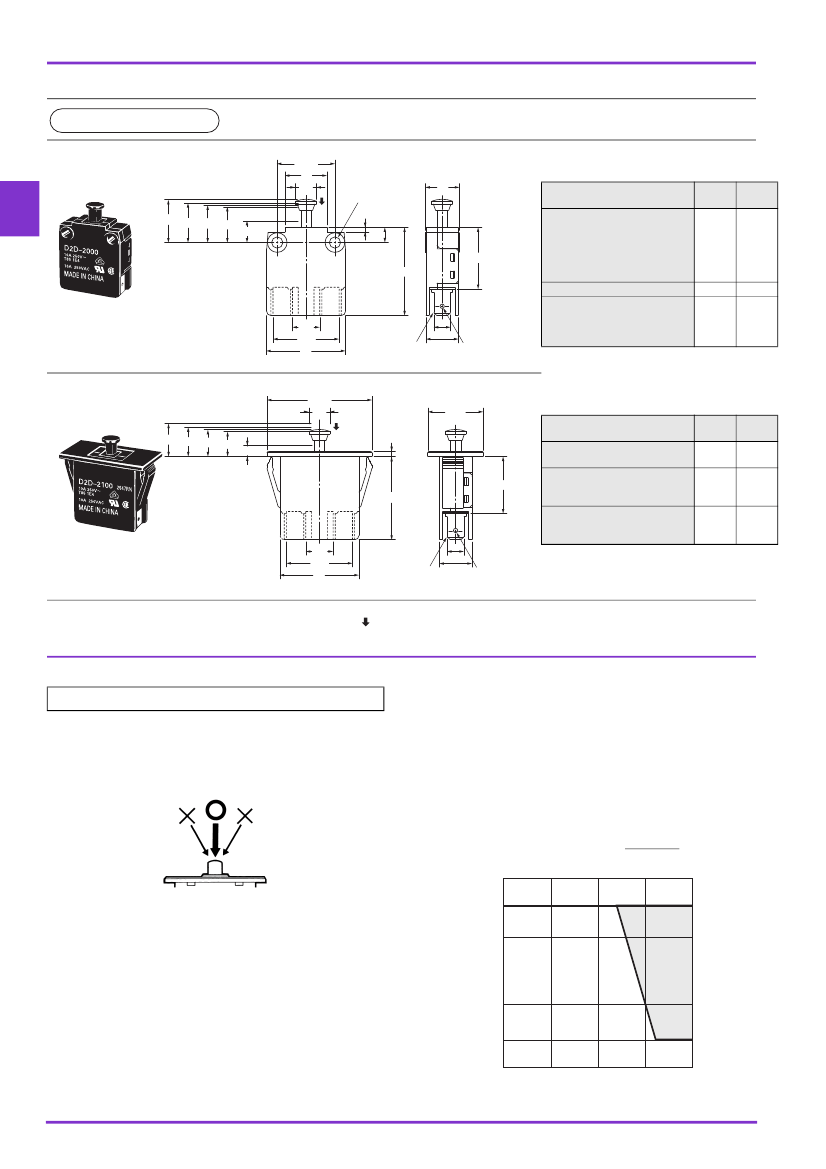

Pull-on lock model
●Screw
Mounting
D2D-2000
22
±0.1
16
8 dia.
Power/Door Switch
Momentary Operation (Normal Operation)
A
13
4.3
±0.05
dia.
1.8
Model
Operating characteristics
Operating Force
23.6
D2D
-2000
1.96 N
{200 gf}
2.94 N
{300 gf}
5.88 N
{600 gf}
4.5 mm
14.3 mm
13.5±0.6 mm
12.7±0.6 mm
8.3 mm
D2D
-2100
1.96 N
{200 gf}
2.94 N
{300 gf}
5.88 N
{600 gf}
4.5 mm
10.3 mm
9.5±0.6 mm
8.7±0.6 mm
4.3 mm
*TTP *OP FP
OP
TTP
5.8
D
2
D
2948RN
Total Travel Force
Overtravel
Free Position
Operating Position
OF Max. (NC-OFF)
(NO-ON)
TTF Max.
OT Min.
33.6
10.4
25.2
30
6.35
±0.1
12.4 1.65
+0.1
dia.
4-Quick Connect
0
Terminal (#250)
* In Pull-on lock operation
FP Max.
OP
(NC-OFF)
(NO-ON)
Total Travel Position TTP Max.
●Panel
Mounting
D2D-2100
*TTP *OP FP
OP
40
±0.1
8 dia.
A
2.0
TTP
21.2
Pull-on lock Operation
Model
Operating characteristics
Operating Force
21.8
D2D
-2000
D2D
-2100
OF
PT
OT
MD
FP
OP
TTP
Max.
Max.
Min.
Max.
Max.
Max.
19.61 N
19.61 N
{2,000 gf} {2,000 gf}
2 mm
0.4 mm
1.5 mm
14.3 mm
15.1±0.6 mm
16.5 mm
2 mm
0.4 mm
1.5 mm
10.3 mm
11.1±0.6 mm
12.5 mm
31.7
Pretravel
Overtravel
Movement Differential
Free Position
Operating Position
Total Travel Position
10.4
25.2
30
6.35
±0.1
4-Quick Connect 12.4 1.65
+0.1
dia.
0
Terminal (#250)
* In Pull-on lock operation
Note 1. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
2. The operating characteristics are for operation in the A direction ( ).
Precautions
★Please
refer to "Basic Switches Common Precautions" for correct use.
Correct Use
●Mounting
• Apply operation force to the pin plunger in the direction it
operates. Applying forces laterally or from an oblique direction
may damage the pin plunger.
●Using
Micro Loads
Using a model for ordinary loads to open or close the contact of
a micro load circuit may result in faulty contact. It is
recommended to use the Switch in the operation range shown
below. The minimum applicable load is the N-level reference
value. This value indicates the malfunction reference level for the
reliability level of 60% (λ
60
).
(JIS C5003)
The equation,
λ
60
=0.5×10
-6
/operations, indicates that the
1
estimated malfunction rate is less than
operations
2,000,000
with a reliability level of 60%.
Voltage (V)
26 mA
• Use M4 mounting screw with plane washers or spring washers
to securely mount the Switch. Tighten the screws to a torque
of 0.49 to 0.69 N·m {5 to 7 kg·cm}.
30
24
●Wiring
• It is recommended to use sleeve receptacles when connecting
with the quick connect terminals.
• Insert the receptacle straight toward the terminal.
• Applying excessive external force horizontally or vertically may
cause deformation of terminals and may damage the
housings.
12
Operating
range
5
0
0.1
1
10
160 mA
100
1,000
Current (mA)
4
D2D
Power/Door Switch
D
2
D
•
Application examples provided in this document are for reference only. In actual applications, confirm equipment functions and safety
before using
the product.
•
Consult your OMRON representative
before using
the product
under
conditions
which
are not described in the manual or applying the product to nuclear control systems, railroad
systems, aviation systems,
vehicles,
combustion systems, medical equipment, amusement machines, safety equipment, and other systems or equipment that may have a serious
influence on lives and property if
used
improperly. Make sure that the ratings and performance characteristics of the product provide a margin of safety for the system or
equipment, and
be
sure to provide the system or equipment
with
double safety mechanisms.
Note: Do not use this document to operate the Unit.
OMRON Corporation
ELECTRONIC AND MECHANICAL COMPONENTS COMPANY
Contact: www.omron.com/ecb
Cat. No. B085-E1-08
0117(0207)(O)
5
京公网安备 11010802033920号
EEWORLD
