32021E1-1WHT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 32021E1-1WHT

32021E1-1WHT: DescriptionTactile Switches SPST MOM PC MNT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size314KB，3 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric Compare View All

32021E1-1WHT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	32021E1-1WHT	-	-	View	Buy Now

32021E1-1WHT Overview

Tactile Switches SPST MOM PC MNT

32021E1-1WHT Parametric

Parameter Name	Attribute value
Product Category	Tactile Switches
Manufacturer	E-Switch
RoHS	Details
Mounting Style	Through Hole
Stem Height	3.35 mm
Actuator	Dome
Switch Function	OFF - (ON)
Operating Force	135 gf
Current Rating	25 mA
Voltage Rating DC	50 VDC
Contact Form	SPST
Termination Style	Solder Pin
Packaging	Bulk
Contact Plating	Silver
Operating Temperature Range	- 20 C to + 70 C
Factory Pack Quantity	1
Travel	0.6 mm

Preview

Download Datasheet

View All

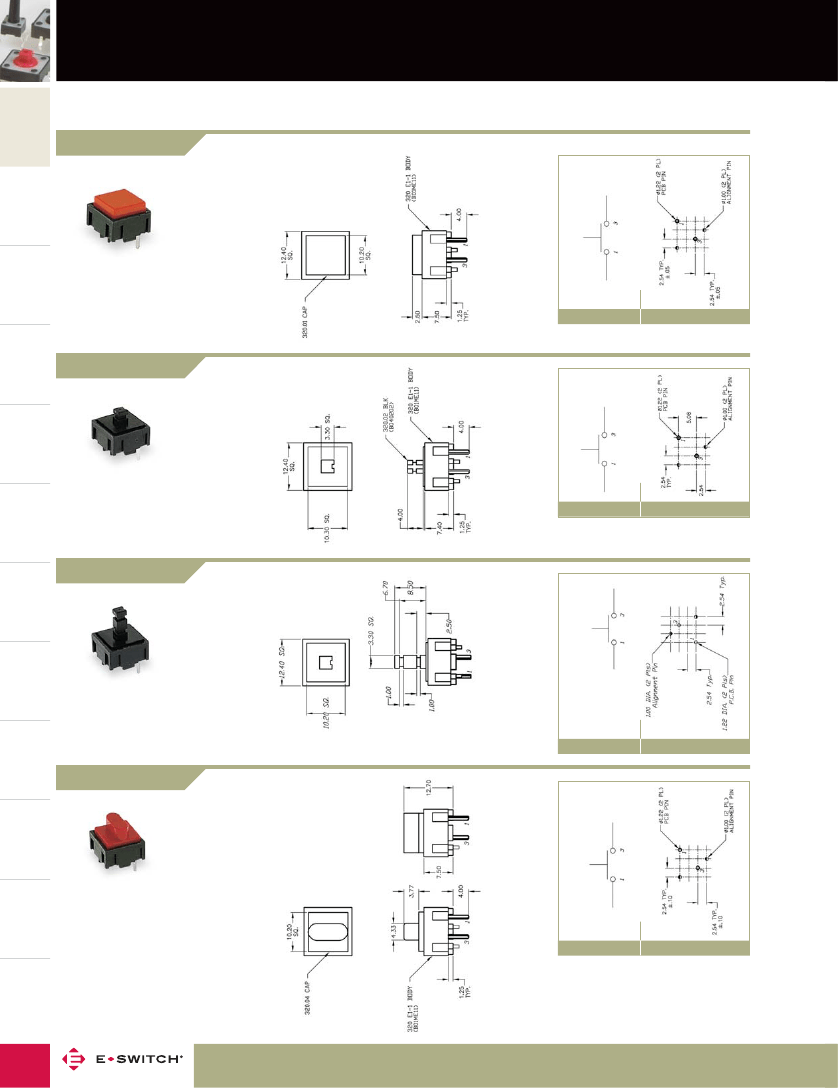

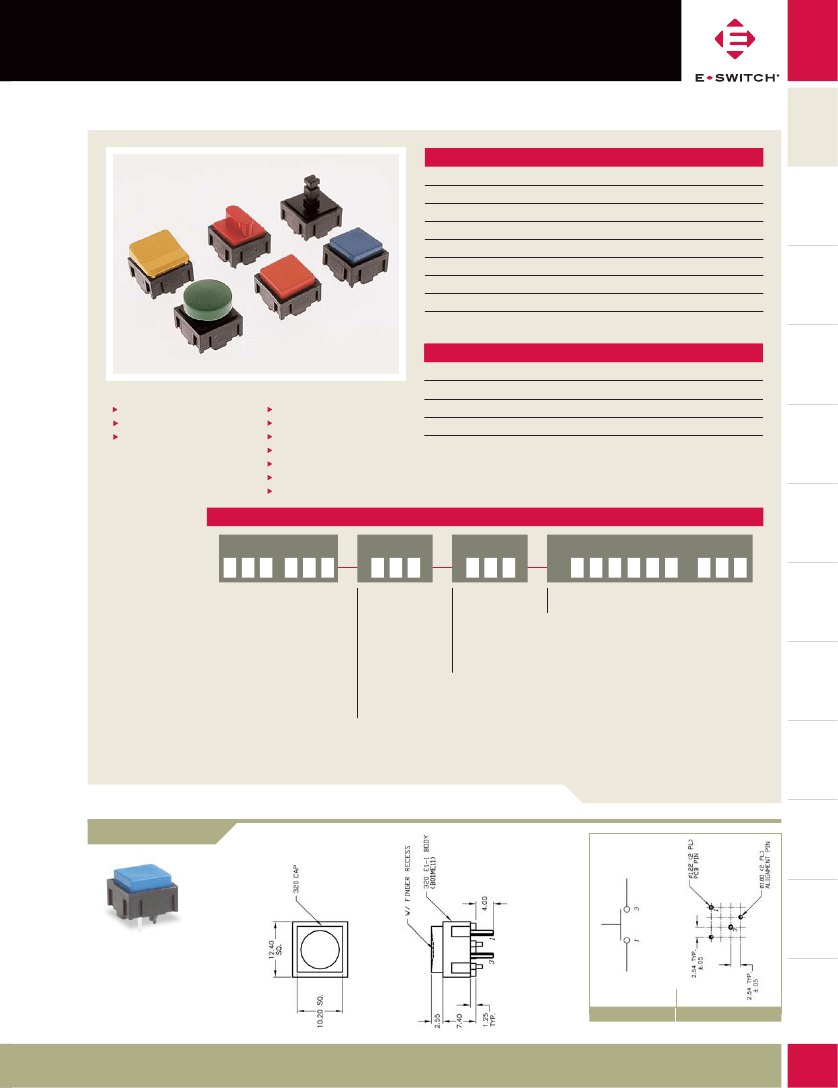

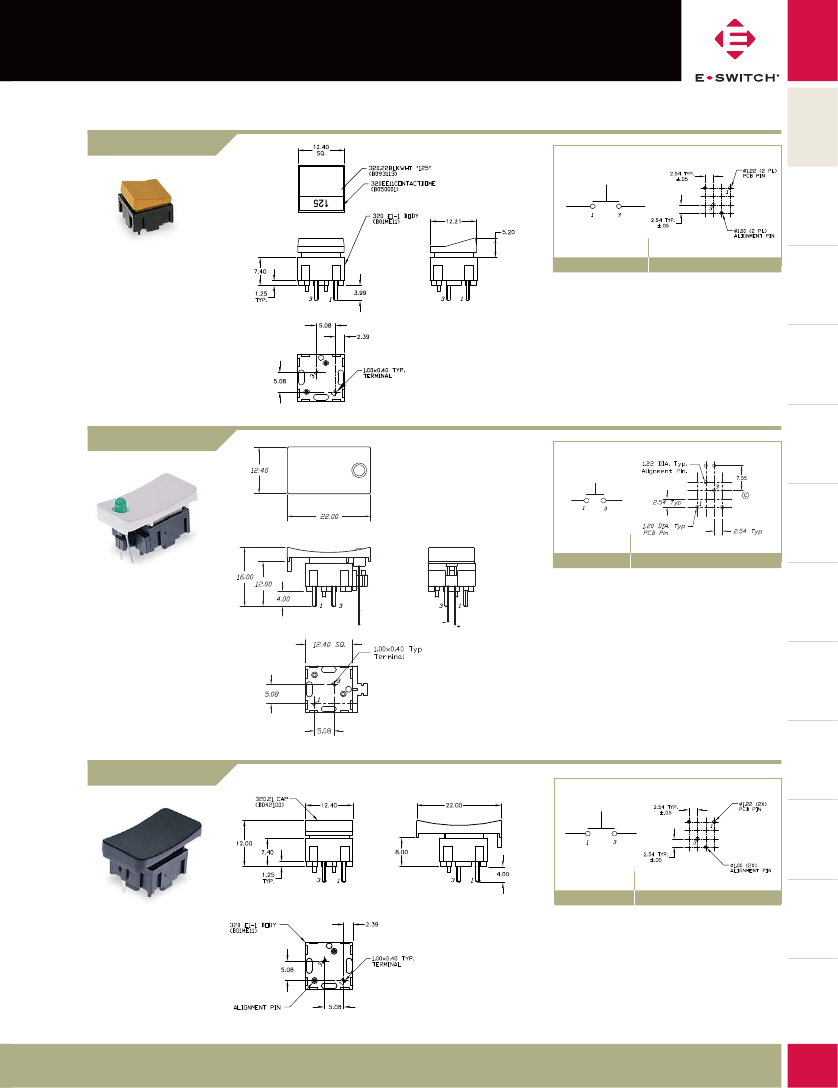

SERIES 320 SWITCHES

SPECIFICATIONS

Life Expectancy:

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Actuation Force:

Travel:

1,000,000 cycles min.

50mΩ, max. initial @ 2-4 VDC, 100mA

1,000MΩ min.

>500 VAC rms at sea level

135 ± 50 gf

.6mm Typ.

PUSHBUTTON

SWITCHES

CAP

COLOR

See Cap Section

*Note: Assembled using the 320.02

plungered cap.

SCHEMATIC

P.C. MOUNTING

CAP

OPTIONS

DETECTOR

SWITCHES

ROTARY

SWITCHES

KEYLOCK

SWITCHES

DIP

SWITCHES

Specifications subject to change without notice.

Operating Temperature: -20°C to 70°C

MATERIALS

Housing:

Nylon 4/6

ABS or Polycarbonate

Gold over stainless steel

Silver plated copper alloy

FEATURES & BENEFITS

Multiple cap & color options

High reliability dome technology

Excellent tactile feedback

APPLICATIONS/MARKETS

Telecommunications

Networking

Computers/servers

Performance audio

Instrumentation

Low power on/off designs

External hard drives and modems

Cover/Cap:

Dome Contact:

Terminals/Contacts:

HOW TO ORDER

CAP STYLE

CIRCUIT

CAP COLOR

ADDITIONAL CAP

(Fits over cap styles 320.02 & 320.03 only.)

320

320.01

320.02

320.03

320.04

320.22

320.08*

320.09*

320.094*

320.2

320.21

E11 (SPST)

BLK = Black

GRY = Grey

YEL = Yellow

BLU = Blue

GRN = Green

WHT= White

RED = Red

Example Ordering Number

320.08_ E1-1_ YEL

320

www.e-switch.com

info

e-switch.com

SNAP-ACTION

SWITCHES

SLIDE

SWITCHES

ROCKER

SWITCHES

TOGGLE

SWITCHES

NAVIGATION

SWITCHES

Contact Rating:

25mA @ 50 VDC

TACT

SWITCHES

TACT SWITCHES

▲

32021E1-1WHT Related Products

	32021E1-1WHT	32021	32022E11BLU
Description	Tactile Switches SPST MOM PC MNT	Switch Bezels / Switch Caps CAP GRAY	Tactile Switches SPST MOM PC MNT
Product Category	Tactile Switches	Switch Bezels / Switch Caps	Tactile Switches
Manufacturer	E-Switch	E-Switch	E-Switch
RoHS	Details	Details	Detailsveqdcfufuyfwswbetb
Voltage Rating DC	50 VDC	50 VDC	50 VDC
Mounting Style	Through Hole	-	Through Hole
Switch Function	OFF - (ON)	-	OFF - (ON)
Current Rating	25 mA	-	25 mA
Contact Form	SPST	-	SPST
Termination Style	Solder Pin	-	Solder Pin
Contact Plating	Silver	-	Silver
