COAX SWITCHES
PART NUMBER
CCS-32
CS-32

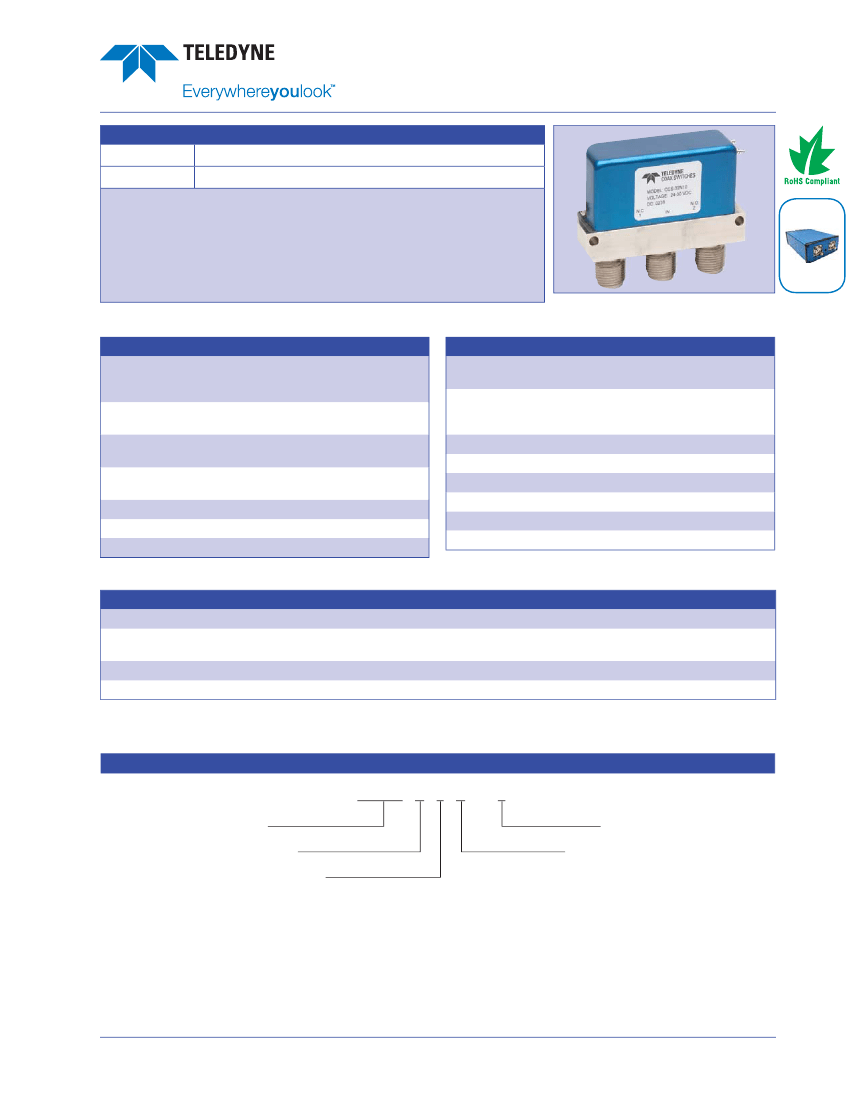

DESCRIPTION
Commercial Failsafe SPDT, DC-12GHz
Elite Failsafe SPDT, DC-12GHz
Series CCS-32/CS-32
High Power DC–12 GHz
Failsafe SPDT Coaxial Switch
The CCS-32/CS-32 is a broadband, SPDT, electromechanical, coaxial switch designed to switch a
microwave signal from a common input to either of two outputs. The characteristic impedance is 50
Ohms. The small switches incorporate Type N or TNC connectors.
The CCS-32/CS-32 series switch is offered with a failsafe actuator. This design is compatible with the
two most common mounting hole patterns. The CCS-32/CS-32 series switch is interchangeable with a
variety of switches.
Available with
USB & Ethernet
Control!
Click here
MMA SERIES
ENVIRONMENTAL AND PHYSICAL CHARACTERISTICS
Operating Temperature
Commercial Model, CCS-32
Elite Model, CS-32
Vibration (MIL-STD-202 Method 214,
Condition D, non-operating)
Shock (MIL-STD-202 Method 213,
Condition D, non-operating)
Standard Actuator Life
Actuator Life w/ Additional Features
Connector Type
Humidity (Moisture Seal)
Weight
–40°C to 65°C
–55°C to 85°C
10 g’s RMS
500 g’s
2,000,000 cycles
1,000,000 cycles
Type N or TNC
Available
6 oz. (170.1g) (max.)
ELECTRICAL CHARACTERISTICS
Form Factor
Frequency Range
CCS-32
CS-32
Characteristic Impedance
Operate Time
Release Time
Actuation Voltage Available
Actuation Current, max. @ ambient
RF Power Handling
SPDT,
break before make
DC–12 GHz
DC–12 GHz
50 Ohms
10 ms (max.)
10 ms (max.)
12
15
24
28 V
600 500 300 250 mA
1.1 kW CW @ 1.1 GHz
TYPICAL PERFORMANCE CHARACTERISTICS: N CONNECTOR OPTION (TNC CONNECTOR, 11GH
Z
MAX.)
Frequency
Insertion Loss, dB,
typical.
Isolation, dB, typical.
VSWR , typical.
DC–3 GHz
0.2
70
1.2:1
3–6 GHz
0.2
70
1.2:1
6–9 GHz
0.4
70
1.3:1
9–12 GHz
0.4
50
1.3:1
For maximum limits, please see charts on page 3-5
PART NUMBERING SYSTEM
CCS-32
Series
Connectors
Actuator Voltage
Connector
N
: Type N Female
T
: TNC Female
HN
:
High Power Type N Female
HT
:
High Power TNC Female
Actuator Voltage
1: 28 Vdc Failsafe
2: 15 Vdc Failsafe
3: 12 Vdc Failsafe
4: 24 Vdc Failsafe
N
1
C
-
T **
Options
Actuator Type
Actuator Type
0: Standard Contacts
C: Indicator Contacts
Options
T: TTL Drivers with Diodes
D: Transient Suppression
Diodes
M: Moisture Seal
S: 9 Pin D-Sub Connector
For other options, contact factory.
© 2015 TELEDYNE RELAYS
**SEE PARTS LIST ON PAGE 8-9
(800) 284-7007 • www.teledynecoax.com
CCS-32/CS-32 Page 1
CCS-32\CS-32\112015\Q4
Series CCS-32/CS-32
High Power DC–12 GHz
Failsafe SPDT Coaxial Switch

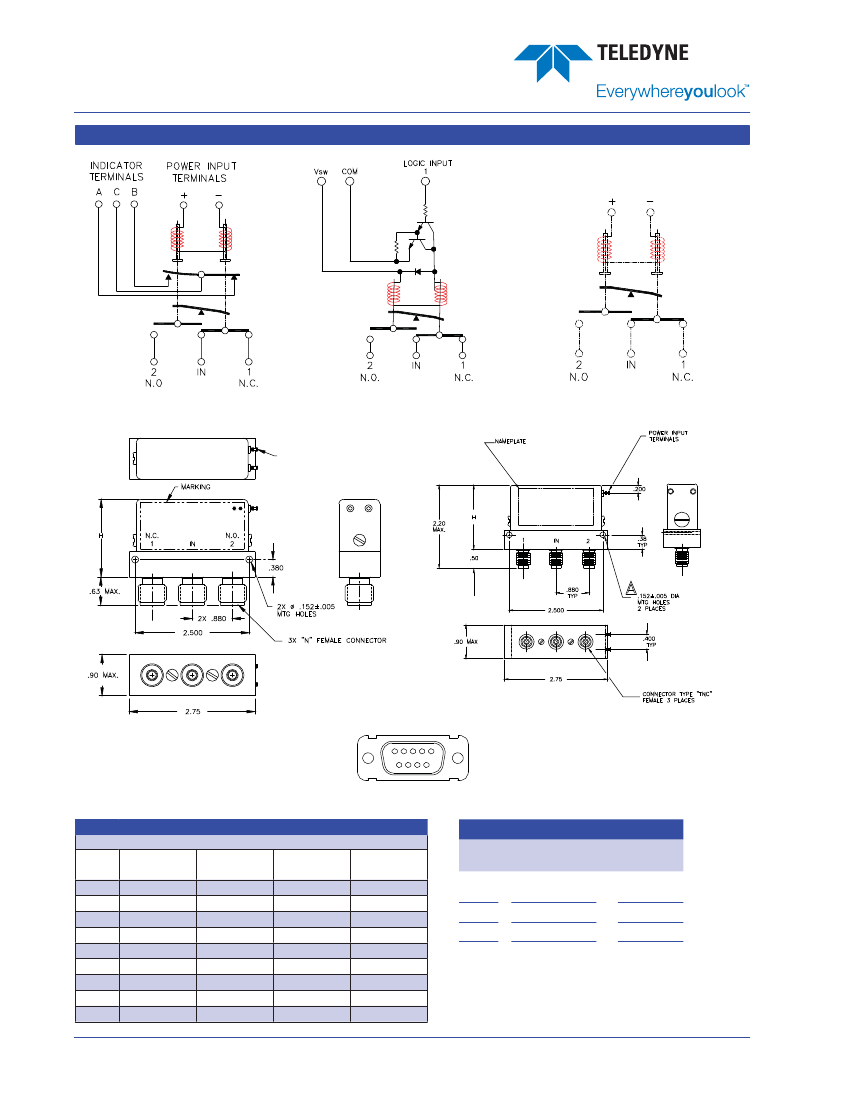

SCHEMATICS AND MECHANICAL OUTLINE
COAX SWITCHES
Indicators
TTL
Analog
2X SOLDER TERMINALS
SOLDER WIRE MAXIMUM
TEMP 250ºC FOR NO
MORE THAN 5 SEC
H = 1.70 MAX. STD MODEL
H = 2.30 MAX. TTL MODEL
H = 1.70 MAX. STD MODEL
H = 2.30 MAX. TTL MODEL
N Type Outline
TNC Outline
1
6
“-
S OPTION
”
9
-
PIN D
-
SUB CONNECTOR
(
EXAMPLE
:
9 PIN D-SUB PINOUT FOR FAILSAFE SPDT
OPTIONS
CCS
-32
N
10-
S
)
TRUTH TABLE (with TTL option)
Indicators &
TTL
Logic
Input
1
0
1
RF Path
IN
to 1
On
Off
IN
to 2
Off
On
Indicator
(if applicable)
Pin
No.
1
2
3
4
5
6
7
8
9
Basic
+
-
Indicators
+
-
TTL
A
C
0
B
0
C
Common
1
Vsw
A
B
C
Common
1
Vsw
A
B
C
CCS-32/CS-32 Page 2
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
© 2015 TELEDYNE COAX SWITCHES
CCS-32\CS-32\112015\Q4
COAX SWITCHES

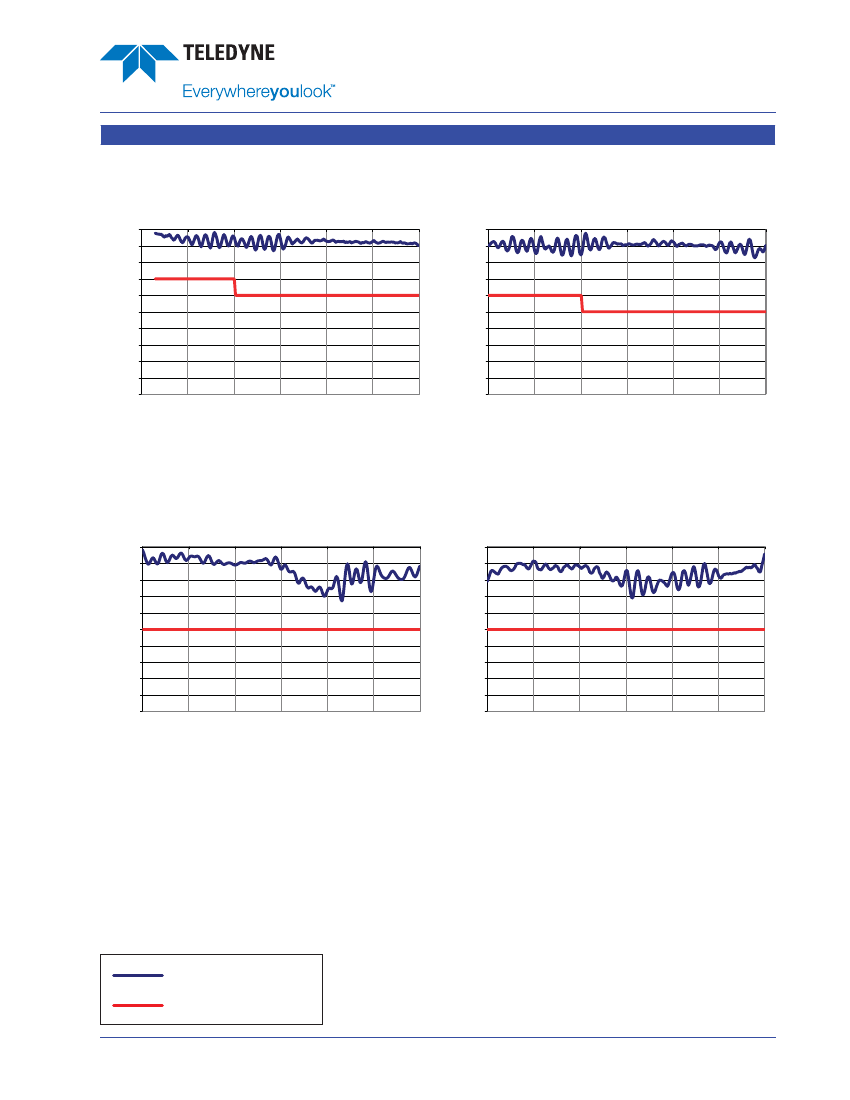

TYPICAL NARROWBAND RF INSERTION LOSS PERFORMANCE CURVES
