Series G
Toggles
Fully Illuminated Ultra-Miniature Toggles
A
Rockers
General
Specifications
Electrical Capacity (Resistive Load)
Logic Level:
0.4VA maximum @ 28V AC/DC maximum
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Note: Find additional explanation of operating range in Supplement section.
Programmable Illuminated PB
Pushbuttons
Other Ratings
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Keylocks
Nominal Operating Force:
Angle of Throw:
80 milliohms maximum
500 megohms minimum @ 500V DC
500V AC minimum for 1 minute minimum
100,000 operations minimum
100,000 operations minimum
10,000 operations minimum @ 0.1A @ 28V AC/DC
1.30N
28°
Materials & Finishes
Rotaries
Actuator:
Case:
Sealing Rings:
Movable Contacts:
Stationary Contacts:
Base:
Power Terminals:
Lamp Terminals:
Polyamide
Glass fiber reinforced polyamide
Nitrile butadiene rubber
Phosphor bronze with gold plating
Phosphor bronze with gold plating
Glass fiber reinforced polyamide
Phosphor bronze with gold plating
Phosphor bronze with gold plating
Tactiles
Slides
Environmental Data
Operating Temperature Range:
Humidity:
Vibration:
Shock:
–25°C through +55°C (–13°F through +131°F)
90 ~ 95% humidity for 240 hours @ 40°C (104°F)
10 ~ 500Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range
& returning in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Tilt
Touch
PCB Processing
Soldering:
Cleaning:
Wave Soldering recommended. See Profile A in Supplement section.
Manual Soldering: See Profile A in Supplement section.
Automated cleaning. See Cleaning specifications in Supplement section.
Indicators
Standards & Certifications
Supplement
Accessories
The G Series toggles have not been tested for UL recognition or CSA certification.
These switches are designed for use in a low-voltage, low-current, logic-level circuit.
When used as intended in a logic-level circuit, the results do not produce hazardous energy.
A38
www.nkkswitches.com
Fully Illuminated Ultra-Miniature Toggles
Series G
A
Toggles
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
Rockers
Distinctive
Characteristics

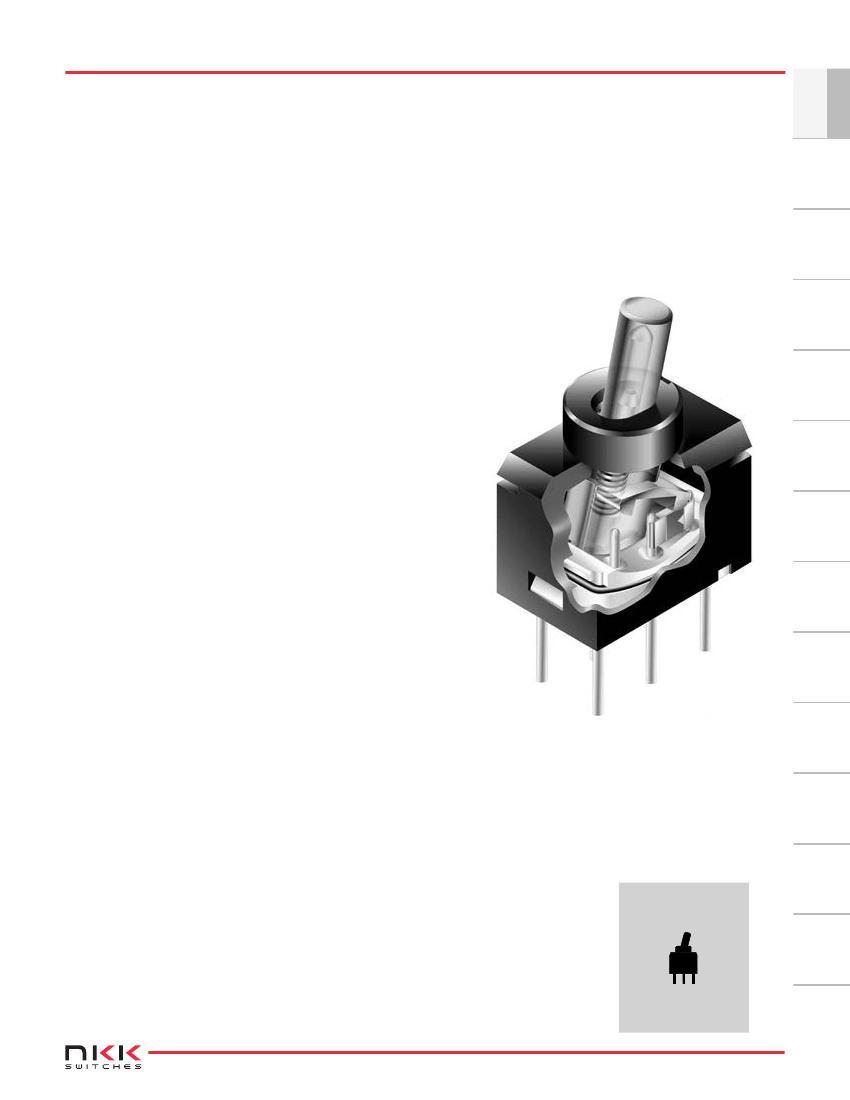

Fully illuminated toggle for highly visible status indication with LED in red,
green, or amber for single color and red/green for bicolor.
Ultra-miniature size allows high density mounting, and extremely
light weight makes these switches ideal for handheld equipment.
Totally sealed body construction prevents contact
contamination and allows time- and money-saving
automated soldering and cleaning.
Molded-in, epoxy sealed terminals lock out flux,
solvents, and other contaminants.
Award-winning STC contact mechanism with
benefits unavailable in conventional mech-
anisms: smooth, positive detent actuation,
increased contact stability, and unparalleled
logic-level reliability. (Additional STC details
in Terms & Acronyms; see Supplement section.)
.100” x .100” (2.54mm x 2.54mm) terminal
spacing conforms to standard PC board grid
spacing. Round terminals facilitate easier through-
hole mounting on PC boards.
Actual Size
www.nkkswitches.com
A39
Series G
Toggles
Fully Illuminated Ultra-Miniature Toggles
TYPICAL SWITCH ORDERING EXAMPLE
A
Rockers
G
Pole
1
SPDT
2
1
Circuits
ON
NONE
ON
2
Actuator
J
Clear
J
P
H
V
H
PC Terminals
Straight
Right Angle
Vertical
C
D
F
C
LEDS
Single Color
Red
Amber
Green
Bicolor
CF
Red/Green
ON-NONE-ON
& ON-OFF-ON
Pushbuttons
Programmable Illuminated PB
Combines with single color
or bicolor LEDs
3
ON
OFF
ON
Combines with
bicolor LED only
DESCRIPTION FOR TYPICAL
ORDERING EXAMPLE
SPDT
ON-NONE-ON Circuit
Clear Toggle,
Red LED
ON-NONE-ON only
G12JHC
Right Angle
PC Terminals
Keylocks
POLES & CIRCUITS
Toggle Position
Connected Terminals
Up
Slot
Schematics
Note: Terminal numbers are not actually on
the switch. LED circuit is isolated and
requires an external power source.
2 (COM)
3
1
(5)
(6)
(4) Red
(5)
(6) Green
Rotaries
Up
Pole
Throw Model
G12
G13
Slot
Center
Down
Center
Down
Slides
SPDT
ON
ON
NONE
OFF
ON
ON
2-3
2-3
NONE
OPEN
2-1
2-1
Single Color
Bicolor
Tactiles
ACTUATOR
J
28°
Clear Toggle
(3.8)
.150
(1.7) Dia
.067
(4.0) Dia
.157
Tilt
LED COLORS & SPECIFICATIONS
Touch
Single Color
LEDs are an integral part of the switch
and not available separately. The
electrical specifications shown are
determined at a basic temperature of
25°C.
If the source voltage exceeds the rated
voltage, a ballast resistor is required.
The resistor value can be calculated by
using the formula in the Supplement;
see Supplement Index.
Bicolor
C
Colors
Maximum Forward Current
Typical Forward Current
Forward Voltage
Maximum Reverse Voltage
I
FM
I
F
V
F
V
RM
Red
30mA
20mA
2.0V
5V
D
Amber
30mA
20mA
2.0V
5V
F
Green
25mA
20mA
2.1V
5V
CF
Red/Green
30mA/25mA
20mA/20mA
2.0V/2.1V
5V/5V
Accessories
Indicators
Supplement
Current Reduction Rate Above 25°C ∆I
F
Ambient Temperature Range
0 - No current Reduction Rate within
Ambient Temperature Range
–25° ~ +55°C
A40
www.nkkswitches.com
Fully Illuminated Ultra-Miniature Toggles
PC TERMINALS
P
Straight
(2.54) Typ
.100
(0.4) Dia Typ
.016
(2.54) Typ
.100
(2.6)
.102
Series G
A
V
Vertical
(2.54) Typ
.100
(0.4) Dia Typ
.016
(7.0)
.276
(4.5)
.177
(7.0)
.276

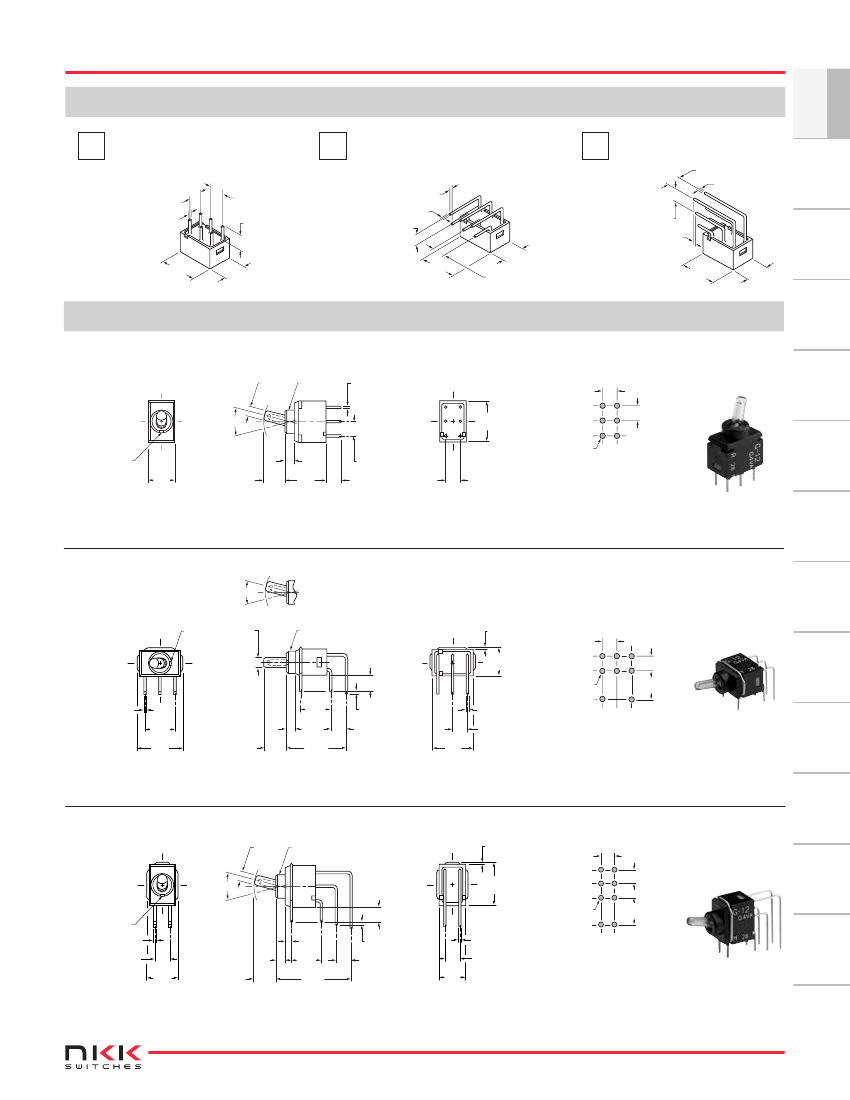

TYPICAL SWITCH DIMENSIONS
Straight PC
(1.7) Dia
.067
(4.0) Dia
.157
(0.4) Dia Typ
.016
1
2
3
4
5
6
(2.54)
.100
(7.0)
.276
(0.6) Dia Typ
.024
(2.54)
.100
4
5
6
1
2
3
28°
(2.54) Typ
.100
Slot
(4.5)
.177
(3.8)
.150
(1.6)
.063
(7.0)
.276
(2.54) Typ
.100
(2.6)
.102
5 & 6 are LED terminals; 4 is a support pin on single color models & an LED terminal on bicolor models.
G12JPC
Right Angle PC
28°
Slot
(1.7) Dia
.067
(4.0) Dia
.157
3
2
1
(0.4)
.016
(4.9)
.193
4
5
6
(2.54)
.100
(5.08)
.200
(2.6)
.102
(0.4) Dia Typ
.016
(5.08)
.200
(7.8)
.307
(3.8)
.150
(5.08)
.200
(1.6)
.063
(10.22)
.402
(0.5)
.020
(2.54)
.100
6
5
4
(0.6) Dia Typ
.024
(0.4) Dia Typ
.016
(2.54) Typ
.100
(7.0)
.276
Vertical PC
(1.7) Dia
.067
(4.0) Dia
.157
1
2
3
4
5
6
(0.4)
.016
(7.4)
.292
4
5
6
1
2
3
28°
(2.6)
.102
(1.0)
.039
(5.08)
.200
(12.76)
.502
(0.5) Typ
.020
(2.54) Typ
.100
(2.54) Typ
.100
(5.08)
.200
(0.6) Dia Typ
.024
(0.4) Dia Typ
.016
(2.54)
.100
(5.3)
.209
(1.6)
.063
(3.8)
.150
(0.4) Dia Typ
.016
(2.54)
.100
(4.5)
.177
5 & 6 are LED terminals; 4 is a support pin on single color models & an LED terminal on bicolor models.
www.nkkswitches.com
G12JVCF
A41
Supplement
Accessories
Slot
Indicators
(2.54)
.100
Touch
5 & 6 are LED terminals; 4 is a support pin on single color models & an LED terminal on bicolor models.
G12JHD
Tilt
Tactiles
(2.54) Typ
.100
1
2
3
Slides
Rotaries
Keylocks
Programmable Illuminated PB
(4.5)
.177
(2.54) Typ
.100
(7.0)
.276
(4.5)
.177
Pushbuttons
(0.5) Typ
.020
(0.4) Dia Typ
.016
(2.54) Typ
.100
(2.54) Typ
.100
(0.5) Typ
.020
Rockers
H
Right Angle
Toggles
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
NKK Switches
:
G13JVCF G12JPCF G13JPCF G12JVC G12JPC G12JPF G12JPD G12JVF G12JHCF G12JHD G12JHC
G12JVCF G12JHF G13JHCF G12JVD
