Potentiometers
Line Guide
Potentiometers
convert rotary motion or linear displacement
into a change of resistance, supplying a smooth transition of
voltage or current levels.
The resulting voltage output may be
used to control position transducers in a wide variety of potential
transportation, industrial and medical applications.
Rotary Potentiometers
are compact, rugged, thick-film devices
that use either conductive plastic, or cermet or wirewound
elements. Developed for potential military applications, our
proprietary conductive plastic offers extensive temperature range
and infinite resolution, and is designed to provide precision
position measurement. Cermet and wirewound elements are
stable over a range of operating temperatures and provide
high power dissipation and improved resistance temperature
coefficient.
Linear Potentiometers
feature rugged extruded aluminum
housings to withstand harsh chemicals and immersion in oils
or water. Construction features include extended life PTFE
bearings, precious-metal multi-finger contact wipers, and MystR
®
conductive plastic thick-film elements.
FEATURES
ROTARY POTENTIOMETERS
CONDUCTIVE PLASTIC
POTENTIOMETERS
308, 408 Series.
Features:
Compact • Modular package
• Conductive plastic element
• 0.5 W power rating • Nickel-plated
brass shaft and bushings • Enhanced
performance • 408: sealed for board
washing • PC and solder-hook terminals
• CW audio and linear tapers available
Benefits:
Reduced cost potentiometer that
offers 0.5 W power rating in a compact
body. Potential applications include
manual controls, audio and lighting
consoles, medical equipment, precision
joysticks, and telecommunications.
profile, allowing use in a wide variety of
applications. Potential applications include
use on audio and visual equipment, foot
pedal controls, machine controls, welding
equipment, gear shifters, joysticks, and
throttles.
yielding consistent results. The PCB
containing the soldered devices may
be washed after soldering, saving time
and yielding consistent results. Good
performance at a reasonable price. Wide
range of resistance values promotes
flexibility in the applications. May be used
where space constraints may be present.
Potential applications include audio
and visual equipment, light switches,
hand-held multimeters and mobile
monitoring devices, test and measurement
equipment, communications equipment,
thermostats, hand-held medical
equipment and mobile monitoring devices,
medical laboratory and diagnostic
equipment, and vehicle manual controls.
381 Series.
Features:
Conductive plastic element
• 1 W power rating • Solder lug terminals
• Metal case and nickel-plated brass shaft
and bushings • Locking-style bushing,
rotary switch, or dual section options
available • Linear taper
Benefits:
Robust construction in a
low-cost industrial package. Potential
applications include manual and audio
controls, and telecommunications.
574 Series.
Features:
Conductive plastic element
• 0.5 W power rating • Reduced mounting
profile • Quiet electrical output • Vertical
mounting with support bracket • PC
style mounting • Smooth feel • Robust
construction • All plastic construction
• Metric bushing • Linear taper
380, 385, 53C, 485, RV4 Series.
Features:
Cost-effective • Wide range of
resistance values (100 Ohm to 5 MOhm,
inclusive) • Wide variety of tapers
Benefits:
Supplies good performance
at a reasonable price • Wide range of
resistance values promotes flexibility in
the applications • Wide variety of tapers
creates flexibility in the output signal
392, RV6 Series.
Features:
Wave solderable • PCB
washable • Cost-effective • Wide range of
resistance values (100 Ohm to 5 MOhm,
inclusive) • Small package size
Benefits:
Devices may be automatically
soldered on a PCB using the wave
soldering process instead of being
manually soldered, saving time and
continued on page 9
Potentiometers Line Guide
Quality. Reliability. Enhanced
life. Global reach.
Honeywell S&C rotary position
sensors deliver the features
you need and quality you
demand. Even better, we
offer worldwide support and
manufacturing.

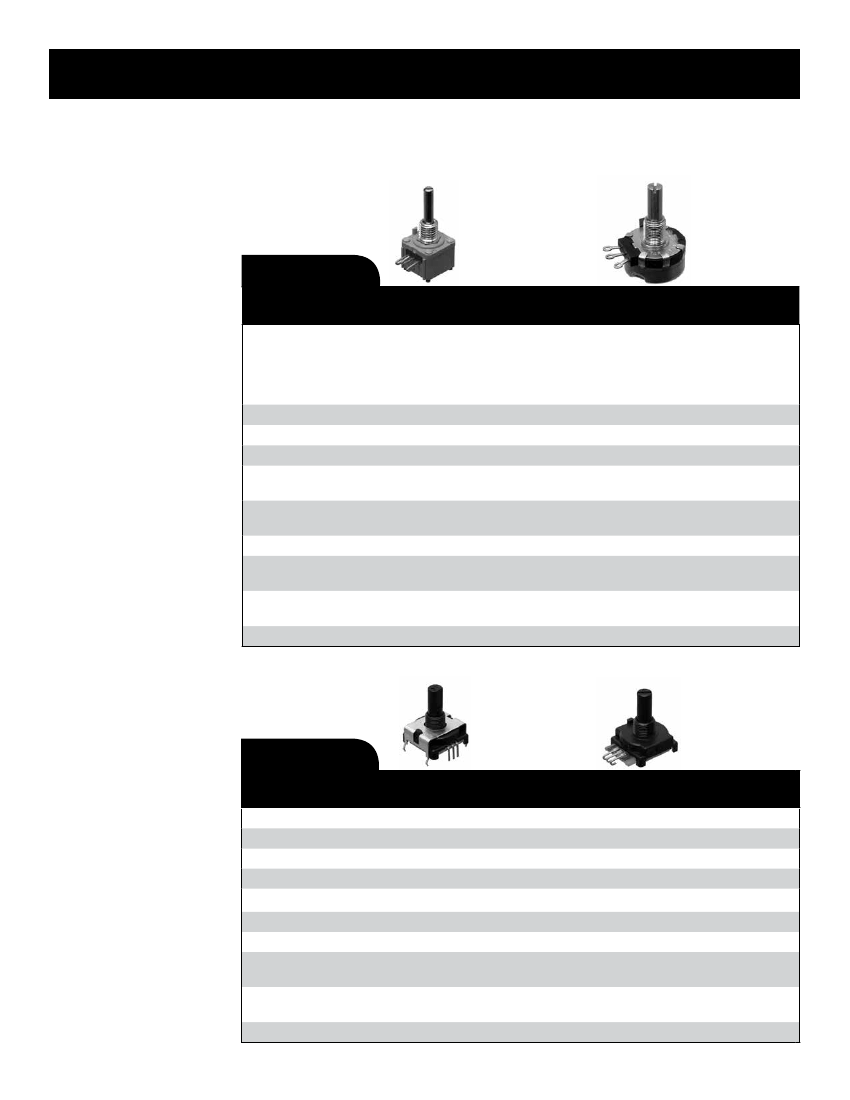

Potentiometers:
The
Honeywell S&C lineup
is legendary in military
and aerospace industries
for reliability, durability,
and enhanced life. Our
potentiometer designs allow
customization to your specs
and cost requirements
without sacrificing reliability
and accuracy. Measuring
rotary position or linear
displacement, these units
easily withstand exposure to
harsh chemicals and high
temperatures.

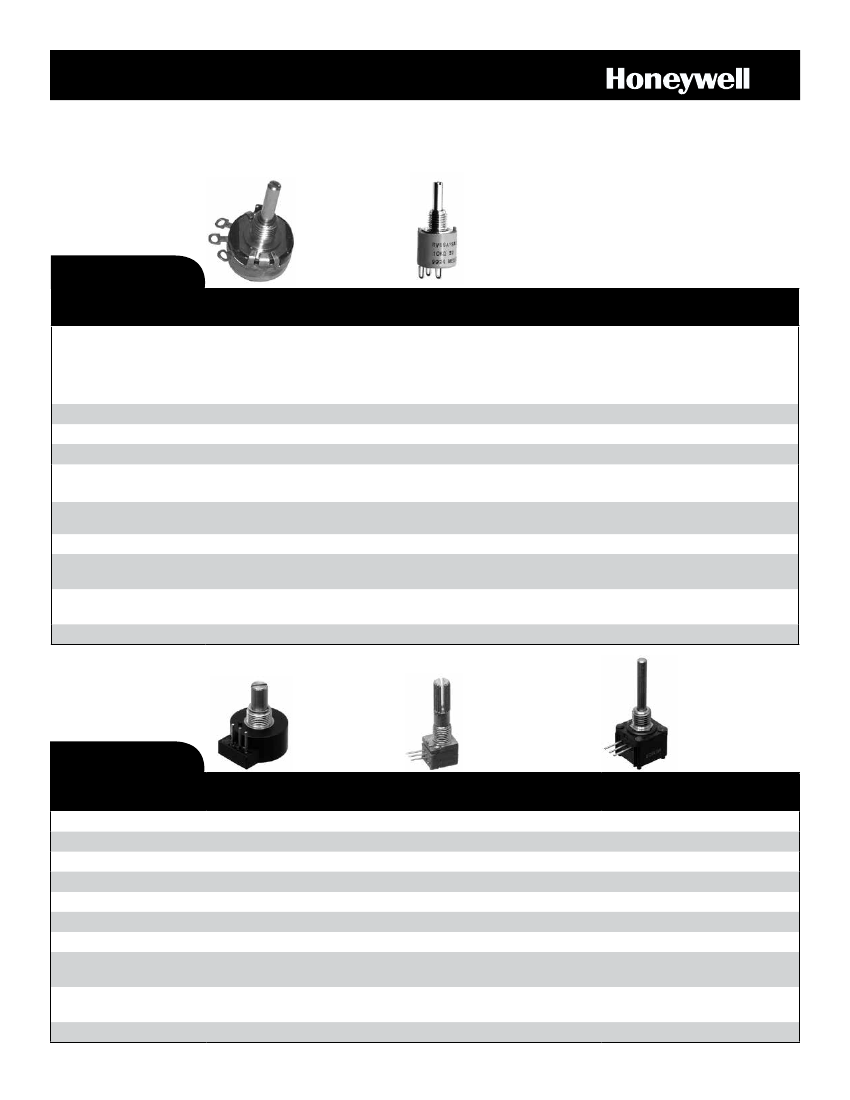

Conductive
Plastic Pots
308, 408 Series
380, RV4, 485,
53C, 385 Series
• 380: 2 W conductive plastic pot
• RV4: Military version of 380
• 485: Custom version of 380
• 53C: Cost-effective version of 380
• 385: Custom version of 53C
100 k cycles, 25 k cycles
conductive plastic
2W
solder lug with/without center tap, PC pin,
fast-on, custom
100 Ohm to 5 MOhm, inclusive
stainless steel
3/8-32 NEF-2A; nickel-plated brass;
standard, high torque, custom
Ø6,35
mm [0.250 in];
nickel-plated brass
linear, log, reverse log, custom
Description
• 308: compact modular housing
• 408: sealed for board washing
50 k cycles
conductive plastic
0.5 W
PC, solder hook
308: 100 Ohm to 1 mOhm
408: 500 Ohm to 10 kOhm
thermoplastic polyester
1/4-32 NEF-2A or 3/8-32 NEF-2A;
nickel-plated brass; standard, locking
Ø3,18 mm [0.125 in],
Ø6,35
mm [0.250 in];
nickel-plated brass
CW audio, linear
Expected rotational life
Element type
Power rating
Termination
Resistance range
Housing material
Bushing
Shaft
Electrical taper
Conductive
Plastic Pots
574 Series
low mounting profile
50 k cycles
conductive plastic
0.5 W
PC with bracket
1 kOhm to 100 kOhm
glass-reinforced plastic
Ø9,53
mm [0.375 in];
glass-reinforced plastic
Ø6,35
mm [0.250 in];
glass-reinforced plastic
linear
575 Series
thermoplastic panel mount
50 k cycles
conductive plastic
0.5 W
PC, solder hook
1 kOhm to 50 kOhm
glass-reinforced plastic
Ø9,53
mm [0.375 in];
glass-reinforced plastic
Ø6,35
mm [0.250 in];
glass-reinforced plastic
linear
Description
Expected rotational life
Element type
Power rating
Termination
Resistance range
Housing material
Bushing
Shaft
Electrical taper
2
