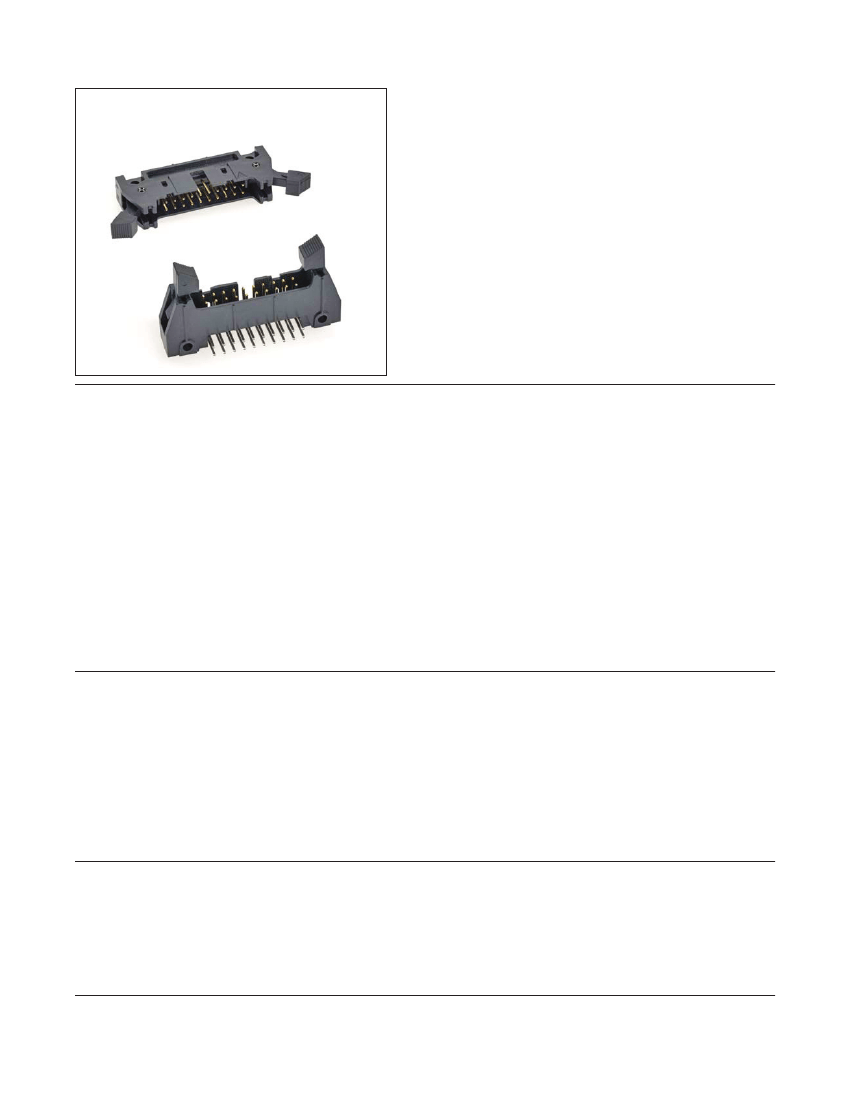

.100” × .100” Latch/Ejector, Straight and Right Angle
D3000 Series
• Military (with 3M’s 3518 & N3518 polarizing key)
and centerbump polarization
• Optional ejector latches
• Mounting holes for securing header to board
• Optional polarizing posts available
• High temperature insulator suitable for “no lead”
soldering operations
• High temperature insulator in through-hole version
suitable for “paste in hole” reflow soldering
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the “RoHS compliance” section of
www.3Mconnector.com for compliance information (RIA
E1 and C1 apply)
Date Modified: April 6, 2011
TS-2245-E
Sheet 1 of 4
Physical
Insulator:
Material: High Temp Glass Filled Polyester (PCT)
Flammability: UL 94V-0
Color: Black (PCT)
Contact:
Material: Brass
Plating:
Underplating: 50 -150 μ” [ 1.25 μm ] Ni
Wiping Area: 15 μ” [0.381 μm] Gold
Solder Tails: 40 - 120 μ” [ 1-3 μm ] Matte Tin
Marking:
3M Logo, Part Identification Number and Orientation Triangle
Electrical
Current Rating:
5.00 A, 1 Contact Powered
3.00 A, 6 Contacts Powered
1.75 A, All Contacts Powered
Rating Conditions: EIA-364-070 Method 2, 30°C maximum temperature rise, 20%
derated. Reference appropriate 3M Product Specification for detailed current
derating curves.
Insulation Resistance:
>1 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
1,000 V
RMS
at Sea Level
Environmental
Temperature Rating:
-55°C to +105°C
Process Rating:
260°C, profile per J-STD-020C, single pass
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

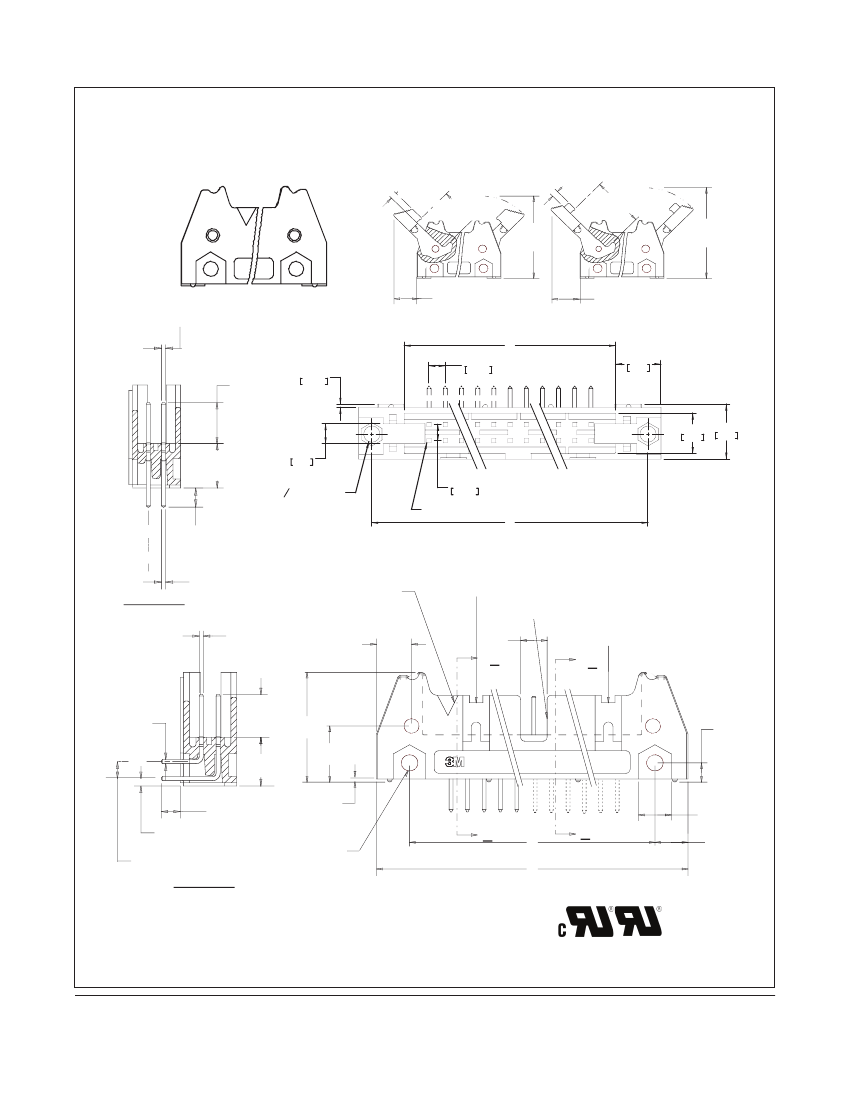

Four-Wall Header
.100” × .100” Latch/Ejector, Straight and Right Angle
-X0XX
Header without Latch Ejector
-X2XX
Header with
Short Ejector/Latch
for 3M Sockets without
Strain Relief
D3000 Series
-X3XX
Header with
Long Ejector/Latch
for 3M Sockets with
Strain Relief
.08
[2.0]
.573
±
.010
[ 14.55 ]
.97 Ref
[24.6]
1.07 Ref
[27.2]
.08
[2.0]
.424
±
.010
[ 10.77 ]
.025
±
.002 Sq Typ
[ 0.64 ]
.37 Ref
[9.4]
.46 Ref
[11.7]
D
.020
0.51
.100
2.54
REF.
.28
7.1
.24
[6.1]
.25
6.4
.30
[7.6]
.34
8.6
.13
3.3
2X
O
.100 [2.54]
SEE NOTE #2
.100
2.54
POSITION #1
B
REF.
C
L
“Y”
Dim. E
F Typ
Section A-A
(Straight)
.025
±
.002 Sq Typ
[ 0.64 ]
Position 1
Orientation
Triangle
Notch A
(See Table 1 & Note1)
Notch B
(See Table 1)
.16
[4.1]
Notch C
(See Table 1 & Note 1)
.21
[5.3]
A
B
F Typ
.24
[6.1]
.68
[17.3]
.35
[8.9]
.12
[3.0]
C
L
“Y”
.30
[7.6]
Dim. E
.049 Ref
[1.24]
.100 Ref
[2.54]
.020
[0.51]
Section B-B
(Right Angle)
2X ø .100
[2.54]
(See Note 2)
A
C
A
B
.197
[5.00]
.20
[5.1]
TS-2245-E
Sheet 2 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Four-Wall Header
.100” × .100” Latch/Ejector, Straight and Right Angle
Table 1
Pin Qty
06
08
10
14
16
20
24
26
30
34
40
50
60
64
D3000 Series
Polarizing
Notches
B*
B*
BC
BC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
3M Part
Number
3869
3889
3793
3314
3408
3428
3627
3429
3440
3431
3432
3433
3372
3764
Dimensions
A
1.065 (27.05)
1.165 (29.59)
1.265 (32.13)
1.465 (37.21)
1.565 (39.75)
1.765 (44.83)
1.965 (49.91)
2.065 (52.45)
2.265 (57.53)
2.465 (62.61)
2.765 (70.23)
3.265 (82.93)
3.765 (95.63)
3.965 (100.71)
B
0.905 (22.99)
1.005 (25.53)
1.105 (28.04)
1.305 (33.12)
1.405 (35.66)
1.605 (40.74)
1.805 (45.82)
1.905 (48.36)
2.105 (53.44)
2.305 (58.52)
2.605 (66.14)
3.105 (78.84)
3.605 (91.54)
3.805 (96.62)
C
0.665 (16.89)
0.765 (19.43)
0.865 (21.97)
1.065 (27.05)
1.165 (29.59)
1.365 (34.67)
1.565 (39.75)
1.665 (42.29)
1.865 (47.37)
2.065 (52.45)
2.365 (60.07)
2.865 (72.77)
3.365 (85.47)
3.565 (90.55)
D
0.505 (12.83)
0.605 (15.37)
0.705 (17.91)
0.905 (22.99)
1.005 (25.53)
1.205 (30.61)
1.405 (35.69)
1.505 (38.23)
1.705 (43.31)
1.905 (48.39)
2.205 (56.01)
2.705 (68.71)
3.205 (81.41)
3.405 (86.49)
Inch
(mm)
Tolerance Unless Noted
.0
± .1
.00
.000
± .01 ± .005
[ ] Dimensions for
Reference only
* Available without center notch B. Contact 3M.
Table 2
3M Part
Number Suffix
-5XX2
-6XX2
Contact Tail
Solder Tail for
.062 [1.57]
Thick PC Board
ø.106
[2.69]
Dim E
.112 ± .010
[2.84]
Pin Cross Section
Dim F
.0245
± .0005
[0.622]
Diagonals
.028
± ..001
[0.71]
Corner Radii
.0075 Ref
[0.191]
Dimension G
Ø.035 ±.003
[0.89] (See Note 3)
ø.106 or ø.116
[2.95]
[2.69]
.300
[7.62]
Side to Side Stackability
ø.116
[2.95]
(See Note 2)
Dim G
or
.41
(See Note 2)
[10.4]
Max to Edge of PCB
Dim G
for Daisy Chain
“Y”
C
L
"Y"
C
L
Position 1
.100
±
.003
[2.54]
.232
[5.89]
C
.060
[1.52]
Position 1
.100
±
.003
[2.54]
.352
[8.94]
B
.029
[0.74]
.100
±
.003
[2.54]
.100
±
.003
[2.54]
Recommended Mounting Hole Pattern
(Straight)
Recommended Mounting Hole Pattern
(Right Angle)
Notes:
1. Notches A & C will accomodate 3M Polarizing Keys (3M Part #3518 or #N3518).
2. Mounting hardware: From solder side of pc board use #4-24 thread cutting screw (3M Part # 3341-5) and .116 [2.95] dia mounting hole.
For right angle version only, #2-56 bolt and nut (3M Part # 3341-6) with .106 [2.69] dia mounting hole may be used.
3. Contact your 3M sales representative for custom requirements.
Ordering Information
D3XXX - XX02AR
Pin Configuration
5 = Right Angle Solder Tails
6 = Straight Solder Tails
3M Part Number
(See Table 1)
Latch/Ejector System
0 = No Latch/Ejector installed
2 = Short Roll Pin Latch/Ejectors
3 = Long Roll Pin Latch/Ejectors
Tail
02 = for .062 [1.57] thick board
TS-2245-E
Sheet 3 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Four-Wall Header
Part Customization
.100” × .100” Latch/Ejector, Straight and Right Angle
, Accessories
This spec sheet details our standard offering.
3M has several capabilities that can provide a
part tailored to your specific needs. Ask your
3M sales representative or customer service for
more details.
• The -2 & -3 roll pin latches (may be ordered
separately with roll pins included)
• Snap-in style latch/ejectors in either short
(N3XXXX5XXX) or long (N3XXX-X6XX)
styles, may also be ordered separately, and are
functional and dimensional equivalents to the
-2 and -3 roll pin latches.
If ordering latches separately, please use the below chart
Short Latch
High Temperature (PPA)
High Temperature (PCT)
N3505-30B
N3505-2B
Long Latch
N3505-31B
N3505-3B
Latch Style
Snap In
Roll Pin
Color
Black
Black
D3000 Series
Polarizing Post
.321
[8.15]
.100 Dia
[2.54]
Note: Insert Post into one mounting hardware hole on
bottom of header. Set post to protrude .115” [2.92]
3 2 0 1 -4
LCP
B la c k
• Selective pin removal (ATA or other compatability)
Mounting Hardware
3341-5
(Installed from bottom of board)
3341-6
(Must be inserted prior to latch on
vertical headers)
Polarizing Keys
N3518
N3518
3518
LCP
LCP
PBT
Polarizing Keys
Dim A
Blac k
Black
Gray
.02
.02
.02
.31
[7.9]
.50
[12.7]
Breakaway Tab
Panhead Thread Cutting Screw:
#4-24 X 5/16”
Type: USA Std BT, Federal BG
Hex Head Bolt, Nut and Washer
Bolt - #2-56 X 1/2”
.34 Ref
[8.6]
.15
[3.8]
A
.09
[2.3]
3341-5 & 6
Material - Stainless Steel
Note: #2216 B/A Scotchweld can be used to adhere keys.
TS-2245-E
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of
ninety (90) days
from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
