LPT-4545
www.vishay.com
Vishay Dale
Inductors/Transformers Customizable, Surface Mount
Torodial, Kool-Mu
®
, Powdered Iron and MPP Cores
FEATURES
• Toroidal design for minimal EMI radiation in DC/DC
converter applications
• Designed to support the growing need for efficient
DC/DC converters in battery operated equipment
• Two separate windings provide versatility by ability
to connect windings in series or parallel
• Dielectric withstanding voltage: 500 V
RMS
, 60 Hz, 5 s
• Operating temperature range: -40 °C to +125 °C
• Supplied on tape and reel and is designed to be pick and place
compatible
• Custom versions and turns ratios available. Contact the factory
with your specifications
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
ACTUAL IND. (LOC)
(μH)
0.832
1.30
2.55
3.33
5.20
10.2
15.0
20.8
25.2
32.5
50.0
101
152
248
300
333
0.838
1.21
2.71
3.35
5.66
10.9
14.8
26.3
34.3
51.0
105
150
248
335
0.838
1.30
2.55
3.33
5.20
10.2
15.0
25.2
32.5
50.0
101
152
248
333
DCR
()
0.003
0.004
0.006
0.007
0.011
0.019
0.029
0.038
0.048
0.068
0.107
0.195
0.302
0.491
0.670
0.706
0.004
0.005
0.009
0.012
0.019
0.034
0.049
0.084
0.119
0.180
0.342
0.509
0.831
1.194
0.004
0.004
0.007
0.008
0.012
0.022
0.033
0.054
0.076
0.119
0.219
0.340
0.551
0.788
RATED I
DC
(40 °C) (A)
6.90
6.45
5.75
5.50
4.45
3.45
2.79
2.61
2.25
1.85
1.50
1.15
0.92
0.73
0.63
0.60
6.61
6.08
5.01
4.22
3.32
2.52
2.10
1.61
1.34
1.09
0.81
0.66
0.52
0.43
7.54
6.82
5.84
5.49
4.37
3.32
2.69
2.12
1.76
1.41
1.07
0.86
0.67
0.56
IND. AT I
DC
(L
BIAS
)
(30 %)
0.51 at 7.62
0.80 at 6.10
1.57 at 4.35
2.05 at 3.81
3.20 at 3.05
6.28 at 2.18
9.26 at 1.79
12.4 at 1.53
15.5 at 1.39
20.0 at 1.22
30.8 at 0.98
62.0 at 0.69
93.4 at 0.56
153.0 at 0.44
179.0 at 0.40
205.0 at 0.38
0.53 at 7.09
0.76 at 5.91
1.71 at 3.94
2.11 at 3.54
3.57 at 2.73
6.84 at 1.97
9.31 at 1.69
16.5 at 1.27
21.6 at 1.11
32.1 at 0.91
66.2 at 0.63
94.7 at 0.53
156.0 at 0.41
211.0 at 0.35
0.54 at 11.11
0.84 at 8.89
1.64 at 6.35
2.14 at 5.56
3.35 at 4.45
6.56 at 3.18
9.68 at 2.61
16.2 at 2.02
20.9 at 1.78
32.2 at 1.43
64.8 at 1.01
97.7 at 0.82
159.0 at 0.64
214.0 at 0.56
Note
• Kool Mu
®
is a registered trademark of Spang & Company
STANDARD ELECTRICAL SPECIFICATIONS
(in parallel)
MODEL
LPT4545ER1R0LK
LPT4545ER1R5LK
LPT4545ER2R5LK
LPT4545ER3R3LK
LPT4545ER5R0LK
LPT4545ER100LK
LPT4545ER150LK
LPT4545ER200LK
LPT4545ER250LK
LPT4545ER330LK
LPT4545ER500LK
LPT4545ER101LK
LPT4545ER151LK
LPT4545ER251LK
LPT4545ER301LK
LPT4545ER331LK
LPT4545ER1R0LP
LPT4545ER1R5LP
LPT4545ER2R5LP
LPT4545ER3R3LP
LPT4545ER5R0LP
LPT4545ER100LP
LPT4545ER150LP
LPT4545ER250LP
LPT4545ER330LP
LPT4545ER500LP
LPT4545ER101LP
LPT4545ER151LP
LPT4545ER251LP
LPT4545ER331LP
LPT4545ER1R0LM
LPT4545ER1R5LM
LPT4545ER2R5LM
LPT4545ER3R3LM
LPT4545ER5R0LM
LPT4545ER100LM
LPT4545ER150LM
LPT4545ER250LM
LPT4545ER330LM
LPT4545ER500LM
LPT4545ER101LM
LPT4545ER151LM
LPT4545ER251LM
LPT4545ER331LM
STD. IND.
(μH)
1.0
1.5
2.5
3.3
5.0
10
15
20
25
33
50
100
150
250
300
330
1.0
1.5
2.5
3.3
5.0
10
15
25
33
50
100
150
250
330
1.0
1.5
2.5
3.3
5.0
10
15
25
33
50
100
150
250
330
100 μH
INDUCTANCE
VALUE
IND. TOL.
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
± 15 %
DESCRIPTION
LPT
MODEL
4545
SIZE
± 15 %
INDUCTANCE
TOLERANCE
A
CORE/HEIGHT
K = KOOL MU
®
(A)
P = POWDERED IRON (B)
M = MPP (C)
ER
PACKAGE CODE
ER = reel
e2
JEDEC
®
LEAD (Pb)-FREE
STANDARD
GLOBAL PART NUMBER
L
P
T
4
5
4
5
E
R
1
0
1
L
TOL.
K
CORE
PRODUCT FAMILY
SIZE
PACKAGE CODE
INDUCTANCE VALUE
Note
• Series is also available with SnPb terminations by using package code RH for tape and reel (in place of ER)
Revision: 22-Aug-17
Document Number: 34069
1
For technical questions, contact:
magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
MPP (C)
POWDERED IRON (B)
KOOL MU
®
CORE (A)
LPT-4545
www.vishay.com
Vishay Dale

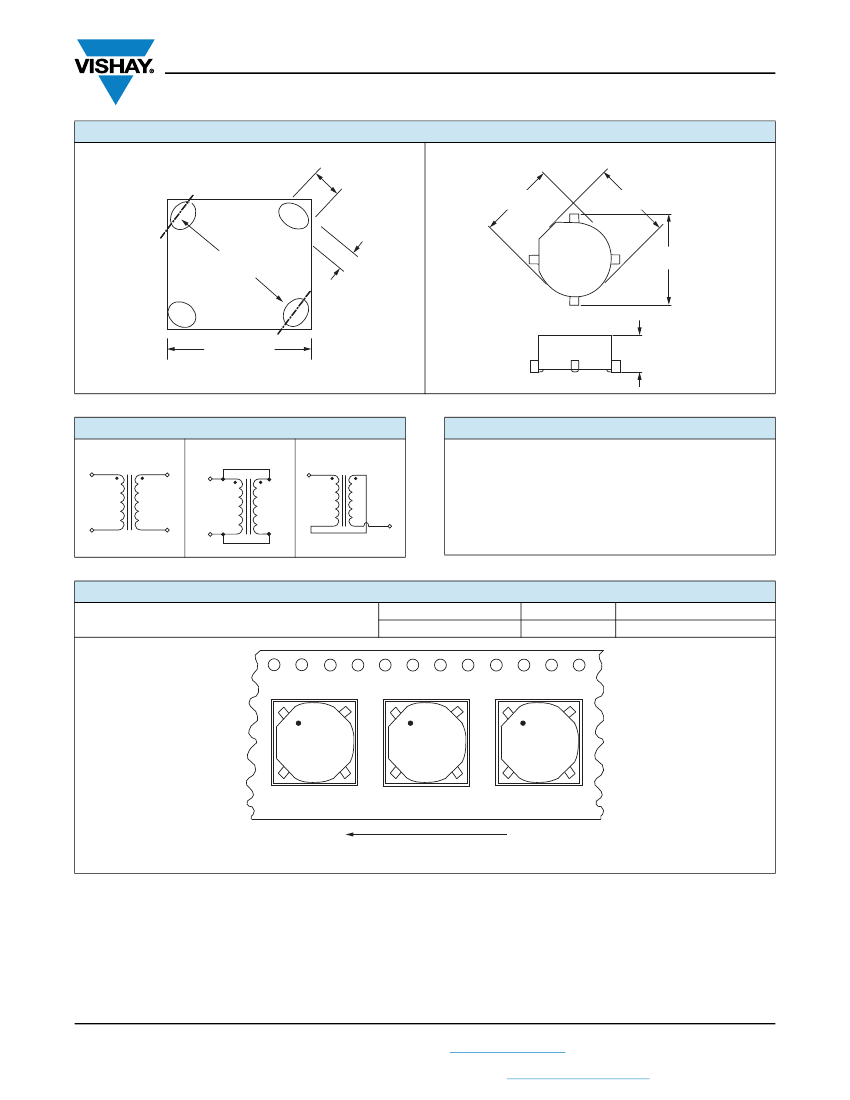

DIMENSIONS
