LFSPXO024764Reel datasheet, PDF

Datasheet> All Categories > Passive components> LFSPXO024764Reel

LFSPXO024764Reel: DescriptionStandard Clock Oscillators 8MHz 1.8V 50ppm -40C +85C; CategoryPassive components; File Size697KB，2 Pages; ManufacturerIQD

Download Datasheet Parametric View All

LFSPXO024764Reel Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO024764Reel	-	-	View	Buy Now

LFSPXO024764Reel Overview

Standard Clock Oscillators 8MHz 1.8V 50ppm -40C +85C

LFSPXO024764Reel Parametric

Parameter Name	Attribute value
Product Category	Standard Clock Oscillators
Manufacturer	IQD
RoHS	Details
Product	Standard Clock Oscillators
Frequency	8 MHz
Frequency Stability	50 PPM
Load Capacitance	15 pF
Operating Supply Voltage	1.8 V
Supply Voltage - Min	1.71 V
Supply Voltage - Max	1.89 V
Output Format	CMOS
Termination Style	SMD/SMT
Package / Case	7 mm x 5 mm
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	7.2 mm
Width	5.2 mm
Height	1.4 mm
Packaging	Reel
Packaging	Cut Tape
Packaging	MouseReel
Current Rating	5 mA
Duty Cycle - Max	60 %
Factory Pack Quantitybzbbdrxqcruyfuxbdfeecufcvaxreyfcevvw	1000
Type	Crystal Oscillator

Preview

Download Datasheet

View All

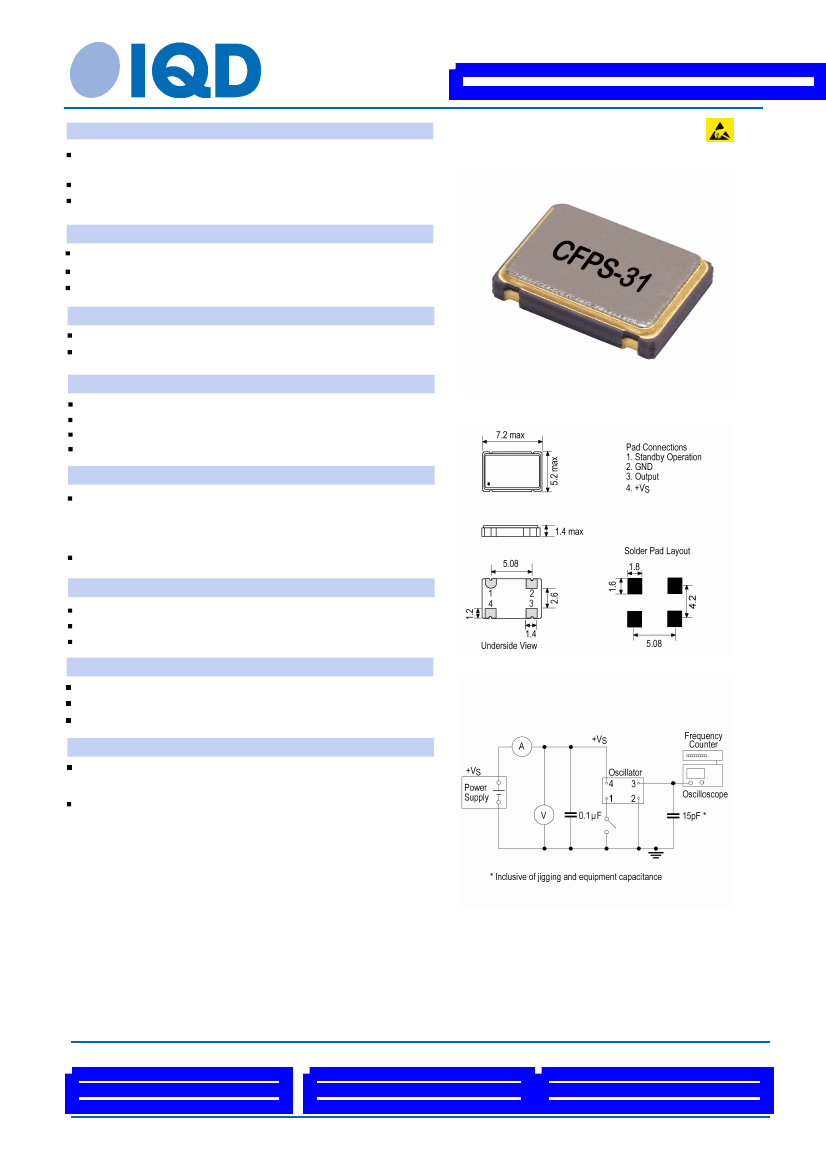

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO024764Reel

Description

Surface mount oscillator in a ceramic package with a

hermetically sealed metal lid

Model

CFPS-31

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Electrical Parameters

8.0MHz

±50.00ppm

-40.00 to 85.00°C

Supply Voltage

Current Draw

Output Details

1.8V ±5%

5.00mA

Output Compatability

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

CMOS

15pF max

5.0ns max

40/60%

Outline (mm)

Logic ‘1’ (>70% VS) to pad 1 enables oscillator output

Logic ‘0’ (<30% VS) to pad 1 disables oscillator output; the

oscillator output goes to the high impedance state

No connection to pad 1 enables oscillator output

Standby Current: 10μA max

Environmental Parameters

Storage Temperature Range: –55 to 125°C

Shock: MIL-STD-202, Method 213, Condition E

Vibration: MIL-STD-883, Method 2007, Condition A

Compliance

Test Circuit

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 1,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2
