72RPXR200LF: DescriptionTrimmer, Cermet, 0.5W, 200ohm, 200V, 10% +/-Tol, -100,100ppm/Cel, 1 Turn(s), 3838, 3/8 INCH, SQUARE, 3 PINS; CategoryPassive components The resistor; File Size977KB，5 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

72RPXR200LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	72RPXR200LF	-	-	View	Buy Now

Trimmer, Cermet, 0.5W, 200ohm, 200V, 10% +/-Tol, -100,100ppm/Cel, 1 Turn(s), 3838, 3/8 INCH, SQUARE, 3 PINS

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1735387344
package instruction	3/8 INCH, SQUARE, 3 PINS
Reach Compliance Code	compliant
YTEOL	7.3
Actuator direction	VERTICAL
Actuator type	SCREW
structure	Trimmer Pot
gang number	1
JESD-609 code	e3
Lead diameter	0.53 mm
Lead length	4.6 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	4.75 mm
Package length	9.53 mm
Package shape	RECTANGULAR PACKAGE
Package form	PCB Mount
Package width	9.53 mm
method of packing	Bulk
Rated power dissipation(P)	0.5 W
Rated temperature	85 °C
resistance	200 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	244 deg
surface mount	NO
technology	CERMET
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin (Sn)
Terminal shape	WIRE
Tolerance	10%
Operating Voltage	200 V

Single Turn Trimmer

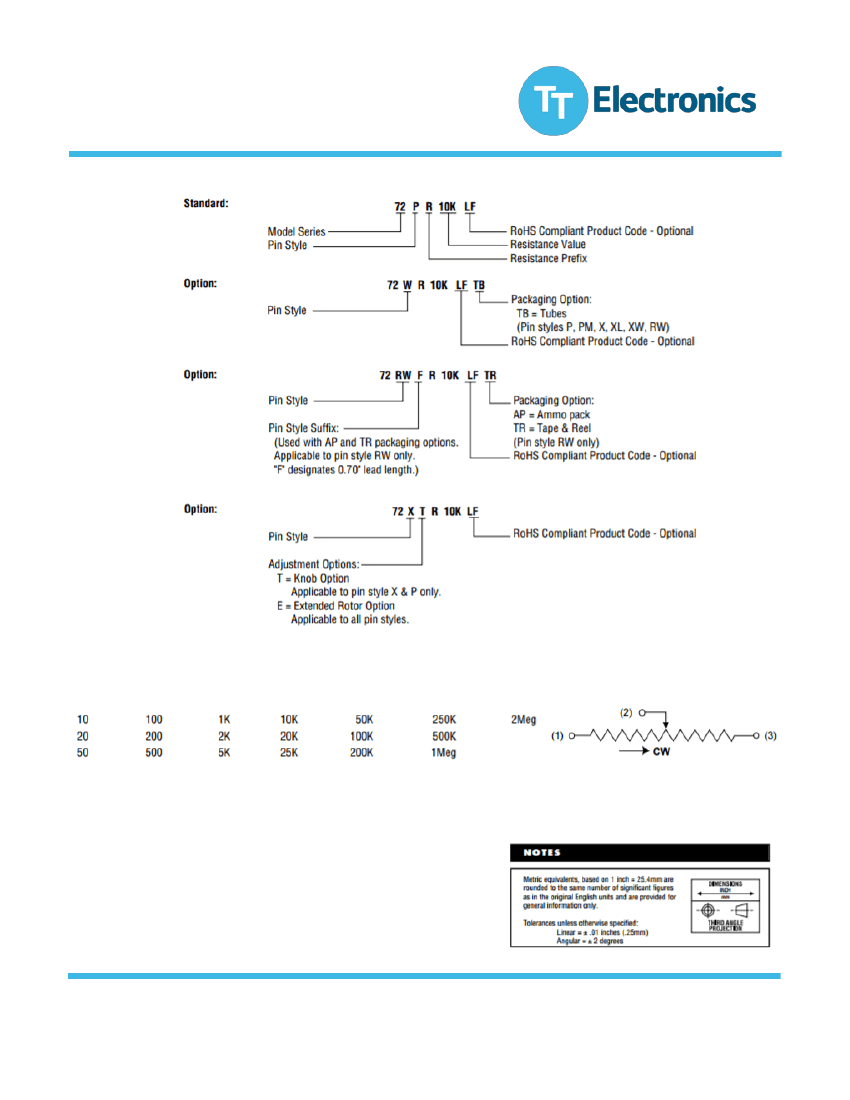

Model 72

Features:



3/8” square



Single turn



Cermet

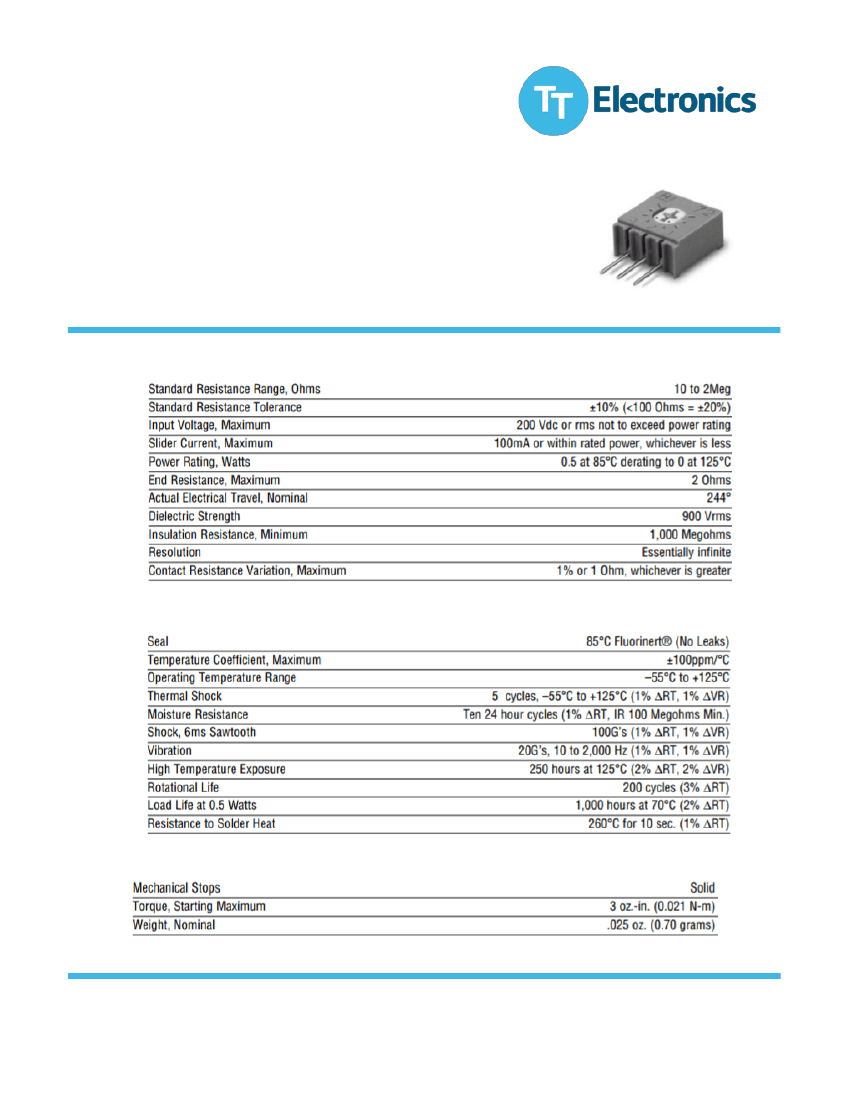

Electrical

Environmental

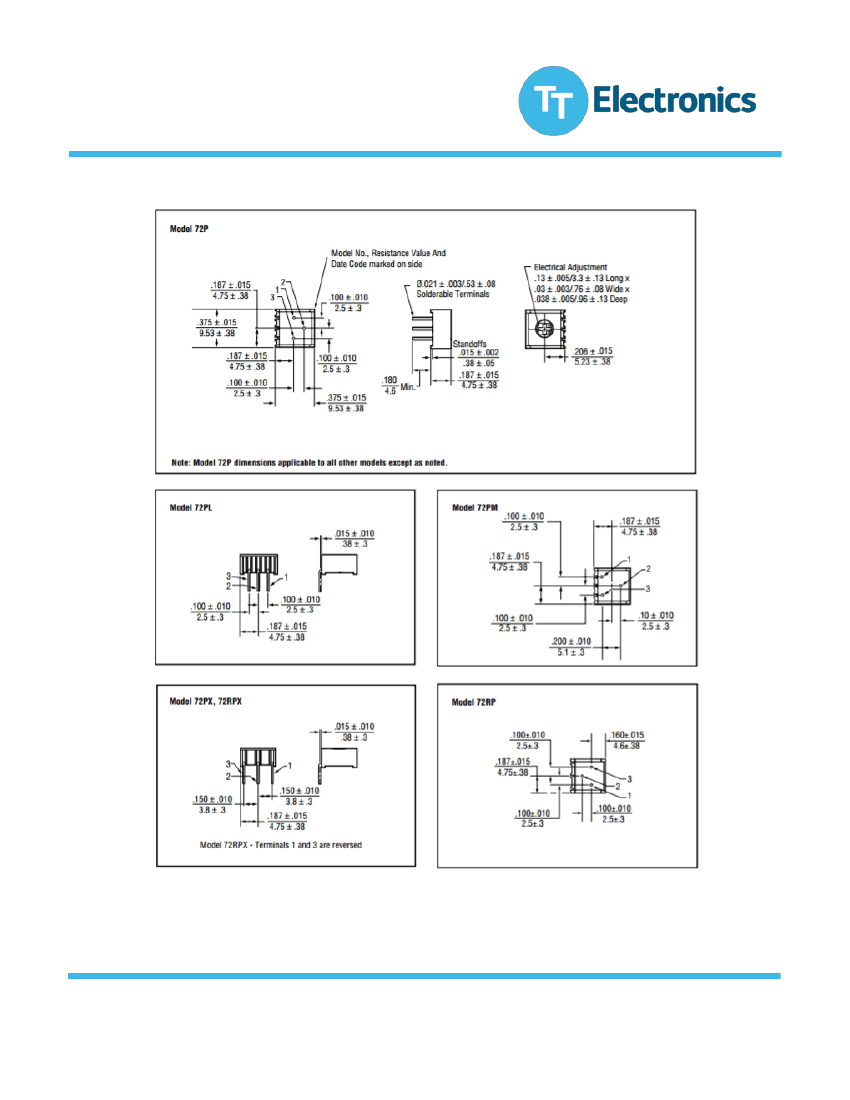

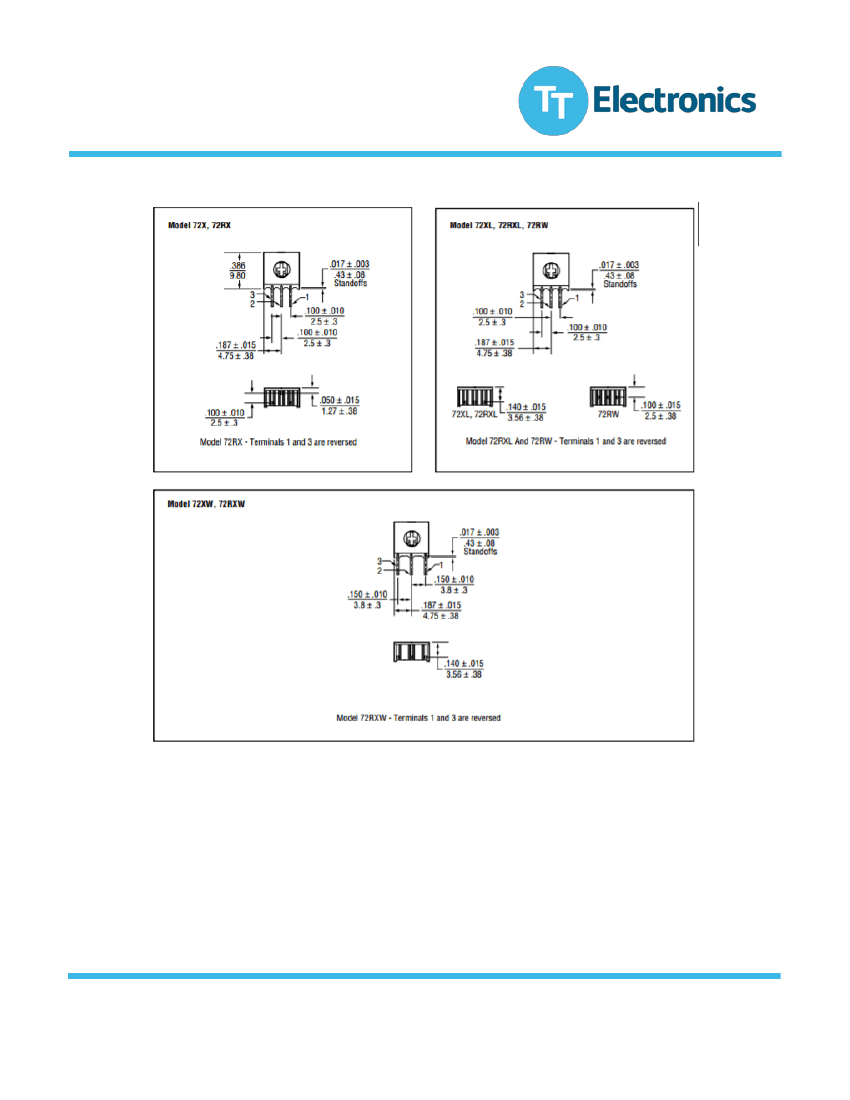

Mechanical

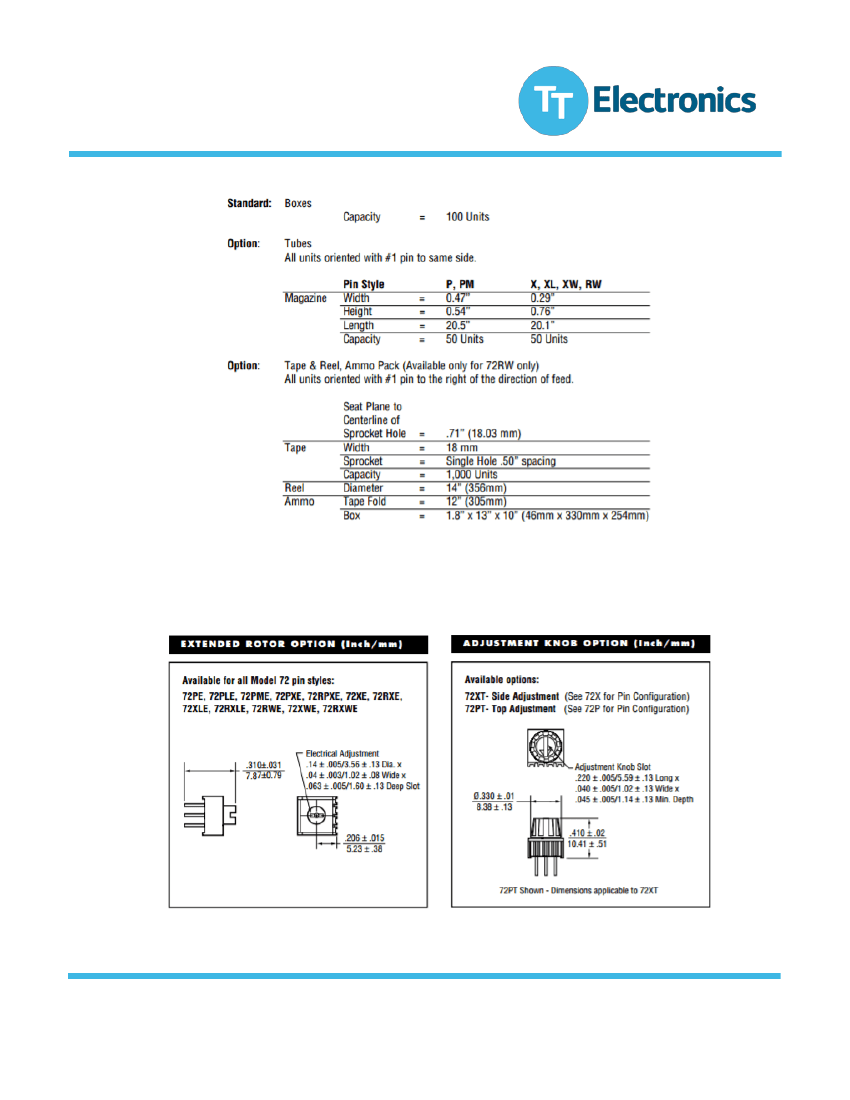

General Note

TT Electronics reserves the right to make changes in product specification without

notice or liability. All information is subject to TT Electronics’ own data and is

considered accurate at time of going to print.

TT Electronics | BI Technologies

4200 Bonita Place, Fullerton, CA USA 92835-1053 |Ph: +1 714-447-2300

www.ttelectronics.com | sensors@ttelectronics.com

Issue A

11/2016

Page 1
