CN1E4KRTTD105J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> CN1E4KRTTD105J

CN1E4KRTTD105J: DescriptionResistor Networks u0026 Arrays 1 Mohm5% Tol. ANTI-SULFUR; CategoryPassive components; File Size399KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

CN1E4KRTTD105J Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CN1E4KRTTD105J	-	-	View	Buy Now

CN1E4KRTTD105J Overview

Resistor Networks u0026 Arrays 1 Mohm5% Tol. ANTI-SULFUR

CN1E4KRTTD105J Parametric

Parameter Name	Attribute value
Product Category	Resistor Networks & Arrays
Manufacturer	KOA Speer
RoHS	Details
Qualification	AEC-Q200
Packaging	Reel
Factory Pack Quantity	10000

Preview

Download Datasheet

View All

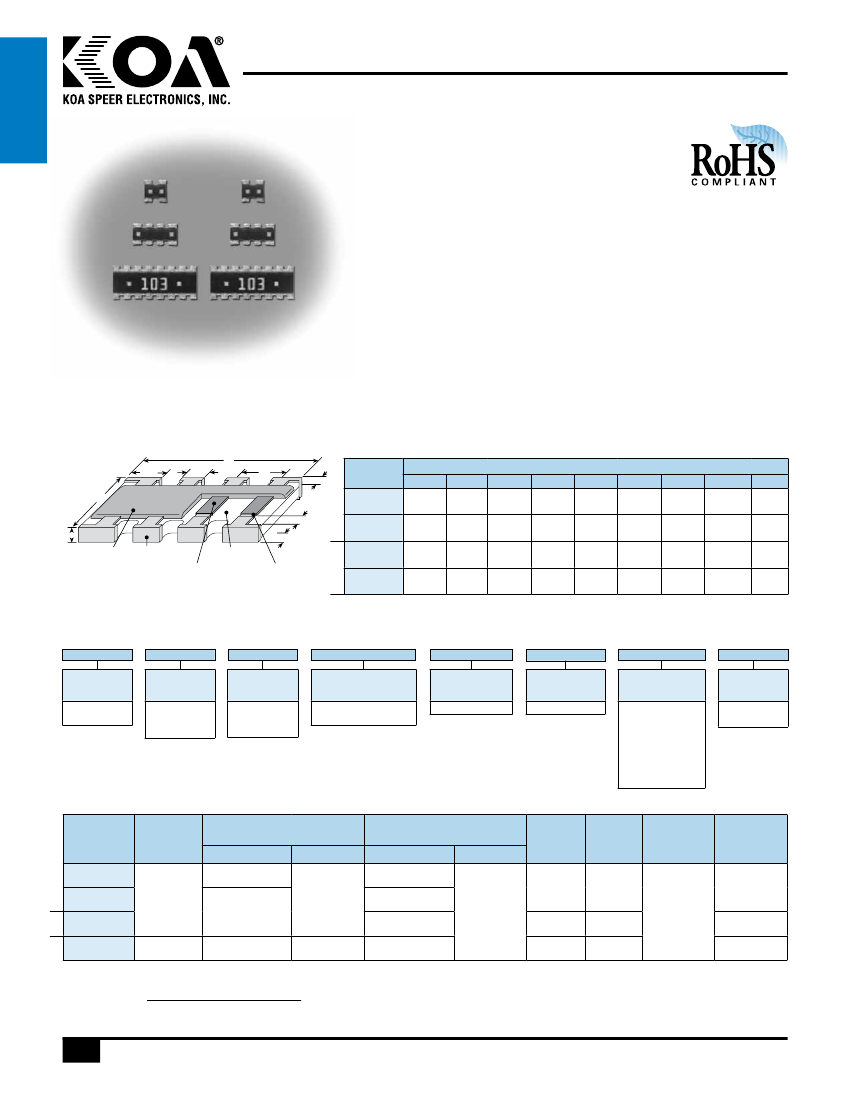

CN-KRT

anti sulfuration chip networks

(convex termination)

features

•

Excellent anti-sulfuration characteristic

due to using high sulfuration-proof inner

top electrode material

•

More advancement in the mounting density than individual

chip resistors

•

Mounting cost reduction by decreasing the number

of parts to mount

•

Easy soldering fillet inspection

•

Suitable for an image recognition mounter due to square

corner design

•

Products with lead-free termination meet EU RoHS

requirements. EU RoHS regulation is not intended for

Pb-glass contained in electrode, resistor element and glass.

dimensions and construction

Protective Outer

Coating

Electrode

Ceramic

Substrate

Resistive

Film

Inner

Electrode

NEW

resistors

Type

CN1E2KRT

(0402x2)

CN1E4KRT

(0402x4)

CN1J4KRT

(0603x4)

CN1F8KRT

(0602x8)

Dimensions

inches

(mm)

—

.007±.002

(0.17±0.05)

.026

(0.67)

.020

(0.5)

.031

(0.8)

.020

(0.5)

.039±.004 .039±.004 .006±.004 .010±.004 .014±.004 .013±.004

(1.0±0.1) (1.0±0.1) (0.15±0.1) (0.25±0.1) (0.35±0.1) (0.33±0.1)

.079±.004 .039±.004 .006±.004 .010±.008 .014±.004 .012±.006 .016±.006 .006±.004

(2.0±0.1) (1.0±0.1) (0.15±0.1) (0.25±0.2) (0.35±0.1) (0.3±0.15) (0.4±0.15) (0.15±0.1)

.126±.006 .063±.006 .012±.008 .010±.004 .020±.004 .020±.006 .026±.006 .012±.004

(3.2±0.15) (1.6±0.15) (0.3±0.2) (0.25±0.1) (0.5±0.1) (0.5±0.15) (0.65±0.15) (0.3±0.1)

.150±.004 .063±.004 .012±.004 .012±.004 .018±.004 .012±.004

(3.8±0.1) (1.6±0.1) (0.3±0.1) (0.3±0.1) (0.45±0.1) (0.3±0.1)

—

.006*

(0.15)

* Referential values.

ordering information

Size

NEW

Number of

Resistors

Terminal

Convex

K: Convex type

with squared corners

Termination

Material

RT: Sn

Packaging

TD: 7" paper

103

Nominal

Resistance

±1%: 3 significant

figures + 1 multiplier

“R” indicates decimal

on values <100

±5%: 2 significant

figures + 1 multiplier

“R” indicates decimal

on values <10

Tolerance

F: ±1%

J: ±5%

Type

CNZ

For further information on packaging, please refer to Appendix A.

applications and ratings

Part

Desigation

CN1E2KRT

CN1E4KRT

CN1J4KRT

CN1F8KRT

0.063*

—

10~1M

0.063

10~1M

±100: R≥10Ω

—

Power

Resistance Range

T.C.R. (×10

−6

/K)

Rating per

Element F: ±1% E24,E96 J: ±5% E24 F: ±1% E24,E96 J: ±5% E24

—

3~1M

—

Max.

Working

Voltage

25V

Max.

Rated

Operating

Overload

Ambient

Temperature

Voltage Temperature

Range

50V

+70°C

−55°C~+125°C

±200: R≥10Ω

±400: R<10Ω

50V

25V

100V

50V

−55°C~+155°C

−55°C~+125°C

Please note that network resistors generate higher heat rather than single flat chip resistor even under rated power output.

* 0.25W per package

Rated voltage =

√

Power Rating × Resistance value or Max. working voltage, whichever is lower.

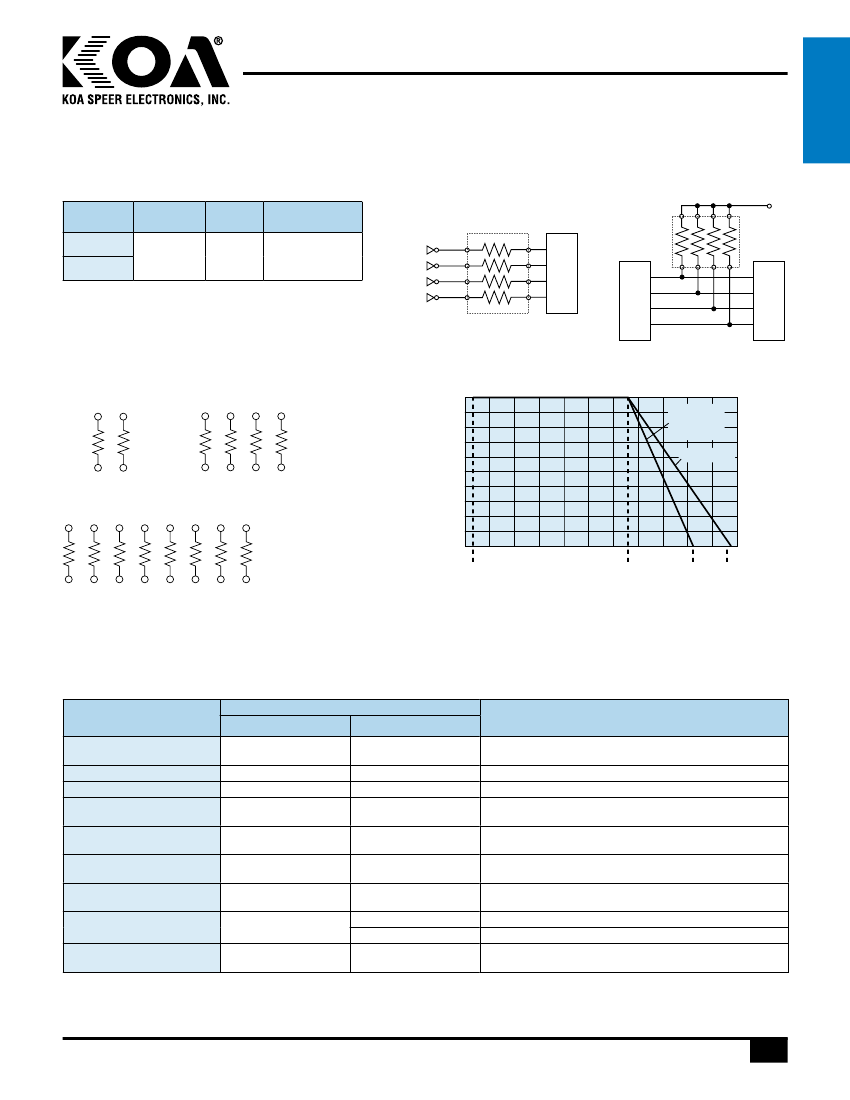

11/28/16

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

124

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
