3214W-1-500E: DescriptionBoard to Board u0026 Mezzanine Connectors 20 Ckt Vert. Recept 0.5mm SMT Dual-Row; CategoryPassive components The resistor; File Size573KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

3214W-1-500E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3214W-1-500E	-	-	View	Buy Now

3214W-1-500E Overview

Board to Board u0026 Mezzanine Connectors 20 Ckt Vert. Recept 0.5mm SMT Dual-Row

3214W-1-500E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	SMT, 1420
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	4 weeks
Actuator direction	VERTICAL
Actuator type	SCREW
structure	Trimmer Pot
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	3
number of turns	5
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package height	4.8 mm
Package length	3.5 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	5.1 mm
method of packing	TR, EMBOSSED, 7 INCH
Rated power dissipation(P)	0.25 W
Rated temperature	85 °C
resistance	50 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	1800 deg
size code	1420
surface mount	YES
technology	CERMET
Temperature Coefficient	-100,100 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	J BEND
Tolerance	10%
Operating Voltage	300 V
Base Number Matches	1

Preview

Download Datasheet

View All

Features

Surface Mount 4 mm Square / Multiturn

100

3214W

Cermet / Industrial / Sealed

Halogen free** with date code 114

Sealed to withstand board wash

processing

Pick and place centering design, with flush

adjustment

4 mm design meets EIA/EIAJ/IPC/VECI

SMD standard trimmer footprint

RoHS compliant* - see processing

information on RoHS compliant surface

mount trimmers

For trimmer applications/processing

guidelines, click here

Standard Resistance Range

..........................10 ohms to 2 megohms

(see standard resistance table)

Resistance Tolerance ............... ±10 % std.

Absolute Minimum Resistance

...... 1 % or 2.0 ohms

(whichever is greater

)

Contact Resistance Variation

............................... 3 % or 3 ohms max.

Resolution ..................... Essentially Infinite

Insulation Resistance ................... 500 vdc.

100 megohms min.

Dielectric Strength

Sea Level .................. 600 vac (1 minute)

Adjustment Angle ...................5 turns nom.

Electrical Characteristics

Ro VE LEA

HS RS D

C ION FRE

OM S E

PL AR

IA E

Power Rating (300 volts max.)

85 °C ........................................ 0.25 watt

150 °C ........................................... 0 watt

Temperature Range ....... -65 °C to +150 °C

Temperature Coefficient ....... ±100 ppm/°C

Seal Test ......85 °C Fluorinert†/60 seconds

Humidity ........... MIL-STD 202 Method 106

TRS ±2 %; IR 10 megohms

Vibration ..........20 G TRS±1 %; VRS ±1 %

Shock ............100 G TRS ±1 %; VRS±1 %

Load Life

...........@ 85 °C rated power 1,000 hours

TRS 3 ohms or 3 %

(whichever is greater

Rotational Cycling .....................200 cycles

TRS 3 ohms or 3 %

(whichever is greater)

Thermal Shock ..............................5 cycles

TRS ±2 %; VRS ±1 %

Environmental Characteristics

Moisture Sensitivity Level .....................1

ESD Classification ................................2

Physical Characteristics

Mechanical Stop ...................... Wiper idles

Torque.................................180 g-cm max.

Weight ................... Approximately 0.01 oz.

Marking..................... Manufacturer’s code,

resistance code and date code

Solderability ...................Per MIL-STD-202,

Method 208

Wiper ................... 50 % (Actual TR) ±10 %

Flammability .................................. UL94V0

Pushover Strength

J, G ............................................. 4.4 lbs.

W, X .................................................. 1 lb.

Adjustment Tool..................................H-91

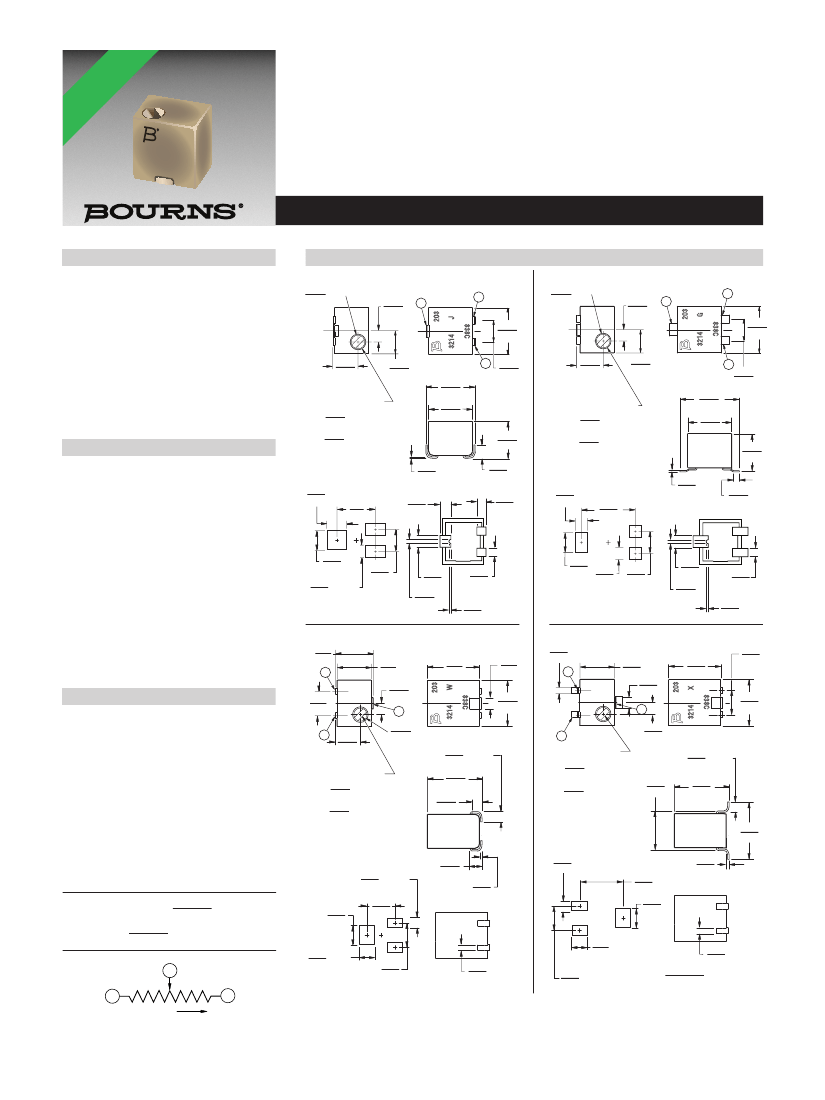

DIMENSIONS:

(INCHES)

0.25

TOLERANCES: ±

EXCEPT WHERE NOTED

(.010)

CCW

CLOCKWISE

811C

3214 - 5-Turn Trimpot

Trimming Potentiometer

3214J Side Adjust

Product Dimensions

1.2

(.047)

3214G Side Adjust

4.8

(.190)

1.5 DIA.

(.060)

1.2

(.047)

1.5

DIA.

(.060)

4.8

(.190)

2.6

(.102)

ADJUSTMENT SLOT

0.6

WIDE

(.022)

0.5 DEEP

(.020)

2.4

(.095)

5.0

(.195)

4.6

(.180)

2.3

(.090)

2.7

(.108)

2.4

(.095)

6.0

(.236)

4.6

(.180)

2.3

(.090)

3.71

(.146)

0.2

(.007)

ADJUSTMENT SLOT

0.6

WIDE

(.022)

0.5

DEEP

(.020)

0.8

(.032)

3.9

(.152)

0.13

(.005)

2.0

3 PLCS

(.079)

4.0

(.157)

1.14

(.045)

1.0

(.039)

2 PLCS.

1.3

3 PLCS.

(.050)

5.2

(.205)

0.5

TYP.

(.02)

2.0

(.079)

1.3 2 PLCS.

(.050)

2.3

(.090)

1.3

(.050)

0.5

(.020)

0.9

(.034)

2 PLCS.

0.2

(.007)

2.0

(.079)

1.3

2.3

(.050) (.090)

2 PLCS.

1.3

(.050)

0.5

(.020)

0.9

(.034)

2 PLCS.

0.2

(.007)

3214W Top Adjust

3.9

(.155)

3.5

(.139)

1.2

(.047)

5.1

(.200)

1.3

(.050)

3214X Top Adjust

0.8

2 PLCS

(.032)

3.5

(.139)

5.1

(.200)

2.5

(.100)

2.5

(.100)

2.6

(.102)

1.5

DIA.

(.060)

1.0

3 PLCS.

(.040)

5.3

(.208)

0.7

(.028)

4.8

(.190)

1.3

(.050)

ADJUSTMENT SLOT

0.6

WIDE

(.022)

.0.5 DEEP

(.020)

4.8

(.190)

1.2

(.047)

1.0

3 PLCS.

(.040)

3.9

(.155)

5.3

(.208)

ADJUSTMENT SLOT

0.6

WIDE

(.022)

0.5

DEEP

(.020)

5.7

(.225)

0.8

(.032)

0.2

.008

1.3

2 PLCS.

(.050)

2.0

(.079)

1.3

2 PLCS.

(.050)

2.9

(.114)

5.1

(.200)

2.0

(.079)

0.2

(.008)

WIPER

1.6

3 PLCS.

(.061)

1.9

TYP.

(.075)

2.5

(.100)

0.8

2 PLCS.

(.032)

2.5

(.100)

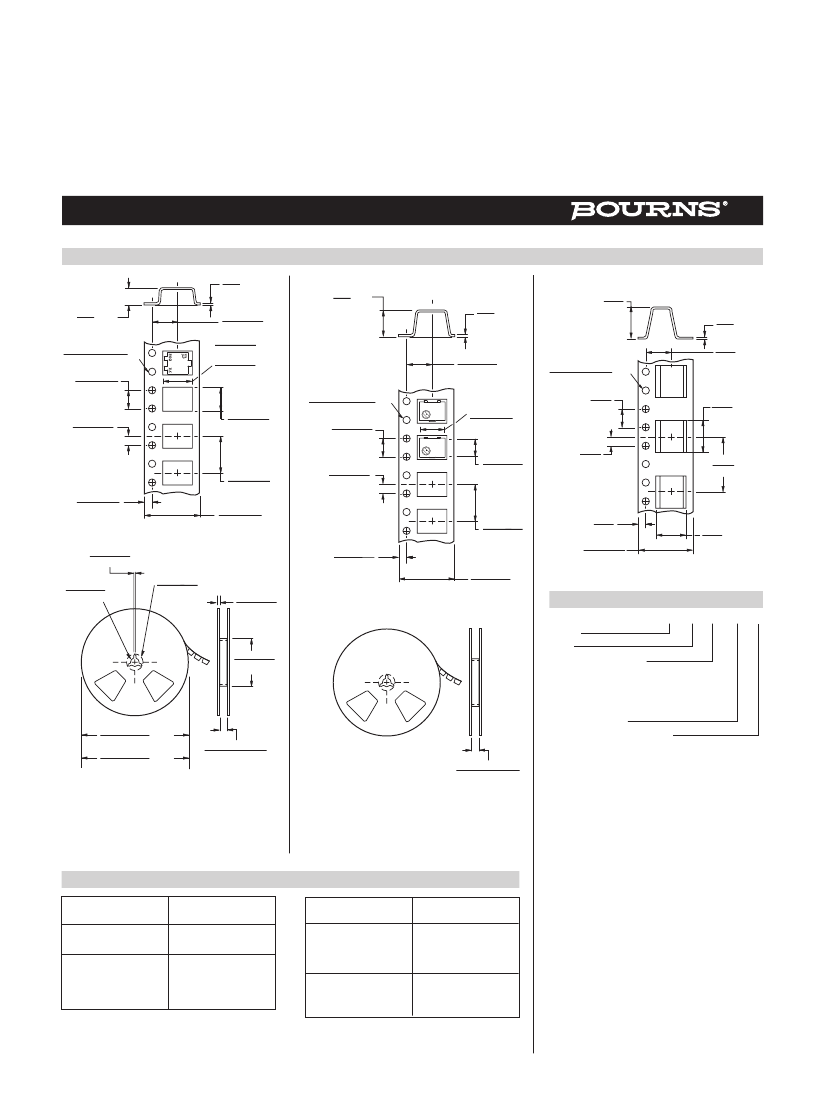

DIMENSIONS:

(INCHES)

0.8

2 PLCS.

(.032)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

**Bourns follows the prevailing definition of “halogen free” in the industry.

Bourns considers a product to be “halogen free” if (a) the Bromine (Br ) content is 900 ppm or less;

(b) the Chlorine ( Cl ) content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine ( Cl ) content is 1500 ppm or less.

†“Fluorinert” is a registered trademark of 3M Co.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may

vary over time. Users should verify actual device performance in their specific applications.
