3400S-1-102L Overview

Precision Potentiometers 1-13/16"1KOHMS 0.15% WW 10TURNS

3400S-1-102L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Actuator direction	HORIZONTAL
Actuator type	SHAFT
Other features	PRECISION
gang number	1
JESD-609 code	e4
Installation features	CHASSIS MOUNT
Number of terminals	3
number of turns	1
Maximum operating temperature	125 °C
Minimum operating temperature	1 °C
Package shape	CIRCULAR PACKAGE
Rated power dissipation(P)	5 W
Rated temperature	70 °C
resistance	1000 Ω
resistance law	LINEAR
Resistor type	POTENTIOMETER
surface mount	NO
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Terminal shape	LUG
Tolerance	3%
Base Number Matches	1

Preview

Download Datasheet

View All

Features

■

Bushing mount

■

Optional ±0.05 linearity option

■

Excellent wiper stability

■

High stop strength

■

Sealable

■

RoHS compliant*

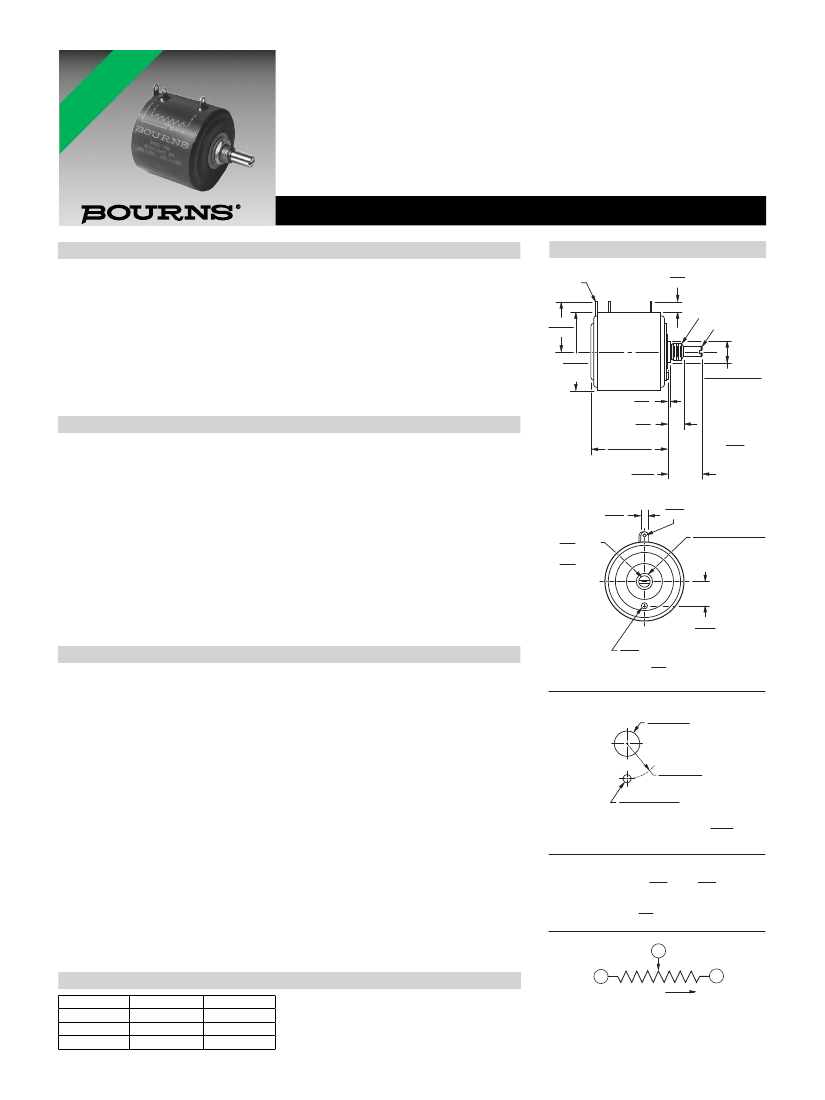

3400 - Precision Potentiometer

Electrical Characteristics

Standard Resistance Range......................................................................... 100 to 500 K ohms

Total Resistance Tolerance................................................................................................. ±3 %

Independent Linearity .................................................................................................... ±0.15 %

Effective Electrical Angle ...................................................................................3600 ° +4 °, -0 °

Absolute Minimum Resistance .....................1 ohm or 0.15 % maximum (whichever is greater)

Noise ................................................................................................ 100 ohms ENR maximum

Dielectric Withstanding Voltage ........................................................MIL-STD-202, Method 301

Sea Level ................................................................................................1,000 VAC minimum

80,000 Feet ................................................................................................300 VAC minimum

Power Rating (Voltage Limited By Power Dissipation, or ....................................(40 °C) 5 watts

1,000 VAC, Whichever Is Less) ...................................................................... (125 °C) 0 watt

Insulation Resistance (500 VDC) ...................................................... 1,000 megohms minimum

Resolution.................................................................................See recommended part number

Product Dimensions

WIPER

CCW

29.37

(1-5/32)

1-13/16

(46.04)

DIA.

1.52

(.06)

7.94

5/16

44.45

.79

(1-3/4

1/32)

6.35

(1/4)

3/8 "-32 2A THD UNEF

X .25

CHAMFER

10.32 + .00/ - .05

(.4062 + .000/ -.002)

PILOT DIA.

Environmental Characteristics

Operating Temperature Range ........................................................................ +1 °C to +125 °C

Storage Temperature Range .......................................................................... -65 °C to +125 °C

Temperature Coefﬁcient Over Storage Temperature Range

......... ±20 ppm/°C maximum/unit

Vibration ..............................................................................................................................10 G

Wiper Bounce ................................................................................. 0.1 millisecond maximum

Total Resistance Shift .....................................................................................±2 % maximum

Voltage Ratio Shift .......................................................................................±0.1 % maximum

Shock...................................................................................................................................50 G

Wiper Bounce ................................................................................. 0.1 millisecond maximum

Total Resistance Shift .....................................................................................±2 % maximum

Voltage Ratio Shift .......................................................................................±0.1 % maximum

Load Life ..................................................................................................... 1,000 hours, 5 watts

Total Resistance Shift .....................................................................................±2 % maximum

Rotational Life (No Load).............................................................. 2,000,000 shaft revolutions

Total Resistance Shift .....................................................................................±5 % maximum

Moisture Resistance (MIL-STD-202, Method 103, Condition B)

Total Resistance Shift .....................................................................................±2 % maximum

IP Rating ............................................................................................................................. IP 40

20.64

(13/16)

39.4

FOR

(1.55)

ADDITIONAL CUP

ADD

1.02

WIDE

(.04)

SLOT

1.02

DEEP

(.04)

4.76

(3/16)

TYP.

2.36

DIA. TYP.

(.093)

6.34 + .00/ - .01

(.2497 + .0000/ - .0003)

SHAFT DIA.

14.3

(9/16)

3.18

DIA. ANTI-ROTATION PIN

(.125)

1.02

PAST MOUNTING SURFACE

EXTENDS

(.04)

Mechanical Characteristics

Stop Strength.......................................................................................53 N-cm (75 oz.-in.) min.

Mechanical Angle .................................................................................................3600° +4°, -0°

Torque (Starting & Running) ...........................................................0.35 N-cm (0.5 oz.-in.) max.

Mounting .................................................................................... 170-200 N-cm (15-18 lb.-in.)

Shaft Runout.......................................................................................0.08 mm (0.003 in.) T.I.R.

Lateral Runout .................................................................................... 0.13 mm (0.005 in.) T.I.R.

Shaft End Play .................................................................................... 0.25 mm (0.010 in.) T.I.R.

Shaft Radial Play ................................................................................ 0.08 mm (0.003 in.) T.I.R.

Pilot Diameter Runout ........................................................................ 0.08 mm (0.003 in.) T.I.R.

Backlash ............................................................................................................. 1.0 ° maximum

Weight .......................................................................................................Approximately 21 gm

Terminals ............................................................................................... Gold-plated solder lugs

Soldering Condition

Manual Soldering................................................. 96.5Sn/3.0Ag/0.5Cu solid wire or no-clean

rosin cored wire; 370 °C (700 °F) max. for 3 seconds

Wave Soldering ............96.5Sn/3.0Ag/0.5Cu solder with no-clean ﬂux; 260 °C (500 °F) max.

for 5 seconds

Wash processes ........................................................................................Not recommended

Marking ....................................... Manufacturer’s name and part number, resistance value and

tolerance, linearity tolerance, wiring diagram, and date code.

Ganging (Multiple Section Pots.) ..................................................................... 2 cups maximum

Hardware .......................................... One lockwasher (H-37-2) and one mounting nut (H-38-2)

is shipped with each potentiometer.

1 At room ambient: +25 °C nominal and 50 % relative humidity nominal, except as noted.

2 Consult manufacturer for complete speciﬁcation details for resistances below 500 ohms and above

100K ohms.

RECOMMENDED PANEL LAYOUT

10.41 ± .08

DIA.

(.410 ± .003)

14.30 ± .05

(.563 ± .002)

3.35 +.08/-.03

DIA.

(.132 +.003/-.001)

2.46

RECOMMENDED PCB THICKNESS:

(.097)

MOUNTING TORQUE: 15-18 LB.-IN.

TOLERANCES: EXCEPT WHERE NOTED

.25

.13

DECIMALS: .XX

.XXX

(.010),

(.005)

FRACTIONS:

±1/64

DIMENSIONS:

( IN.)

CCW

WIPER

Recommended Part Numbers

Part Number

Resistance (Ω)

Resolution (%)

CLOCKWISE

3400S-1-102L

3400S-1-502L

3400S-1-103L

1,000

5,000

10,000

.020

.013

.010

BOLDFACE

LISTINGS ARE IN STOCK AND READILY AVAILABLE

THROUGH DISTRIBUTION.

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and

FOR OTHER OPTIONS CONSULT FACTORY.

RoHS Recast 2011/65/EU June 8, 2011.

ROHS IDENTIFIER:

Speciﬁcations are subject to change without notice.

L = COMPLIANT

The device characteristics and parameters in this data sheet can and do vary in

different applications and actual device performance may vary over time.

Users should verify actual device performance in their speciﬁc applications.
