CLF6045T-4R7N-H datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> CLF6045T-4R7N-H

Preview

CLF6045T-4R7N-H: DescriptionUSB Interface IC USB to Serial UART Enhanced IC SSOP-28; CategoryPassive components; File Size352KB，3 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric View All

CLF6045T-4R7N-H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CLF6045T-4R7N-H	-	-	View	Buy Now

CLF6045T-4R7N-H Overview

USB Interface IC USB to Serial UART Enhanced IC SSOP-28

CLF6045T-4R7N-H Parametric

Parameter Name	Attribute value
Product Category	Fixed Inductors
Manufacturer	TDK Corporation
RoHS	Details
Inductance	4.7 uH
Tolerance	0.3 nH
Maximum DC Current	2.5 A
Maximum DC Resistance	23 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Product	Power Inductors
Shielding	Shielded
Termination Style	SMD/SMT
Termination	-
Package / Case	6.2 mm x 5.9 mm
Length	6.2 mm
Width	5.9 mm
Height	4.5 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Core Material	Wound Ferrite
Mounting Style	SMD/SMT
Factory Pack Quantityzqwxbzedeybbvyccavetdxetvsbzqsbqxxse	1000
Test Frequency	100 kHz
Type	Inductors for Power Circuits
Unit Weight	0.021164 oz

Preview

Download Datasheet

View All

1 of 3

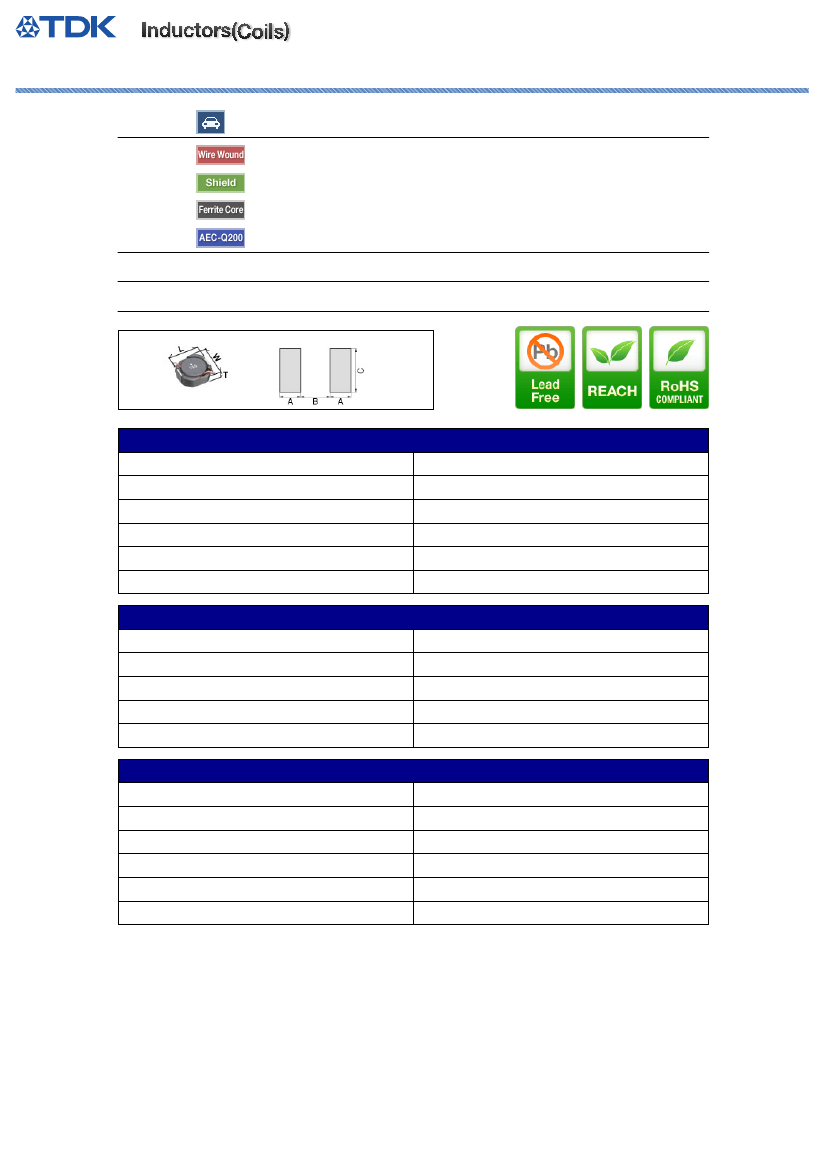

CLF6045T-3R3N-CA

Applications

Feature

Automotive Grade

Wire Wound

Magnetic Shield

Ferrite Core

AEC-Q200

Series

Status

CLF-CA Series / CLF6045-CA Type

PROD

Creation Date :June 18 2014

Size

Length(L)

Width(W)

Thickness(T)

Recommended Land Pattern (A)

Recommended Land Pattern (B)

Recommended Land Pattern (C)

Electrical Characteristics

Inductance

Rated Current (L Change) [Typ.]

Rated Current (Temperature Rise) [Typ.]

DC Resistance [Nom.]

DC Resistance [Max.]

Other

Operating Temp. Range (Including Self-Temp. Rise)

Soldering Method

AEC Q200

Packing

Package Quantity

Weight

-40 to 105degC

Reflow, Iron Soldering

Yes

Blister (Plastic)Taping [330mm Reel]

1000Pcs Min.

0.6g

3.3uH +/-30% at 100kHz

3.1A (10% Down)

3.5A (30degC Rise)

19mΩ

24.7mΩ

6.20mm +/-0.20mm

5.90mm +/-0.20mm

4.50mm +/-0.30mm

1.70mm Nom.

3.60mm Nom.

2.20mm Nom.

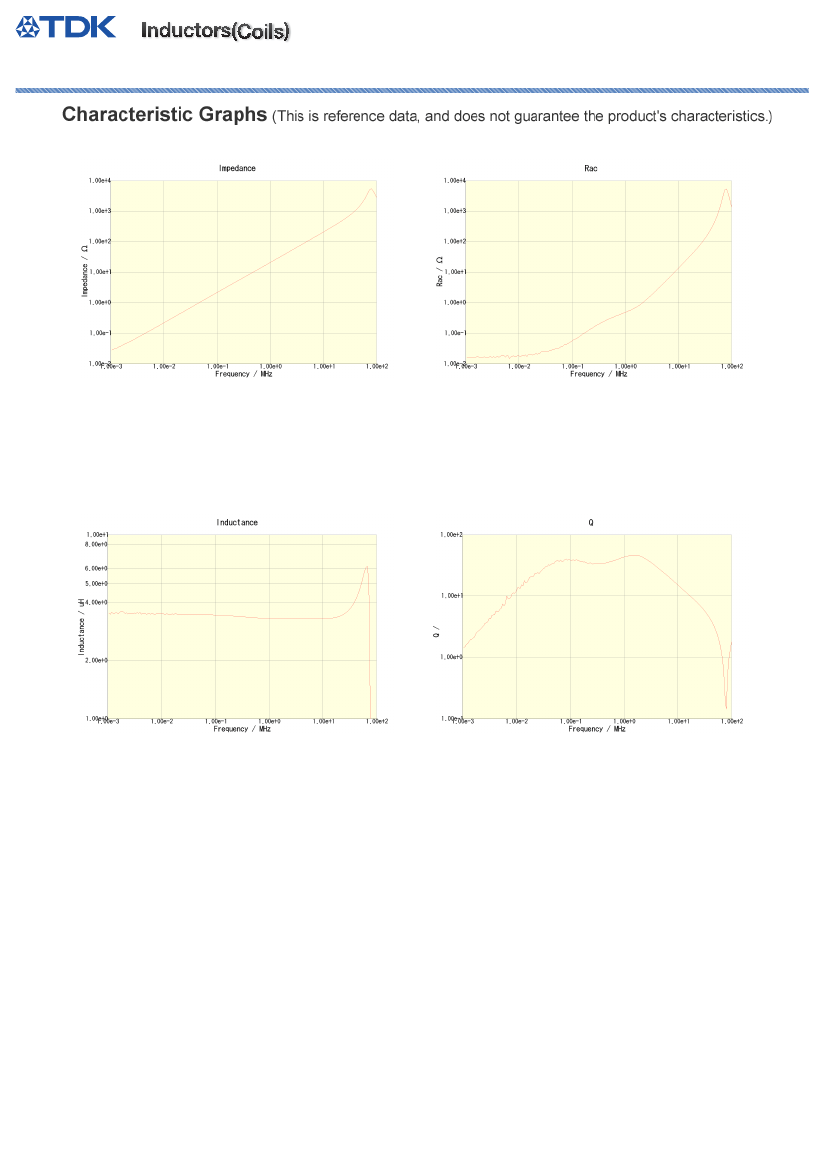

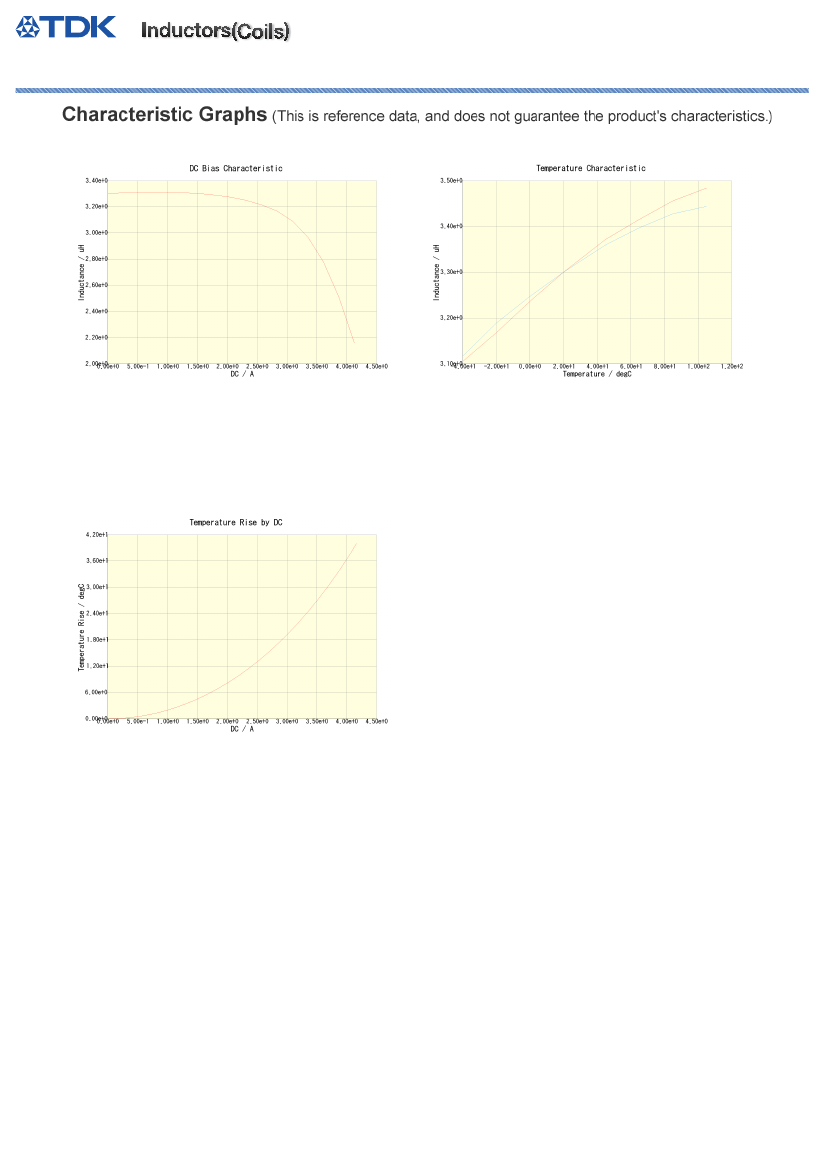

•This PDF document was created based on the data listed on the TDK Corporation website.

•All specifications are subject to change without notice.

Recommended Resources

Application circuit diagram for driving 5 white LEDs

Dimming light circuit using operational amplifier

Pointer type capacitance test circuit

Wanhe WK237A mechanical barbecue microwave oven circuit diagram

Colpitts oscillator circuit

Narrow pulse generator (Figure 1.5) circuit
