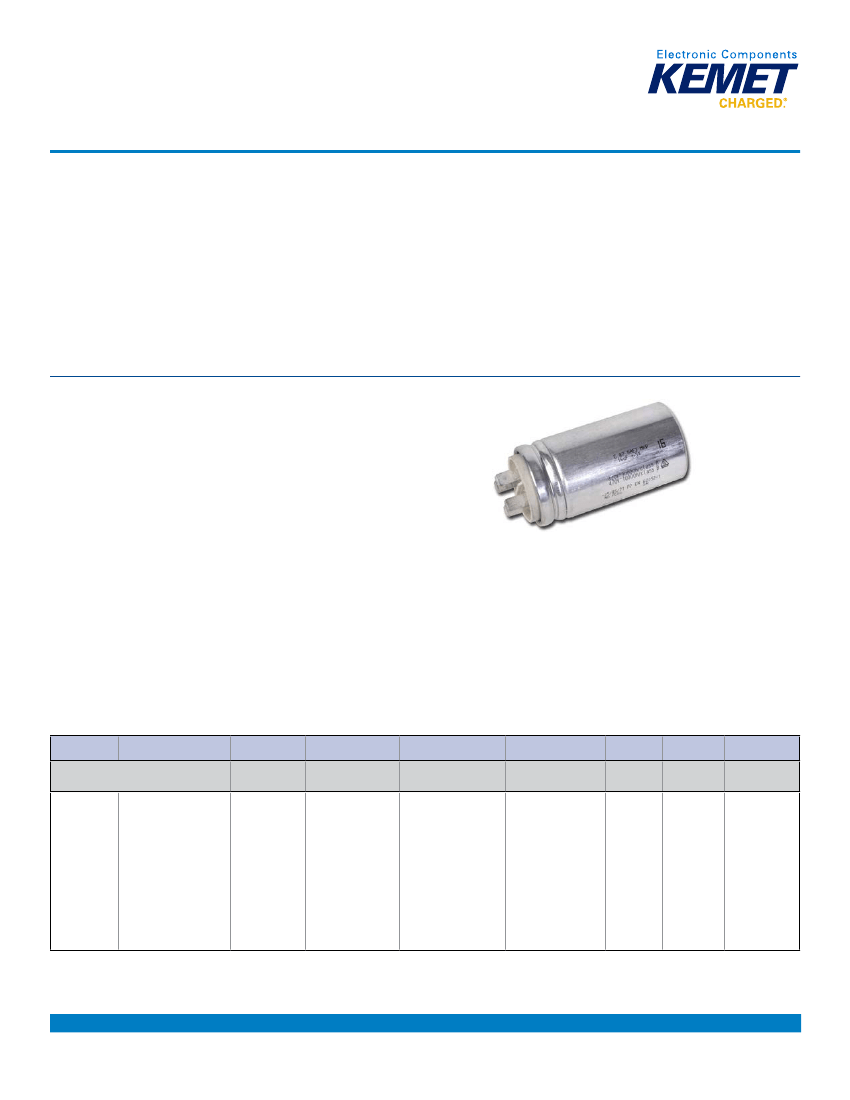

Motor Run Capacitors
C87 Series, Cylindrical Aluminum Case, Overpressure
Protection, 420 VAC/470 VAC
Overview
Polypropylene metallized film with cylindrical aluminium can
type filled with resin; faston, plastic deck or cable terminals
and overpressure safety device.
Applications
Typical applications include motor run P2 safety class:
single-phase motors, low power electric motors and
compressors.
Benefits
•
•
•
•
•
Self-healing
VDE, CQC and UL810 approved
Rated frequency of 50 Hz and 60 Hz
High capacitance density
Safety device protection
Part Number System
C87
Series
0 = 10,000 hours/420
C87 =
Motor Run VAC (Class B) or
Capacitors 3,000 hours/470 VAC
(Class C)
8 = 30,000 hours/420
VAC (Class A) or
10,000 hours/470
VAC (Class B)
8
B
Marking
C870:
C = Standard
D = UL
Z = Special
C878:
A = Standard
B = UL
Z = Special
F
Case & Fixing
Bolt Code
F = Cylindrical
aluminum can
with M8 bolt
G = Cylindrical
aluminum can
with M12 bolt
E= Without fixing
bolt/flat bottom
3
Terminal Style
1 = Single faston
2.8 x 0.8 (hole)
2 = Single faston
6.3 x 0.8
3 = Double faston
6.3 x 0.8
4 = Single faston
2.8 x 0.8 (slot)
5 = Single faston
2.8 x 0.5 (hole)
4300
Capacitance
Code (pF)
Digits two – four
indicate the first
three digits of
the capacitance
value.
First digit
indicates the
number of zeros
to be added.
AA
Packaging
4
Internal
Use
J
Tolerance
AA =
0, 1, 2, 4, 5 J = 5%
Standard = Standard K = 10%
R = 0 to +10%
X = Special
tolerance
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3063_C87 • 3/3/2017
1
Single Fast-On
H
4±1
5.5
6.3x0.8
Motor Run Capacitors
C87 Series, Cylindrical Aluminum Case, Overpressure Protection 420 VAC/470 VAC
D
10±0.5
Dimensions – Millimeters
Single Fast-On
H
4±1
5.5
6.3x0.8
10±0.5
M
14.5±1
Double Fast-On
H
4±1
5.5
6.3x0.8
D
10±0.5
D
13.4±0.5
10±0.5
M
14.5±1
M
14.5±1
10±0.5
Double Fast-On
D
+1/−0
D
H
H
4±1
5.5
6.3x0.8
±2
48
60
78
48
60
78
48
60
78
98
78
98
78
98
133
133
133
98
133
Mounting
Stud (M)
x 10
M8 x 10
M8 x 10
10±0.5
M8 x 10
M8 x 10
M8 x 10
M8 x 10
M8 x 10
M8 x 10
M8 x 10
M8 x 10
M8 x 10
M8 x 10
M8 x 10
M8 x 10
M12 x 12.5
M12 x 12.5
M12 x 12.5
M12 x 12.5
M
25
25
25
30
30
30
35
35
35
35
40
40
45
45
45
50
55
60
60
13.4±0.5
M8
14.5±1
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3063_C87 • 3/3/2017
2
Motor Run Capacitors
C87 Series, Cylindrical Aluminum Case, Overpressure Protection 420 VAC/470 VAC
Performance Characteristics
Type of Service
Operating Class
C87/8
C87/0
C87/1
C87/5
Temperature Range
Rated Voltage
Rated Frequency
Voltage Rise/Fall Time (Maximum)
Maximum Permissible Voltage
Maximum Permissible Current
Dissipation Factor (DF)
Safety Class
Maximum Altitude
Capacitance Tolerance
Mounting
Case
Class B 10,000 hours at 470 VAC, Class A 30,000 hours at 420 VAC
Class B 10,000 hours at 420 VAC, Class C 3,000 hours at 470 VAC
None
None
−25 to +85°C
470 VAC
50 – 60 Hz
0 = 15 V/μs
8 = 20 V/μs
1.10 x rated voltage
1.30 x rated current
20 x 10
−4
at +20°C, 50 Hz
P2
2,000 m
±5%
Any position
Aluminium
Thermoplastic Polymer V0 (UL 94)
Plastic deck with:
- self-extinguishing features V0 (UL94)
- GWT–GWFI–GWIT value in conformity with the Standard IEC60335–1
ed.4 par.30/EN60335–1 ed.3 par.30
Polyurethane
Polypropylene
Self-healing metal layer
2 V
n
for 2 seconds
2,000 V for 2 seconds
Up to 10%
40 MJ/kg
≥ 5 mm
≥ 6 mm
IEC 68–2–6
5 Nm (M8), 10 Nm (M12)
Continuous
Disk
Filling Resin
Dielectric
Plates
Test Voltage Terminal to Terminal
(V
TT
)
Test Voltage Terminal to Can (V
TC
)
Total Harmonic Distortion
Fire Load
Air Distance Between Live Parts
Air Distance Between Live Parts
and Case
Vibration Test
Maximum Tightening Torque
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 • 864-963-6300 • www.kemet.com
F3063_C87 • 3/3/2017
3
Motor Run Capacitors
C87 Series, Cylindrical Aluminum Case, Overpressure Protection 420 VAC/470 VAC
Table 1 – Ratings & Part Number Reference
Capacitance
Value (µF)
16
18
20
20
22
25
25
30
35
40
45
50
60
70
75
75
80
100
100
100
110
1
1.5
1.8
2
2.5
3
3.5
4
5
6
7.5
8
10
11
12
15
16
20
23
25
29
30
46
50
55
60
8
8
10
12
12
16
16
20
25
30
40
1
2
2.5
VAC
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
470
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
470
470
470
470
470
470
470
470
470
470
470
470
470
470
Maximum Dimensions in mm
D
40
40
35
35
40
45
40
40
45
45
45
50
60
55
60
50
50
55
55
60
60
30
30
30
30
30
30
35
35
30
30
30
30
35
35
35
40
40
45
45
45
45
45
45
50
50
50
30
35
35
35
40
40
40
45
45
45
45
30
30
30
H
78
78
98
98
78
78
98
98
98
98
133
133
98
133
133
133
133
133
133
133
133
48
48
48
48
48
48
48
48
60
78
78
78
78
78
78
78
78
78
78
98
98
98
133
133
133
133
78
78
78
78
78
78
98
78
98
98
133
48
48
48
dV/dt
(V/µs)
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
Termination
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Single Fast-On
Single Fast-On
Single Fast-On
Single Fast-On
Single Fast-On
Single Fast-On
Single Fast-On
Single Fast-On
Single Fast-On
Single Fast-On
Single Fast-On
Double Fast-On
Double Fast-On
Double Fast-On
Part Number
C870CF35160AA1J
C870CF35180AA0J
C870CF35200AA0J
C870CF35200AA1J
C870CF35220AA0J
C870CF35250AA0J
C870CF35250AA1J
C870CF35300AA1J
C870CF35350AA0J
C870CF35400AA0J
C870CF35450AA0J
C870CG35500AA1J
C870CG35600AA5J
C870CG35700AA1J
C870CG35750AA0J
C870CG35750AA2J
C870CG35800AA2J
C870CG36100AA0J
C870CG36100AA0K
C870CG36100AA1J
C870CG36110AA0J
C878BF34100SA4J
C878BF34150SA4J
C878ZF34180SA0J
C878BF34200SA0J
C878BF34250SA4J
C878BF34300SA4J
C878BF34350SA4J
C878BF34400SA0J
C878BF34500SA0J
C878BF34600SA0J
C878BF34750SA0J
C878BF34800SA0J
C878BF35100SA0J
C878BF35110SA0J
C878BF35120SA0J
C878BF35150SA0J
C878BF35160SA0J
C878BF35200SA0J
C878BF35230SA0J
C878BF35250SA0J
C878BF35290SA0J
C878BF35300SA0J
C878BF35460SA0J
C878BF35500SA0J
C878BF35550SA0J
C878BF35600SA0J
C878AF24800AA0J
C878AF24800AA1J
C878AF25100AA0J
C878AF25120AA0J
C878AF25120AA1J
C878AF25160AA0J
C878AF25160AA1J
C878AF25200AA0J
C878AF25250AA0J
C878AF25300AA0J
C878AF25400AA0J
C878AF34100AA4J
C878AF34200AA4J
C878AF34250AA4J
Capacitance
Value (µF)
VAC
B (mm)
H (mm)
dV/dt
(V/µs)
Termination
Part Number
