LM0402HP Series
SMD Power Choke Coil
SMD Power Choke Coil
1. PART NO. EXPRESSION :
PIC0402HP SERIES
LM 0 4 0 2 H P 1 R 0 M F -
□□
(a)
(b)
(c)
(d)
(e)(f)
(g)
(a) Series code
(b) Dimension code
(c) Type code
(d) Inductance code : 1R0 = 1.0uH
(e) Tolerance code : M = ±20%,Y = ±30%
(f) F : RoHS Compliant
(g) 11~99 : Internal controlled number

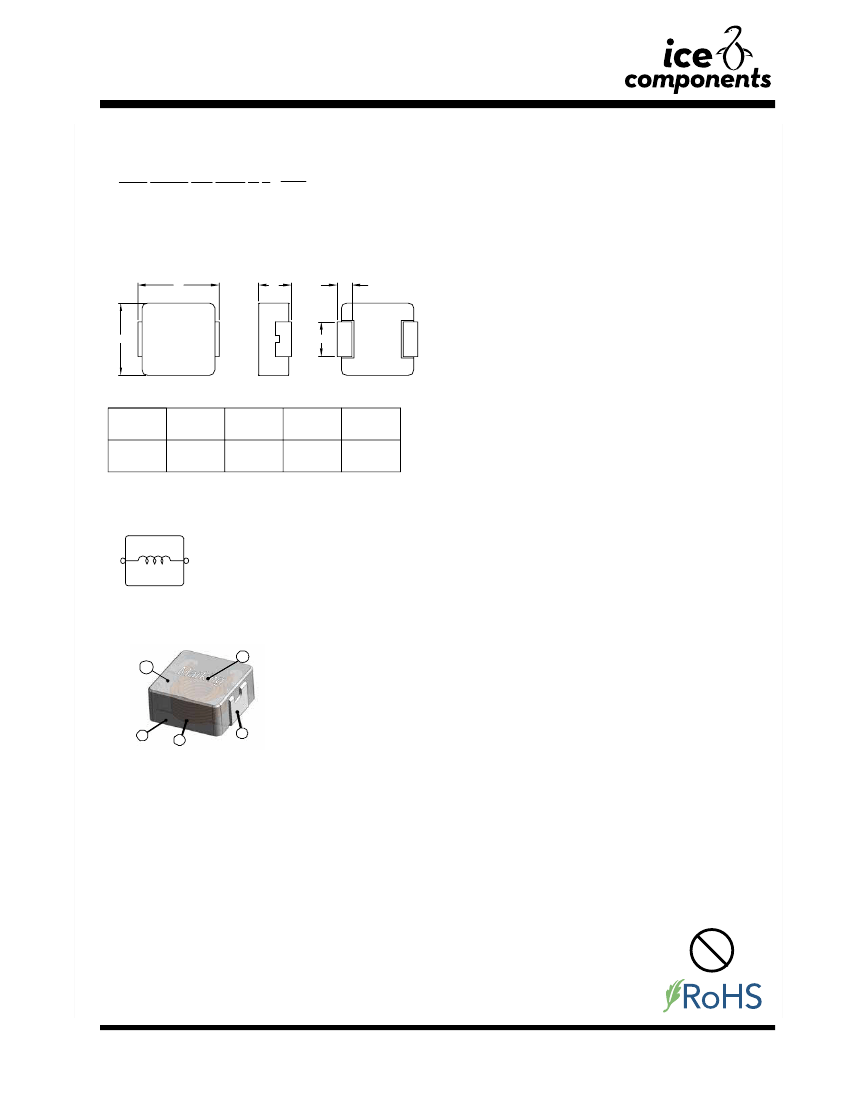

2. CONFIGURATION & DIMENSIONS :
A
C
D
1R0
B
E
Unit:m/m
A
4 .45± 0.25
B
4.06±0.25
C
1.8±0.2
D
0 .76± 0.30
E
2.0±0.20
3. SCHEMATIC :
4. MATERIALS :
d
(a) Core : Carbonyl Powder.
(b) Wire : Polyester Wire or equivalent
(c) Solder Plating : 100% Pb free solder
(d) Ink : Halogen-free ketone
(e) Paint : Epoxy resin
e
a
b
c
5. GENERAL SPECIFICATION :
a) Test Freq. : L : 100KHz/1.0V
b) Ambient Temp. : 25°C
c) Operation temperature: -55°C~+125°C
d) Storage Temp. : -10°C to + 40°C
e) Humidity Range : 50 ~ 60% RH (Product without taping)
f) Heat Rated Current (Irms) will cause the coil temperature rise approximately Δt of 40°C (keep 1min.)
g) Saturation Current (Isat) will cause L0 to drop 20% typical. (keep quickly).
Saturation Current (Isat) will cause L0 to drop 30% typical at 0.18uH.(keep quickly);
h) Part Temperature (Ambient+Temp. Rise) : Should not exceed 125°C under worst case operating conditions.
NOTE : Specifications subject to change without notice. Please check our website for latest information.
Pb
(09/13) LM0402HP-1
20.02.2012
800.729.2099 tel
SUPERWORLD ELECTRONICS (S) PTE LTD
www.icecomponents.com
PG. 1
LM0402HP Series
SMD Power Choke Coil
SMD Power Choke Coil
6. ELECTRICAL CHARACTERISTICS :
Inductance L
( μH )
@ 0A
0.10
0 .18
0 .22
0 .33
0 .47
0 .56
0 .68
1 .00
1 .20
1 .50
2 .20
3 .30
4 .70
5 .60
6 .80
8 .20
1 0.0
1 5.0
2 2.0
0
PIC0402HP SERIES
Part No.
LM0402HPR10YF
LM 0 402 HPR18YF
LM 0 402 HPR22YF
LM04 02 HP R33MF
LM04 02 HP R47MF
LM04 02 HP R56MF
LM04 02 HP R68MF
LM04 02 HP 1R0MF
LM04 02 HP 1R2MF
LM04 02 HP 1R5MF
LM04 02 HP 2R2MF
LM04 02 HP 3R3MF
LM04 02 HP 4R7MF
LM04 02 HP 5R6MF
LM04 02 HP 6R8MF
LM04 02 HP 8R2MF
LM 0 402 HP1 00MF
LM 0 402 HP1 50MF
LM 0 402 HP2 20MF
Irms
(A)
Typ.
12
1 3.5
13
10
8.0
7.3
7
5.0
4.8
4.5
4.0
3.5
2.6
2.2
2.1
2.0
1.8
1.5
1.2
Isat
(A)
Typ.
35
28
24
18
12
10
10
8.5
7.8
7.0
6.0
4.0
3.5
3.0
2.8
2.5
2.3
1.9
1.4
DCR
( mΩ )
Typ. @ 25° C
3.2
4.6
6.6
7.8
1 1.2
1 3.5
16
22
25
3 4.8
51
69
95
1 12
1 50
1 58
2 15
3 25
4 70
DCR
( mΩ )
Max. @ 25° C
4.0
5.4
7.3
8.6
14
16
19
27
30
42
61
76
1 05
1 25
1 72
1 80
2 43
3 74
5 00
Tolerance : M = ± 20%,Y = ± 30%
7. CHARACTERISTICS CURVES :
LM 0 402 HPR10YF
TM
PC0402HP-R10
LM 0 402 HPR18YF
TMPC0402HP
-R18
0 .2
10 0
0 .3
15 0
80
0. 24
12 0
INDUCTANCE (uH)
INDUCTANCE (uH)
0. 15
60
0 .1
40
0. 18
90
0. 12
60
0. 05
20
0. 06
30
0
0
0
0
0
6
12
18
24
30
0
5. 6
11.2
16. 8
22.4
28
DC CURRENT(A)
DC CURRE
NT(A)
Pb
(09/13) LM0402HP-2
20.02.2012
NOTE : Specifications subject to change without notice. Please check our website for latest information.
800.729.2099 tel
SUPERWORLD ELECTRONICS (S) PTE LTD
www.icecomponents.com
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
PG. 2
LM0402HP Series
SMD Power Choke Coil
SMD Power Choke Coil

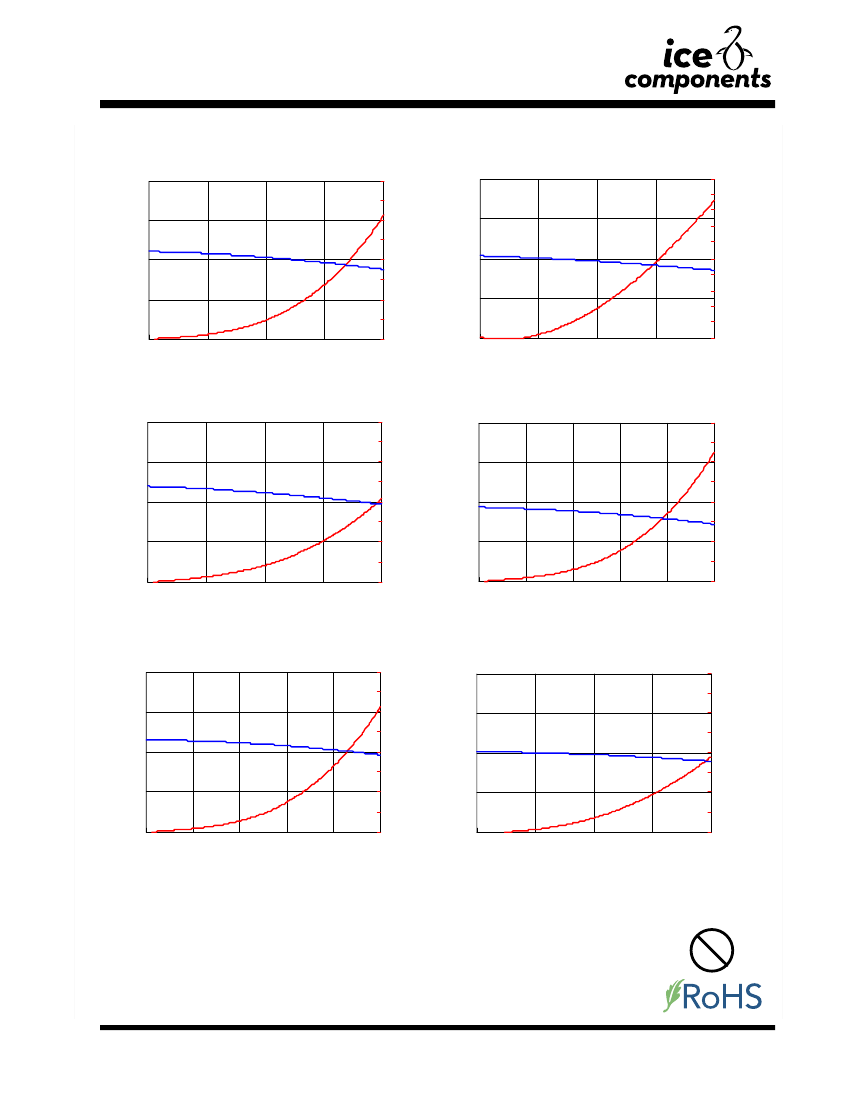

7. CHARACTERISTICS CURVES :
LM0402HPR22YF
TM
PC0402HP-R22
0.6
0 .4
80
70
0 .3
60
50
0 .2
40
30
0 .1
20
10
0
0
PIC0402HP SERIES
LM0402HPR33MF
TM
PC0402HP-R33
100
90
INDUCTANCE(uH)
INDUCTANCE (uH)
0. 45
80
TEMP. RISE(
o
C)
60
0.3
50
40
0. 15
30
20
10
0
0
4. 5
9
13.5
0
18
0
4. 5
9
13.5
18
DC CURRENT(A)
DC CURRENT(A)
0.8
LM0402HPR47MF
TM
PC0402HP-R47
80
70
1.2
LM0402HPR56MF
TMPC0402HP
-R56
80
70
INDUCTANCE (uH)
INDUCTANCE (uH)
0.6
60
0.9
60
50
TEMP. RISE(
o
C)
50
0.4
40
30
0.2
20
10
0
0
3
6
9
0
12
0.6
40
30
0.3
20
10
0
0
2. 2
4. 4
6.6
8. 8
0
11
DC CURRENT(A)
DC CURRE
NT(A)
1.2
LM0402HPR68MF
TM
PC0402HP-R68
80
70
2
LM0402HP1R0MF
TM
PC0402HP-1R0
80
70
INDUCTANCE (uH)
INDUCTANCE (uH)
0.9
60
1.5
60
50
TEMP. RISE(
o
C)
50
0.6
40
30
0.3
20
10
0
0
2
4
6
8
0
10
1
40
30
0.5
20
10
0
0
2
4
6
8
0
DC CURRENT(A)
DC CURRENT(A)
Pb
NOTE : Specifications subject to change without notice. Please check our website for latest information.
800.729.2099 tel
SUPERWORLD ELECTRONICS (S) PTE LTD
www.icecomponents.com
(09/13) LM0402HP-3
20.02.2012
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
TEMP. RISE(
o
C)
70
PG. 3
LM0402HP Series
SMD Power Choke Coil
SMD Power Choke Coil

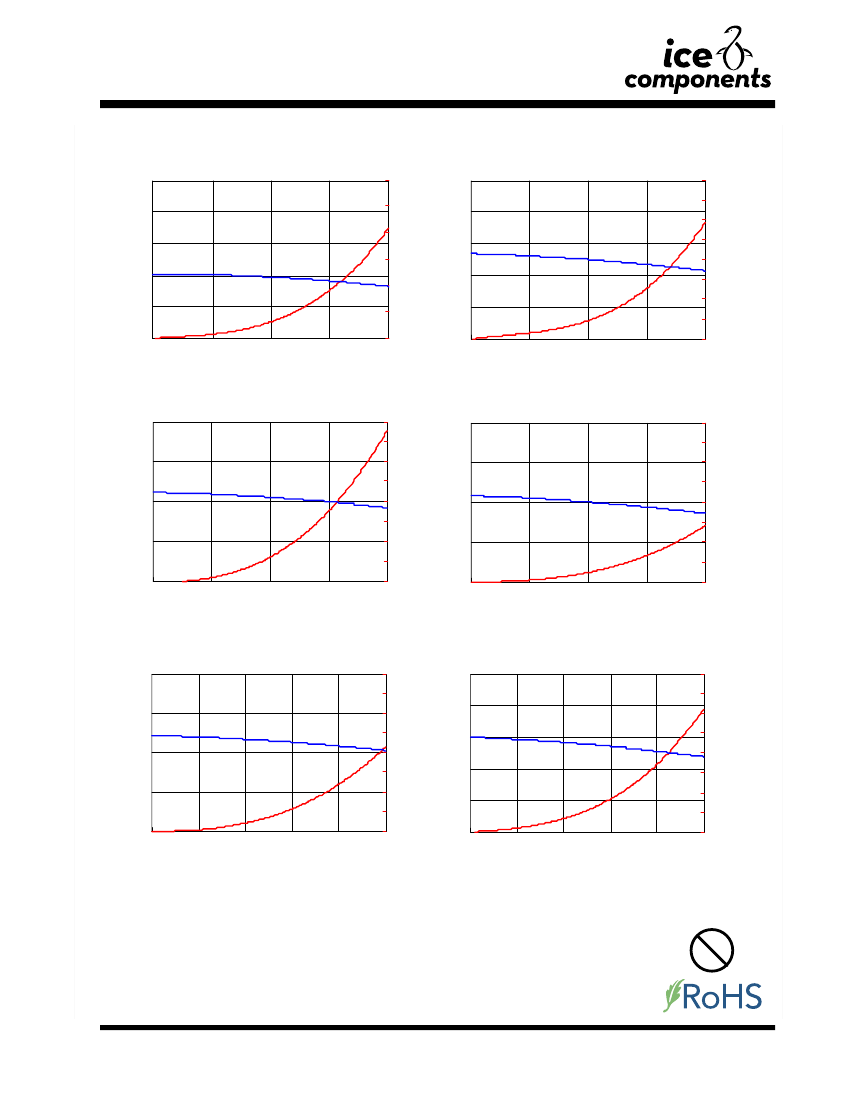

7. CHARACTERISTICS CURVES :
LM0402HP1R2MF
TMPC0402HP
-1R2
3
3
12 0
PIC0402HP SERIES
LM0402HP1R5MF
TM
PC0402HP-1R5
80
70
2 .4
10 0
2.4
INDUCTANCE(uH)
INDUCTANCE (uH)
60
50
40
TEMP. RISE(
o
C)
80
1 .8
60
1 .2
40
0 .6
1.8
1.2
30
20
10
20
0.6
0
0
0
2
4
6
8
0
0
1 .875
3.75
5. 625
DC CURRE
NT(A)
0
7. 5
DC CURRENT(A)
4
LM0402HP2R2MF
TM
PC0402HP-2R2
80
70
6
LM0402HP3R3MF
TM
PC0402HP-3R3
80
70
INDUCTANCE (uH)
INDUCTANCE (uH)
3
60
4.5
60
50
TEMP. RISE(
o
C)
50
2
40
30
1
20
10
0
0
1. 5
3
4. 5
6
0
3
40
30
1.5
20
10
0
0
1
2
3
4
0
DC CURRENT(A)
DC CURRENT(A)
8
LM0402HP4R7MF
TM
PC0402HP-4R7
80
70
10
LM0402HP5R6MF
TM
PC0402HP-5R6
80
70
8
INDUCTANCE(uH)
INDUCTANCE(uH)
6
60
60
50
40
4
30
20
2
10
0
0
TEMP. RISE(
o
C)
50
4
40
30
2
20
10
0
0
6
0
0. 7
1.4
2. 1
2.8
3. 5
DC CURRENT(A)
0
0. 7
1.4
2. 1
2.8
3. 5
DC CURRENT(A)
Pb
NOTE : Specifications subject to change without notice. Please check our website for latest information.
800.729.2099 tel
SUPERWORLD ELECTRONICS (S) PTE LTD
www.icecomponents.com
(09/13) LM0402HP-4
20.02.2012
TEMP. RI SE(
o
C)
TEMP. RISE(
o
C)
TEMP. RISE( C)
o
PG. 4
LM0402HP Series
SMD Power Choke Coil
SMD Power Choke Coil
7. CHARACTERISTICS CURVES :
LM0402HP6R8MF
TM
PC0402HP-6R8
12
80
70
9
60
16
PIC0402HP SERIES
LM0402HP8R2MF
TM
PC0402HP-8R2
80
70
INDUCTANCE(uH)
INDUCTANCE(uH)
12
60
50
TEMP. RI SE(
o
C)
50
6
40
30
3
20
10
0
0
8
40
30
4
20
10
0
0
0
0. 9
1. 8
2. 7
DC CURRENT(A)
0
0. 6
1.2
1. 8
2.4
3
DC CURRENT(A)
20
LM 0 402 HP1 00MF
TM
PC0402HP-100
80
70
30
LM 0 402 HP1 50MF
TMPC0402HP
-150
50
16
24
40
INDUCTANCE(uH)
INDUCTANCE (uH)
60
TEMP. RISE(
o
C)
12
50
40
18
30
8
30
20
12
20
4
10
0
0
6
10
0
0
0.38
0.76
1. 14
1.52
0
0 .575
1.15
1. 72 5
2. 3
0
1. 9
DC CURRENT(A)
DC CURRE
NT(A)
40
LM0402HP220MF
TM
PC0402HP-220
80
70
INDUCTANCE(uH)
30
60
50
20
40
30
10
20
10
0
0
0
0. 4
0. 8
1. 2
1. 6
DC CURRENT(A)
TEMP. RISE(
o
C)
Pb
NOTE : Specifications subject to change without notice. Please check our website for latest information.
800.729.2099 tel
SUPERWORLD ELECTRONICS (S) PTE LTD
www.icecomponents.com
(09/13) LM0402HP-5
20.02.2012
TEMP. RISE( C)
o
TEMP. RISE(
o
C)
PG. 5
