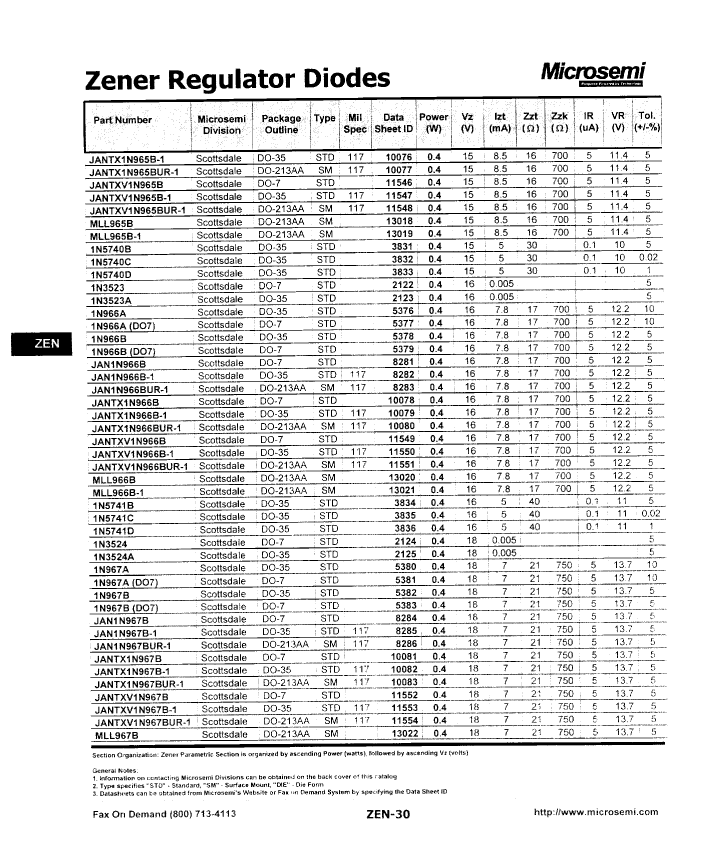

PDF
Preview

1N966A(DO7)

Description
Zener Diode, 16V V(Z), 10%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN
CategoryDiscrete semiconductor    diode
File Size95KB，1 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Download Datasheet Parametric Compare View All

1N966A(DO7) Overview

Zener Diode, 16V V(Z), 10%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN

1N966A(DO7) Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Parts packaging codeDO-7
package instructionO-XALF-W2
Contacts2
Reach Compliance Codeunknow
ECCN codeEAR99
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
JEDEC-95 codeDO-7
JESD-30 codeO-XALF-W2
JESD-609 codee0
Number of components1
Number of terminals2
Package body materialUNSPECIFIED
Package shapeROUND
Package formLONG FORM
Peak Reflow Temperature (Celsius)NOT SPECIFIED
polarityUNIDIRECTIONAL
Maximum power dissipation0.4 W
Certification statusNot Qualified
Nominal reference voltage16 V
surface mountNO
technologyZENER
Terminal surfaceTIN LEAD
Terminal formWIRE
Terminal locationAXIAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum voltage tolerance10%
Working test current7.8 mA
Base Number Matches1

Preview

Download Datasheet

1N966A(DO7) Related Products

1N966A(DO7) 1N3524E3 1N966AE3(DO7) 1N967BE3(DO7) 1N966BE3(DO7) 1N3523E3 1N967B(DO7) 1N966B(DO7) CR202151JC CR202152GE
Description Zener Diode, 16V V(Z), 10%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN Zener Diode, 18V V(Z), 5%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN Zener Diode, 16V V(Z), 10%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN Zener Diode, 18V V(Z), 5%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN Zener Diode, 16V V(Z), 5%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN Zener Diode, 16V V(Z), 5%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN Zener Diode, 18V V(Z), 5%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN Zener Diode, 16V V(Z), 5%, 0.4W, Silicon, Unidirectional, DO-7, DO-7, 2 PIN Fixed Resistor, 0.125W, 2150ohm, 150V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP Fixed Resistor, 0.125W, 21500ohm, 150V, 2% +/-Tol, 200ppm/Cel, Surface Mount, 0805, CHIP
package instruction O-XALF-W2 O-XALF-W2 O-XALF-W2 O-XALF-W2 O-XALF-W2 O-XALF-W2 O-XALF-W2 O-XALF-W2 CHIP CHIP
Reach Compliance Code unknow compli unknow unknow unknow compli unknow unknow unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Number of terminals 2 2 2 2 2 2 2 2 2 2
Package shape ROUND ROUND ROUND ROUND ROUND ROUND ROUND ROUND RECTANGULAR PACKAGE RECTANGULAR PACKAGE
surface mount NO NO NO NO NO NO NO NO YES YES
Is it Rohs certified? incompatible - conform to conform to conform to - incompatible incompatible conform to conform to
Parts packaging code DO-7 - DO-7 DO-7 DO-7 - DO-7 DO-7 - -
Contacts 2 - 2 2 2 - 2 2 - -
Shell connection ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED ISOLATED - -
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE - -
Diode component materials SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON - -
Diode type ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE - -
JEDEC-95 code DO-7 DO-7 DO-7 DO-7 DO-7 DO-7 DO-7 DO-7 - -
JESD-30 code O-XALF-W2 O-XALF-W2 O-XALF-W2 O-XALF-W2 O-XALF-W2 O-XALF-W2 O-XALF-W2 O-XALF-W2 - -
JESD-609 code e0 - e3 e3 e3 - e0 e0 - -
Number of components 1 1 1 1 1 1 1 1 - -
Package body material UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED - -
Package form LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM LONG FORM - -
Peak Reflow Temperature (Celsius) NOT SPECIFIED - NOT SPECIFIED 260 260 - NOT SPECIFIED NOT SPECIFIED - -
polarity UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL - -
Maximum power dissipation 0.4 W 0.4 W 0.4 W 0.4 W 0.4 W 0.4 W 0.4 W 0.4 W - -
Certification status Not Qualified - Not Qualified Not Qualified Not Qualified - Not Qualified Not Qualified - -
Nominal reference voltage 16 V 18 V 16 V 18 V 16 V 16 V 18 V 16 V - -
technology ZENER ZENER ZENER ZENER ZENER ZENER ZENER ZENER - -
Terminal surface TIN LEAD - MATTE TIN MATTE TIN MATTE TIN - TIN LEAD TIN LEAD - -
Terminal form WIRE WIRE WIRE WIRE WIRE WIRE WIRE WIRE - -
Terminal location AXIAL AXIAL AXIAL AXIAL AXIAL AXIAL AXIAL AXIAL - -
Maximum time at peak reflow temperature NOT SPECIFIED - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED NOT SPECIFIED - -
Maximum voltage tolerance 10% 5% 10% 5% 5% 5% 5% 5% - -
Working test current 7.8 mA 0.005 mA 7.8 mA 7 mA 7.8 mA 0.005 mA 7 mA 7.8 mA - -
Base Number Matches 1 1 1 1 1 1 1 1 - -
