3483-2R2M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 3483-2R2M

3483-2R2M: DescriptionFixed Inductors 2.2uH 20% .032ohm SMT Power Inductor; CategoryPassive components inductor; File Size1MB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/

Download Datasheet Parametric Compare View All

3483-2R2M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3483-2R2M	-	-	View	Buy Now

3483-2R2M Overview

Fixed Inductors 2.2uH 20% .032ohm SMT Power Inductor

3483-2R2M Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	API Delevan
package instruction	3030
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
uppercase and lowercase codes	3030
structure	Unshielded
DC Resistance	0.032 Ω
Nominal inductance(L)	2.2 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Manufacturer's serial number	3483
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Package height	3.5 mm
Package length	7.6 mm
Package form	SMT
Package width	7.6 mm
method of packing	TR
Maximum rated current	2.4 A
series	3483
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Lead (Sn63Pb37)
Terminal location	DUAL ENDED
Terminal shape	FLAT
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

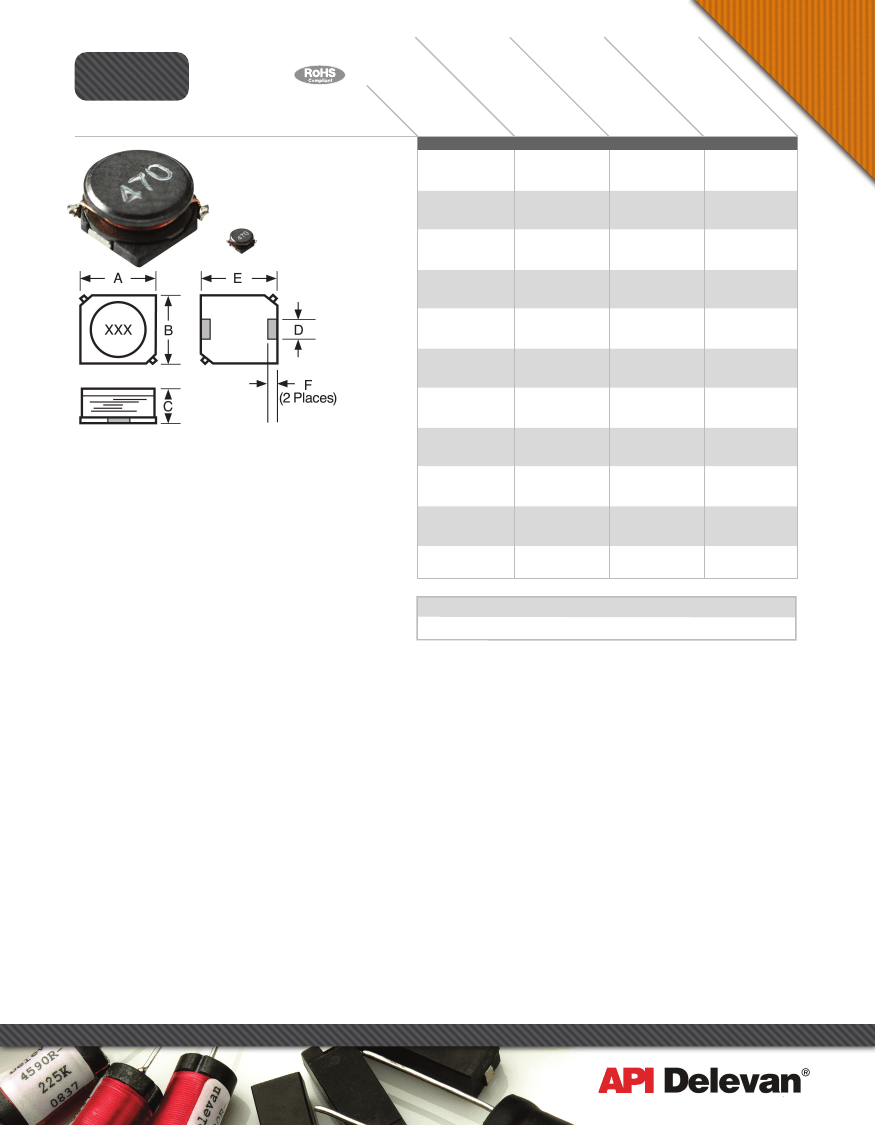

Preview

Download Datasheet

View All

SERIES

TI )

RA C

T D

EN (mA

RR M

CU IMU

AN )

ST S

SI HM

RE M (O

DC MU

(µ

CE kHz

AN 0

CT 10

DU @

IN 0%

±2

3483R

Surface Mount Power Inductors

Actual Size

Physical Parameters

Inches

0.267 to 0.287

0.106 to 0.130

0.070 to 0.087

0.130 to 0.185

0.051 to 0.067

Millimeters

6.70 to 7.30

2.70 to 3.30

1.80 to 2.20

3.30 to 4.70

1.30 to 1.70

1R0M

1R5M

1R8M

2R2M

3R3M

4R7M

6R8M

100M

120M

150M

180M

220M

270M

330M

390M

470M

560M

680M

820M

101M

121M

151M

181M

221M

271M

331M

391M

471M

561M

681M

821M

102M

SERIES 3483R - UNSHIELDED FERRITE CORE

1.0

0.020

3.20

1.5

0.023

2.85

1.8

0.025

2.80

2.2

0.035

2.50

3.3

0.040

2.20

4.7

0.045

2.00

6.8

0.060

1.60

10.0

0.080

1.40

12.0

0.085

1.30

15.0

0.110

1.10

18.0

0.130

1.05

22.0

0.150

1.00

27.0

0.190

0.95

33.0

0.210

0.85

39.0

0.270

0.75

47.0

0.310

0.70

56.0

0.390

0.65

68.0

0.430

0.60

82.0

0.490

0.50

100.0

0.650

0.45

120.0

0.700

0.40

150.0

0.850

0.35

180.0

1.100

0.33

220.0

1.250

0.30

270.0

1.450

0.28

330.0

2.000

0.25

390.0

2.250

0.23

470.0

2.600

0.22

560.0

3.700

0.20

680.0

4.300

0.18

820.0

4.900

0.16

1000.0

5.600

0.15

Operating Temperature Range

–20°C to +85°C

Inductance

Measured with no DC current at 100 kHz

Current Rating at +25° Ambient

40°C temperature rise maximum.

DC that will decrease the inductance by 10% maximum.

Final Termination Finish

100% Matte Tin (Sn)

Marking

Components are marked with three characters.

In the instance of two digits and a letter R, the R indicates

a decimal point and the remaining digits indicates the

inductance in uH. When three digits are present, the ﬁrst

two digits indicate the inductance in uH and the third digit

indicates the number of trailing zeros where a zero

indicates that there are no trailing zeros.

Example: 3483R-1R5M (1.5 H)

1R5

Packaging

Tape and Reel

(12mm): 13" reel, 1000 pieces max.; 7" reel not available.

*Complete part # must include series # PLUS the dash #

For surface ﬁnish information, refer to www.delevanﬁnishes.com

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com

3/2013

3483-2R2M Related Products

	3483-2R2M	3483-100M	3483-120M	3483-4R7M	3483-470M	3483-6R8M
Description	Fixed Inductors 2.2uH 20% .032ohm SMT Power Inductor	Fixed Inductors 10uH 20% .085ohm SMT Power Inductor	Fixed Inductors 12uH 20% .1ohm SMT Power Inductor	Fixed Inductors 4.7uH 20% .049ohm SMT Power Inductor	Fixed Inductors 47uH 20% .41ohm SMT Power Inductor	Fixed Inductors 6.8uH 20% .067ohm SMT Power Inductor
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	API Delevan	API Delevan	API Delevan	API Delevan	API Delevan	API Delevan
package instruction	3030	3030	3030	3030	3030	3030
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	3030	3030	3030	3030	3030	3030
structure	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded	Unshielded
DC Resistance	0.032 Ω	0.085 Ω	0.1 Ω	0.049 Ω	0.41 Ω	0.067 Ω
Nominal inductance(L)	2.2 µH	10 µH	12 µH	4.7 µH	47 µH	6.8 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Package height	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm	3.5 mm
Package length	7.6 mm	7.6 mm	7.6 mm	7.6 mm	7.6 mm	7.6 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT
Package width	7.6 mm	7.6 mm	7.6 mm	7.6 mm	7.6 mm	7.6 mm
method of packing	TR	TR	TR	TR, 13 Inch	TR	TR
Maximum rated current	2.4 A	1.41 A	1.28 A	1.92 A	0.59 A	1.6 A
Shape/Size Description	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
shield	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn63Pb37)	Tin/Lead (Sn63Pb37)	Tin/Lead (Sn63Pb37)	Tin/Lead (Sn63Pb37)	Tin/Lead (Sn63Pb37)	Tin/Lead (Sn63Pb37)
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	20%	20%	20%	20%
Base Number Matches	1	1	1	1	1	1
Manufacturer's serial number	3483	3483	3483	-	3483	3483
series	3483	3483	3483	-	3483	3483
