LLU2G561MELENA

Description
Aluminum Electrolytic Capacitors - Snap In 400volts 560uF 85c
CategoryPassive components
File Size61KB，3 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Download Datasheet Parametric Compare View All

LLU2G561MELENA Online Shopping

Suppliers Part Number Price MOQ In stock
LLU2G561MELENA - - View Buy Now

LLU2G561MELENA Overview

Aluminum Electrolytic Capacitors - Snap In 400volts 560uF 85c

LLU2G561MELENA Parametric

Parameter NameAttribute value
Product CategoryAluminum Electrolytic Capacitors - Snap In
ManufacturerNichicon
RoHSDetails
Capacitance560 uF
Voltage Rating DC400 VDC
Tolerance20 %
Minimum Operating Temperature- 25 C
Maximum Operating Temperature+ 85 C
Diameter25 mm
Length30 mm
Lead Spacing10 mm
PackagingBulk
ProductGeneral Purpose Electrolytic Capacitors
Factory Pack Quantity200
Termination StyleSnap In

Preview

Download Datasheet

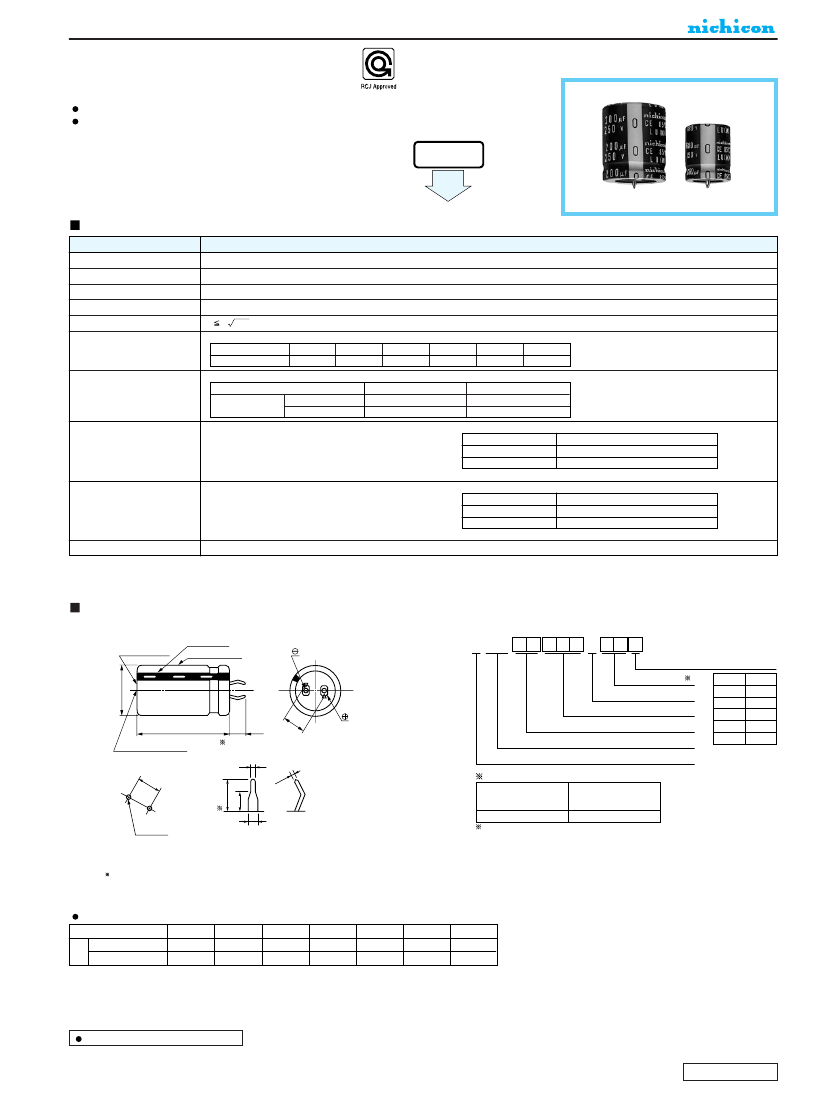

ALUMINUM ELECTROLYTIC CAPACITORS
LU
Snap-in Terminal Type, Standard
series
Approved by Reliability Center for Electronic
Component, Japan-Certification No. RCJ-03-25D
Withstanding 3000 hours application of ripple current at 85°C.
Higher production efficiency due to 4.0mm long terminal.
LU
Smaller
LS
Specifications
Item
Performance Characteristics
Category Temperaturer Renge
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
tan
δ
–
40 ~ +85°C (160 ~ 250V),
–
25 ~ +85°C (400 ~ 450V)
160 ~ 450V
56 ~ 2700µF
±20% at 120Hz, 20°C
I
3 CV
(µA) (After 5 minutes' application of rated voltage)
Rated voltage (V)
tan
δ
(MAX.)
[C : Rated Capacitance (µF) V : Voltage(V)]
Measurement frequency :120Hz, Temperature : 20°C
400
0.15
450
0.20
160
0.15
180
0.15
200
0.15
250
0.15
Measurement frequency : 120Hz
Stability at Low Temperature
Rated voltage(V)
Impedance ratio
ZT/Z20 (MAX.)
Z—25°C/ Z+20°C
Z—40°C/ Z+20°C
160 ~ 250
3
12
400 ~ 450
8
—
Endurance
After an application of DC voltage (in the range of rated
DC voltage even after over-lapping the specified ripple
current) for 3000 hours at 85°C, capacitors meet the
characteristic requirements listed at right.
Capacitance change
tan
δ
Leakage current
Within ± 20% of initial value
200% or less of initial specified value
Initial specified value or less
Shelf Life
After leaving capacitors under no load at 85°C
for 1000 hours, they meet the requirements listed at right.
Capacitance change
tan
δ
Leakage current
Within ±15% of initial value
150% or less of initial specified value
Initial specified value or less
Marking
Printed with white color letter on black sleeve.
Drawing
Bottom plate
(code HL only)
Polarity bar
Sleeve (P.E.T.)
Type numbering system ( Example : 400V 270
µ
F)
1
2
3
4
5
6
7
8
9 10 11 12
L L U 2 G 2 7 1 ME L B
Case dia.code
Configuration
1
Capacitance tolerane(±20%)
Rated Capacitance(270µF)
10
L±
2
Rated voltage(400V)
Series name
Pressure relief vent
4.0±0.5
0.8
+0.2
-0.1
4.0±0.5
0.1
0.8
-
+0
.2
φ
D
20
22
25
30
35
Code
Y
Z
A
B
C
φD
+1MAX.
Type
1 Configuration
Pb free lead finishing
Pb free PET sleeve
Without bottom plate
Sn-Pb lead finishing
PVC sleeve contain Pb
With bottom plate
10
±
0.1
2.5
EL
2-2φ
±
0.1
1.5
+0.2
-0.1
HL
Please contact to us if other configurations are required.
(PC board hole dimensions)
(Terminal dimensions)
The other terminal is also available upon request.
Please refer to page 197 for schematic of dimensions.
Frequency coefficient of rated ripple current
Frequency (Hz)
160~ 250V
400~ 450V
50
0.81
0.77
60
0.85
0.82
120
1.00
1.00
300
1.17
1.16
1k
1.32
1.30
10k
1.45
1.41
50k~
1.50
1.43
Coeff.
Minimum order quantity : 50pcs.
Dimension table in next page.
CAT.8100S
