MULTILAYER CERAMIC CHIP CAPACITORS

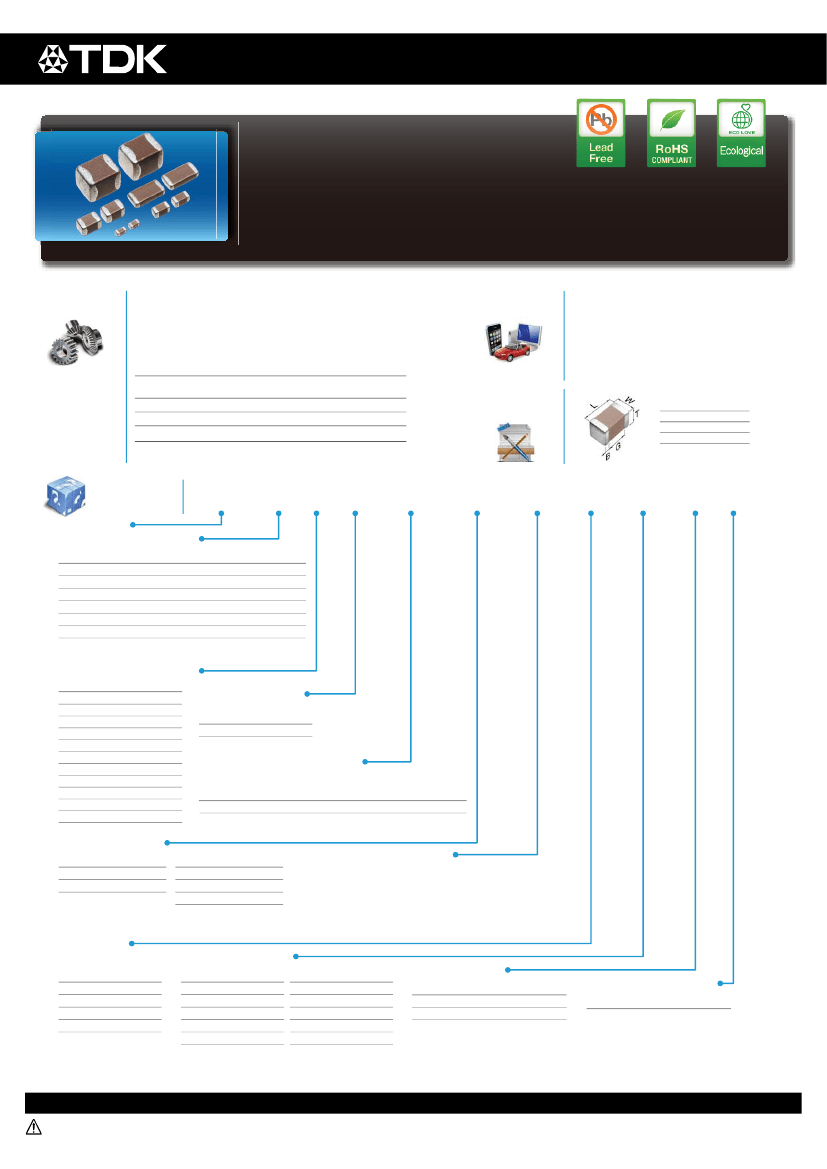

CGA Series
High Temperature Application
Type: CGA2 [EIA CC0402], CGA3 [EIA CC0603], CGA4 [EIA CC0805],
CGA5 [EIA CC1206], CGA6 [EIA CC1210], CGA8 [EIA CC1812], CGA9 [EIA CC2220]
Features
• With a maximum temperature of 150°C and a capacitance
change within ±15%, the series is suited for devices that operate
in high-temperature environments.
• Excellent DC bias properties.
• AEC-Q200 compliant.
Parameters
Temperature
Characteristics
Operating Temperature
Dissipation Factor
Insulation Resistance
Voltage Proof
Specifications
-55 to 150°C
C/C: ±15% or 0±30ppm
-55 to +150°C
5% maximum
10 G or 500 M • F minimum
2.5 • RV or 3 • RV for 1~5s
Charge/Discharge 50 mA
Applications
• Automotive applications (engine rooms)
• Peripheral circuits of IGDT, SiC, GaN used
at high temperature environments
• Sensor Module
• Smoothing and decoupling applications for
other devices that operate at high
temperature
L
W
T
B
G
Body Length
Body Width
Body Height
Terminal Width
Terminal Spacing
Shape &
Dimensions
Catalog Number
Construction
Series Name
Dimensions L x W (mm)
Code
2
3
4
5
6
8
9
Length
1.00 ± 0.05
1.60 ± 0.10
2.00 ± 0.20
3.20 ± 0.20
3.20 ± 0.40
4.50 ± 0.40
5.70 ± 0.40
CGA • 6 • P • 3 • X8R • 1C • 106 • K • 250 • A • B
Width
0.50 ± 0.05
0.80 ± 0.10
1.25 ± 0.20
1.60 ± 0.20
2.50 ± 0.30
3.20 ± 0.40
5.00 ± 0.40
Terminal
0.10 min.
0.20 min.
0.20 min.
0.20 min.
0.20 min.
0.20 min.
0.20 min.
*Dimension tolerance are typical values
Thickness T Code (mm)
Code
B
C
E
F
H
J
L
M
N
P
Q
R
Code
1C
1E
1H
Thickness
0.50 mm
0.60 mm
0.80 mm
0.85 mm
1.15 mm
1.25 mm
1.60 mm
2.00 mm
2.30 mm
2.50 mm
2.80 mm
3.20 mm
Voltage (DC)
16V
25V
50V
Voltage Condition
for Life Test
Symbol
2
3
Condition
2 × R.V.
1.5 × R.V.
Temperature Characteristics
Temperature
Temperature Coefficient or
Temperature
Characteristics
Capacitance Change
Range
NP0
X8R
0±30ppm/°C
±15%
-55 to +150°C
-55 to +150°C
Rated Voltage (DC)
Code
2A
2E
2W
2J
Voltage (DC)
100V
250V
450V
630V
Nominal Capacitance (pF)
The capacitance is expressed in three digit codes and in units
of pico Farads (pF). The first and second digits identify the first
and second significant figures of the capacitance. The third
digit identifies the multiplier. R designates a decimal point.
Ex. 0R2 = 0.2pF; 103 = 10,000pF; 105 = 1,000,000pF =
100nF = 1 F
Capacitance
Tolerance
Code
C
D
J
K
M
Tolerance
± 0.25pF
± 0.50pF
± 5%
± 10%
± 20%
Nominal Thickness
Code
050
060
080
085
115
125
Thickness
0.50 mm
0.60 mm
0.80 mm
0.85 mm
1.15 mm
1.25 mm
Code
160
200
230
250
280
320
Thickness
1.60 mm
2.00 mm
2.30 mm
2.50 mm
2.80 mm
3.20 mm
Packaging Style
Code
A
B
K
Style
178 mm Reel, 4 mm Pitch
178 mm Reel, 2 mm Pitch
178 mm Reel, 8 mm Pitch
Special Reserved Code
Code
A, B
Description
TDK Internal Code
Page 2
Please
be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20150410 / mlcc_automotive_hightemp_en
MULTILAYER CERAMIC CHIP CAPACITORS
Capacitance
Range Chart
Capacitance Range Chart
Temperature Characteristics: NP0 (0 ± 30ppm/ºC), X8R (±15%)
Rated Voltage: 100V (2A), 50V (1H), 25V (1E), 16V (1C)
Capacitance
(pF)
1
1.5
2
2.2
3
3.3
4
4.7
5
6
6.8
7
8
9
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1,000
1,500
2,200
3,300
4,700
6,800
10,000
15,000
22,000
33,000
47,000
NP0
Code
010
1R5
020
2R2
030
3R3
040
4R7
050
060
6R8
070
080
090
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
102
152
222
332
472
682
103
153
223
333
473
Tolerance
C: ± 0.25pF
D: ± 0.50pF
J : ± 5%
K : ± 10%
M: ± 20%
X8R
1E
(25V)
1C
(16V)
2A
1H
2A
1H
(100V) (50V) (100V) (50V)
CGA2(1005) [EIA CC0402]
Standard Thickness
0.50 mm
Page 3
