LPR6235-752RMLB datasheet, PDF

Datasheet> All Categories > Power management> transformer> LPR6235-752RMLB

LPR6235-752RMLB: DescriptionCoupled Inductors Flyback Transformer SEE PART COMMENT TAB; CategoryPower management transformer; File Size185KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

LPR6235-752RMLB Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LPR6235-752RMLB	-	-	View	Buy Now

LPR6235-752RMLB Overview

Coupled Inductors Flyback Transformer SEE PART COMMENT TAB

LPR6235-752RMLB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	COILCRAFT
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TURNS RATIO: 1: 90
high	3.5 mm
length	6 mm
Installation features	SURFACE MOUNT
Number of primary windings	1
Number of secondary windings	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
physical size	L6.0XB6.0XH3.5 (mm)
Primary inductance	7.5 µH
surface mount	YES
Terminal surface	Silver/Palladium/Platinum - with Glass frit
Transformer type	SMPS TRANSFORMER
width	6 mm
Base Number Matches	1

Preview

Download Datasheet

View All

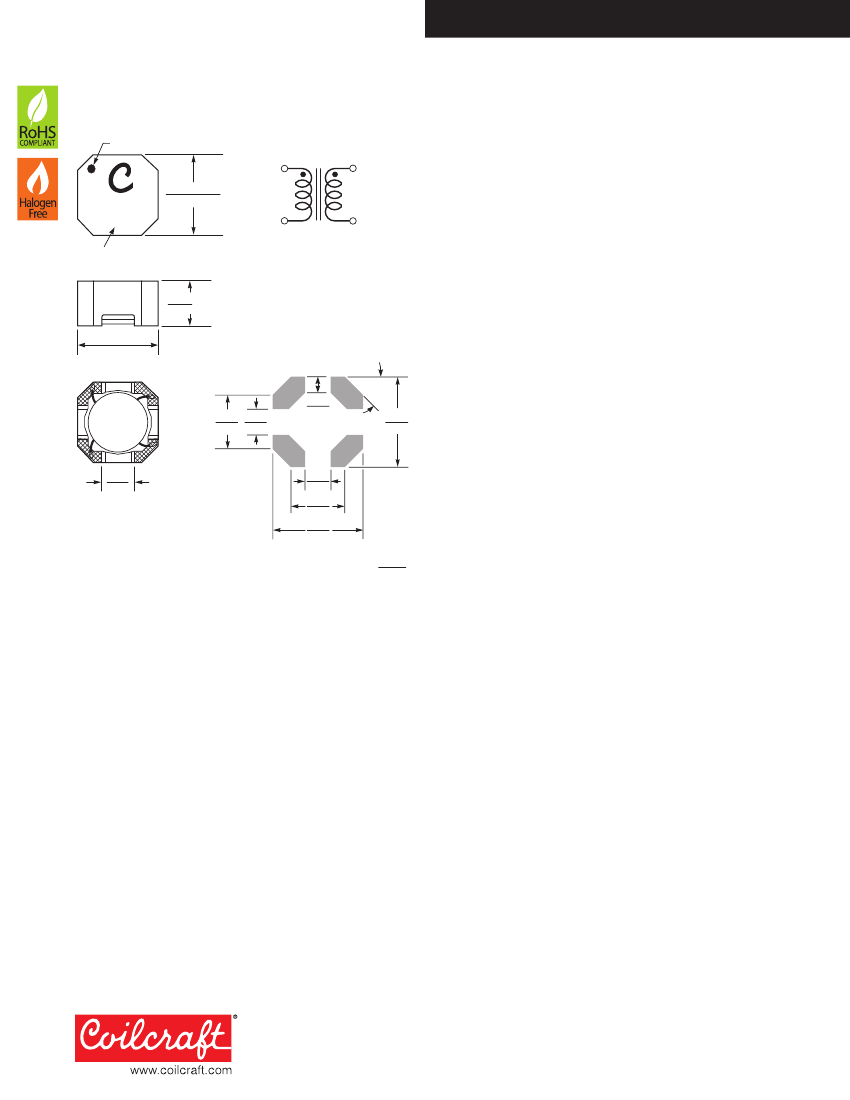

Document 752R-1

Coupled Inductors – LPR6235

For Step-Up, Resonant

& Flyback Applications

• Can be used as step-up or flyback transformers in DC-DC

converters or as autotransformers

• Perfect for low voltage step-up in energy harvesting applications

• Selected by Linear Technology for the LTC3108 and LTC3109

Ultralow Voltage Step-Up Converter and Power Managers

These shielded parts are only 3.5 mm high and 6 mm

square. The excellent coupling coefficient (k = 0.95)

makes them ideal for use in a variety of applications.

They can be used as flyback transformers and step-up

pulse transformers.

The high

Isat

and low DCR ratings of these parts provide

high efficiency and excellent current handling in a rug-

ged, low cost design.

Custom inductance values and turn ratios may be avail-

able upon request.

Part

number

Primary (L1) DCR max

Turns inductance

(Ohms)

ratio ±20% (µH) L1

12.5

7.5

0.74

13.7

0.20

0.085 200

0.085 285

0.085 340

SRF

typ

Isat

(kHz) (A)

1300

580

360

257

230

1.3

0.7

0.9

1.6

Sync

Rectifier

OUT

LPR6235-253LMR_ 1

LPR6235-253PMR_ 1

LPR6235-123QMR_ 1

LPR6235-752RMR_ 1

LPR6235-752SMR_ 1

100

1. When ordering, please specify

packaging

code:

LPR6235-253PMRC

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic tape

(350 parts per full reel).

= Less than full reel. In tape, but not machine ready. To

have a leader and trailer added ($25 charge), use code

letter D instead.

= 13″ machine-ready reel. EIA-481 embossed plastic

tape. Factory order only, not stocked (1500 parts per full

reel).

2. Inductance is measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP

4284A LCR meter or equivalent.

3. SRF measured using an Agilent/HP 4191A or equivalent.

4. DC current applied to L1, at which the inductance drops 10% from its value

without current.

5. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

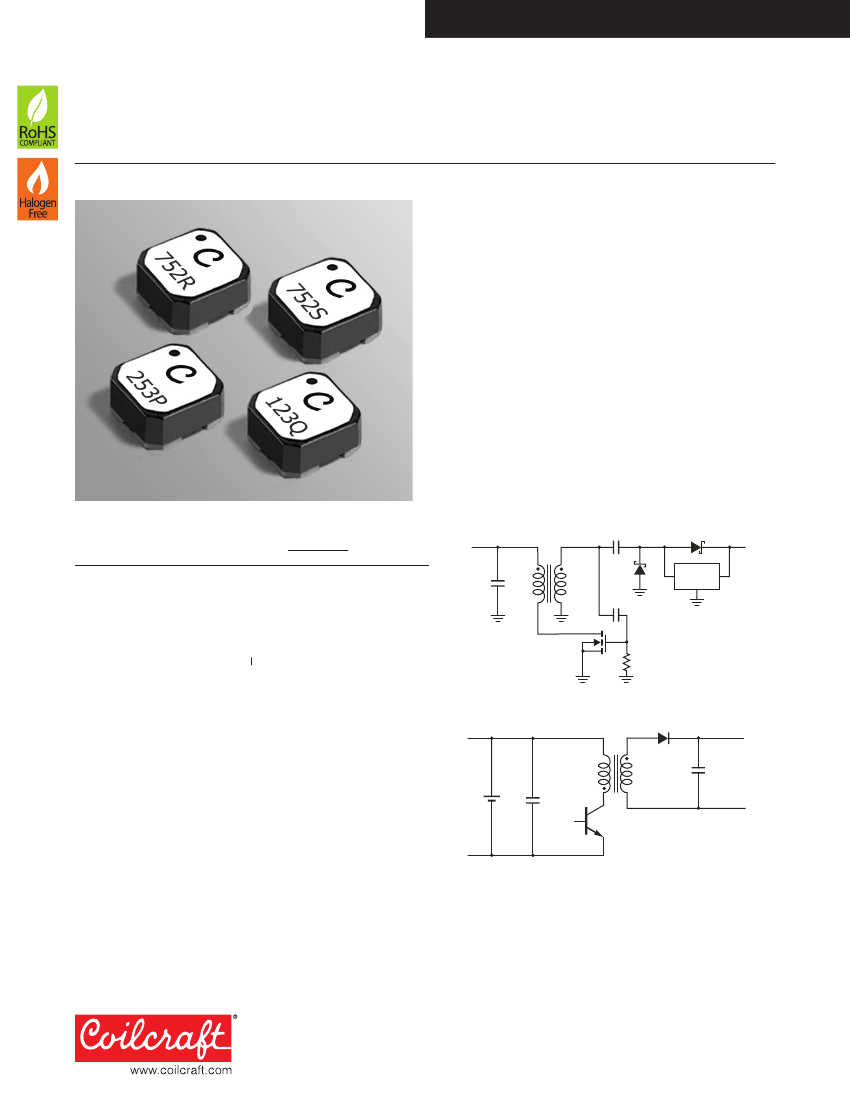

Typical Step-Up Converter

OUT

PWM

–

Typical Flyback Converter

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 752R-1

Revised 08/25/16

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
