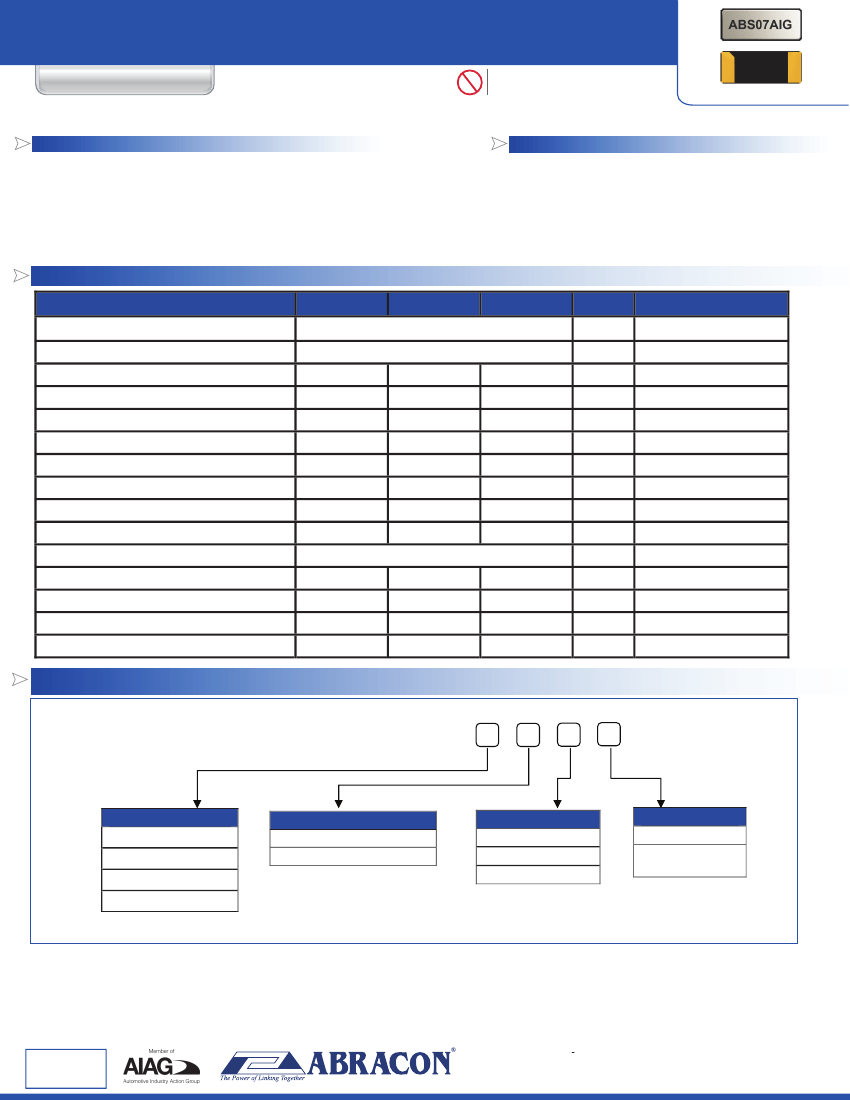

Automotive & Industrial Grade 32.768kHz SMD Low Profile Crystal
ABS07AIG
FEATURES:
• PPAP ready and supported
• TS16949 certified production lines
• Miniature size and low profile package: 3.2 x 1.5 x 0.9mm
• AEC-Q200 qualified
• Hermetically sealed ceramic package assures high precision and reliability
• Extended operating temperature range: -40°C to +125°C
• RoHS compliant and Pb free
Pb
RoHS/RoHS II Compliant
3.2 x 1.5 x 0.9 mm
Moisture Sensitivity Level (MSL) – This product is Hermetically Sealed and not Moisture Sensitive - MSL = N/A: Not Applicable
APPLICATIONS:
• Navigation
• Comfort control
• Car entertainment system
• Instrument panel
• COTS Military
• Telematics
• Test equipment
• Industrial automation
• Industrial control
• Medical Electronics (non-life dependent)
STANDARD SPECIFICATIONS:
Parameters
Frequency
Operation Mode
Operating Temperature
Storage Te mperature
Frequency Tolerance @+25°C
Temperature Coefficient:
Turn-over temperature:
Equivalent series resistance (R1)
Shunt capacitance (C0)
Motional capacitance (C1)
Load capacita nce (CL)
Drive Level
Q value
Aging@25°C
Insulation Resistance
Minimum
Typical
32.768
Maximum
Units
kHz
Notes
Flexural Mode (Tuning Fork)
-40
-55
-20
-0.040
+20
-0.036
+25
1.1
4.7
12.5
0 .1
10000
-3
500
30000
3
ppm
M
Ω
First year
0 .5
+30
80
+125
+125
+20
ºC
ºC
ppm
ppm/T²
ºC
kΩ
pF
fF
pF
µW
See options
See options
OPTIONS AND PART IDENTIFICATION: (left blank if standard)
AND PART IDENTIFICATION: (Left blank if standard)
ABS07AIG - 32.768 kHz -
Operating Temp. Range
Blank: -40 ~ +125°C
D: -40 ~ +85°C
-
-
-
Packaging
Blank: Bulk
T: Tape & Reel
(3000pcs/reel)
Load Capacitance
Blank: 12.5pF
9: 9pF
7: 7pF
6: 6pF
Freq. Tolerance
Blank: ±20ppm
1: ±10ppm
4: ±30ppm
ABRACON IS
ISO9001:2008
CE RTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 12.09.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
Automotive & Industrial Grade 32.768kHz SMD Low Profile Crystal
ABS07AIG

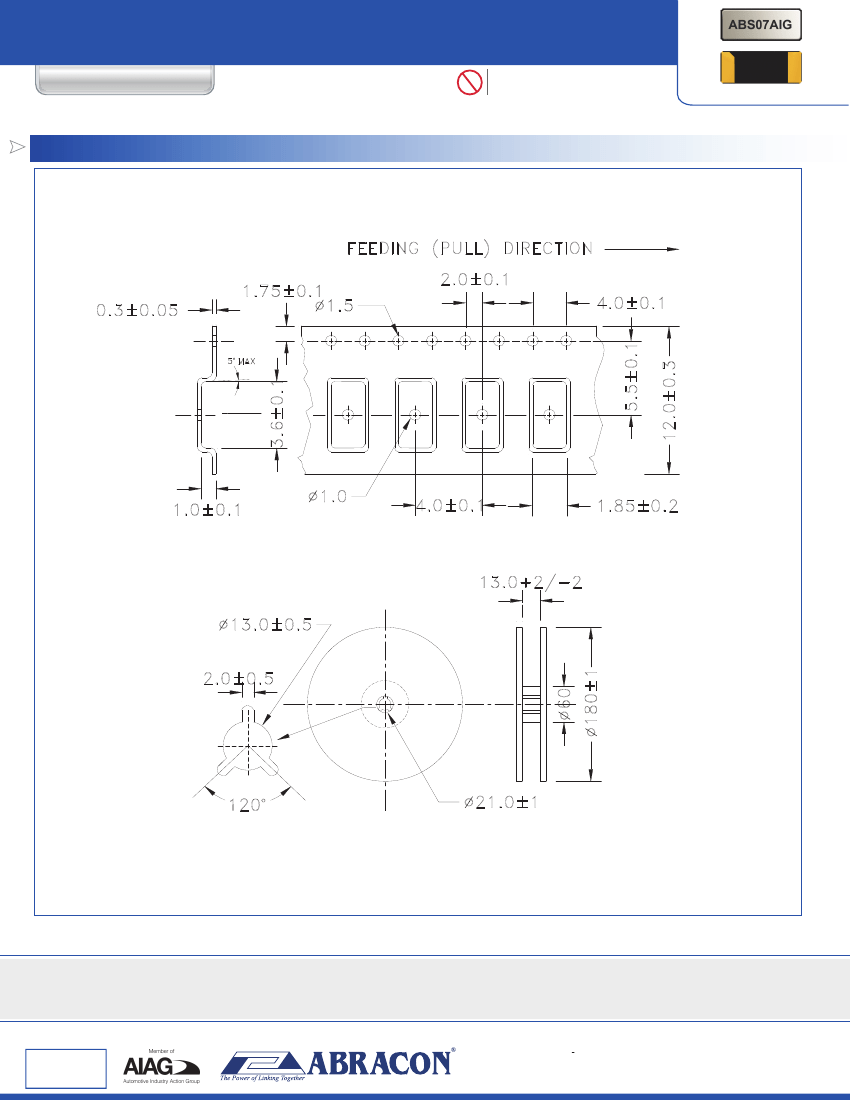

TAPE & REEL:
T=Tape and reel (3,000pcs/reel)
Pb
RoHS/RoHS II Compliant

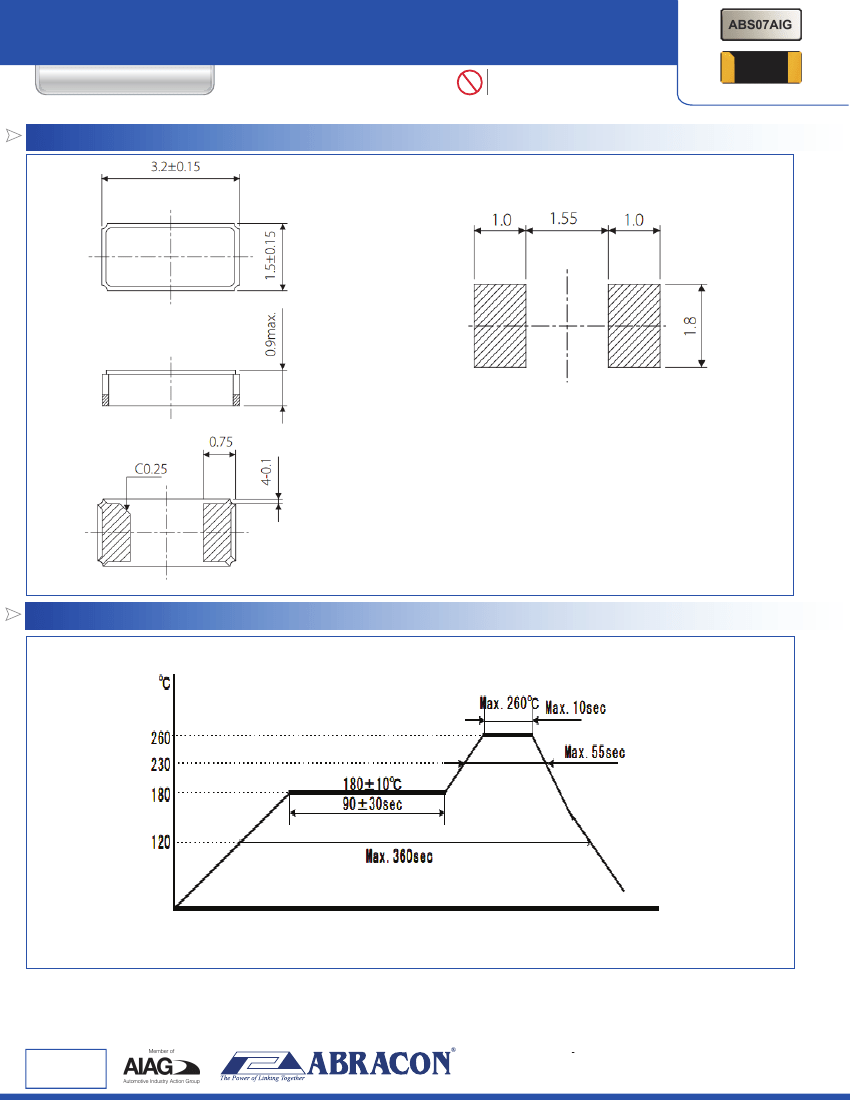

3.2 x 1.5 x 0.9 mm
Dimensions: mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and
authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO9001:2008
CE RTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 12.09.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale

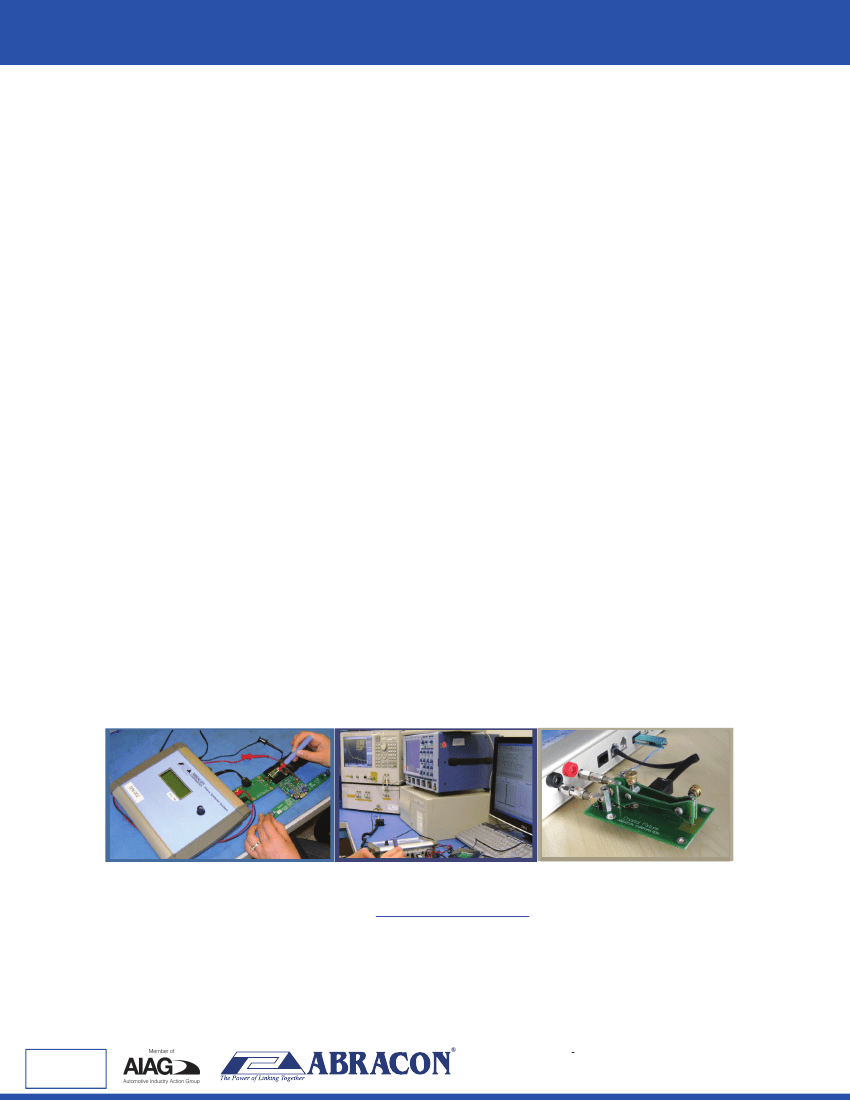

Pierce Analyzer System (PAS)
Advanced Board Characterization Service
Abracon PAS System enables us to offer Automotive, Medical, and Industrial application customers a
comprehensive, automated assessment of the Pierce Oscillator loop, in concert with the customers selected Quartz
Crystal. The PAS System Circuit Analysis report is ideally suited for PPAP documentation, design history
reporting, and overall assurance of a reliable optimized circuit.
Features:
• Circuit characterization; providing best possible match between Quartz Crystal, oscillator loop and
associated components
• Eliminates probability of oscillator start-up issues related to inadequate design or marginal component
performance
• Eliminates production launch issues related to crystal oscillator based timing circuit
• Solves design margin uncertainty
Deliverables:
A detail Report encompassing:
•
Stand alone Quartz Crystal characteristics including:
- Motional parameters (Cm, Lm, ESR & C0)
- Narrow Band Frequency Response Plot
- Wide Band Frequency Response Plot
- Admittance versus Susceptance plot
- Frequency dependence versus load capacitance plot
•
Oscillator loop characteristics including:
- Initial frequency accuracy and drive level as seen by the crystal with measured ESR
- Worst case projected drive level with maximum specified ESR
- Safety Factor of the oscillator loop under both typical and maximum ESR
- Recommendation on proper component selection (C1, C2 & Rs when applicable) for
best compromise with respect to Safety Factor and Frequency accuracy
- Recommendation on the Abracon Crystal part # with proper plating load and other key
attributes to enable the most robust design, specific to the µcontroller/processor implemented
Ordering information:
PAS-BC1WK
PAS-BC2WK
PAS-BC3WK
Analysis & Report with 1-week maximum lead-time
Analysis & Report with 2-week maximum lead-time
Analysis & Report with 3-week maximum lead-time
For detailed information, click here:
For additional information, please contact at:
tech-support@abracon.com
ABRACON IS
ISO9001:2008
CE RTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 10.01.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
