All specifications are based on the test circuit shown on page 4
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
This is the optimum impedance in order to achieve the performance shown
Subject to change or obsolescence without notice
Rev A
29-Sep-2005
Page 2 of 5
Data Sheet
Part Number 855884
125 MHz SAW Filter

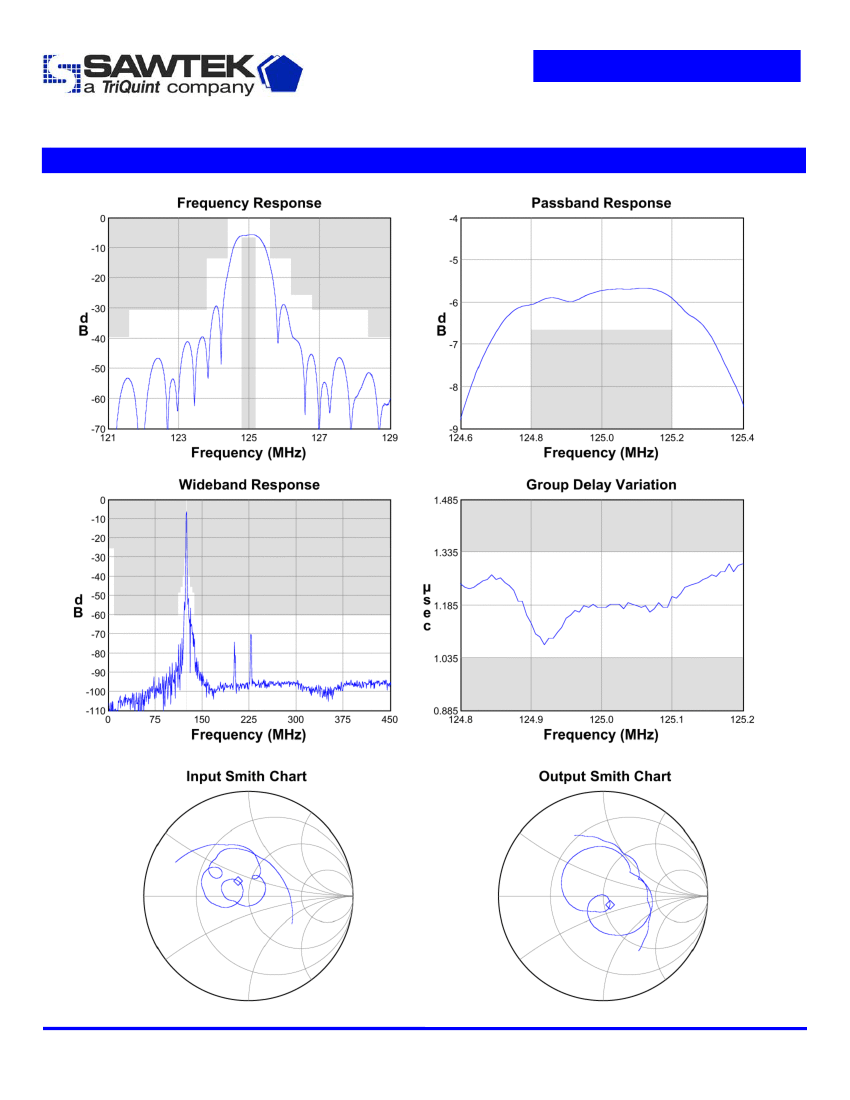

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev A
29-Sep-2005
Page 3 of 5
Data Sheet
Actual matching values may vary due to PCB layout and parasitics
10nH 150nH
11
Part Number 855884
125 MHz SAW Filter
Matching Schematics
120nH 4.7nH
5
56pF
50Ω
50
Ω
Single-ended
50Ω
56pF
1,2,3,4,6
7,8,9,10,12
Marking
1.70
PCB Footprint
13.51
3.53
SAWTEK
855884
XXXXXX
ID Dot
Date Code
6.70
.99
.99
8.61
1.55
1.70
The date code consists of: day of the current year (Julian,
3 digits), last digit of the year (1 digit) and hour (2 digits)
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
24.8
2.7
Ø330
ID dot
0.3
2.0
4.0
Ø1.5
A
1.75
11.5
13.9
24
Ø102
Direction of travel
Ø20.2
Ø13.0
2.0
2.3
Section A-A
7.1
12.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity:2000 units/reel
Subject to change or obsolescence without notice
Rev A
29-Sep-2005
Page 4 of 5
Data Sheet
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Input Power
Part Number 855884
125 MHz SAW Filter
Symbol
T
T
stg
P
in
Minimum
-10
-40
-
Typical
+25
-
-
Maximum
+85
+125
10
Unit
C
C
dBm
o
o
Important Notes
Warnings
•
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JEDEC J-STD-020C
Pb-free
process,
260°C
peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS information
Soldering Profile
Other Technical Information
Sawtek’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. Sawtek does not accept any liability for
applications, processes, circuits or assemblies, which are implemented using any Sawtek component described in this data sheet.
