2.5V / 3.3Vdc PROGRAMMABLE SPREAD SPECTRUM
LOW EMI CLOCK OSCILLATOR
ASSFLP SERIES
ESD Sensitive
Pb
RoHS / RoHS II Compliant
5.0 x 3.2 x 1.3 mm
| |
Moisture Sensitivity Level (MSL) – This product is Hermetically Sealed and not Moisture Sensitive -
MSL = N/A: Not Applicable
| |
FEATURES:
• Spread Spectrum LOW EMI Oscillator
• 5.0 x 3.2 x 1.3mm Ceramic package
• Tri-state function
• Suitable for RoHS reflow profile
• Seam sealed ceramic package
assures high reliability.
APPLICATIONS:
• Laptop computer
• PDA
• LCD
• Digital camera
• Wireless LAN
• Mobile phone
• Printer
• Flat TV
Quick Turn Delivery!
<5 Days for small
quantities!
STANDARD SPECIFICATIONS:
Key Electrical Specifications
(Die IC's Part Number PL671-00-A5)
Parameters
Frequency Range:
Center Spread
Spread Spectrum Type
Down Spread
EMI Reduction
100MHz at C02
(Reduction is applied to
the entire frequency
100MHz at C04
spectrum)
Operating Temperature:
Storage Temperature:
Overall Frequency Stability*:
V
dd
= 3.3V
Supply Voltage
(Vdd):
V
dd
= 2.5V
8.000 to 49.999MHz
50.000 to 79.999MHz
80.000 to 99.999MHz
100.0 to 160.0MHz
8.000 to 49.999MHz
50.000 to 79.999MHz
80.000 to 99.999MHz
100.0 to 160.0MHz
8.000 to 49.999MHz
50.000 to 79.999MHz
80.000 to 99.999MHz
100.0 to 160.0MHz
8.000 to 49.999MHz
50.000 to 79.999MHz
80.000 to 99.999MHz
100.0 to 160.0MHz
Minimum
Typical
Maximum
8
160
±0.25 typ. ~ ±2.0 typ.
-0.5 typ. ~ -4.0 typ.
-7
-9
-40
-5 5
-50
2.97
2.25
+85
+125
+50
3.63
2.75
20
20
25
30
20
25
30
40
55
5.0
4.0
3.0
3.0
10.0
8.0
5.0
4.0
15
Units
MHz
%
dBc
°C
°C
ppm
V
V
mA
Notes
See table 3 for options
Refer to the dB level
when no modulation.
Input Current:
Symmetry:
45
Rise and Fall
Time (Tr/Tf)**:
Output Load:
Output Voltage:
Start-up Time:
3.3
2.5
10
15
20
25
15
20
25
30
50
2.0
2.0
1.5
1.5
3.0
2.5
2.0
1.5
See options
Standard
Option 1
V
dd
= 2.5V
mA
%
ns
V
dd
= 3.3V
@ 1/2Vdd, CL=15pF
V
dd
= 2.5V
ns
pF
V
V
ms
V
dd
= 3.3V
CMOS
VOH
VOL
Tri-state function (Stand-by) :
Modulation carrier frequency
(Dither rate)
Aging:
0.1*Vdd
2.0
10
"1" (VIH≥0.7*Vdd) or Open: Oscillation
"0" (VIH<0.3*Vdd) : Hi Z
Programmable dependant
( 15kHz to 120kHz )
-3 . 0
+3.0
0.9*Vdd
* Frequency stability includes initial tolerance, temperature characteristics, load variation, and supply voltage variation,.
ABRACON IS
ISO9001:2008
CE RTIFIED
CE RTIFIED
ppm
@ +25°C First y ear
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 04.28.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
2.5V / 3.3Vdc PROGRAMMABLE SPREAD SPECTRUM
LOW EMI CLOCK OSCILLATOR
ASSFLP SERIES
Pb
RoHS / RoHS II Compliant
5.0 x 3.2 x 1.3 mm
| | | | | | | | | | | | |
| |
OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
ASSFLP
-
MHz -
-
-
Supply Voltage
Blank: 3.3V±5%
1: 2.5V±5%
Frequency in MHz
Please specify the
frequency in MHz.
e.g. 14.31818MHz
Overall Freq. Stability
Blank: ±50ppm
R: ±25ppm
Contact Abracon for special
tighter stability
SSBW
C□□
or
D□□
See table below
SSBW: Spread Spectrum
Band Width
Packaging
Blank: Bulk
T: Tape & Reel
Table: SPREAD SPECTRUM BANDWIDTH SELECTION TABLE
SPREAD SPECTRUM BAND WIDTH OPTIONS *
Center Spread (%)
Down Spread (%)
±0.250
-0.50
C02
D02
±0.50
-0.75
C04
D03
±1.000
-1.00
C08
D04
±1.500
-1.50
C12
D06
±2.000
-2.00
C16
D08
-3.00
D12
-4.00
D16
Note *: All spectrum spread percentage numbers are typical values
ABRACON IS
ISO9001:2008
CE RTIFIED
CE RTIFIED
LLC
2 Faraday, Suite# B
|
Irvine
|
CA 92618
Revised: 04.28.15
Ph. 949.546.8000
|
Fax. 949.546.8001
Visit
www.abracon.com
for Terms and Conditions of Sale
2.5V / 3.3Vdc PROGRAMMABLE SPREAD SPECTRUM
LOW EMI CLOCK OSCILLATOR
ASSFLP SERIES
Pb
RoHS / RoHS II Compliant
5.0 x 3.2 x 1.3 mm
| | | | | | | | | | | | |
| |

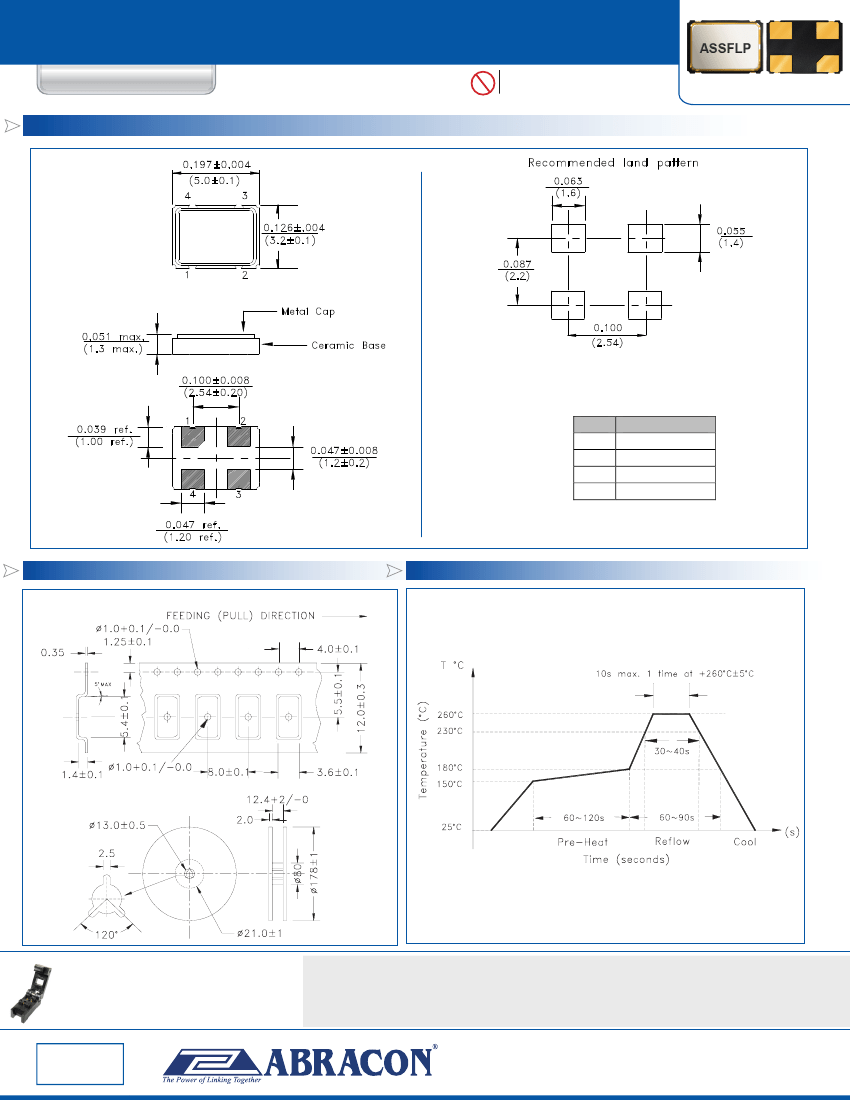

OUTLINE DRAWING:
Note: Recommend using an approximately 0.01uF
bypass capacitor between PIN 2 and 4.
Pin
1
2
3
4
Function
Tri-State
GND/Case
Output
Vdd
Dimensions: Inches (mm)
TAPE & REEL:
Tape and reel 1,000pcs/reel
REFLOW PROFILE
Need a test socket for the ASSFLP Series?
To view compatible
PRECISION TEST
and BURN-IN SOCKETS
these parts,
for
click here.
ABRACON IS
ISO9001:2008
CE RTIFIED
CE RTIFIED
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial,
Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for Military, Aviation,
Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result
in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment,
written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
