C22CF820J-BZN-X1T datasheet, PDF

Datasheet> All Categories > Passive components> C22CF820J-BZN-X1T

C22CF820J-BZN-X1T: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT 2500V 82pF +/-5% Low ESR; CategoryPassive components; File Size447KB，3 Pages; ManufacturerDielectric Laboratories

Download Datasheet Parametric Compare View All

C22CF820J-BZN-X1T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C22CF820J-BZN-X1T	-	-	View	Buy Now

C22CF820J-BZN-X1T Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT 2500V 82pF +/-5% Low ESR

C22CF820J-BZN-X1T Parametric

Parameter Name	Attribute value
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
Manufacturer	Dielectric Laboratories
RoHS	Details
Capacitance	82 pF
Voltage Rating DC	2.5 kVDC
Dielectric	CF
Tolerance	5 %
Case Code - in	2225
Case Code - mm	5763
Height	3.3 mm
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 55 C
Product	RF Microwave / High Q
Packaging	Reel
Length	5.59 mm
Package / Case	2225 (5763 metric)
Factory Pack Quantity	500
Termination Style	SMD/SMT
Type	RF Microwave MLCC
Width	6.22 mm

Preview

Download Datasheet

View All

C22 2225

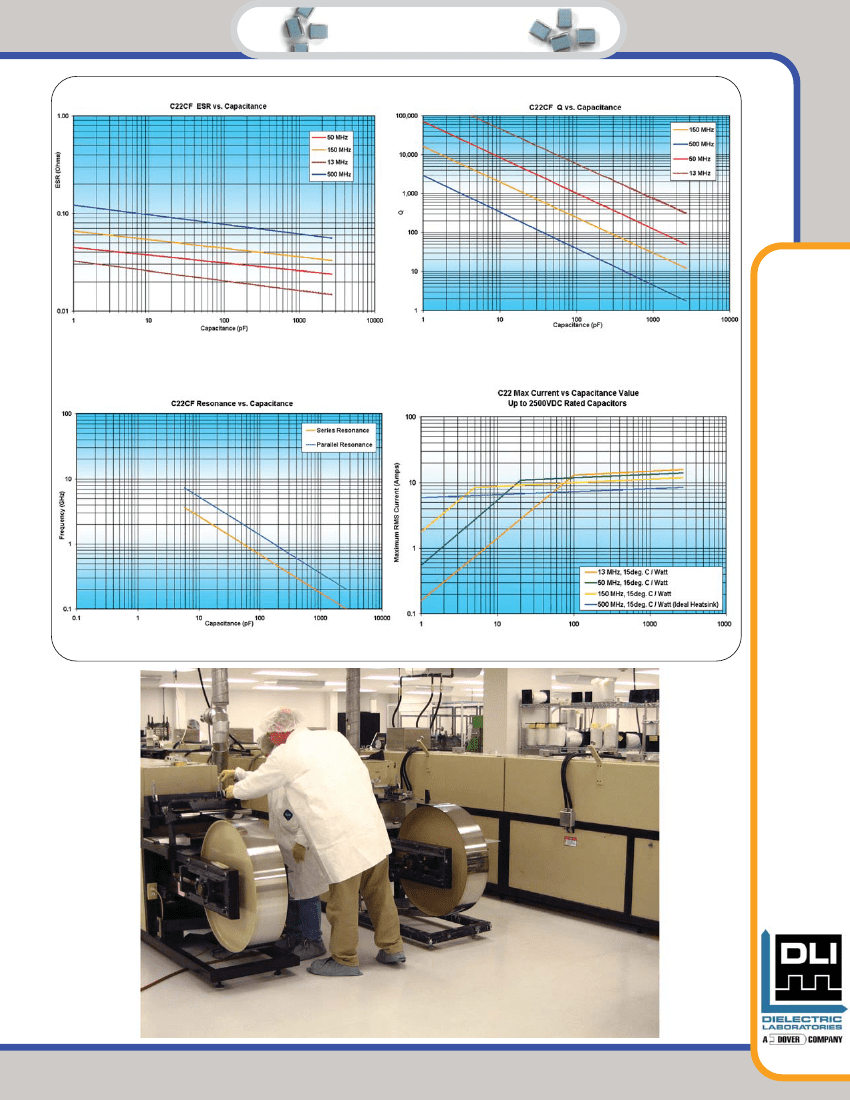

FUNCTIONAL APPLICATIONS

Impedance Matching

D.C. Blocking

Bypass, Coupling

Tuning and Feedback

BENEFITS

Power handling, High voltage

High Q

Low ESR

-55 to +125 °C Operating Range

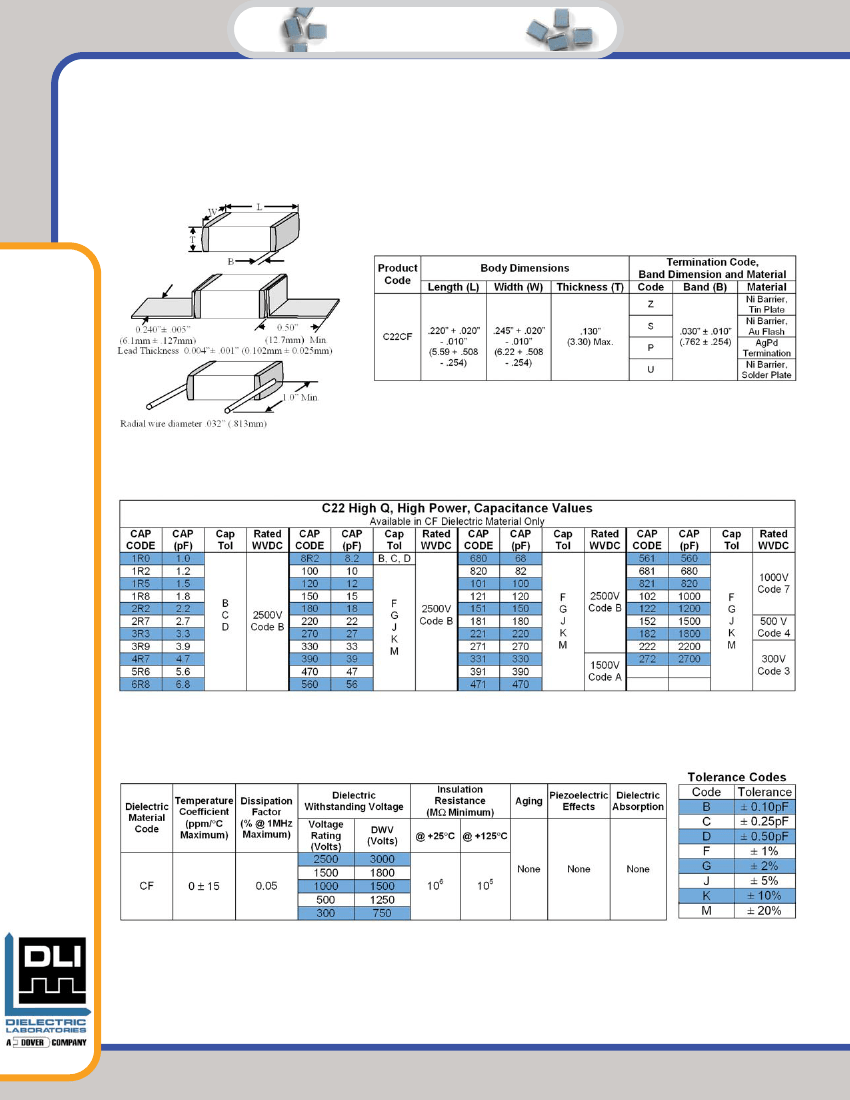

Mechanical Specification

Dielectric Laboratories

Laser markings available in Horizontal orientation only, Code L

Capacitance Table

Electrical Specification

Dissipation Factor applies to values of 4.7pF or greater.

Parts rated >1000V are 100% IR tested @1000V

www.dilabs.com
