424-93-246-41-002: DescriptionIC Socket, DIP46, 46 Contact(s),; CategoryThe connector socket; File Size164KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

424-93-246-41-002 Overview

IC Socket, DIP46, 46 Contact(s),

424-93-246-41-002 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP46
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e0
Number of contacts	46
Base Number Matches	1

Preview

Download Datasheet

View All

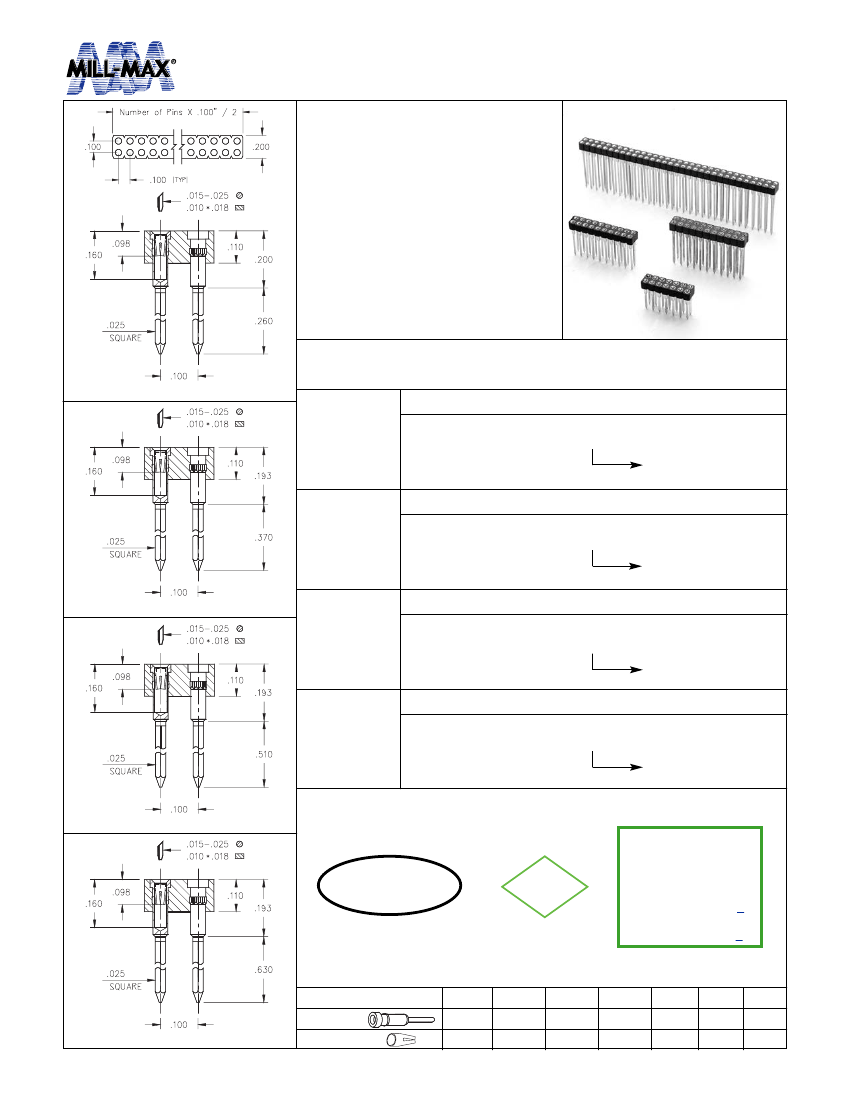

SINGLE-IN-LINE SOCKETS

Wrapost

Double Row

Series 421, 422

423, 424

•

Wrapost double row strip sockets

are available with one to four-level

wraposts: M-M# 0040, 0089, 0088, or

0086 pins. See page 162 for details.

•

Hi-Rel, 4-finger #30 BeCu contact is

rated at 3 amps. See page 208 for

details.

Ordering Information

Fig. 1

Series 421...001

1 Level Wrapost

Fig. 1

421-XX-2_ _-41-001000

Specify # of pins

Series 422...001

02-64

2 Level Wrapost

Fig. 2

422-XX-2_ _-41-001000

Specify # of pins

02-64

3 Level Wrapost

Fig. 2

Series 423...001

Fig. 3

423-XX-2_ _-41-001000

Specify # of pins

Series 424...002

02-64

4 Level Wrapost

Fig. 4

424-XX-2_ _-41-002000

Specify # of pins

02-64

Fig. 3

For RoHS compliance,

select plating code.

For the all gold option

(XX=13) also change

part number from

42X-XX-2XX-41-00X000

to

42X-13-2XX-41-00X100

XX=Plating Code

See Below

SPECIFY PLATING CODE XX=

13

10µ” Au

30µ” Au

91

10µ” Au

93

30µ” Au

99

200µ”Sn/Pb

41

10µ” Au

43

44

Sleeve (Pin)

200µ” Sn/Pb

200µ”Sn/Pb 200µ”Sn

200µ”Sn

30µ” Au

200µ”Sn

Fig. 4

Contact (Clip)

w w w. m i l l - m a x . c o m

53

516-922-6000
