D-Sub connectors - Stamped and Formed Contacts
PRESS FIT
STRAIGHT PCB TERMINATION
CHARACTERISTICS
Materials and Platings
Shells
Insulator
Pin contact
Steel, tin plated
Glass-filled thermoplastic, UL 94V-0
Brass, selected gold in mating area;
2.54µm (100µ") min. tin
on termination area over
1.27µm (50µ") min.nickel
Phosphor bronze, selected gold in
mating area; 2.54µm (100µ") min.
tin on termination area over;
1.27µm(50µ") min. nickel
Brass, 2.54µm (100µ") min. nickel plated
Brass, 2.54µm (100µ") min. nickel plated
Brass, 2.54µm (100µ") min. nickel plated
DESCRIPTION
APPLICATIONS

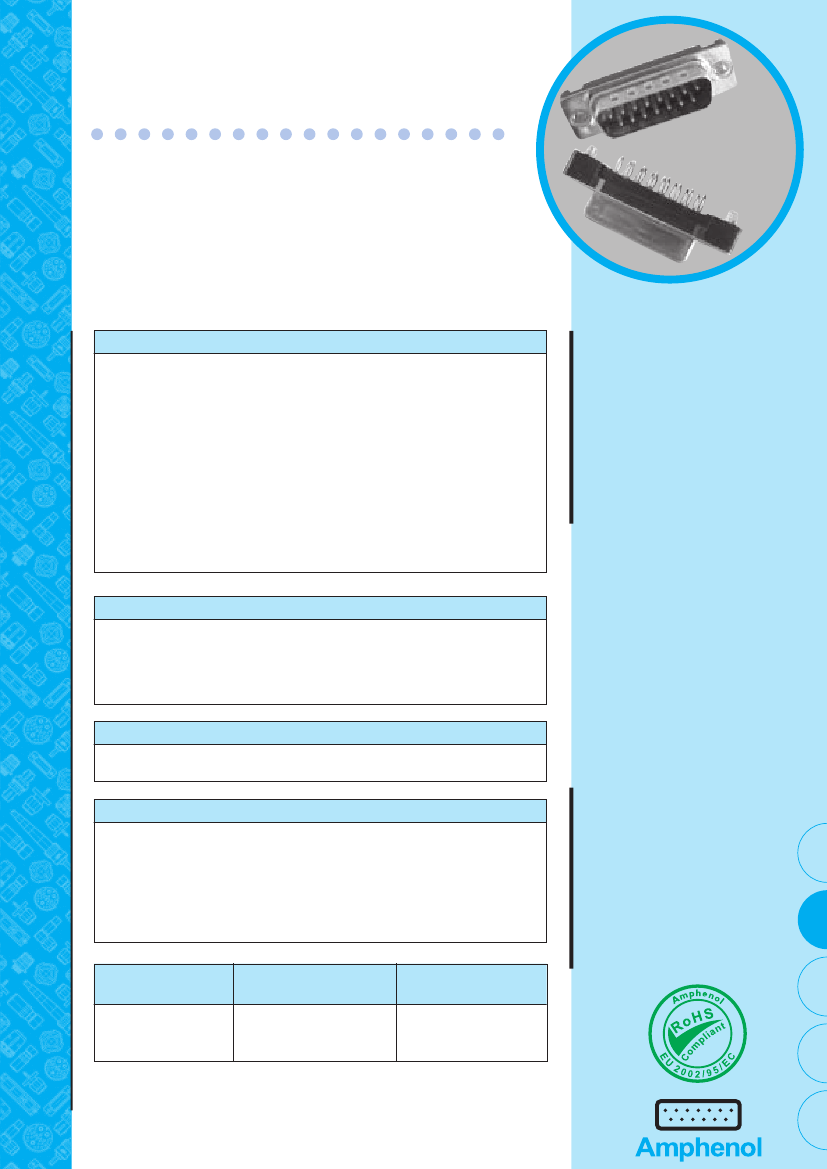

The Amphenol “TF“ series
features eye of needle formed
contacts, and insulator with
closed entry contacts cavities.
This series gives you
Amphenol's high standards of
quality and reliability to meet
all your technical requirements.
Socket contact
Rear insert
Boardlock
Screwlock
Electrical Data
Current rating
Voltage rating
Withstanding voltage
Insulation resistance
Contact resistance
3A
300V AC
1000V AC/rms 60Hz for one minute
1000MΩ
25mΩ max
Climatic Data
Operating temperature
-55°C to +125°C
Salt spray
24 hours
Solderless
straight PCB
mount
connectors
• Industrial
• Telecom
• Any backplanes
connections
Mechanical Data
Single contact insertion force
Single contact withdrawal force
Single contact insertion on board
Single contact withdrawal from board
Standard plating thickness
≤ 3.60 N
≥ 0.2 N
≤ 100 N
≥ 20 N
Gold flash
0.4µm (15µ") gold
0.76µm (30µ") gold
Terminal
Specification
Finished Hole
Cu
Sn
1 (+0.09 -0.06)
> 25 µm
< 15 µm
Boardlock
Specification
3.1 +/- 0.05
mm
Min 25 µm
5-15 µm
TF / E4
NOTES

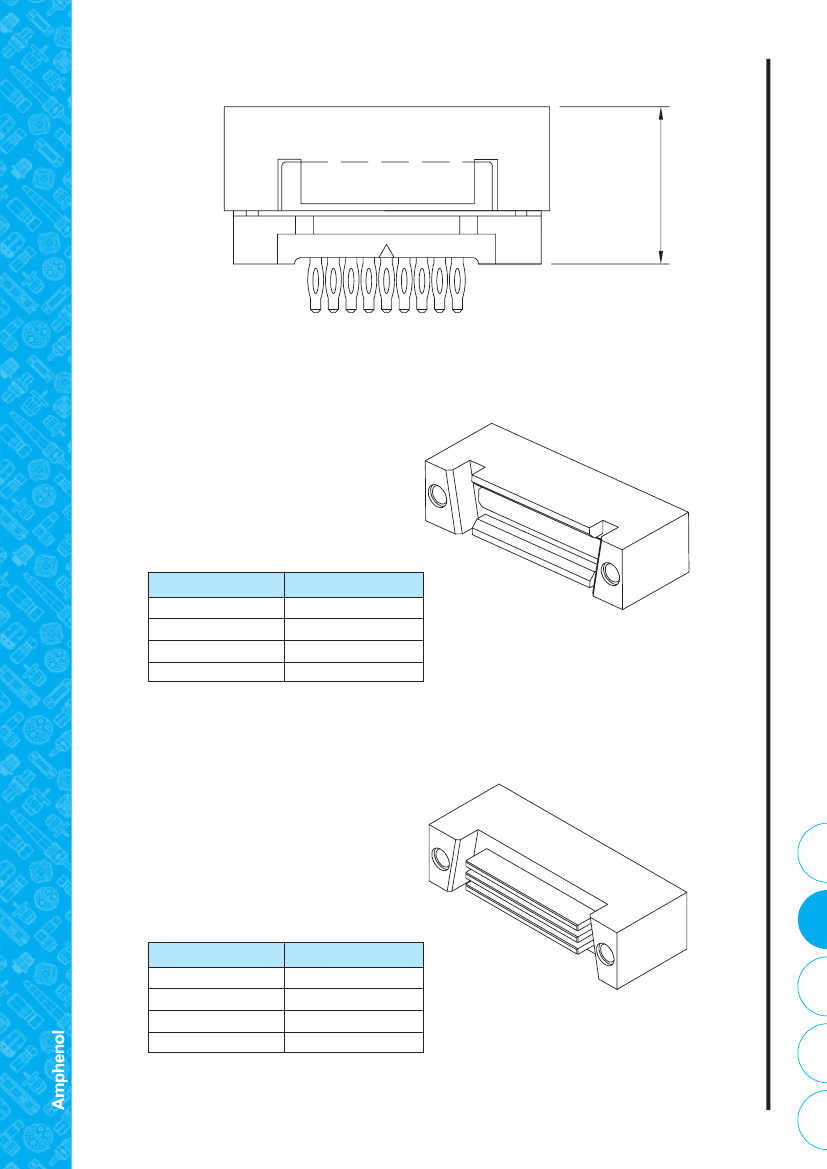

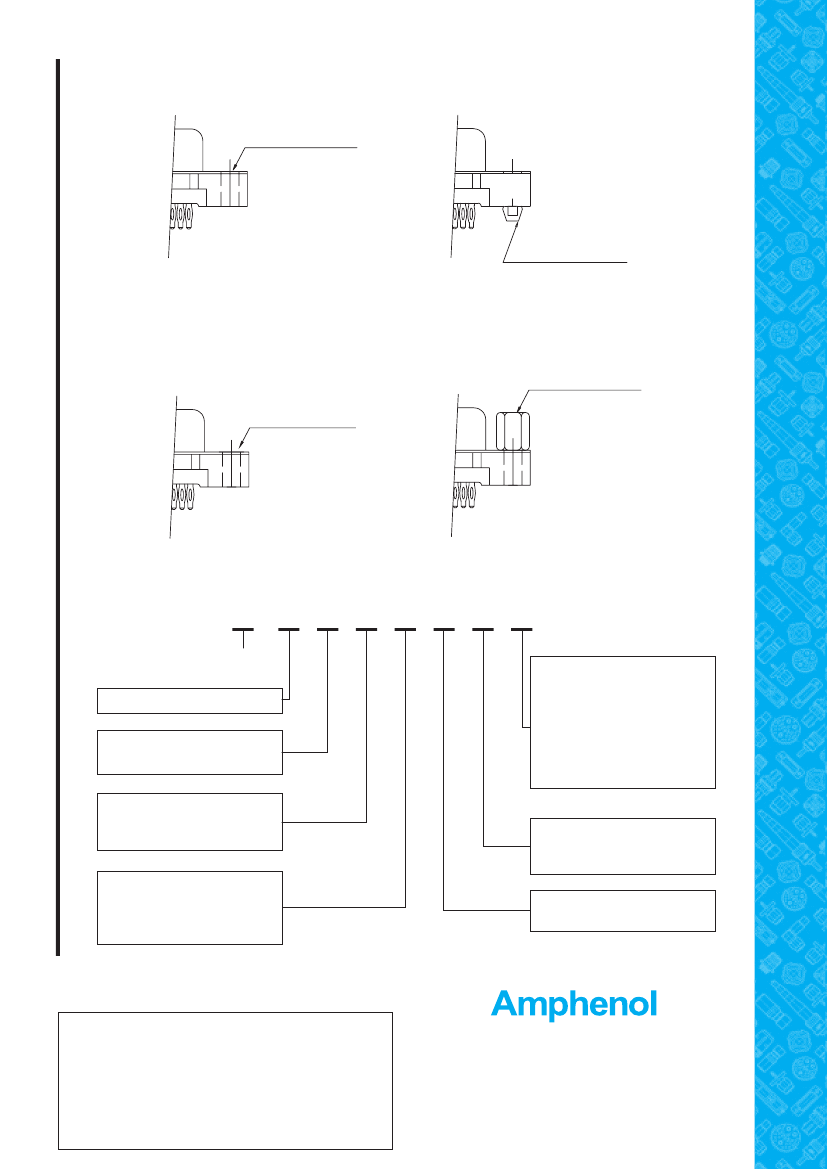

Board mounting option
Option 0
3.10mm (.122”)
Option 1
Press Fit Boardlock
Flange mounting option
M3 / #4 - 40 UNC
Screwlock
M3 / #4 - 40 UNC
Threaded holes
The information given in this document are as a guideline only. We reserve the right to modify our products in any way we deem necessary. Any duplication is prohibited, unless approved in writing.

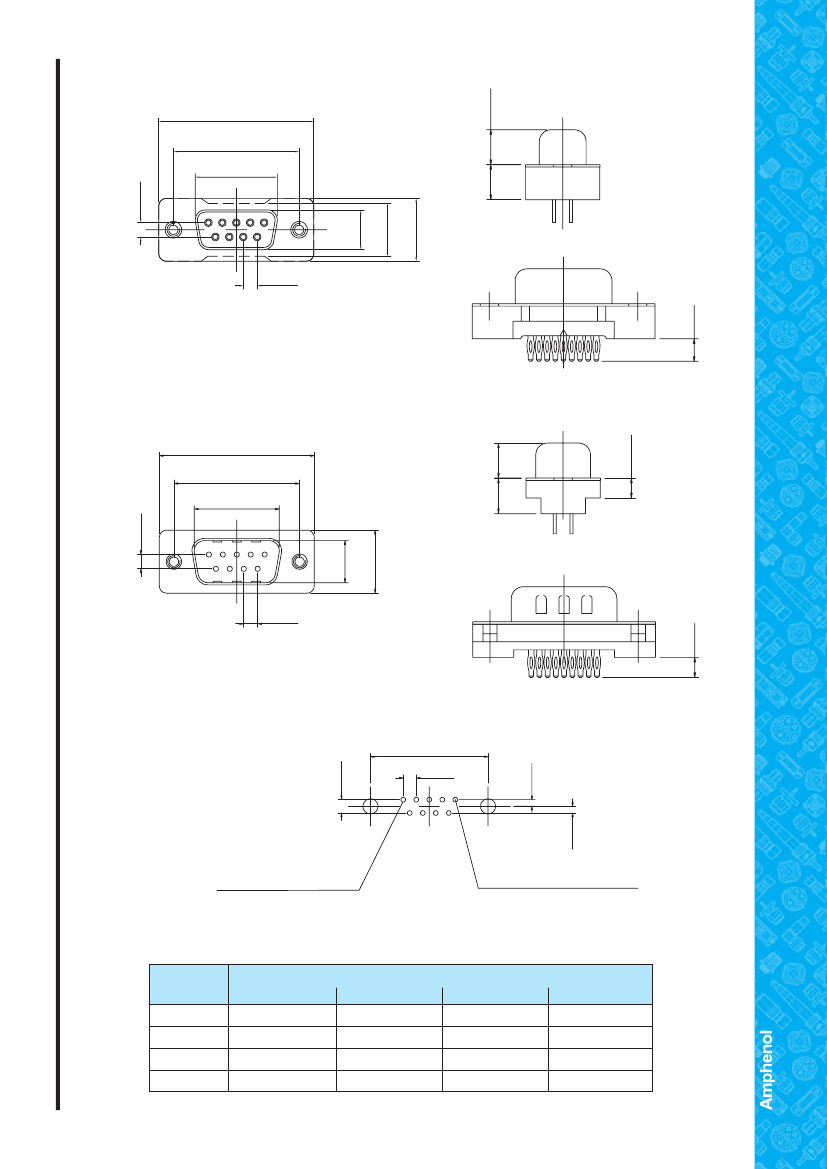

E4/E
Option 1 or 4
Option 2 or 5
How to order
L 17TF ... ... ... ... ... ...
RoHS Compliant
Series
Number of contacts :
09-15-25-37
Flange mounting option :
1 = #4-40 threaded hole
2 = #4-40 threaded hole with
#4-40 UNC screwlock
installed
4 = M3 threaded hole
5 = M3 threaded hole with
M3 scewlock installed
Contact type:
1 = pin
0 = socket
Board mounting option
0 = without boardlock
1 = with boardlock
Front shell plating
1 = tin over nickel
Contact plating
0 = gold flash
1 = 0.4 µm (15µ”)
2 = 0.76 µm (30µ”)
Do not hesitate to contact us for further information
Amphenol IT & Communication Products
Block A3/A4, The 4th Industrial District of
Industrial Headquarters, Dong Keng Road
Gong Ming Town, Shen Zhen China
Fax:+86(0)755 2754 9955
Technical Support
Tel:+86(0)755 2717 7945
Info-dsub@amphenol.com.cn
http://www.dsubconnector.com
