146505-1

Description
02 MODII HDR DRST UNSHRD STKG
CategoryThe connector    The connector
File Size237KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com

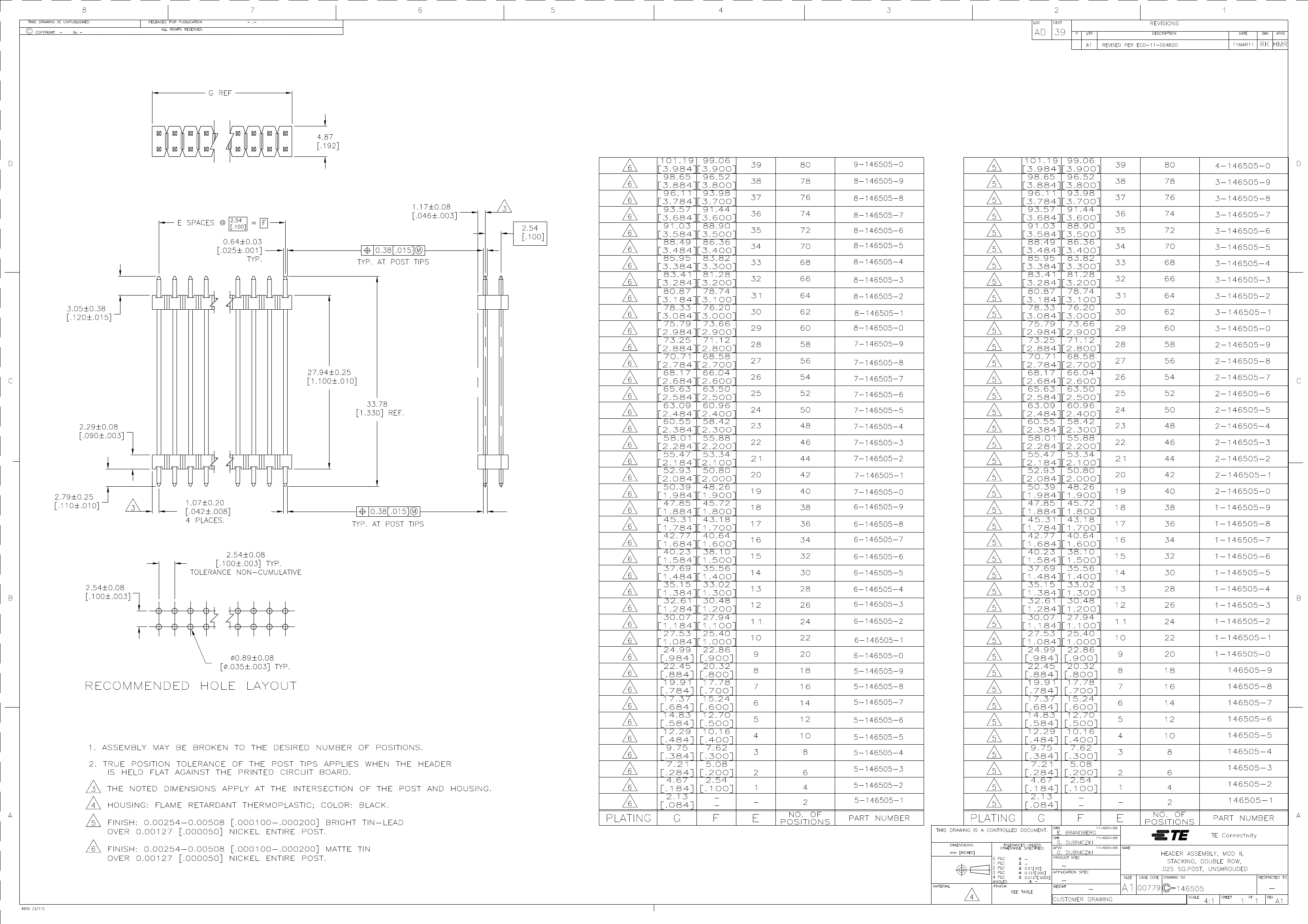

Download Datasheet Parametric View All

146505-1 Online Shopping

Suppliers Part Number Price MOQ In stock
146505-1 - - View Buy Now

146505-1 Overview

02 MODII HDR DRST UNSHRD STKG

146505-1 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time20 weeks 5 days
Is SamacsysN
Other featuresAMPMODU
body width0.192 inch
subject depth1.1 inch
body length0.084 inch
Body/casing typeRECEPTACLE
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage750VAC V
Filter functionNO
IEC complianceNO
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number146505
Match contact row spacing0.1 inch
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness100u inch
Rated current (signal)3 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.11 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts2
Base Number Matches1
