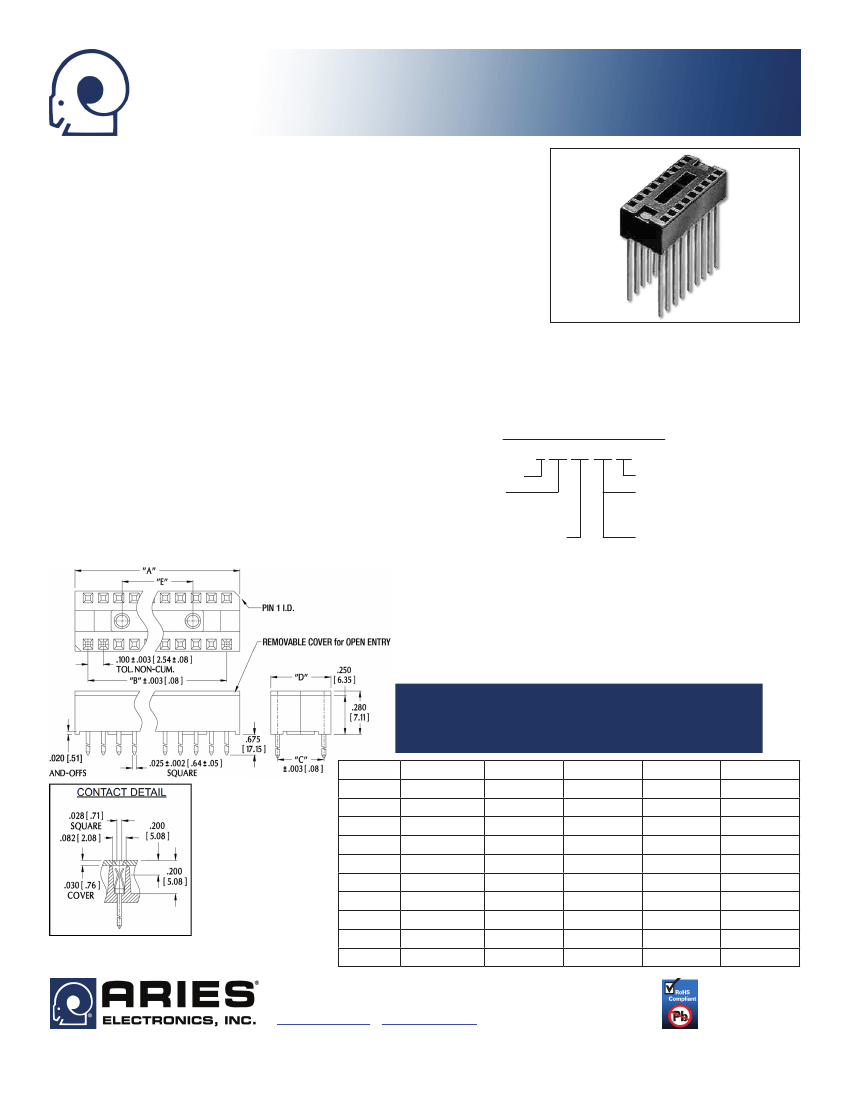

Series C81/C91 Standard Dual Beam
Wire Wrap Edge-Grip Socket
FEATURES
• Dual beam, edge-grip contacts provide high retention with positive wiping action
• Removable cover provides lower profile
• Side-to-side stackable
GENERAL SPECIFICATIONS
• BODY: black UL 94V-0 glass-filled 4/6 Nylon
• DUAL BEAM CONTACT: Grade A Phosphor Bronze, 1/2-hard
• CONTACT PLATING: (all over 50μ [1.27μ] Ni per SAE-AMS-QQ-N-290); Sn
200μ [5.08μ] min. matte Sn per ASTM B545-97; Sn/Pb 50-150μ [1.27-3.81μ]
min. 90/10 Sn/Pb per MIL-P-81728; Au 10μ [0.25μ] min. per MIL-G-45204
• CONTACT CURRENT RATING: 1.5 amp
CUSTOMIZATION:
In addition to the standard products shown
• CONTACT RESISTANCE: 20 mΩ initial
on this page, Aries specializes in custom design and production.
• INSULATION RESISTANCE: 100 mΩ @ 500 VDC per MIL-STD-1344, method
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
3003.1
right to change product general specifications without notice.
• DIELECTRIC WITHSTANDING VOLTAGE: 1000 VAC
• OPERATING TEMPERATURE: Sn -67°F to 221°F [-55°C to
105°C]; Au -67°F to 257°F [-55°C to 125°C]
ORDERING INFORMATION
• SOLDERABILITY: MIL-STD-202, Method 208, less heat aging
C XX XX-XX TL
• WITHOUT COVER: accepts leads up to 0.011 x 0.018 ±0.003
Socket Series
Optional Plating Sn/Pb
[0.28 x 0.46 ±0.08] or 0.021 [0.53] dia.
Pin Plating
C81 Series
• WITH COVER: accepts leads 0.100-0.200 [2.54-5.08] long
MOUNTING CONSIDERATIONS
81 = Sn
• SUGGESTED PCB HOLE SIZE: 0.046 ±0.002 [1.17 ±0.05] dia.
No. of Pins
(see Table)
91 = Au
04 = Closed Entry
54 = Open Entry w/o Cover
C91 Series
00 = Closed Entry
50 = Open Entry w/o Cover
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
No. of Pins
8
14
16
18
20
22
24
28
36
40
Dim “A”
0.465 [11.81]
0.765 [19.43]
0.865 [21.97]
0.965 [24.51]
1.065 [27.05]
1.180 [29.97]
1.280 [32.51]
1.480 [37.59]
1.880 [47.75]
2.080 [52.83]
Dim. “B”
0.300 [7.62]
0.600 [15.24]
0.700 [17.78]
0.800 [20.32]
0.900 [22.86]
1.000 [25.40]
1.100 [27.94]
1.300 [33.02]
1.700 [43.18]
1.900 [48.26]
Dim. “C”
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.300 [7.62]
0.400 [10.16]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
0.600 [15.24]
Dim. “D”
0.400 [10.16]
0.400 [10.16]
0.400 [10.16]
0.400 [10.16]
0.400 [10.16]
0.500 [12.70]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
0.700 [17.78]
Dim. “E”
N/A
0.300 [7.62]
0.400 [10.16]
0.400 [10.16]
0.400 [10.16]
0.500 [12.70]
0.500 [12.70]
0.500 [12.70]
0.800 [20.32]
0.800 [20.32]
