18-822-90E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 18-822-90E

18-822-90E: DescriptionIC u0026 Component Sockets THRIFTY VERTISOCKETS BIFURCATED 18 PINS; CategoryThe connector socket; File Size587KB，1 Pages; ManufacturerAries Electronics; Environmental Compliance

Download Datasheet Parametric View All

18-822-90E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	18-822-90E	-	-	View	Buy Now

18-822-90E Overview

IC u0026 Component Sockets THRIFTY VERTISOCKETS BIFURCATED 18 PINS

18-822-90E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	VERTSOCKET, STANDARD: UL 94V-0
body width	0.4 inch
subject depth	0.5 inch
body length	0.95 inch
Contact to complete cooperation	MATTE TIN (50) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
Device slot type	IC SOCKET
Type of equipment used	DIP18
Shell material	NYLON46
JESD-609 code	e3
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Number of contacts	18
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.2 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

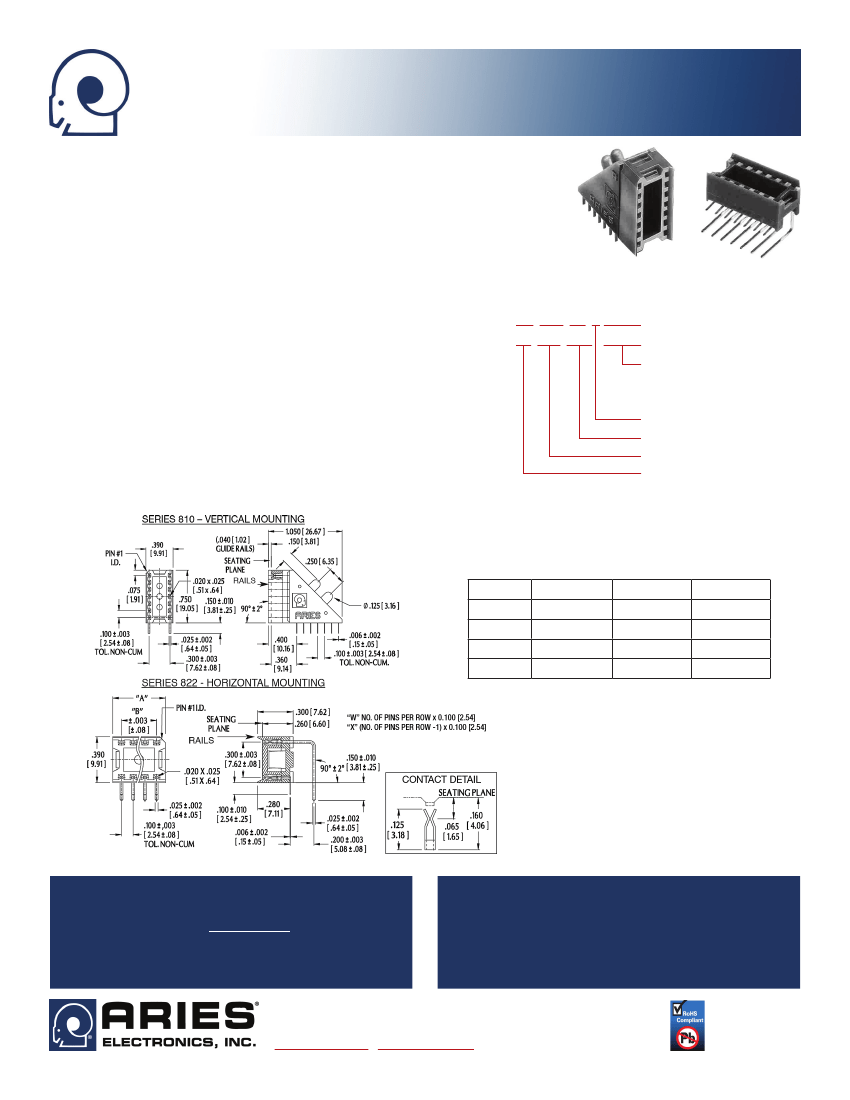

Series 810 & 822 Economy Vertisocket

w/Bifurcated Contacts

FEATURES

• High-volume Vertical Display Mounting Applications

• Useful for Connection of Board-to-Board Jumpers and DIP Switches, as well as LED Devices

GENERAL SPECIFICATIONS

•

STANDARD BODY MATERIAL: black UL 94 V-0 4/6 Nylon

•

BIFURCATED CONTACTS: Grade-A spring-tempered Phosphor Bronze per QQ-B-750

•

STANDARD CONTACT PLATING: 50μ [1.27μ] min. matte Sn per ASTM B545-97 over 50μ

[1.27] Ni per QQ-N-290 –OR– 90/10 Sn/Pb per MIL-T-10727 Type 1 over 50μ

ORDERING INFORMATION

[1.27] Ni per QQN-290

XX-822-90 E XXXX

•

CONTACT CURRENT RATING: 1 amp

•

OPERATING TEMPERATURE:

221°F [105°C]

14-810-90R XXXX

•

INSERTION FORCE: 110g/pin average

Optional Rail & Plating

•

WITHDRAWAL FORCE: 75g/pin average

WR = Without Rails

•

FLAT LEADS: up to 0.014 [0.36] thick and 0.020 [0.51] wide

TL = Sn/Pb

•

ROUND LEADS: up to 0.020 [0.51] dia.

WRTL = Without Rails, Sn/Pb

•

LEAD LENGTHS:

0.75-0.160 [1.91-4.06] dia.

Economy Version

Display Angle

Series

Pin Count

(See Table)

MOUNTING CONSIDERATIONS

•

SUGGESTED PCB HOLE SIZE

For P/N 14-810-90R = 0.036 ±0.002 [0.91 ±0.05] dia.

For P/N XX-822-90E = 0.044 ±0.002 [1.12 ±0.05] dia.

Body Style

Dim. “Y”

0.450 [11.43]

0.750 [19.05]

0.850 [21.59]

0.950 [24.13]

Dim. “Z”

0.300 [7.62]

0.600 [15.24]

0.700 [17.78]

0.800 [20.32]

Pin Count

8, 10

8, 10, 12, 14, 16

8, 10

8, 10, 12, 14, 16

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

FOR HORIZONTAL MOUNTING, SEE DATA SHEET 13005

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.

SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE

FURNISHED, DEPENDING ON QUANTITY.

ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS

WITHOUT NOTICE

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE

CONSIDERED UNCONTROLLED

2609 Bartram Road

•

Bristol, PA 19007-6810 USA

TEL 215-781-9956

•

FAX 215-781-9845

WWW.ARIESELEC.COM

•

INFO@ARIESELEC.COM

13003

Rev. 6.1

1 of 1
