Part Number

Search

532447-5

Description
HDI PIN ASSY 3 ROW 120 POS
CategoryThe connector    The connector
File Size205KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

532447-5 Online Shopping

Suppliers Part Number Price MOQ In stock
532447-5 - - View Buy Now

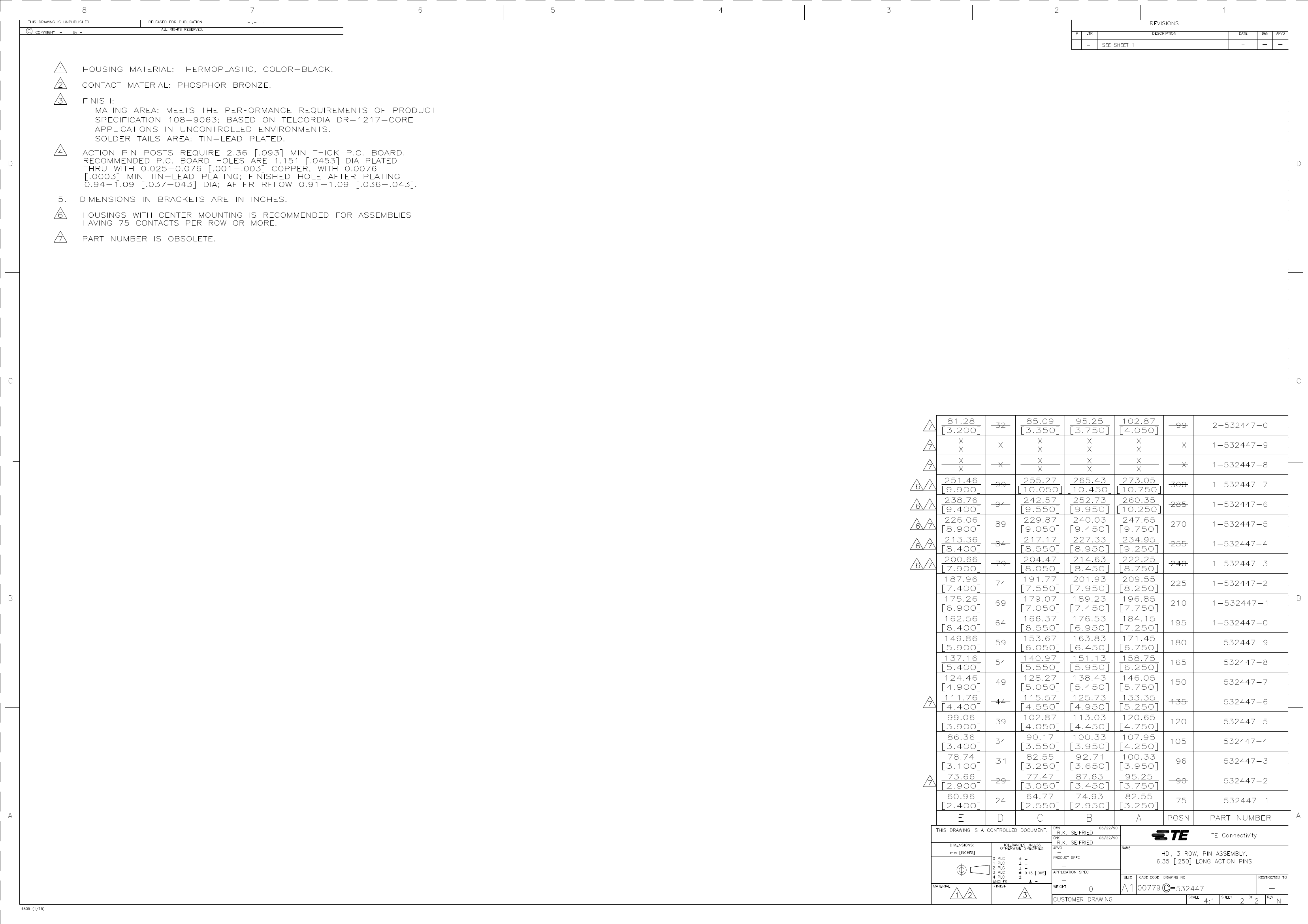

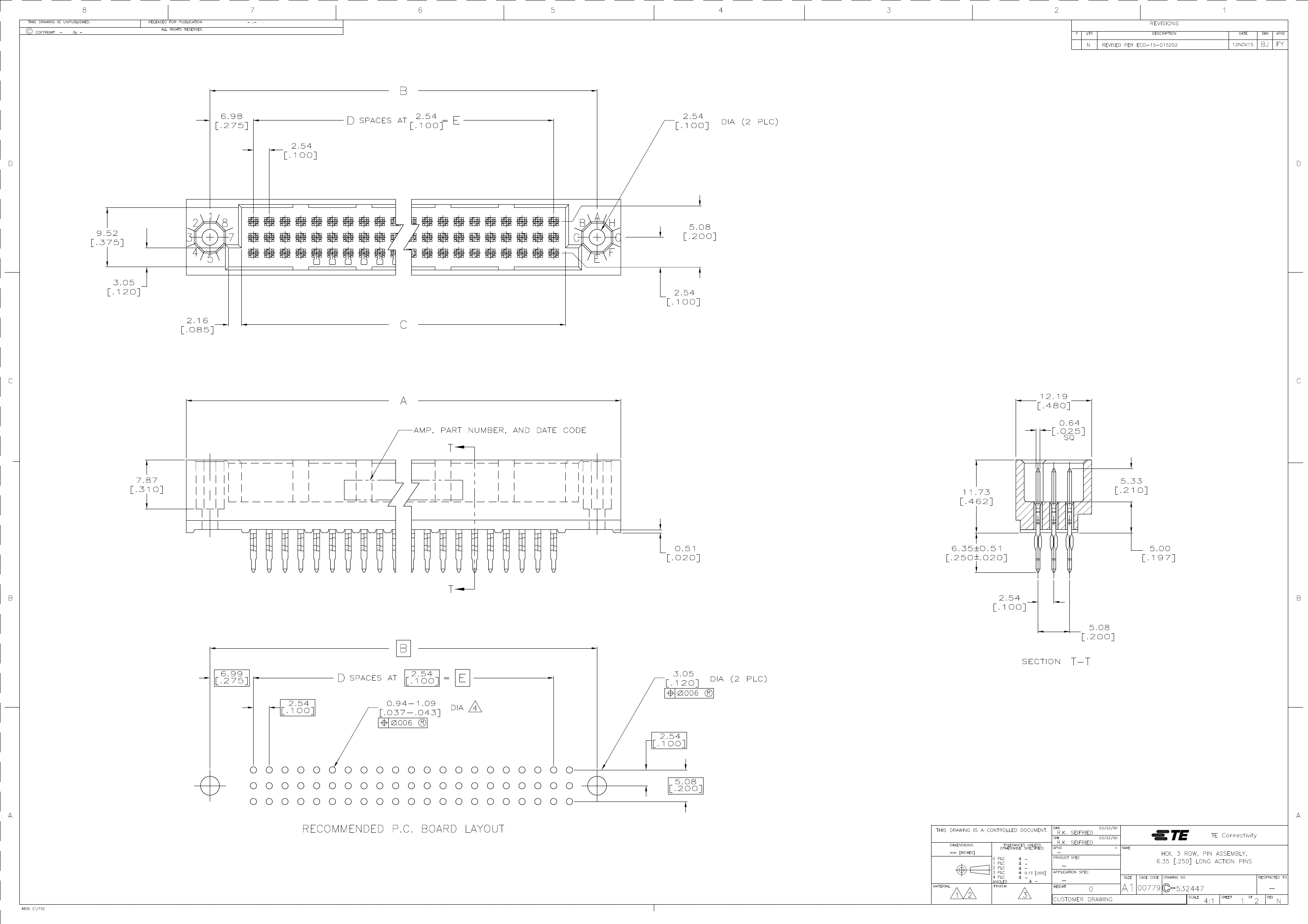

532447-5 Overview

HDI PIN ASSY 3 ROW 120 POS

532447-5 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Lead free
Is it Rohs certified?incompatible
Reach Compliance Codenot_compliant
ECCN codeEAR99
Factory Lead Time21 weeks
Other featuresACTION-PIN
Board mount options#2-56 THD HOLE
body width0.48 inch
subject depth0.462 inch
body length4.75 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Durability250 Cycles
Filter functionNO
IEC complianceNO
Insulator colorNATURAL
insulator materialGLASS FILLED POLYPHENYLENE SULPHIDE
MIL complianceNO
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1#2-56
Installation option 2THREADED
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number3
Number of rows loaded3
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness30u inch
polarization keyPOLARIZED KEY
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.25 inch
Terminal pitch2.54 mm
Termination typePRESS FIT
Total number of contacts120
Base Number Matches1
